Schurter

42-051

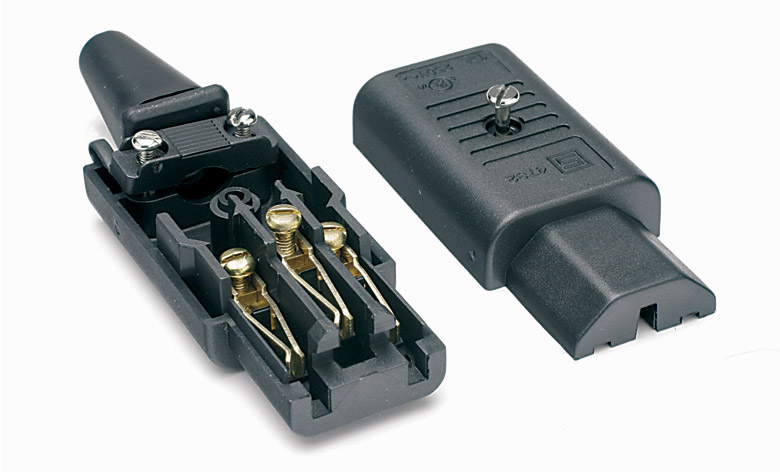

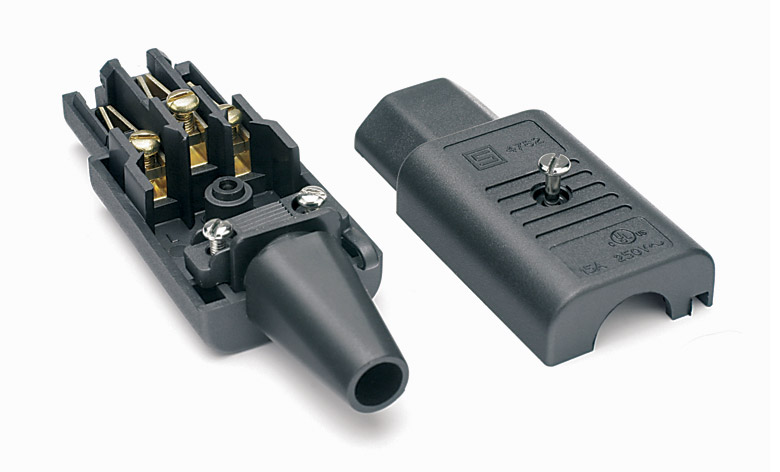

SCHURTER IEC MAINS CONNECTOR, C13 type, female, cable

SCHURTER IEC MAINS CONNECTOR, C13 type, female, cable
SCHURTER IEC MAINS CONNECTOR, C13 type, female, cableSCHURTER IEC MAINS CONNECTOR, C13 type, female, cable

SCHURTER IEC 60320 (CEE22) AC MAINS POWER CONNECTORS

AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz rated, meeting IEC 60320 including standard sheets C13, C14 for appliance couplers and types E and F for interconnection couplers. Approvals: IEC/EN, UL, AS/NZS and CSA.

Cable Types

Rewireable male and female cable types with professional screw terminals (wire receptacle hole and cross clamp-screw). Wire size up to 3x1mm sq. (18 AWG).

Cable type, 42-051

Female (mains outlet) C13 type, cable connector. Rear cable entry.

Cable type, 42-054

Male (mains inlet) E type, cable connector. Rear cable entry.

Panel Types

Flange type, 42-053

Male (mains inlet) C14 two hole type. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 x 20.0mm min, screw hole centres 40.00mm, 3.5mm diameter.

Snap-in type, 42-052

Male (mains inlet) C14 type. Suitable for 1.5mm panel thickness. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 +0.2/-0.0 x 19.8mm +0.2/-0.0.

Snap-in type, 42-055

Female (mains outlet) F type. Unshuttered. Suitable for use with 1.5mm panel thickness. 3.5mm solder terminals. Panel cutout 32.5 x 24.8mm.

Optional accessories: Moulded PVC insulating cover, stock code 42-159 and 42-148.

Alternatives

Right angled cable types, fused inlet and snap-in types for other panel thicknesses are available to special order, please contact Sales.

Note: sometimes referred to as CEE22, this was the former standard before being eventually incorporated into IEC 60320.

  Bezeichnung Preis (€) Hinzufügen
SCHURTER IEC MAINS CONNECTOR, C13 type, female, cable   Artikelnummer: 42-051
Bitte einloggen um der Lagerstand und die Verfügbarkeit zu sehen
1+ 3,06 €
10+ 2,92 €
50+ 2,78 €
100+ 2,64
pro Stück
SCHURTER IEC MAINS CONNECTOR, E type, male, cable   Artikelnummer:
Bitte einloggen um der Lagerstand und die Verfügbarkeit zu sehen
1+ 4,18 €
10+ 3,98 €
50+ 3,79 €
100+ 3,61
pro Stück
SCHURTER IEC MAINS CONNECTOR, F type, female, panel 1.5mm, snap-in fixing   Artikelnummer:
Bitte einloggen um der Lagerstand und die Verfügbarkeit zu sehen
1+ 1,36 €
10+ 1,30 €
50+ 1,23 €
100+ 1,17
pro Stück
SCHURTER IEC MAINS CONNECTOR, C14 type, male, panel 1.5mm, snap-in fixing   Artikelnummer:
Bitte einloggen um der Lagerstand und die Verfügbarkeit zu sehen
1+ 0,84 €
10+ 0,80 €
50+ 0,77 €
100+ 0,73
pro Stück
SCHURTER IEC MAINS CONNECTOR, C14 type, male, panel, flange, 2 hole   Artikelnummer:
Bitte einloggen um der Lagerstand und die Verfügbarkeit zu sehen
1+ 1,53 €
10+ 1,46 €
50+ 1,39 €
100+ 1,32
pro Stück
IEC MAINS Insulating cover for female panel types   Artikelnummer:
Bitte einloggen um der Lagerstand und die Verfügbarkeit zu sehen
1+ 0,85 €
10+ 0,80 €
50+ 0,77 €
100+ 0,73
pro Stück
CANFORD REAR INSULATING COVER For IEC AC mains panel connector   Artikelnummer:
Bitte einloggen um der Lagerstand und die Verfügbarkeit zu sehen
1+ 0,99 €
10+ 0,94 €
50+ 0,92 €
100+ 0,90
pro Stück
