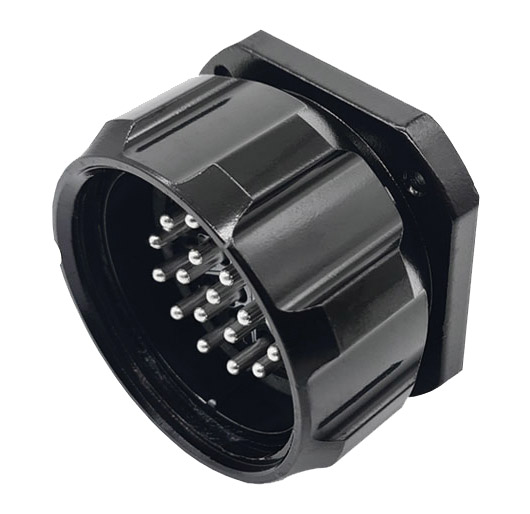

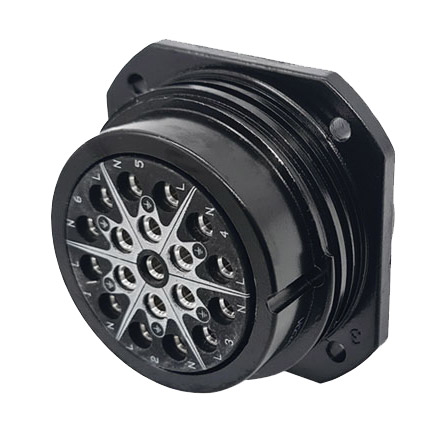

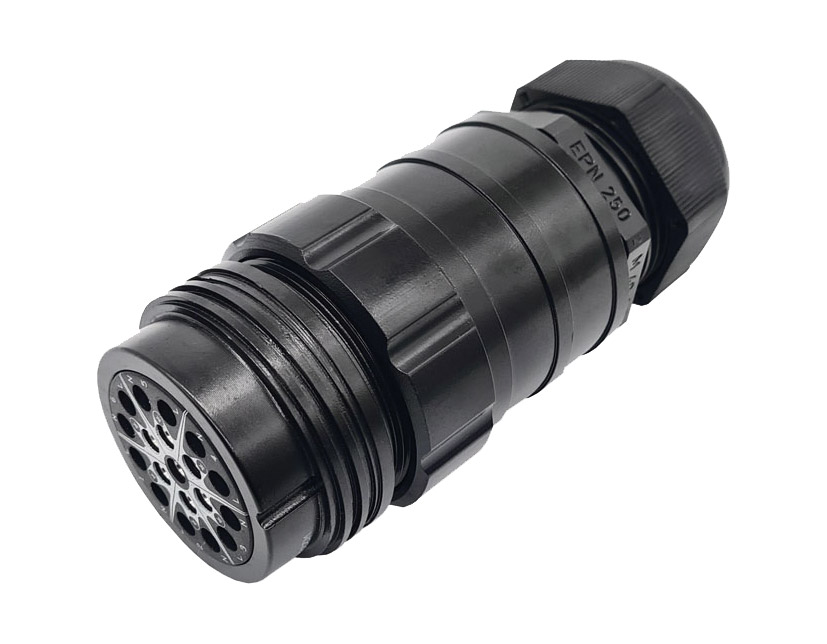

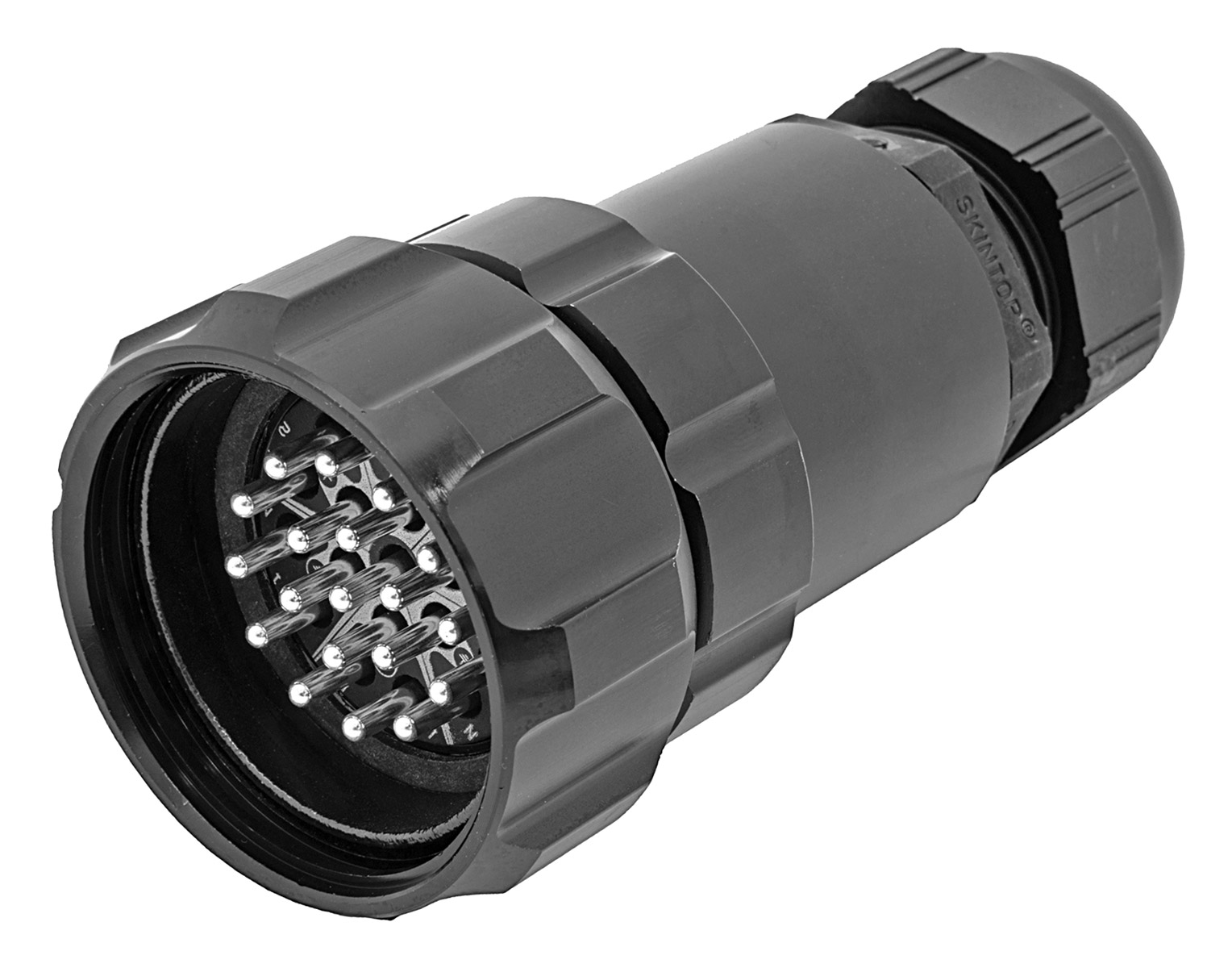

TEN 47 SHOWLINE 19 PIN SOCA CONNECTORS

19-pin Socapex compatible connectors from Ten 47 designed to meet the highest standards for entertainment lighting systems.

Available with variants for 15-23mm or 26-32mm outer diameter, with 1.5mm or 2.5mm 3 core HO7 conductors respectively. All connectors are manufactured with machined aluminum housing which has a hard wearing black finish providing enhanced durability whilst also helping the connectors to blend into scenery, useful in stage or studio lighting applications.

Ten 47s proprietary anti-rotation design features 12 interlocking keys to help prevent the spinning of an interior within a connectors housing. The Showline range helps to eliminate this long standing industry problem, while delivering enhanced safety and durability plus potential cost savings by eliminating broken conductors and loose or damaged ground rings, as well as preventing misalignment of male and female circuit conductors.

Specifications: Current rating; 23 Amps. Voltage rating; 600 VAC max. Operating temp; -55 degree Celsius / +60 degree Celsius. Ingress protection; IP67 when mated. Finish; Black. Insert; Silicone. Cable entry; 15-23mm / 26-32mm respectively. Conductor size: 1.5mm / 2.5mm respectively. Contacts; Silver plated brass.

Note: Crimp versions are available to special order. Please contact sales to make an enquiry.
