NEUTRIK XLR PANEL CONNECTORS - True outdoor protection series

The Neutrik True Outdoor Protection (TOP) series was designed for the increasing demands on interconnection systems. In particular, in harsh environment applications, where entertainment equipment such as PA systems, signs, LED screens or lighting, require an environmentally sealed connector. These UV resistant (F1 housing, F2 sealing), flame retardant (V0, halogen free) ruggedized, sealed connectors are IP65 rated even in unmated and open sealing cap condition.

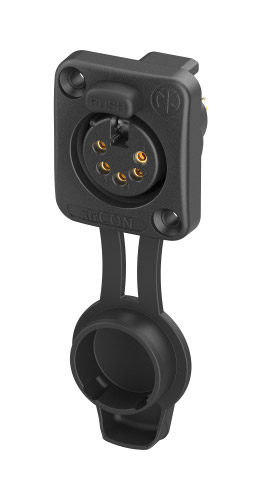

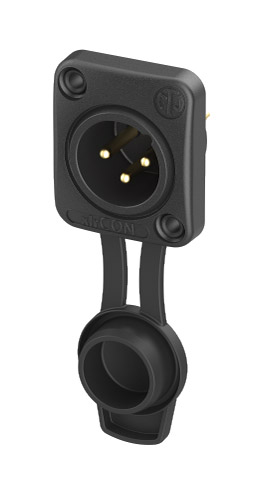

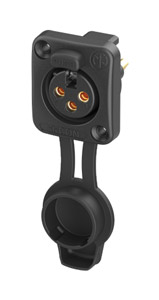

The TOP series is a heavy-duty, locking, XLR connector for outdoor applications. It is available in 3 and 5 pin configurations, with gold-plated contacts.

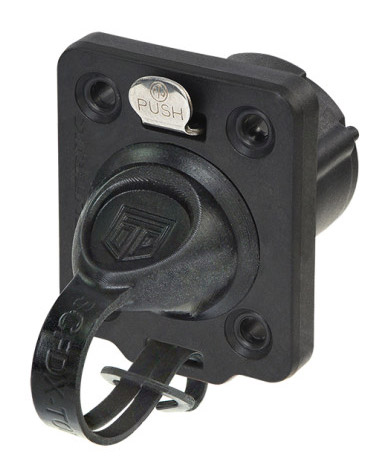

These universal housing connectors, common to most Neutrik connector ranges, allows simpler metalworking and more flexibility of use. The Polyamide shell, can be mounted from the front. M3 stainless-steel, countersunk screws are recommended. To the rear of the connector, there are solder contacts, and a gasket for sealing. An optional rubber plug is available to protect against ingress of dust and dirt when not in use.
