EMO SPEAKON BREAKOUT BOXES

3 Produkte

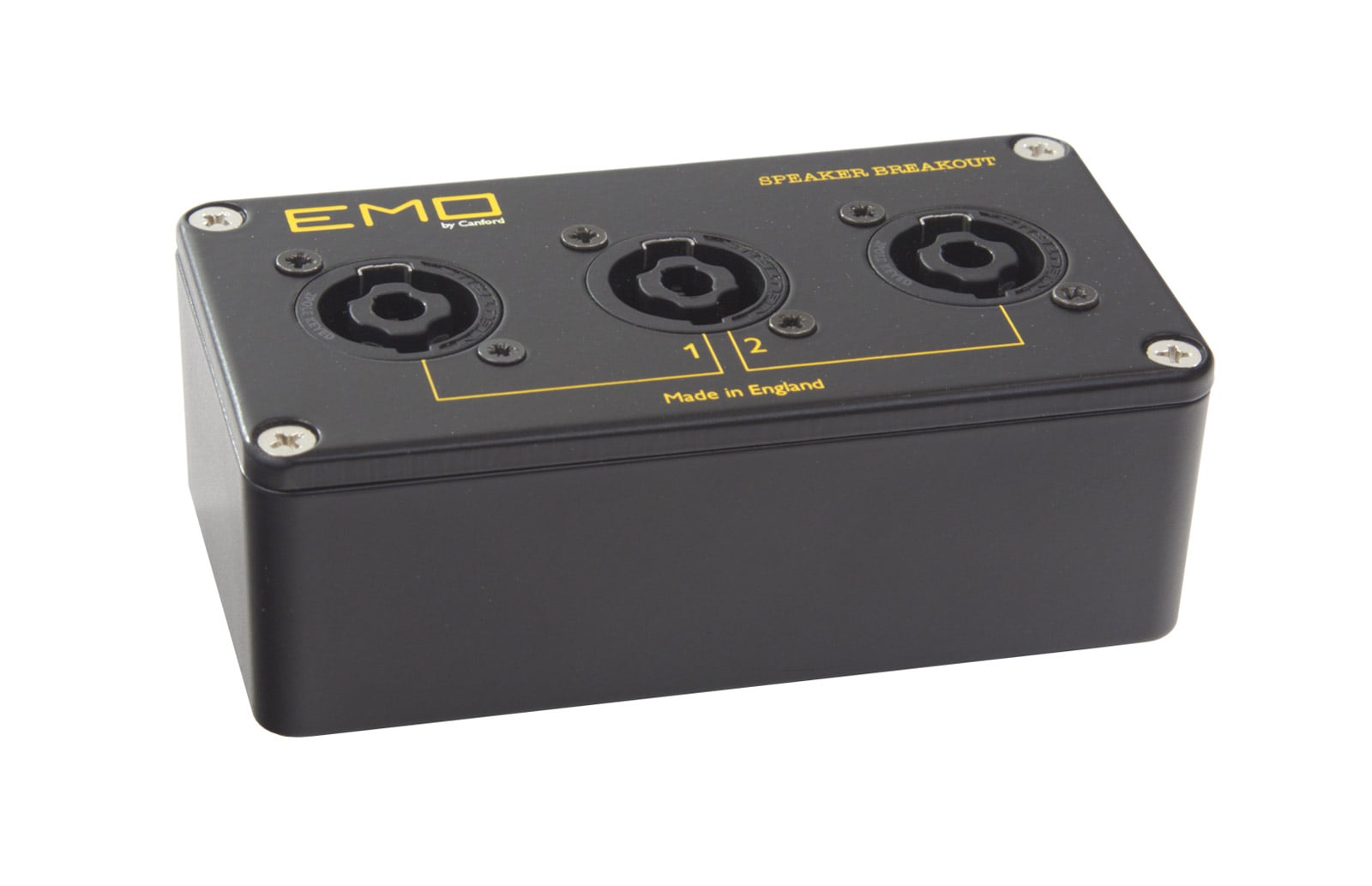

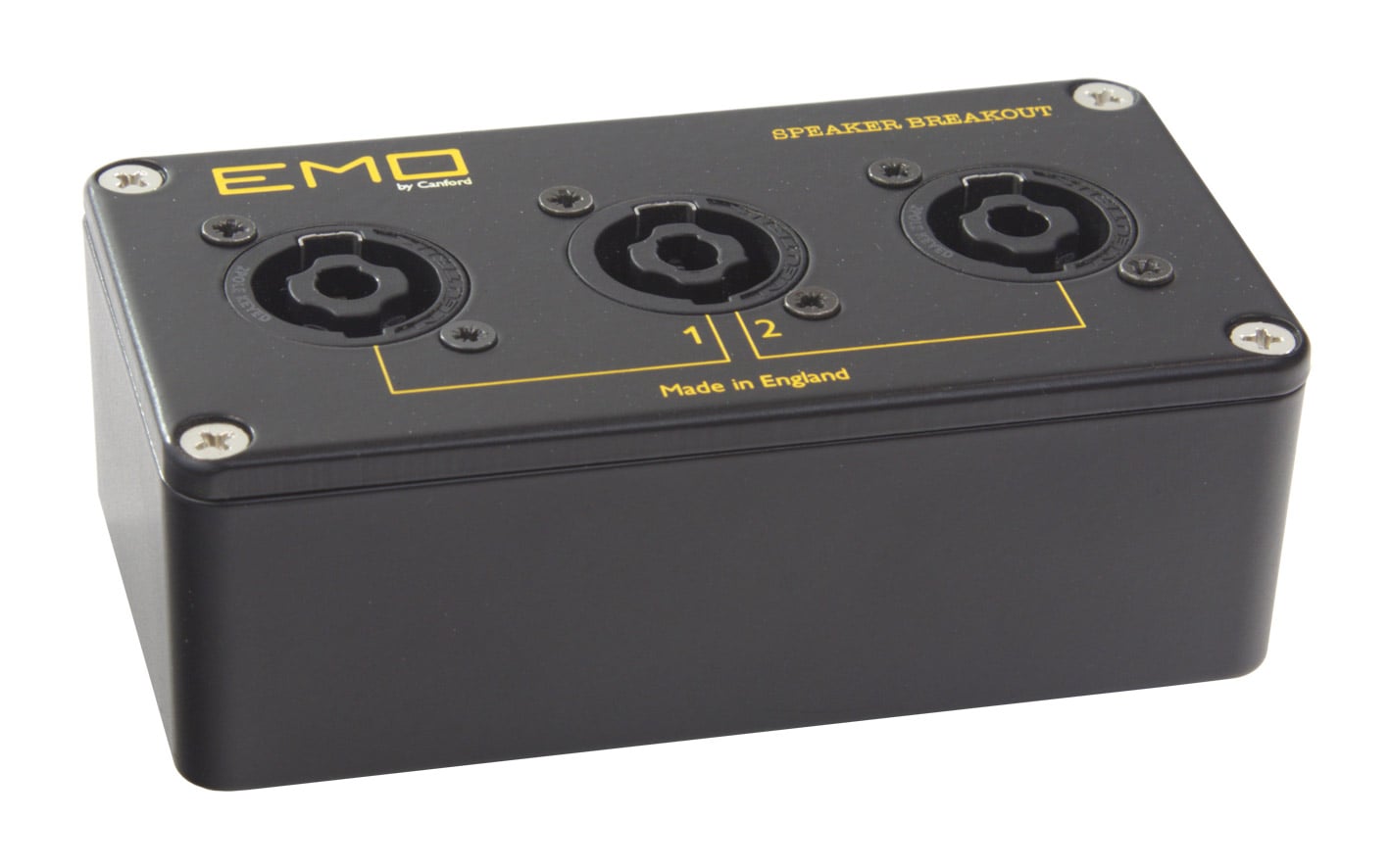

EMO E381 SINGLE SPEAKON BREAKOUT BOX
EMO E381 SINGLE SPEAKON BREAKOUT BOXEMO E382 DUAL SPEAKON BREAKOUT BOX

Brand New to the EMO brand, a range of loudspeaker parallel and breakout boxes. All versions are based on the Neutrik NL4MDXX SPEAKON Panel connector and built in a rugged diecast box.

The EMO E380 Parallel box is designed to allow the use of multiple speakers from the possible two channels of audio on the input connector. Consisting of three NL4MDXX SPEAKON panel connectors with all four pins of the connectors connected in parallel.

E380 Wiring Convention:
Input Output 1 Output 2
1+ 1+ 1+
1- 1- 1-
2+ 2+ 2+
2- 2- 2-

The EMO E381 and E382 are a single and dual version breakout box. Allowing the two channels of audio on the input NL4 connector each to be split out to two separate NL4 connectors. The single version having one input connector, the dual having two input connectors.

E381/E382 Wiring Convention:
Input Output 1 Output 2
1+ 1+ n/c
1- 1- n/c
2+ n/c 1+
2- n/c 1-
Bezeichnung Preis €
 Hinzufügen
EMO E380 SPEAKON PARALLEL BOX Artikelnummer: 42-1380
auf Bestellung zusammengestellt, lieferbar in Kontaktieren Sie uns.
119,13 €
EMO E381 SINGLE SPEAKON BREAKOUT BOX Artikelnummer: 42-1381
auf Bestellung zusammengestellt, lieferbar in Kontaktieren Sie uns.
119,13 €

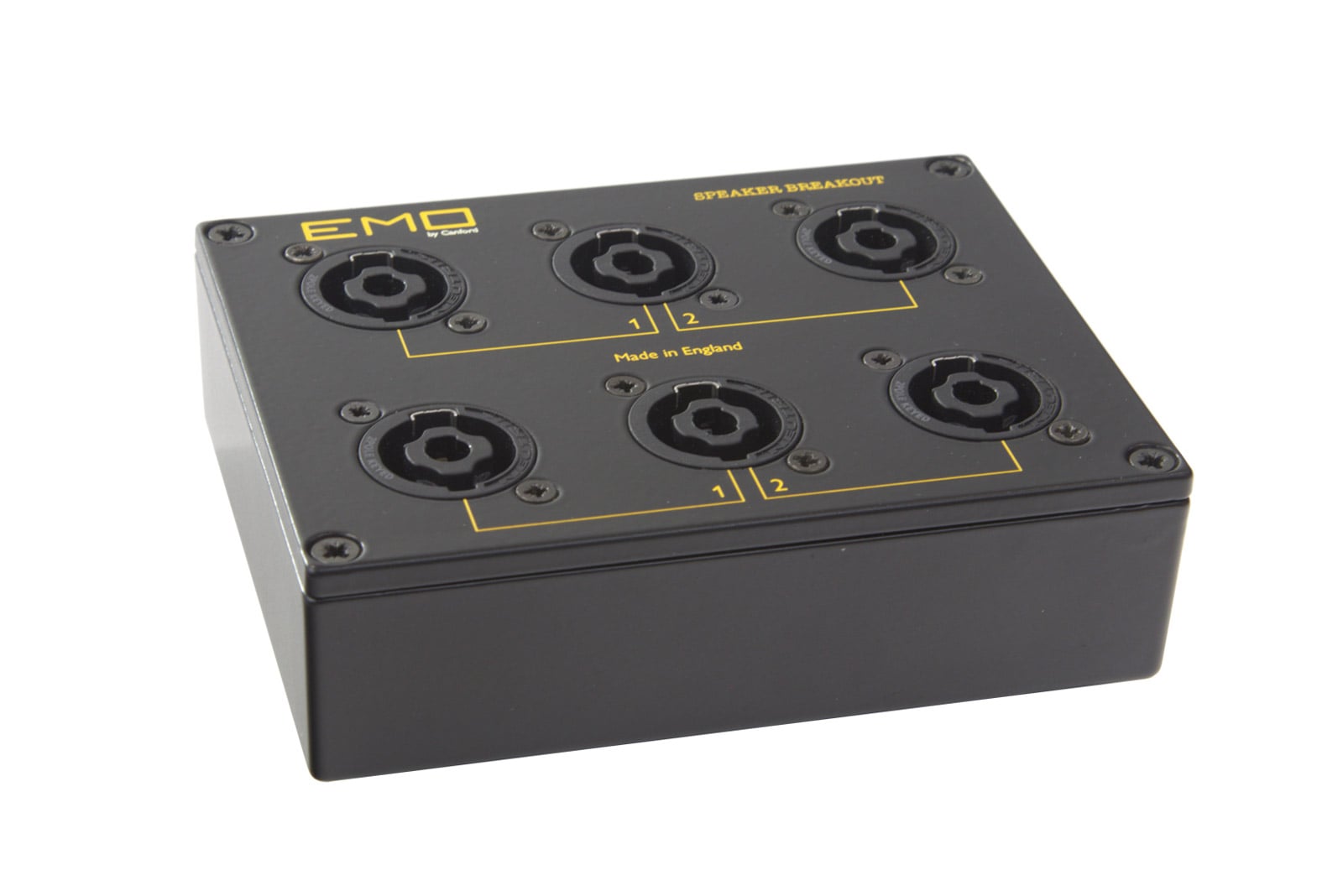

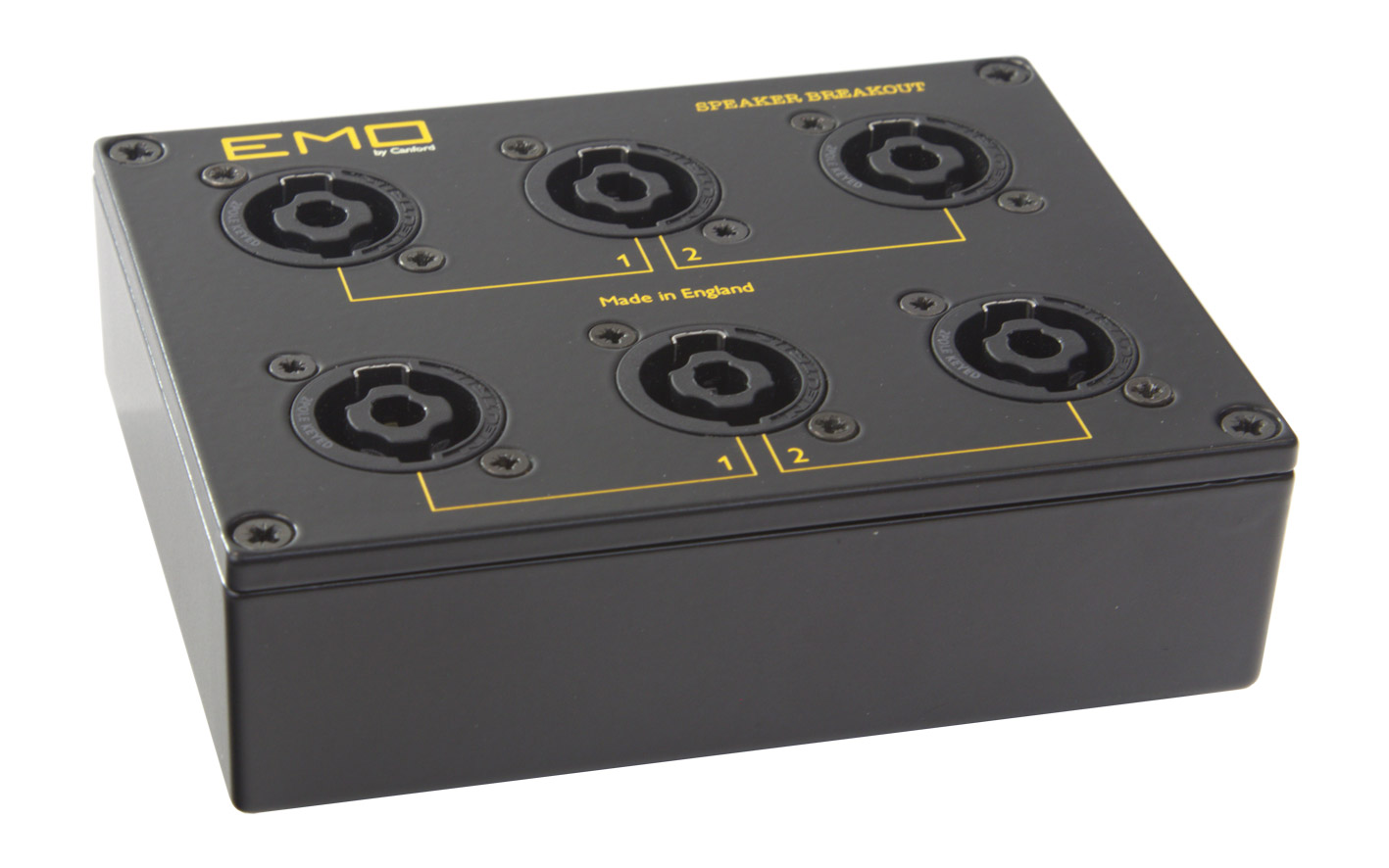

EMO E382 DUAL SPEAKON BREAKOUT BOX Artikelnummer: 42-1382
auf Bestellung zusammengestellt, lieferbar in Kontaktieren Sie uns.
162,34 €
