A range of extremely rugged TAC (tactical) fibre cables designed specifically for the most demanding of indoor and outdoor applications including outside broadcast, touring, sporting venues and stadiums.

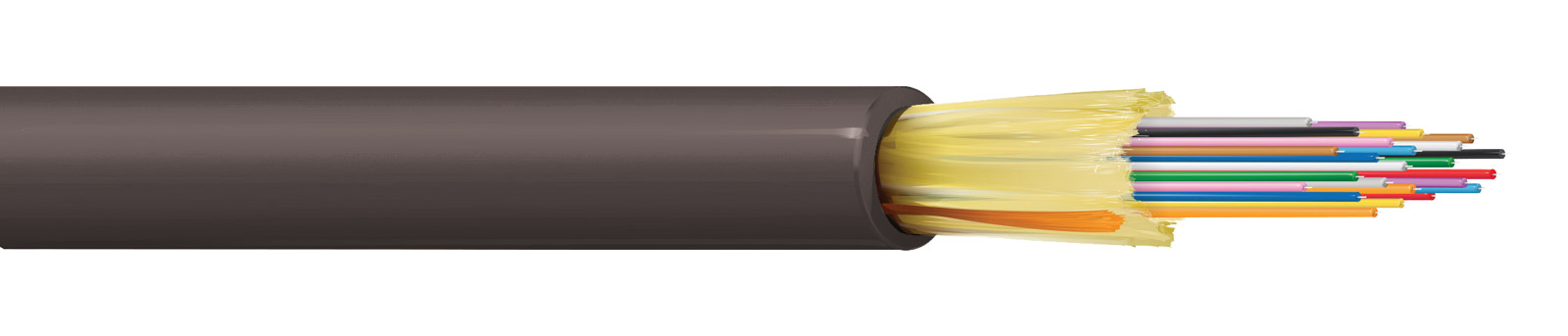

GMTTA Standard Tactical Fibre
Tight buffered construction exhibiting excellent impact and crush resistance. A PUR jacket offers flexibility as well as abrasion and chemical resistance, beneath the jacket is a swellable yarn which expands if it comes into contact with water and seals minor cuts or punctures. This compact round cable is easily reeled and has a low shape memory. Available with 2, 4, 6, 8, 12, or 24 cores. The G.657A1 specification singlemode fibres are optimised for use at 1310nm and 1550nm wavelengths.
Technical Specification
| Fibre optic cores: |
Single-mode OS2 G.657.A1, 9.micron diameter |
| Buffer: |
Tight construction, Nylon, 0.9mm diameter |
| Strength member: |
Swellable aramid yarns |
| Outer Jacket: |
Polyurethane (PUR) with Polyester rip cord, black |
| Overall diameter: |
2 fibres 5.4mm, 4 fibres 5.8mm, 6 fibres 7.0mm, 8 fibres 7.0mm, 12 fibres 8.2mm and 24 fibres 8.5mm |
| Weight (kg/1000m): |
2 fibres 27kg, 4 fibres 31kg, 6 fibres 40kg, 8 fibres 41kg, 12 fibres 60kg and 24 fibres 71kg |
| Reel length: |
2100m |
GMRTA Heavy-duty Tactical Fibre
Tight buffered construction exhibiting excellent impact and crush resistance. PUR outer and inner jackets offer flexibility as well as abrasion and chemical resistance with swellable glass yarns between the two jackets acting as additional strength members. Beneath the inner jacket is a swellable yarn which expands if it comes into contact with water and seals minor cuts or punctures. This compact round cable is easily reeled and has a low shape memory. Available with 2, 4, 6, 12, or 24 cores. The G.657A1 specification singlemode fibres are optimised for use at 1310nm and 1550nm wavelengths.
Technical Specification
| Fibre optic cores: |
Single-mode OS2 G.657.A1, 9.micron diameter |
| Buffer: |
Tight construction, Nylon, 0.9mm diameter |
| Strength members: |
Swellable glass and aramid yarns |
| Inner Jacket: |
Polyurethane (PUR) with Polyester rip cord |
| Inner Jacket diameter: |
2 fibres 5.8mm, 4 fibres 5.8mm, 6 fibres 7.0mm, 12 fibres 8.2mm and 24 fibres 8.5mm |
| Outer Jacket: |
Polyurethane (PUR), black |
| Overall diameter: |
2 fibres 9.2mm, 4 fibres 9.2mm, 6 fibres 9.9mm, 12 fibres 10.9mm and 24 fibres 11.3mm |
| Weight (kg/1000m): |
2 fibres 87kg, 4 fibres 88kg, 6 fibres 99kg, 12 fibres 103kg and 24 fibres 200kg |
| Reel length: |
2100m |
All cables have a predicted life of more than 30 years.
Cut lengths: Available in any multiple of 1 metre
