A selection of HDMI and DisplayPort repeaters from Lindy designed to extend signals over distances unachievable with standard cables.
38015 - HDMI, 50m, 10.2G
Lindy 38015 is a cost effective solution for extending HDMI signals up to distances of 50m without compression or loss of image quality. This repeater supports the minimum 10.2G bandwidth required for 4K resolutions of 3840 x 2160p at 60Hz over 35m, or full HD resolutions of 1920 x 1080p at 60Hz over 50m. Support for HDCP 1.4 and 2.2 pass-through also ensures issue-free playback of 4K content as well as full HD signals.
Powered via the HDMI interface this is a plug and play solution operated simply by connecting two separate HDMI cables from either end of the repeater to the relevant source and display devices.
Interface standard: HDMI 1.4. Maximum distance: 50m 1920 x 1080 at 60Hz 4:4:4 8bit, 35m 3840 x 2160 at 60Hz 4:2:0 8bit, 35m 3840 x 2160 at 30Hz 4:4:4 9 bit. Maximum input distance: 20m 1920 x 1080 at 60Hz 4:4:4 8bit, 15m 3840 x 2160 at 60Hz 4:2:0 8bit, 15m 3840 x 2160 at 30Hz 4:4:4 8bit. Maximum output distance: 20m 3840 x 2160 at 60Hz 4:2:0 8bit, 20m 3840 x 2160 at 30Hz 4:4:4 8bit. Housing material: ABS plastic. Dimensions: 50 x 27 x 15mm. Weight: 15g.
38211 - HDMI, 40m, 18G
Featuring a slim minimalistic design the Lindy 38211 is a premium solution for extending 4K HDMI signals up to distances of 40m with no degradation. This repeater supports a maximum resolution of 3840 x 2160 at 60Hz for full 4K video quality and with additional support for High Dynamic Range the users 4K HDR content can be viewed with enhanced contrast and more lifelike colour. HDCP pass-through also ensures the user that all 4K content can be played on their display.
Interface standard: HDMI 2.0. Maximum cable distance: 17.8G bandwidth 4K 60Hz 4:4:4 8 bit, 60Hz 4:2:2 12bit; 10m - 10m, 13.4G bandwidth 4K 60Hz 4:2:0 12bit, 30Hz 4:4:4 12bit; 15m - 10m, 8.9G 4K 60Hz 4:2:0 8bit, 1080p 4:4:4 16bit; 20m - 20m. Housing material: Metal. Dimensions: 28 x 51 x 13mm. Weight: 22g.

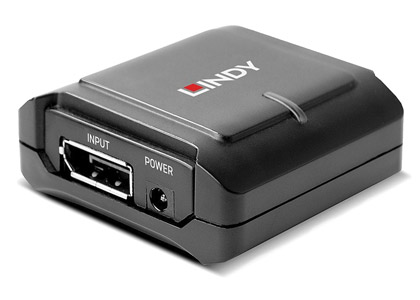

38415 - DisplayPort 1.4, 35m
The Lindy 38415 is an active solution for amplifying and extending high resolution 8K UHD signals up to distances of 12m with one repeater, or up to 32m when five repeaters are linked together. 4K UHD and Full HD resolutions can also be extended up to 35m using a single repeater.
Interface standard: DisplayPort 1.4. Supported bandwidth: 32.4Gbps. Maximum resolution: 7680 x 4320 at 60Hz 4:2:0 8bit. Maximum distance: 7680 x 4320 at 60Hz 12m, 3840 x 2160 at 60Hz 30m, 3840 x 2160 at 30Hz 35m. Maximum input distance: 7680 x 4320 at 60Hz 2m, 3840 x 2160 at 60Hz 10m, 3840 x 2160 at 30Hz 15m. Maximum output distance: 7860 x 4320 at 60Hz 10m, 3840 x 2160 at 60Hz 20m, 3840 x 2160 at 30Hz 20m. Power: 3.5/1.35mm DC socket, 5V DC 1A (Multi-country power supply included, UK, Euro, US, AUS). Housing material: Plastic. Dimensions: 54 x 54 x 19mm. Weight: 32g.
