OBD 1810 - 3G Bidirectional SDI/Fibre Transceiver
OBD 1810 is a bidirectional fibre optic to SDI transmitter and receiver which uses a single fibre link supplied in a compact self contained package. It is a convenient and cost effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. OBD 1810 modules are supplied in pairs, one Type A and one Type B which work together in a WDM closed loop application. Each module has an electrical SDI in and SDI out connection and uses a single fibre link between the two. Each channel is fully independent and can have different standards and formats of SDI video. The modules auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI source prior to conversion. The modules are fully compatible with 3G Level A and Level B formats. Note: This system used WDM optical multiplexing and should only be used in point to point applications. This solution cannot be integrated into a CWDM multiplexed system. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.
Included accessories: 2x SFP modules, 2x AC power supplies

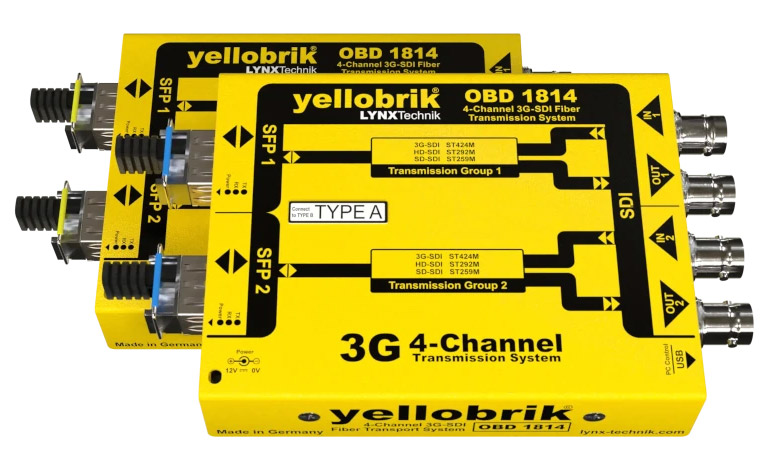

OBD 1814 - 4-Channel 3G SDI to Fibre Transceiver
OBD 1814 is a 4-channel bi-directional fibre to 3G-SDI transmitter and receiver which uses two single fibre links supplied in a compact, self-contained package. The module conveniently fit within 2RU height and is cost-effective solution to address the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. The kit includes two modules with their own power supplies. Type A and Type B which work together in a WDM closed loop environment. Each module has two 3G-SDI input and output. The system uses a pair of Simplex (single fibre) links between the two devices. Each channel is fully independent and can support different standards and formats of SDI video. The modules auto-detect and re-clock any 3G/1.5G-SDI source prior to conversion. The modules are fully compatible with 3G Level A and Level B formats.
Note: This system uses WDM optical multiplexing and should only be used in point to point applications. This solution cannot be integrated into a CWDM multiplexed system.
Included accessories: 2x SFP modules, 2x AC power supplies
OBD 1410 - 12G Bidirectional SDI/Fibre Transceiver
OBD 1410 is a bidirectional fibre optic to SDI transmitter and receiver which uses a single fibre link supplied in a compact self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. OBD 1410 modules are supplied in pairs, one Type A and one Type B which work together in a WDM closed loop application. Each module has an electrical SDI in and SDI out connection and uses a single fibre link between the two. Each channel is fully independent and can have different standards and formats of SDI video. The modules auto-detect and re-clock any 1.5G, 3G, 6G or 12G SDI source prior to conversion. The modules are fully compatible with 3Gbit Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.
Included accessories: 2x SFP modules, 2x AC power supplies

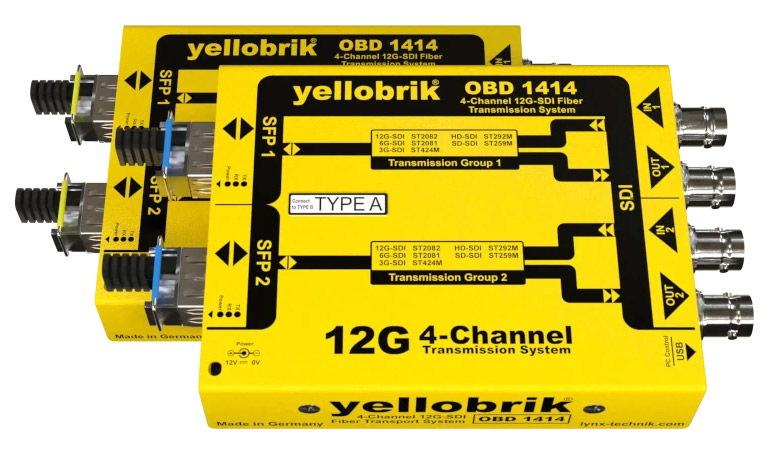

OBD 1414 - 4-Channel 12G SDI to Fibre Transceiver
OBD 1414 is a 4-channel bi-directional fibre to 12G-SDI transmitter and receiver which uses two single fibre links supplied in a compact, self-contained package. The module conveniently fit within 2RU height and is cost-effective solution to address the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. The kit includes two modules with their own power supplies. Type A and Type B which work together in a WDM closed loop environment. Each module has two 12G-SDI input and output. The system uses a pair of Simplex (single fibre) links between the two devices. Each channel is fully independent and can support different standards and formats of SDI video. The modules auto-detect and re-clock any 12G//6G/3G/1.5G-SDI source prior to conversion. The modules are fully compatible with 3G Level A and Level B formats.
Note: This system uses WDM optical multiplexing and should only be used in point to point applications. This solution cannot be integrated into a CWDM multiplexed system.
Included accessories: 2x SFP modules, 2x AC power supplies
OTR 1410 - 12G, 6G, 3G, HD SDI / Fiber Optic Transceiver
OTR 1410 is a fibre/SDI transmitter and receiver combined in a single self contained package. It is a cost-effective solution to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. Each OTR 1410 transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 12G (4096×2160 at 60Hz), while preserving full uncompressed quality. Operation of the receiver and transmitter is automatic. For transmission, the SDI video format is automatically detected, re-clocked and then transmitted over the fibre optic TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, re-clocked and provided on the SDI output connection. OTR 1410 supports 12G, 6G, 3G and 1.5G SDI video standards. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.
Included accessories: 2x SFP modules, 2x AC power supplies

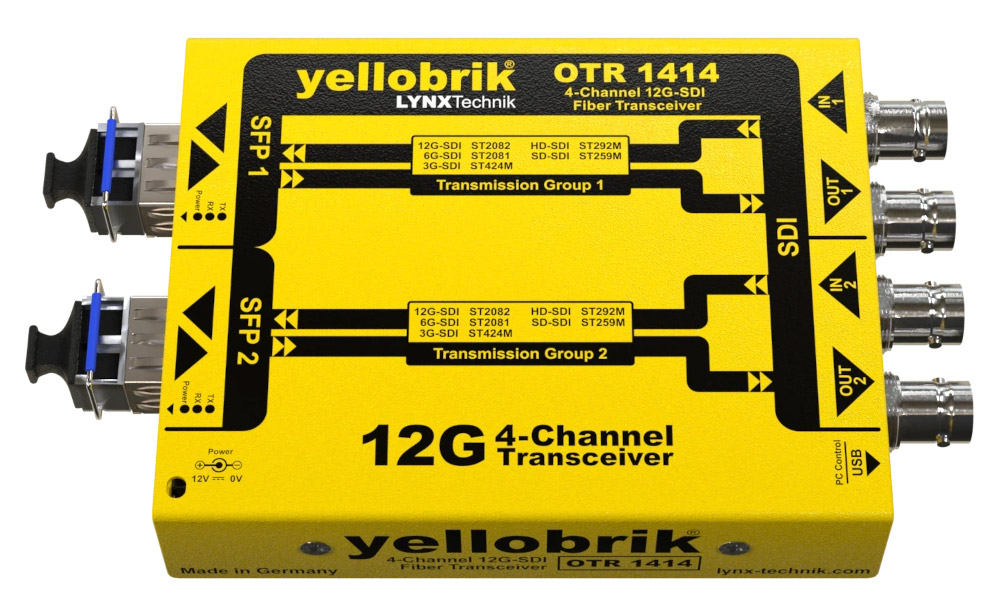

OTR 1414 - 4-Channel 12G SDI to Fibre Transceiver
OTR 1414 is a 4-channel fibre/SDI transmitter and receiver combined into a single self contained package. The module is a convenient and cost-effective solution to overcome the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. Each OTR 1414 transceiver has two independent transmitter and receiver channels, which provide an effective solution for any 12G-SDI signal up to 4096 x 2160p 60Hz. Operation of the receivers and transmitters are automatic. For transmission, the 12G-SDI video format is automatically detected, reclocked and then transmitted over the fibre TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, reclocked and provided on the 12G-SDI output.
OTR 1414 supports 12G/6G/3G/1.5G/SD-SDI video standards. Like all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
Available versions
OTR 1414 Wavelength of 1310nm 10km LC Includes SFP
OTR 1414 CW CWDM 18 wavelengths 40km LC SFP not included
Compatible SPF modules
OH-TR-12G-LC
OH-TR-12G-XXXX-LC
OTR 1440 - 12G Bidirectional SDI/Fibre Transceiver (CWDM)
OTR 1440 is a CWDM fibre optic to SDI transmitter and receiver combined in a compact self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. Each OTR 1440 CWDM transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 12G (4096 x 2160 at 60Hz), while preserving full uncompressed quality. Select from 16 transmitter wavelengths for full CWDM compatibility (ITU-T G.694.2). OTR 1440 will auto-detect and re-clock any 1.5G, 3G, 6G, or 12G SDI source prior to conversion. The module is fully compatible with 3Gbit Level A and Level B formats. Power: +12V DC at 1.9W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.
Included accessories: AC power supply. Note: SFP module not included.
Compatible SPF modules
OH-TR-12G-XXXX-XXXX-LC
OTR 1810 - 3G Bidirectional SDI/Fibre Transceiver
This as an independent fibre receiver and transmitter in a single package. Paired with another OTR 1810 module, the combination provides a single-channel bi-directional transmission system for signals up to 3Gb/s (1080p60). Using the same basic module, two versions are available; each has a different SFP installed, providing either singlemode or multimode fibre connections on LC fibre. Singlemode versions offer up to 10km range for 3G SDI, the multimode version offers up to 300m for 3G SDI. They may also be used in conjunction with the appropriate ports and fibre modes of OTX 1812, OTT 1812, ORX 1802 and ORR 1802 modules. Power: +12V DC at 2W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.
Versions available
OTR 1810-LC Singlemode LC Wavelength of 1260-1620nm Sensitivity: -16dBm Up to 10km
OTR 1810-MM Multimode LC Wavelength of 750-880nm Sensitivity: -15dBm Up to 300m
Included accessories: SFP module, AC power supply

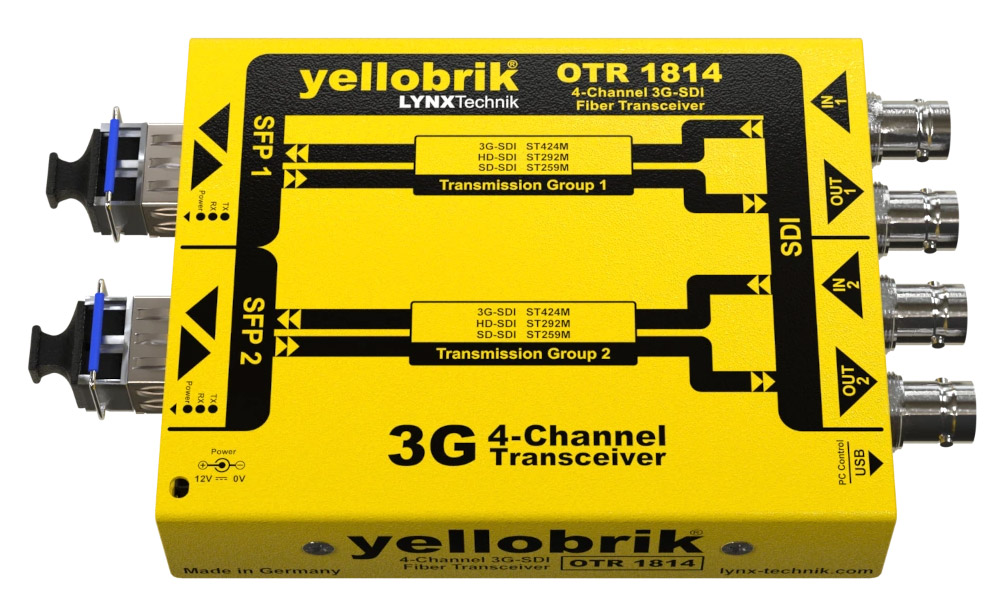

OTR 1814 - 4-Channel 3G SDI to Fibre Transceiver
OTR 1814 is a 4-channel fibre/SDI transmitter and receiver combined in a single self contained package. It is a convenient and cost-effective solution to overcome the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. Each OTR 1814 transceiver has two independent transmitter and receiver channels, which provide an effective solution for any 3G-SDI signal up to 2k DCI. Operation of the receivers and transmitters are automatic. For transmission, the 3G-SDI video format is automatically detected, reclocked and then transmitted over the fibre TX connection. For reception, the optical SDI video input signal on the RX connection is automatically detected, reclocked and provided on the 3G-SDI output. OTR 1814 supports 3G/1.5G/SD-SDI video standards.
Available versions
OTR 1814 Single-mode Wavelength of 1310nm 10km LC Includes SFP
OTR 1814 MM Multimode 300m LC Includes SFP
OTR 1814 CW CWDM 18 wavelengths 40km and 80km LC SFP not included
Compatible SPF modules
OH-TR-0-850-MM
OH-TR-1-LC
OH-TR-4-XXXX-LC
OH-TR-8-XXXX-LC
OTR 1840 - 3G Bidirectional SDI/Fibre Transceiver (CWDM)
OTR 1840 is a CWDM fibre optic to SDI transmitter and receiver combined in a compact self contained package. It is a convenient and cost effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances. Each OTR 1840 CWDM transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 3G (1080p60) while preserving full uncompressed quality. Select from eighteen transmitter wavelengths for full CWDM compatibility (ITU-T G.694.2). OTR 1840 will auto-detect and re-clock any 270Mbit/s, 1.5G and 3G SDI source prior to conversion. The module is fully compatible with 3G Level A and Level B formats. Power: +12V DC at 2W nominal. Dimensions (LxWxH): 140 x 42 x 22mm. Weight: 125g.
Included accessories: AC power supply. Note: SFP module not included.
Compatible SPF modules
OH-TR-4-XXXX-LC
