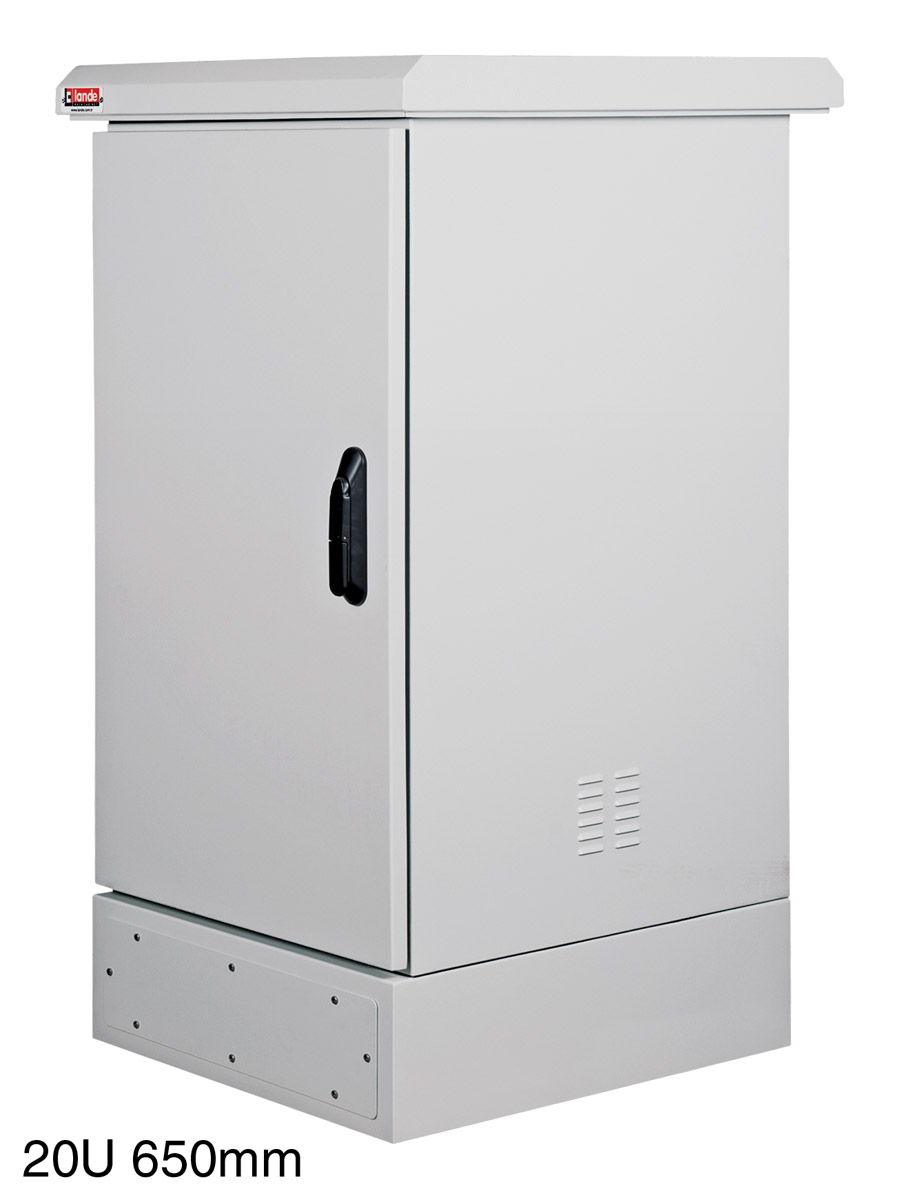

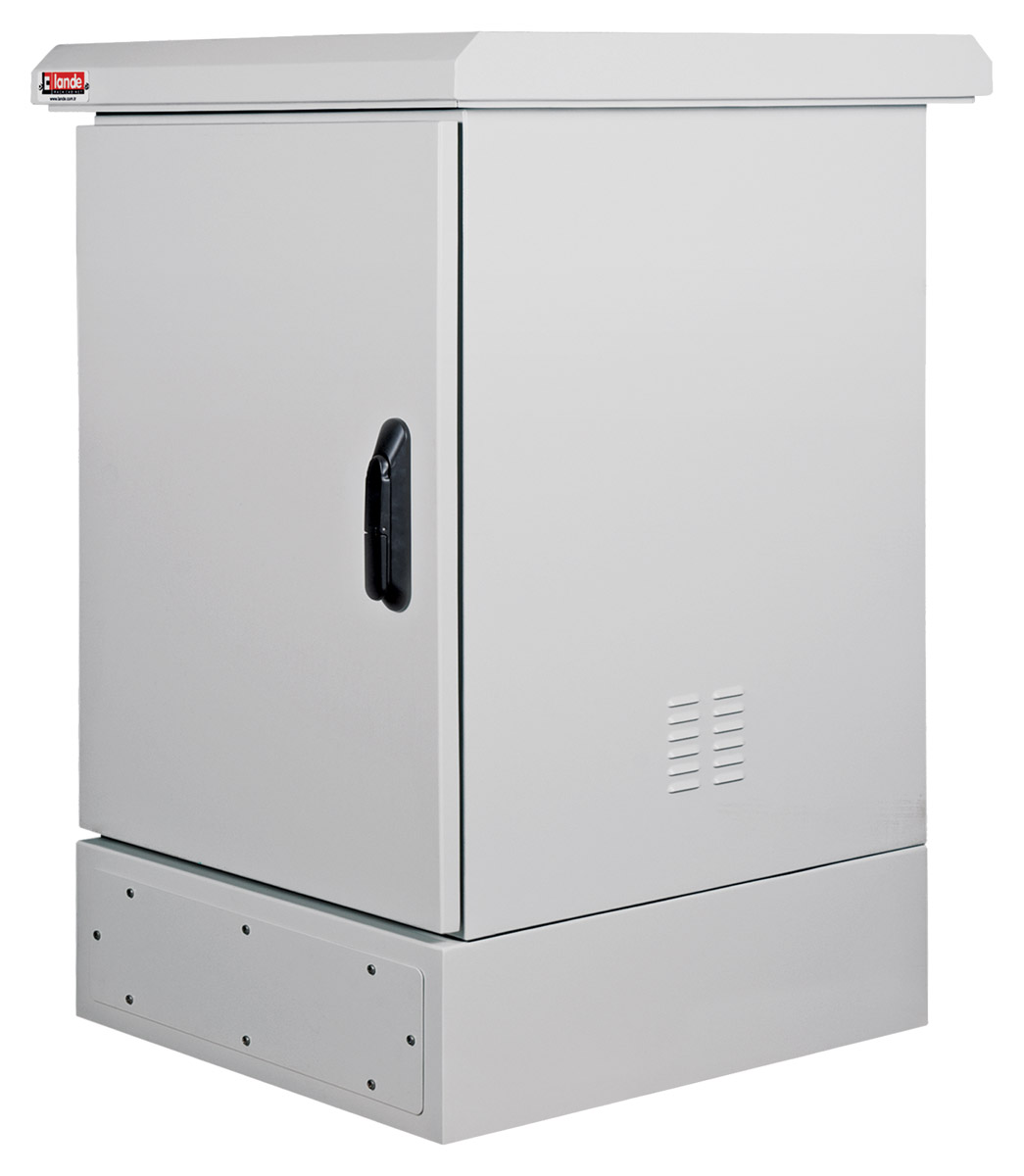

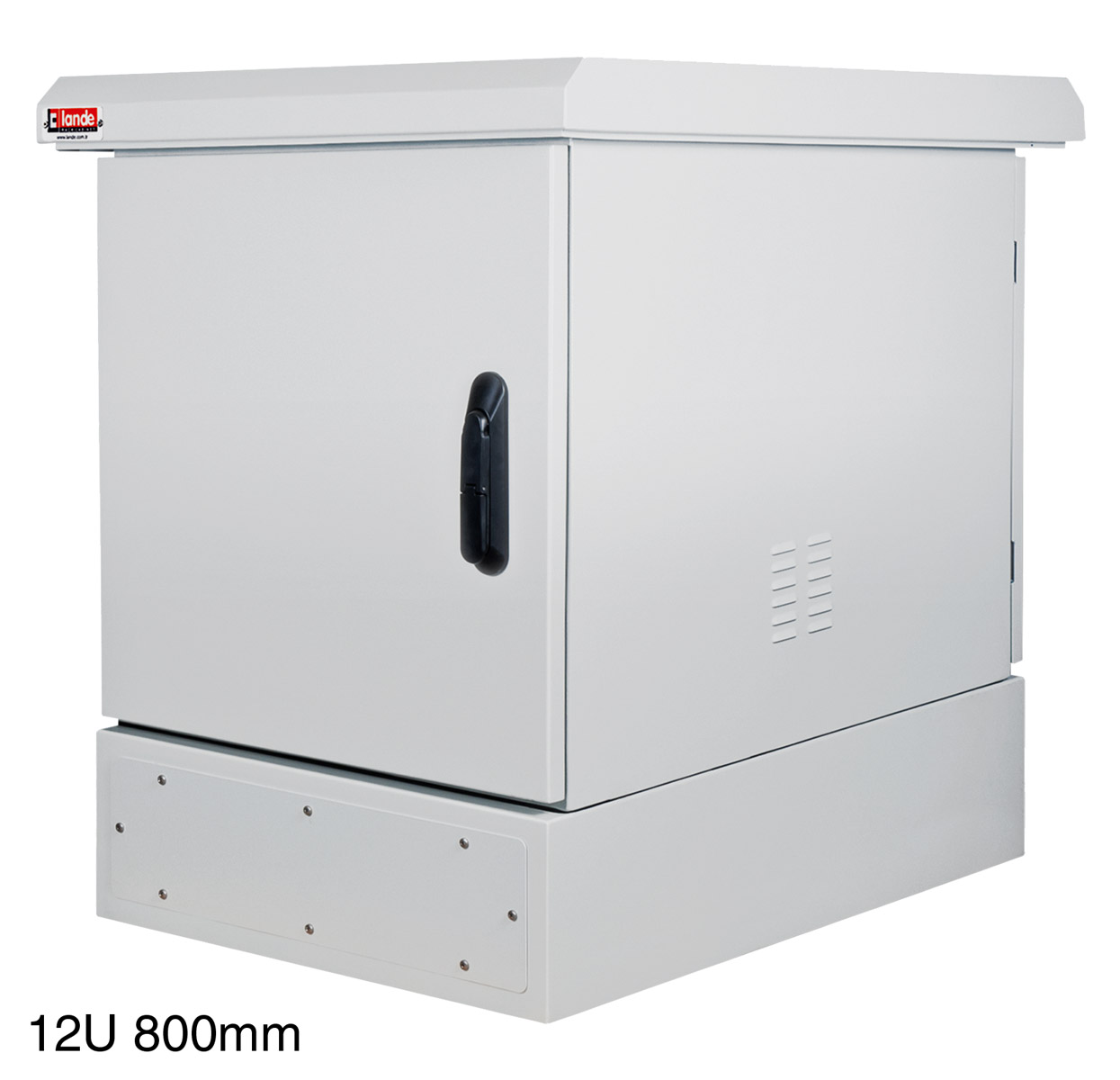

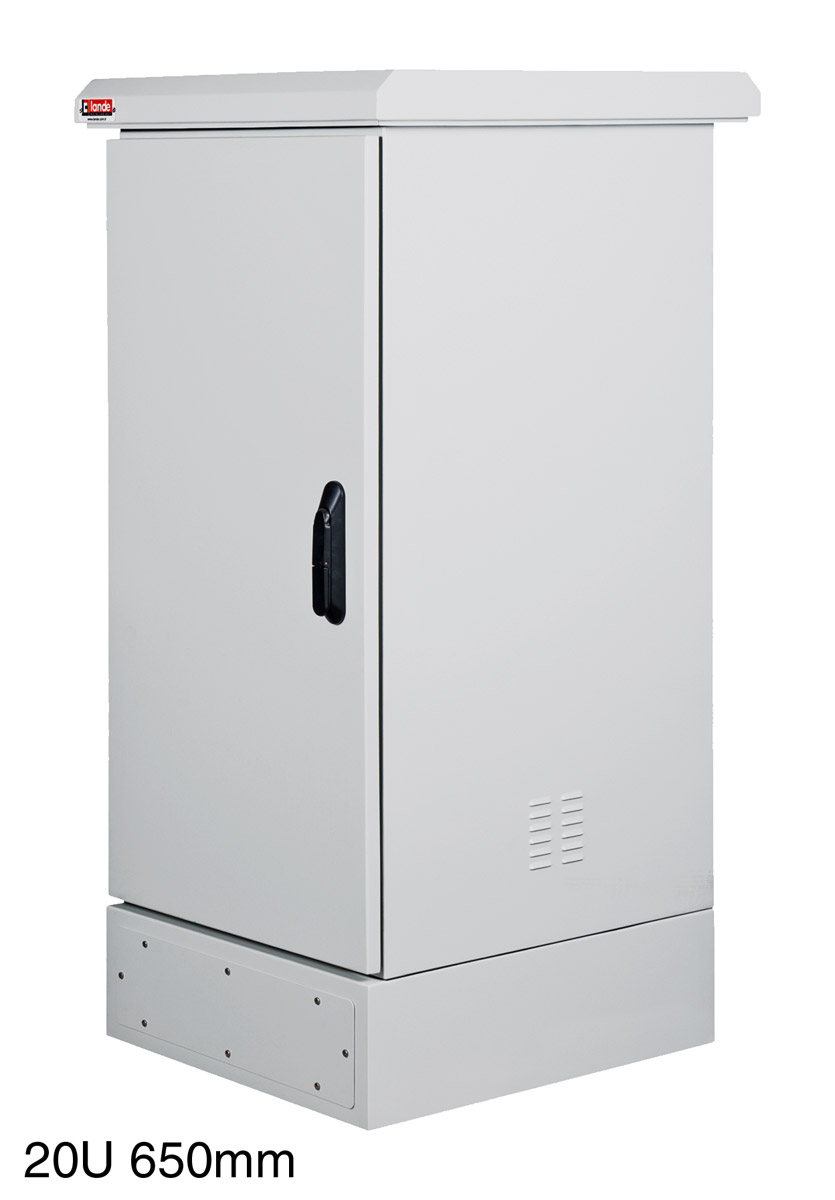

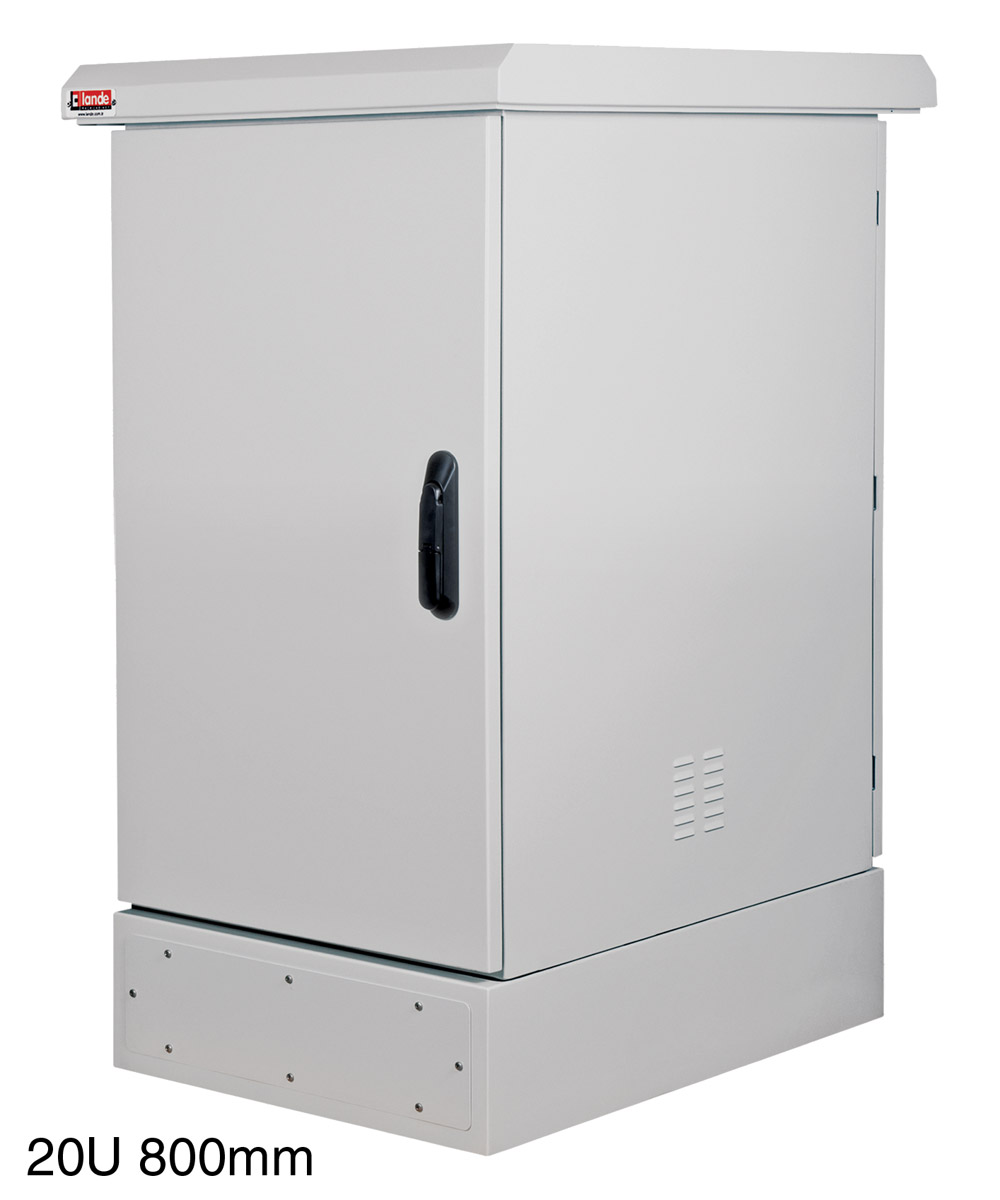

IP65 rated floor standing cabinets from Lande designed for use in outdoor industrial applications where they may be subjected to extreme weather, water or dirt. Available in seven heights and two depths, they are supplied with a 200mm plinth and a double layer construction including insulation material between the external and internal layers, as well as internal and external locking doors for additional security and protection against ingress (800mm deep cabinets are supplied with front and rear doors, 650mm variants are supplied with front doors only).

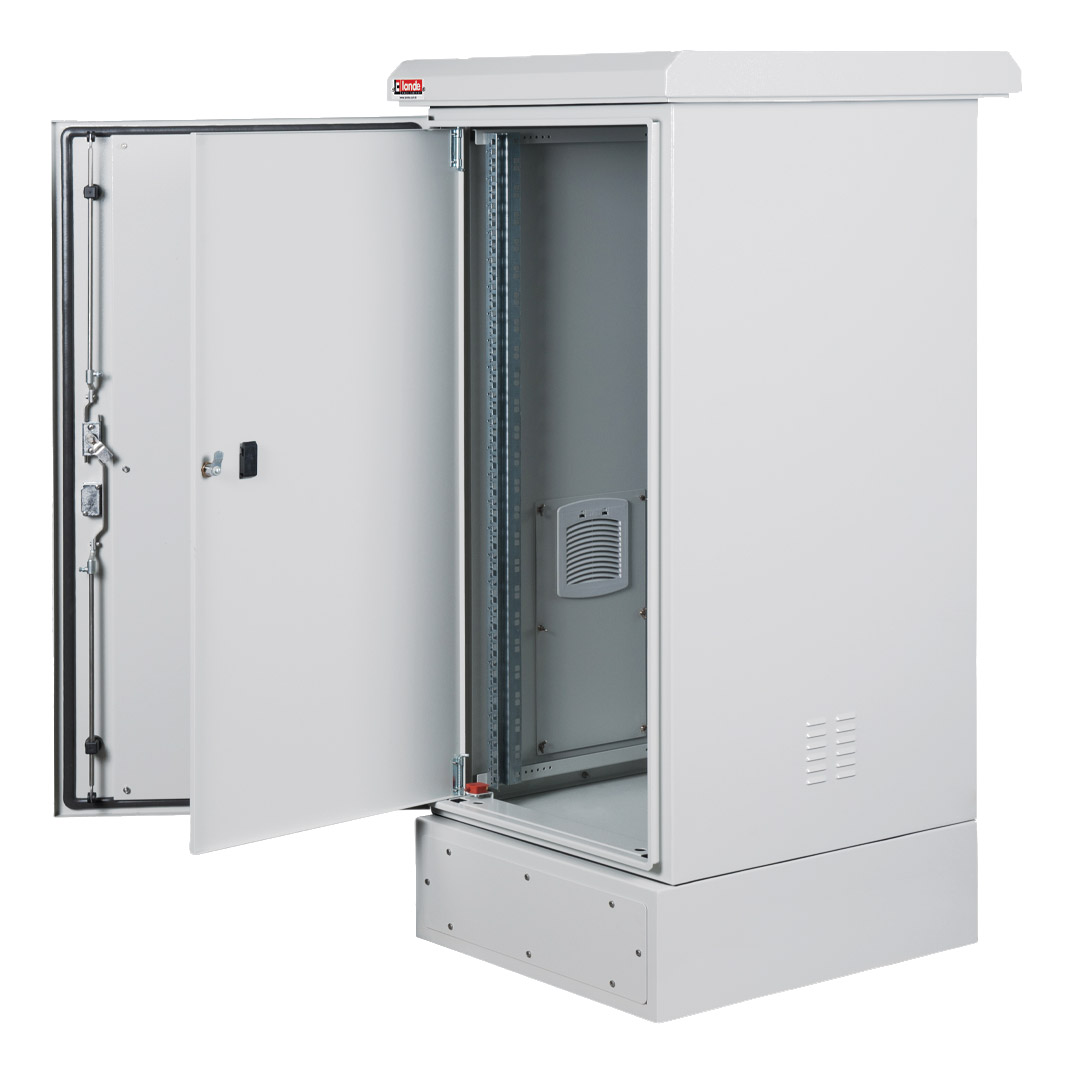

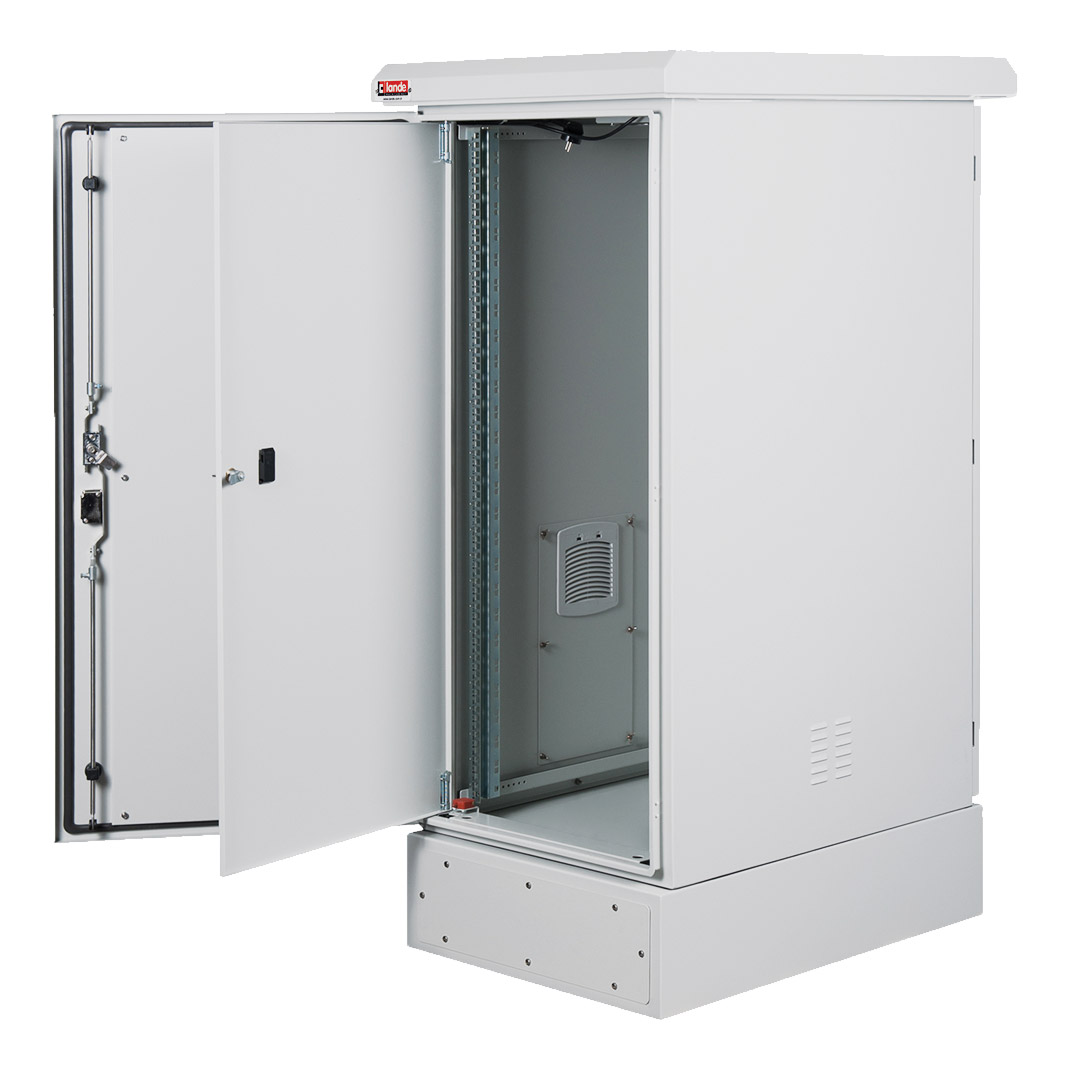

Folded, steel, 19-inch rack-mounting profiles are fitted at the front and rear. These have two sets of perforations to take cage nuts allowing you to fix equipment and accessories such as shelves and chassis guides inside the rack. The base of the rack is fitted with two PG21 and one PG48 glands for cable entry (It is recommended that after the cables are inserted the openings are closed with foam or isolation material), additionally all variants are supplied with a plain metal cable entry panel which enables you to punch custom cable entry if the standard configuration is unsuitable.
All variants are equipped with a gasketed, hinged canopy roof which has a mechanism that keeps the canopy open during installation or maintenance. Hidden louvres on the cabinet sides allow for ventilation alongside an optional roof mount fan tray whilst still maintaining EN 60529 IP65 protection.
Note: The supplied plinth has a screwed metal panel on the front allowing access during installation and maintenance to concrete fixings and routed cables.
Note (1): Overall height including 200mm plinth.
Maximum equipment depth: 650mm deep version, min: 240mm, max: 490mm. 800mm deep version, min: 370mm, max 620mm.
Maximum loading: 500kg.
Finish: Light grey, RAL 7035 polyester outdoor type paint.
Note: Z275 refers to the material of the cabinet in relation to corrosion protection, it denotes DX51 D + 275gr/m2 hot dip galvanized zinc coating. Options with higher corrosion resistance are available to special order: AISI 430 grade stainless steel, AISI 304 grade stainless steel and AISI 316L grade stainless steel. Please contact sales with enquiries.
Roof fans: See LANDE RACK FANS - Roof Fans - For ES455 and ES465 Series
Heaters: See CANFORD RACK HEATERS
Chassis guides: See CANFORD RACK CHASSIS GUIDES - Adjustable - For Lande ES362, ES420, ES455, ES465 and Proline Series
For all other accessories, including blank panels, brush strips, fasteners, power distribution units, rack drawers and shelves see Rack accessories and hardware.
