Auslieferung in Vollbestückung mit ungeschirmten RJ45 CAT6 Feedthrough-Buchsen (doppelseitige Back-to-Back-Bestückung) zur Systemverkabelung und leichten Einbindung von mobilen und externen Geräten. Ein bedruckbarer Beschriftungsstreifen mit einrastbarer Abdeckung sowie eine Kabelführung gehören zur Grundausstattung.
Gefertigt von Canford.
A range of panels supplied fully populated with feed-through (also known as double-sided or back-to-back) unscreened RJ45 CAT6 sockets, enabling system patching and easy connection of portable or external equipment. A printable designation-strip with snap-on cover and a lacing-bar are fitted as standard.

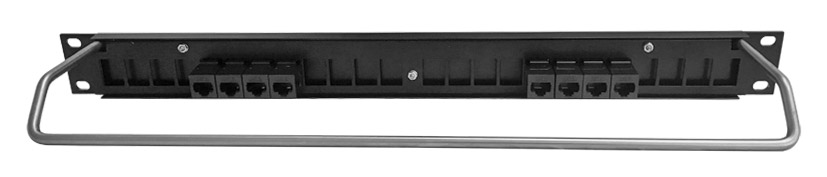

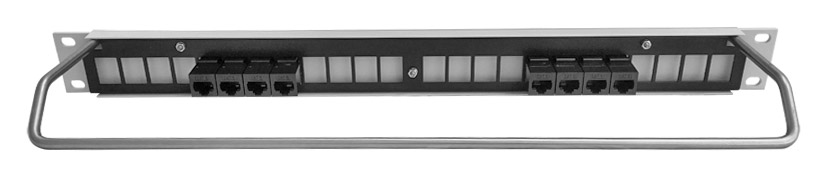

Manufactured from a lightweight, but extremely rigid, broadcast style, aluminium extrusion. The individual connectors are mounted in a sub chassis and are presented flush with the face of the front panel. Panels are fitted with a cranked lacing-bar giving easy access to the rear sockets. The connectors are arranged in equal groups either side of a central divide and a designation-strip holder, with snap-on cover, is fitted on the front panel, to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available. Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.
Available finished in Dawn Grey (BS4800-10A03) or Black.
Optional accessories: Recess rack-mounting brackets.
Technical Note:
| CAT6 10/100/1000BASE-T: |
100m (90m solid core installed + 10m stranded flexible patch cable) in any alien crosstalk environment |
| CAT6 10GBASE-T: |
55m (45m + 10m) in favourable alien crosstalk environment, 37m (27m + 10m) in hostile alien crosstalk environments, i.e. where data cables are bundled together. |
| CAT6A 10GBASE-T: |
100m (90m + 10m) in any alien crosstalk environment. |
