CANFORD HEADSET SPLITTER CABLES

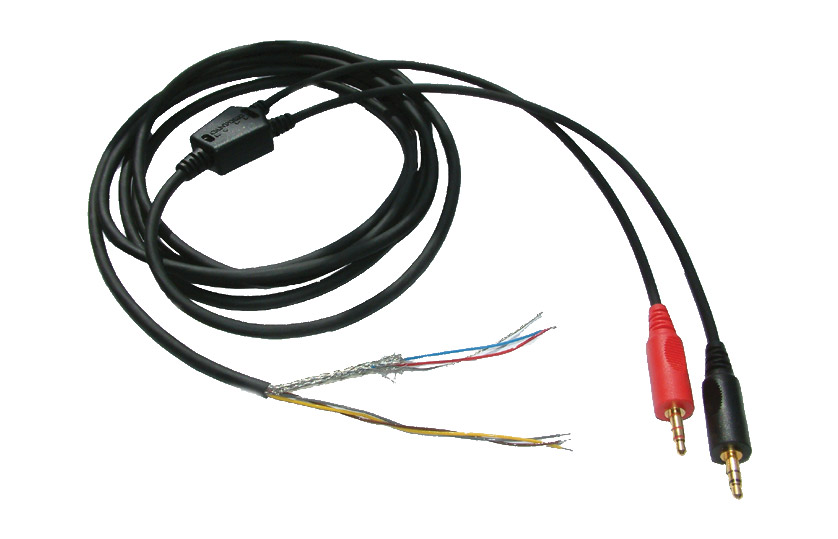

CANFORD HEADSET SPLITTER CABLE BE-3MJP-3MJP

Breaking out headset cables to separate mic and ear loudspeaker connectors has always been one of the more difficult problems besetting audio engineers. This “Y-split” cable has been manufactured specifically to give a simple and reliable solution. It consists of a rugged, polyurethane jacketed special composite cable which includes both screened balanced microphone (two cores, drain wire and braid screen) and stereo/split-feed ear loudspeaker wiring. A durable over-moulded “Y-split” junction with individual strain reliefs for all cable entries connects to individual tails for balanced microphone input and ear loudspeaker feeds.

All versions have the same dimensions - 2 metres of 4.5mm diameter composite cable from the Y-split junction to the headset connection point, and two 200mm tails of 3.5m cable from the Y-split junction for microphone and ear loudspeaker connections, with bare ends at the headset end, and a variety of connector combinations at the equipment interface end. The 3.5mm 3-pole plugs have an over-moulded cover with integral strain relief and finger grips. Other connector combinations can be manufactured to special order.

The colour codes for the cable and connector wiring are:

Circuit Colour 3.5mm 3-pole jack plug XLR 6.35mm 3-pole jack plug
Microphone + Red Red plug tip Pin 2 -
Microphone - Blue Red plug ring Pin 3 -
Microphone screen Bare wire Red plug screen Pin 1 -
Ear loudspeaker, left + Yellow Black plug tip - Tip
Ear loudspeaker, right + Grey Black plug ring - Ring
Ear loudspeakers - Brown Black plug screen - Screen

Types available:

Stock code Type Headset connector Microphone connector Ear loudspeakers connector
38-051 BE-3MJP-3MJP Bare ends 3.5mm 3-pole jack plug, red 3.5mm 3-pole jack plug, black
38-052 BE-3MXX-3P Bare ends XLR 3-pin male 6.35mm 3-pole jack plug, black bush
38-053 BE-3P-3P Bare ends 6.35mm 3-pole jack plug, red bush 6.35mm 3-pole jack plug, black bush
  Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand
CANFORD HEADSET SPLITTER CABLE BE-3MJP-3MJP Artikelnummer: 38-051
297 lieferbar Mehr benötigt?
8,25 €
Abverkauf
1,49 €
CANFORD HEADSET SPLITTER CABLE BE-3MXX-3P Artikelnummer: 38-052
Dieser Artikel wurde eingestellt. Leider können wir zur Zeit keine Alternative anbieten.
CANFORD HEADSET SPLITTER CABLE BE-3P-3P Artikelnummer: 38-053
Dieser Artikel wurde eingestellt. Leider können wir zur Zeit keine Alternative anbieten.
