CANFORD CABLE 4MJP3.5-4MXX-250mm, Black
CANFORD CABLE 4MJP3.5-4MXX-250mm, BlackCANFORD CABLE 4MJP3.5-Dual3MJS3.5-250mm, BlackCANFORD CABLE 4MJP3.5-3FXX, NJ3FC6-250mm, BlackCANFORD CABLE 4MJP3.5-3FXX, 3MJS3.5-250mm, Black

With the increase for the need to work from home, team meetings and video conferencing, Canford introduce a range of prewired Y cables, ready for use. Wired for laptop input with a 3.5mm 4-pole moulded jack to combinations of connector sockets for microphone, headphone or headset connection.

Each individual cable is described in detail by the use of an abbreviated sequence in the form:
Canford Cable - 1st connector - 2nd connector - cable length - cable colour.

Detailed specifications for the connectors and cables are given in their appropriate entries elsewhere (except pre-moulded cables and connectors). All XLR connectors are solder connection type, not IDC. Abbreviations used in the descriptions are as follows:-

4MJP3.5 -3.5mm miniature 4 pole jack plug pre-moulded
4MXX -XLR 4-pin male connector 41-042
5MXX -XLR 5-pin male connector 41-052
3FXX -XLR 3-pin female connector 41-031
NJ3FC6 -6.35mm 3 pole locking jack socket 43-271
3MJS3.5 -3.5mm miniature 3 pole jack socket pre-moulded
Connection Details
4MJP3.5 Function NC4MXX NC5MXX 3MJS3.5 (Ear), 3MJS3.5 (Mic) 3MJS3.5 (Ear), NC3FXX (Mic) NJ3FC6 (Ear), NC3FXX (Mic)
Tip Left Ear Pin 4 Pin 4 3MJS3.5 (Ear) Tip 3MJS3.5 Tip NJ3FC6 Tip
Ring 1 Right Ear Pin 4 Pin 5 3MJS3.5 (Ear) Ring 3MJS3.5 Ring NJ3FC6 Ring
Ring 2 Ear & Mic GND Pins 1 & 3 Pins 1 & 3 3MJS3.5 (Ear/Mic) Scn 3MJS3.5 Scn & NC3FXX Pin 1 NJ3FC6 Scn & NC3FXX Pin 1
Screen Mic Signal Pin 2 Pin 2 3MJS3.5 (Mic) Tip & Ring NC3FXX Pins 2 & 3 NC3FXX Pins 2 & 3

Note: Computer headset sockets typically look for 32ohm impedance. Care should be taken when using headphones/headsets of higher impedance.

  Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand

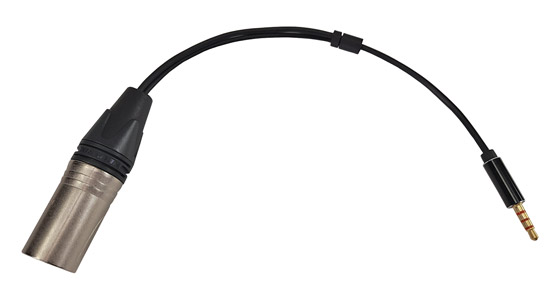

CANFORD CABLE 4MJP3.5-4MXX-250mm, Black Black Artikelnummer: 38-260
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 15,94 €
10+ 15,54 €
CANFORD CABLE 4MJP3.5-5MXX-250mm, Black Black Artikelnummer: 38-261
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 18,77 €
10+ 18,30 €

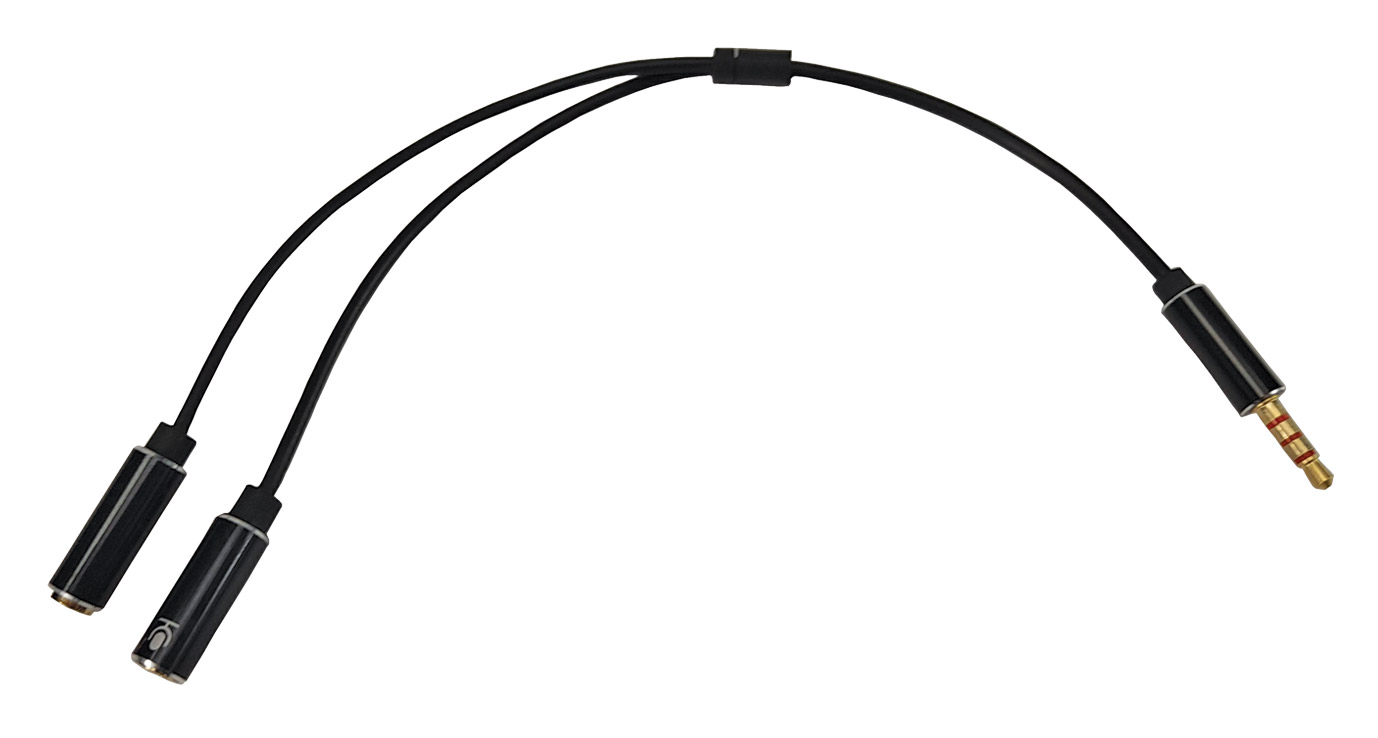

CANFORD CABLE 4MJP3.5-Dual3MJS3.5-250mm, Black Black Artikelnummer: 38-262
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 9,17 €
10+ 8,94 €

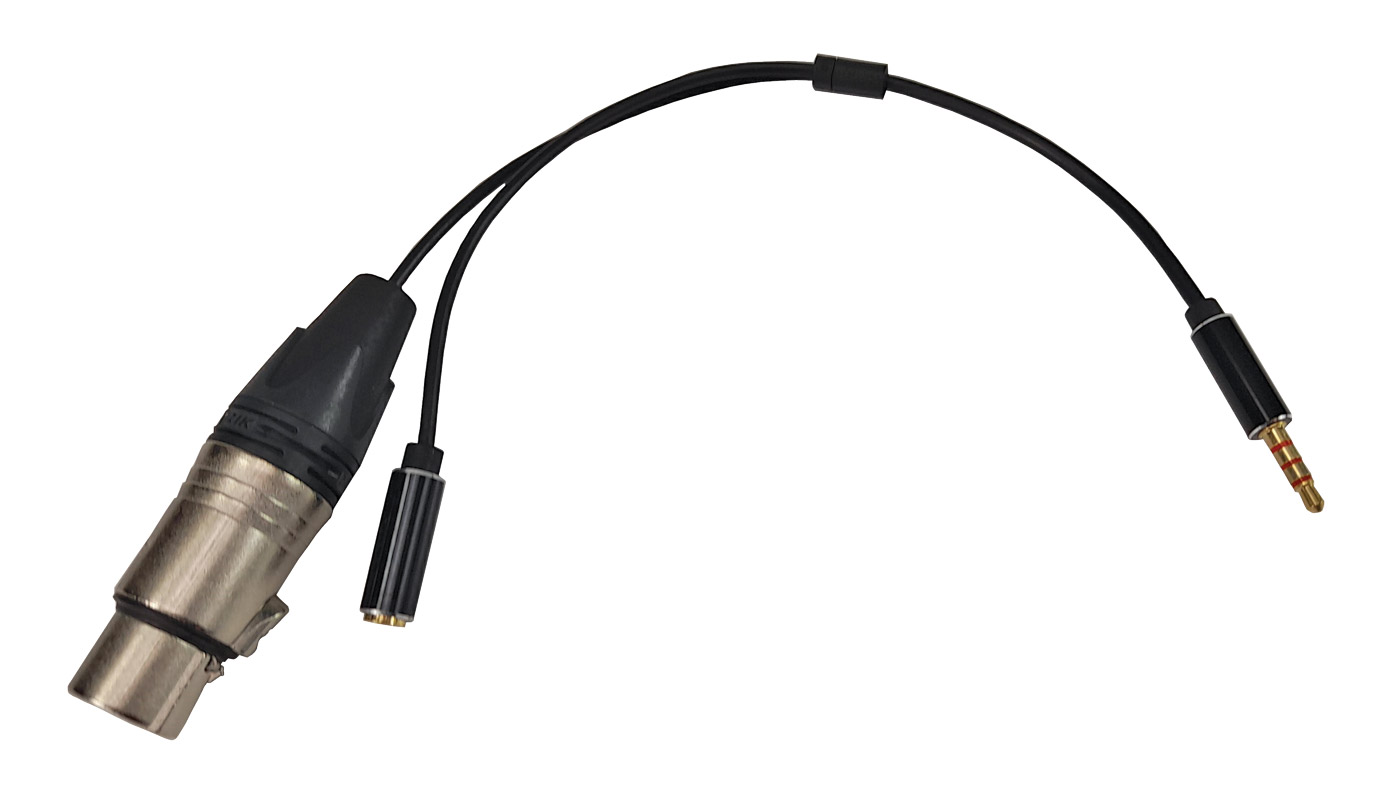

CANFORD CABLE 4MJP3.5-3FXX, 3MJS3.5-250mm, Black Black Artikelnummer: 38-263
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 14,16 €
10+ 13,81 €
CANFORD CABLE 4MJP3.5-3FXX, NJ3FC6-250mm, Black Black Artikelnummer: 38-264
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 23,13 €
10+ 22,55 €
