NEUTRIK JACK SOCKETS - Cable and panel types - Locking

3-pole jack sockets in panel mounted or in-line versions. Panel mount type can be front or reverse mounted (the latch bar must be removed if reverse mounted) in a 24mm cutout. In-line types have cable gland as on ‘X’ series XLR connector, clamping on cables 2.8 to 8.0mm diameter.

Both types latch with standard mono and stereo jacks (A-gauge). Note that a 2-pole version is not made, the 3-pole type should be used with ring and sleeve commoned. Sleeve contact is isolated from connector shell.

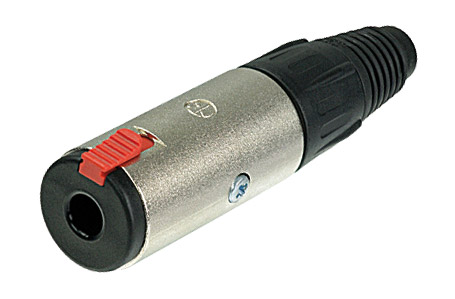

In-line cable type has a metal body and is available in nickel (NJ3FC6) or black (NJ3FC6-BAG) with silver contacts. Panel mount type is available with a metal body in nickel finish with silver contacts (NJ3FP6C), or black finish with silver (NJ3FP6C-BAG) or gold (NJ3FP6C-B) contacts. The panel mount type is also available with a black plastic body and silver contacts (NJ3FP6P-BAG).
