A series of hardware mounting solutions and accessories for Artnovion products.

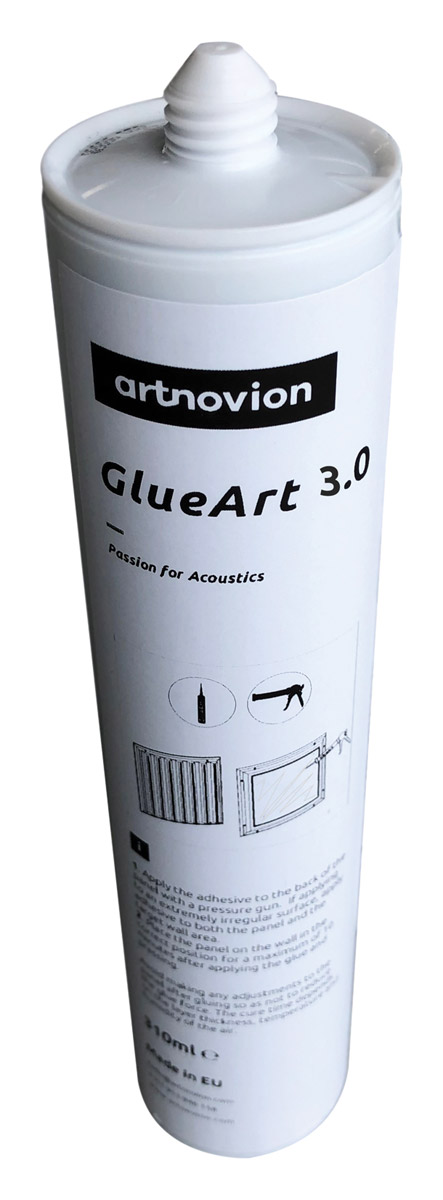

GlueArt 3.0 is a polymer-based glue specifically designed by Artnovion to bond to acoustic foam, PET, and EPS. It is applicable to a vast range of surfaces, including cement, painted surfaces, stone, wallpaper, plasterboard, wood, chipboard, PVC, expanded plastic, mineral fibres, and metal.
GlueArt 3.0 is easy to use, gluing lighter Artnovion acoustic panels practically instantly and initiating adhesion in heavier panels within just 10 minutes, albeit requiring initial support. Bonding with a safety factor of over 10.
A single tube of adhesive is able to fix up to 6x 595 x 595mm panels.

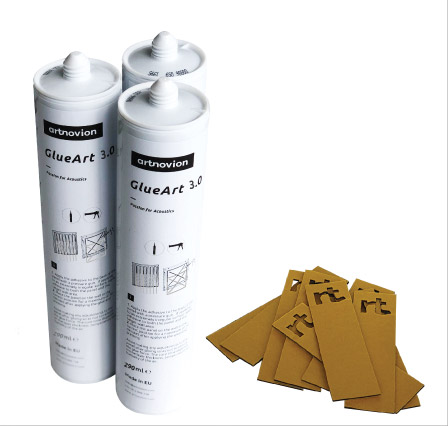

Artnovion have developed this mounting kit in recognition that there might not always be a mechanical solution to secure panels within the first 10 minutes. This hybrid solution is a two-step adhesive process particularly useful for quicker installations, especially on horizontal surfaces where initial support is challenging. The kit is designed with heavier panels in mind, such as Artnovion Absorbers.
Pack includes 3x GlueArt adhesive tubes, 96x adhesive pads.

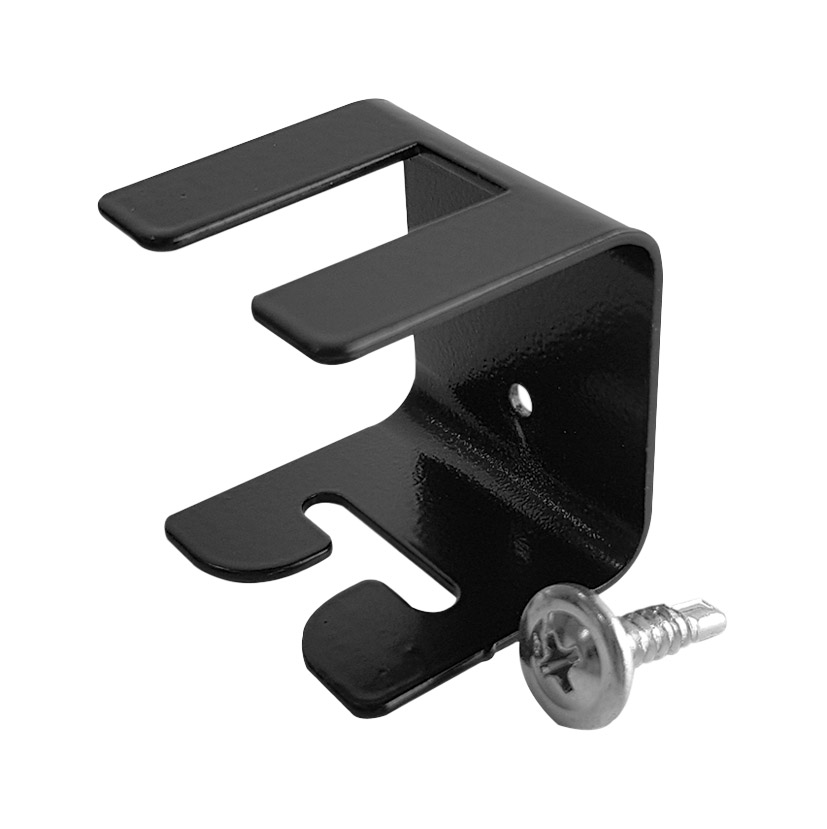

FixArt Clip is a safe, simple and the cheapest mechanical fixing system compatible with the Artnovion absorber range that allows for easy panel clipping and removal.
Using Artnovions' patented frame, FixArt Clip simply slots into a hidden groove on the rear of the product. An additional flange allows the user to place an additional security screw for ceiling installation or simply for added safety. Once installed, the user can adjust the bracket to get perfect alignment.

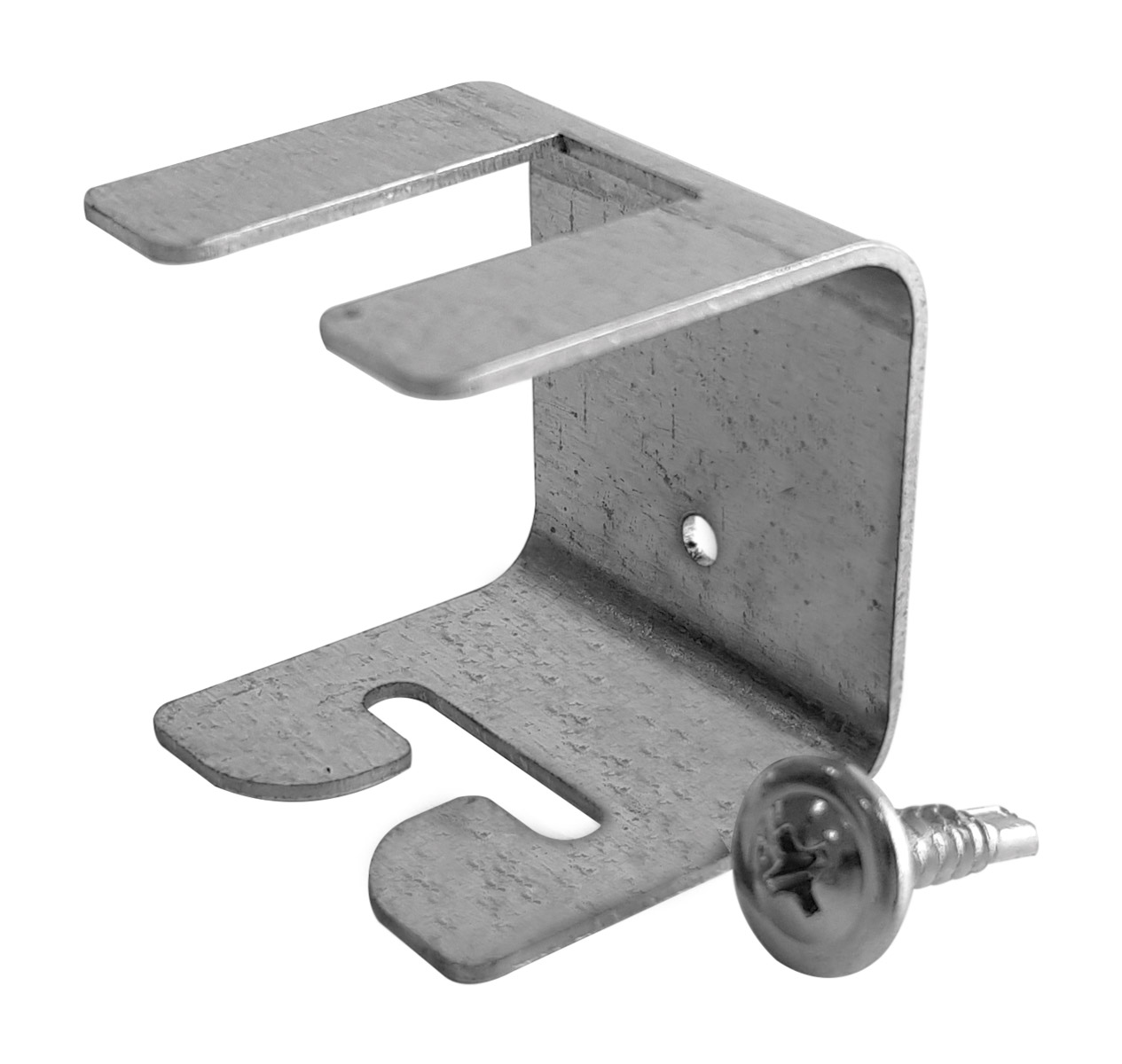

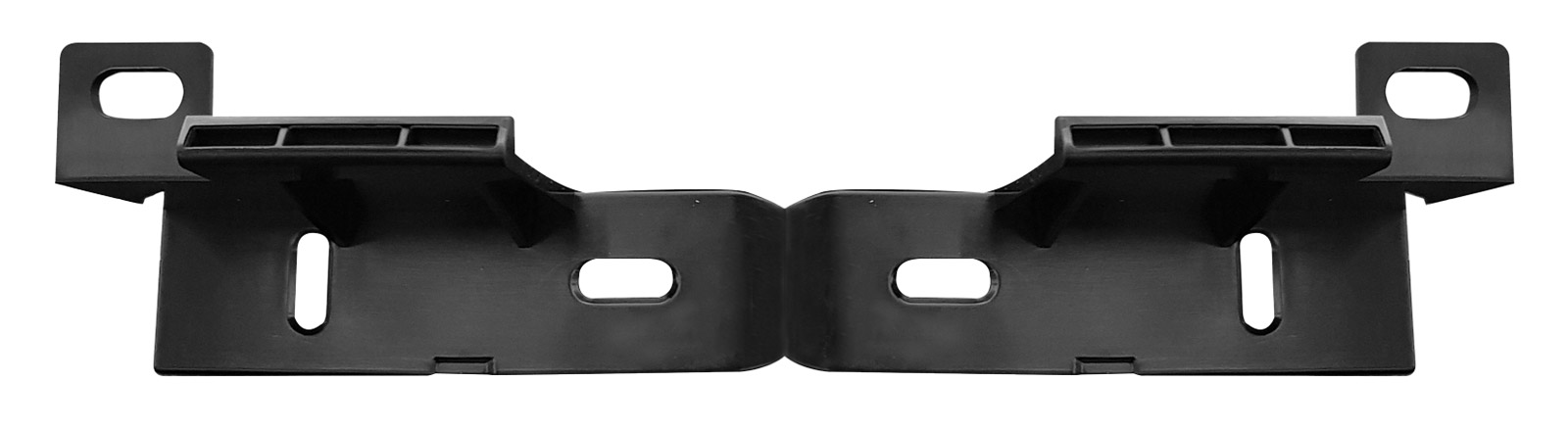

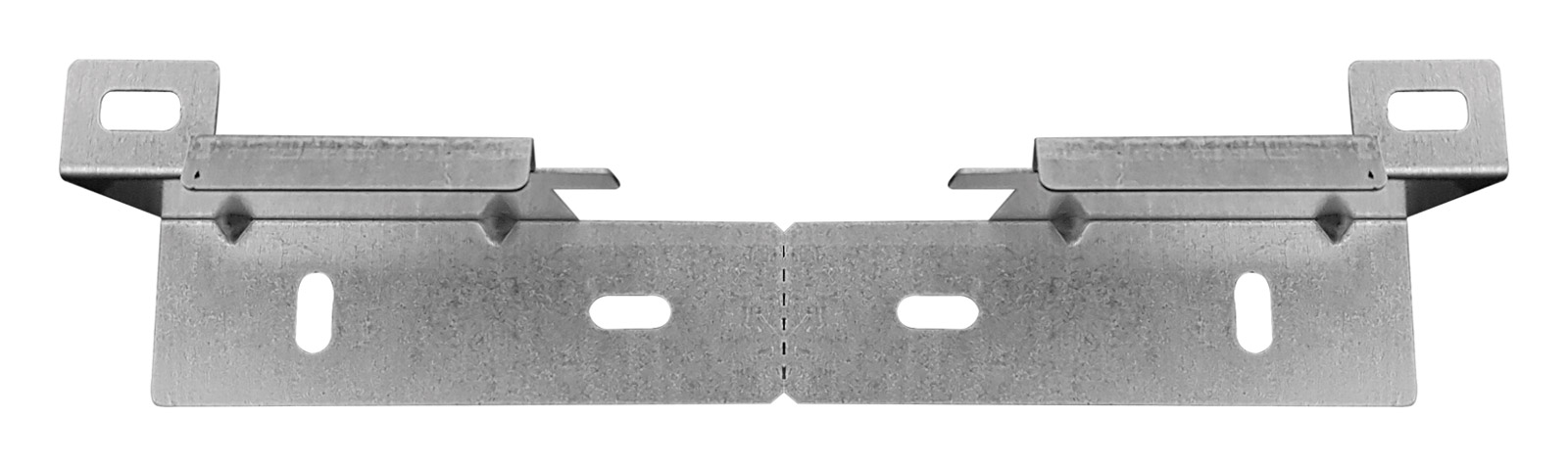

The product is available in two finishes - galvanised steel (FixArt Metal) and black plastic (FixArt Plastic). Both versions include a template to allow the marking of necessary screwing positions.
FixArt Plastic is recommended for standard installations, while FixArt Metal complies with public sector building specifications and fire regulations.

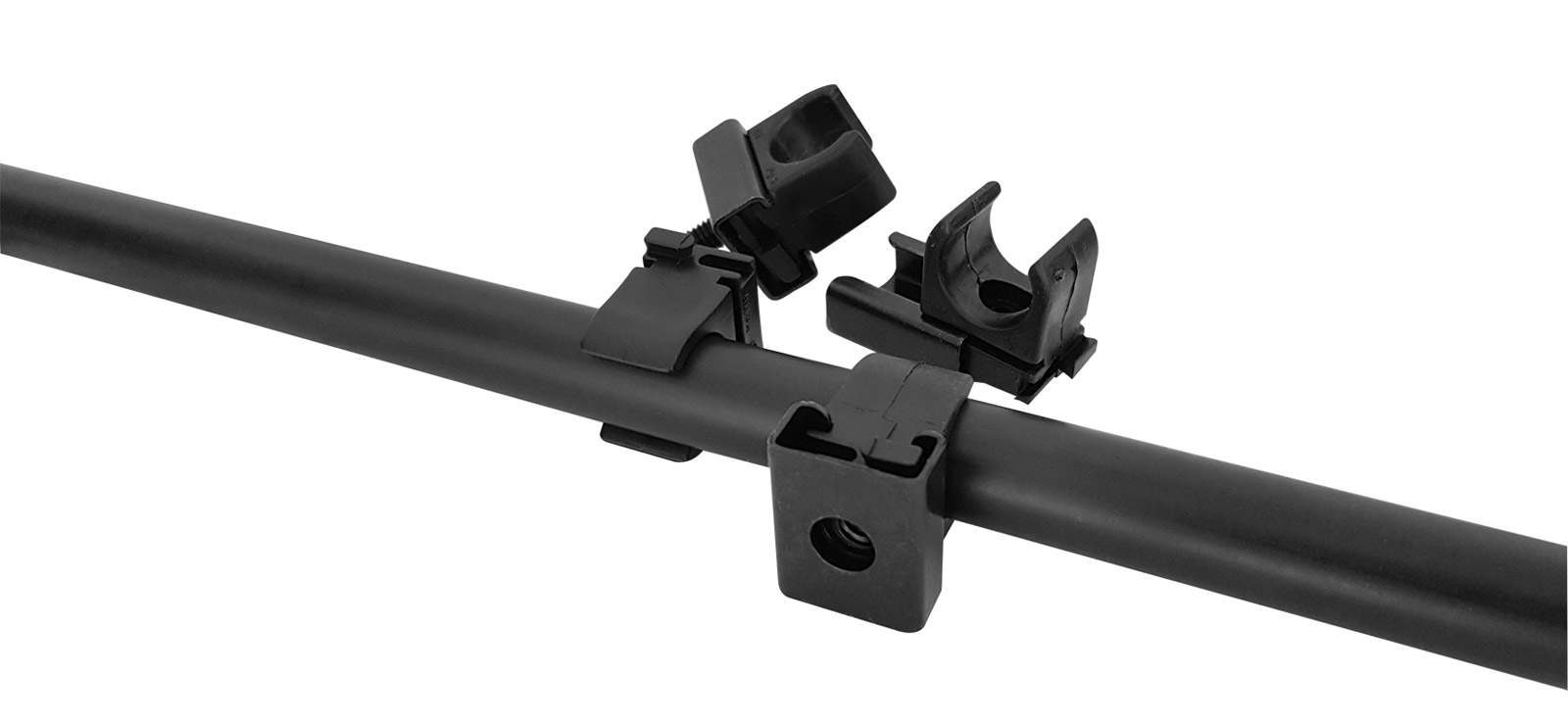

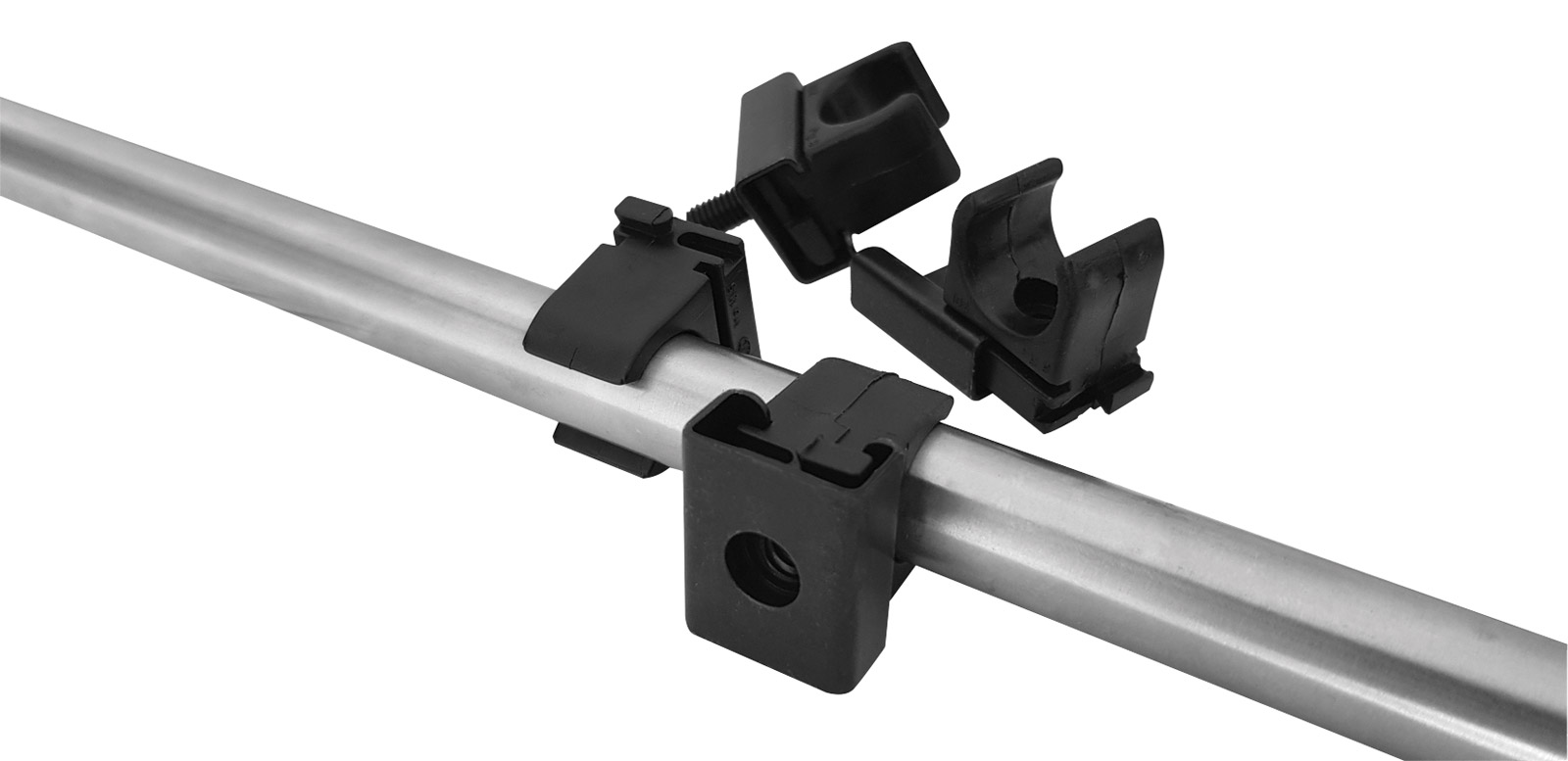

Along with FixArt Tube being an easy-to-install fixing system, it also gives a boost in acoustic performance. Using FixArt Tube is simplified by following the included template to attach the clip fixture to the surface and to the corners of the panel. Once installed, it creates an air cavity behind the panel, boosting its absorption performance. Whether you choose wooden or fabric panels, FixArt Tube improves their acoustic efficiency.
Manufacturer's note: When using FixArt Tube on the ceiling, it is obligatory to use the FixArt Lock security device. This systems guarantees a safe and precise installation.
Versions available
FixArt Lock is a security device designed to be used with FixArt Tube for ceiling installations. FixArt Tube Lock’s necessity arises from the impact of temperature fluctuations on FixArt Tube clips, making its usage crucial for horizontal installations. FixArt Tube Lock also facilitates installing other features, due to its precise perforations, it allows for an easy application of design on site solutions like side covers to hide the panels’ fixing system.
Versions available
Pack includes 64x locks, 64x screws. This installs 32 standard panels or 16 Doble panels.
