SONY WIRELESS SYSTEMS - DWX Digital Series

Sony DWX wireless radiomic systems include Series 2 and Series 3 products, with the latter being backwards compatible. They have been designed for use in broadcast TV studios, ENG, and live event sectors. The DWX series UHF digital system uses a ‘complete digital workflow’ from preamp to AES/EBU output and provides a full 24-bit digital signal from transmitter input to receiver output by using 96kHz A/D and D/A convertors.

All DWX transmitters and receivers are compatible with Sony’s Wireless Studio software when running on a compatible computer. This allows the user to remotely operate transmitters and receivers from a connected computer within the same network when the receiver(s) is connected. This remote control can be achieved using the antenna on the back of the receiver, with no extra hardware required, or via the RMU-01. By using the optional RMU-01 the user can control of up to 88 transmitters with one unit.

The DWX series transmitters and receivers have three codec modes to best suit the application. Depending upon the models used these modes offer differing levels of latency for either higher quality, more reliability or compatibility.

DWX transmitters, with the exception of the DWT-B03R micro-bodypack, are available in three frequency bands;
TV Channel 21-29 covers 470.025MHz to 542.000MHz
TV Channel 33-40 covers 566.025MHz to 630.000MHz
TV Channel 42-50 covers 638.025MHz to 710.000MHz

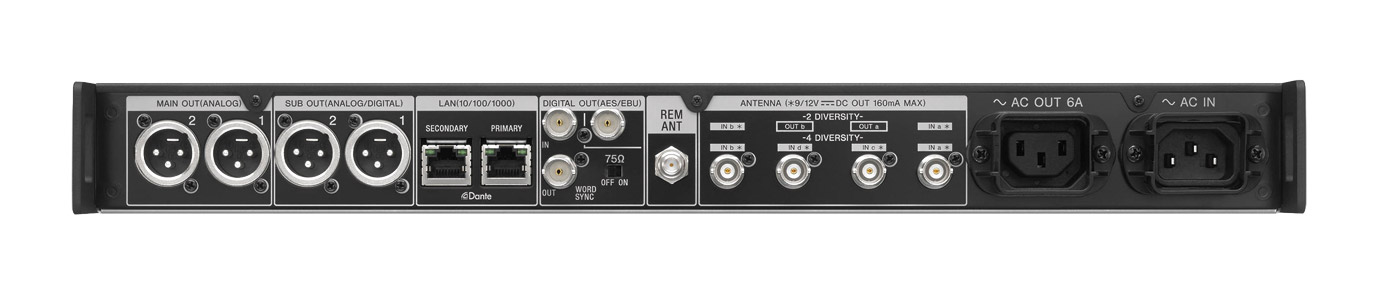

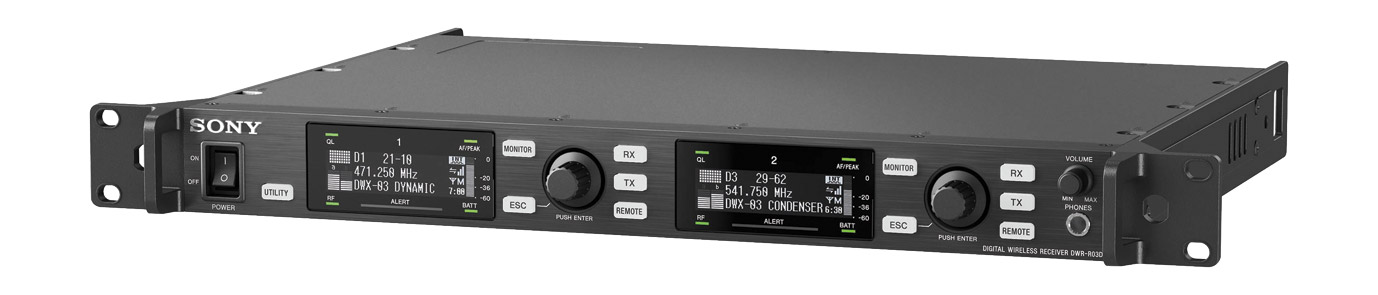

DWR-R03D Fixed, 1U receiver with Dante

This third generation 19-inch rackmount receiver shares much of the functionality of the DWR-R02DN, however notably it is Dante compatible, giving the user the ability to network to a host of Dante compatible audio equipment. The UHF wideband range of this receiver covers 470-714MHz and is adjustable in 25kHz steps. When used with Wireless Studio version 5.2 or newer, and running firmware version 1.20 or newer, the DWR-R03D can continually scan for interference and automatically assign the best frequencies without noticeable dropout.

The front facing panel of the DWR-R03D has all user controllers including a rotary/push to enter control, ‘ESC’ (escape) button, and RX, TX, Remote buttons for each of the two channels. Each of the two OLED screens, one for each channel, shows transmitter battery status, channel frequency, name, RF and AF levels along with all menu content. A recessed and latching power switch is located to the left hand side, and a 6.35mm jack headphone output along with volume control are located to the right side. Each channel also has a ‘monitor’ button which is linked to the headphone output. The rear facing panel has all other I/O connectivity including two balanced 3-pin XLR analogue outputs, two 3-pin XLR 110ohm sub outputs in analogue/digital format, digital output on 75ohm BNC-R connection, word clock I/O on 75ohm BNC – syncing to external word clock of 32kHz to 96kHz; antenna I/O for each channel on 50ohm BNC-R, and Dante primary and secondary connections on RJ45. Power is via 100-240V AC IEC connector, and 6A AC output power is on second IEC connector.

Dimensions (W x H x D): 482 x 44 x 335mm. Weight: 3.9kg.

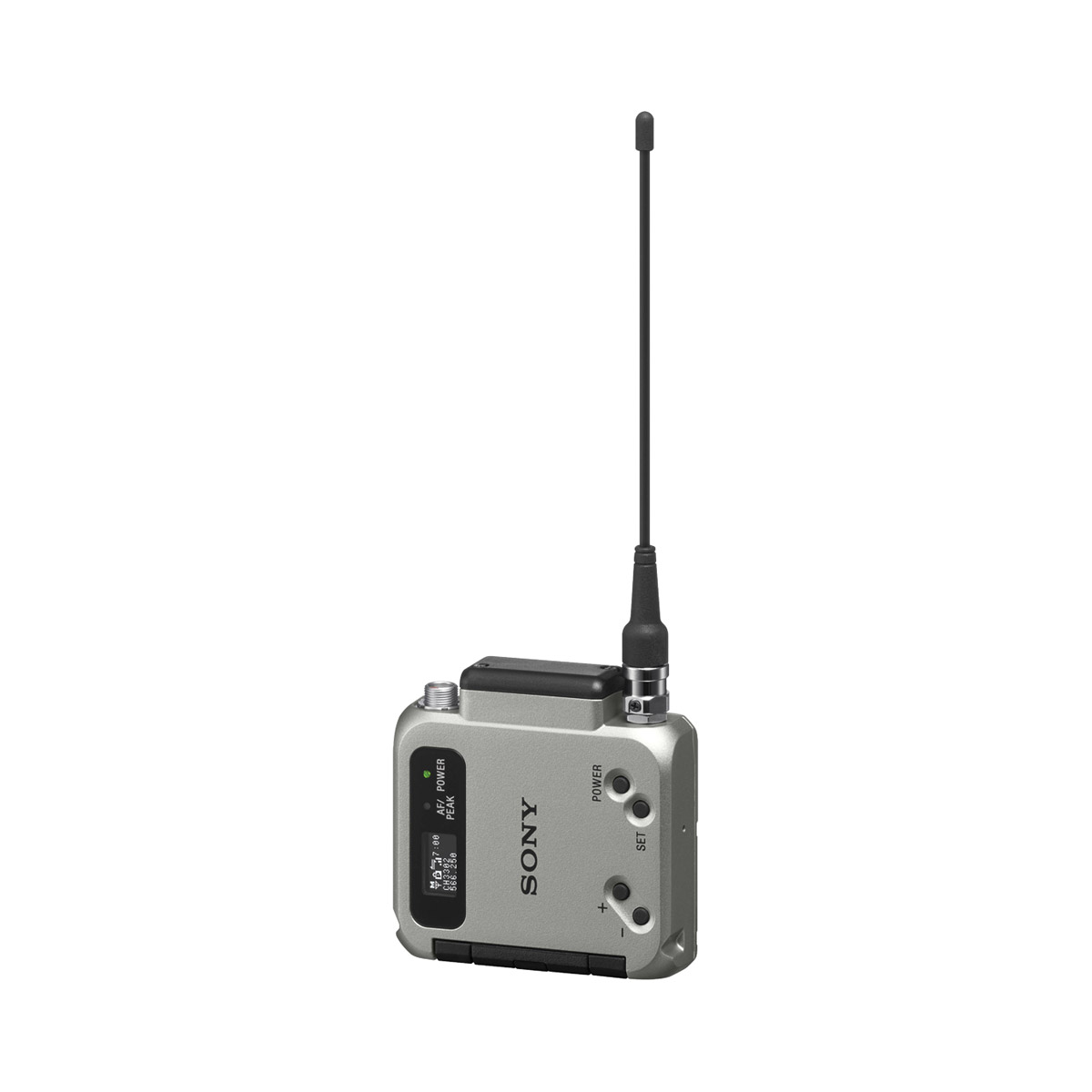

DWT-B03R Micro bodypack transmitter

This third generation DWX bodypack transmitter has been designed for use in theatres, broadcast, and studio based TV production, where lightweight and compact devices are preferred. The magnesium manufactured casing is rain, sweat and spray proof to IPX4/IPX5 ratings. When used with the DWR-R03D, this transmitter has a 148MHz wideband spectrum that is split into two segments; (Low) 470.025MHz to 614MHz, and (High) 566.025MHz to 714MHz. Both low and high bands have step increments of 25kHz.

With dimensions of 53 x 60 x 17mm the DWT-B03R is 27% smaller than the DWT-B01N beltpack transmitter. Power is via a single rechargeable Sony NP-BX1 lithium-ion battery, which gives up to 7-hours operation. The battery can be charged directly or remaining inside the DWT-B03R with the BC-DWX1 dual charger. Microphone input is via ‘small 3-pin’ locking connector making it compatible with the ECM77LM lavalier microphone amongst others. The front facing panel has an OLED screen for easy viewing of settings, along with power, set and navigation buttons. The side panel of the unit houses the removable antenna and 3-pin microphone input.

Included accessories: Belt clip, NP-BX1 Li-ion battery, carrying case, scribble sheet, and CD-ROM.

When used with DWR-R03D, codec modes offer the following specifications;

TX audio delay Analogue in to analogue out Total harmonic distortion
MODE1 0.8ms 2.7ms 0.03% or less
MODE2 0.7ms 1.2ms 0.03% or less
MODE3 1.8ms 3.7ms 0.3% or less

Encryption: AES256bit. Wireless interface: WiDIF-HP. Oscillator type: Crystal-controlled PLL synthesizer. RF power: 2/10/25mW. Maximum input level: -22dBu, mic; +24dBu, line. Audio attenuation range: 0-48dB, in 3-dB steps, MIC input mode only. Frequency response: 20Hz to 22kHz. Dimensions (W x H x D): 53 x 60 x 17mm, excluding antenna. Weight: 99g, including batteries.

DWR-R02DN Fixed, 1U receiver

This two channel, 19-inch rackmountable wideband receiver covers a bandwidth of 470-710MHz and is compatible with DWX transmitters on TV channels 21-29, 33-40, and 42-50. DWR-R02DN offers a selection of three modes to give the user the ability to switch between higher audio quality, more reliable RF, or lower audio delay.

The front facing panel of the DWR-R02DN has all user controllers including a rotary/push to enter control, ‘ESC’ (escape) button, and receiver, transmitter, RF remote buttons for each of the two channels. Each of the two OLED screens, one for each channel, shows transmitter battery status, channel frequency, name, RF and AF levels along with all menu content. A recessed and latching power switch is located to the left hand side, and a 6.35mm jack headphone output along with volume control and source switch are located to the right side. The rear facing panel has all other I/O connectivity including two balanced 3-pin XLR 47ohm analogue outputs, two 3-pin XLR 110ohm digital outputs, two 75ohm BNC-R digital outputs, word clock I/O on 75ohm BNC – syncing to external word clock of 32kHz to 96kHz; antenna I/O for each channel on 50ohm BNC-R, and LAN connection on RJ45. Power is via 100-240V AC IEC connector or 4-pin, 12V DC input.

Dimensions (W x H x D): 482 x 44 x 335mm. Weight: 3.6kg, including antenna.

DWR-S02DN Slot-in receiver

This two channel slot-in receiver has been designed to slot directly into compatible Sony video camera and camcorders, or mount to a video camera via the DWA-01D or DWA-F01D adapter. It is compatible with all DWX series transmitters and can be powered using 100-240V AC or 12V DC. An OLED screen displays current settings and RF/AF reception values.

Included accessories: 2x Antenna, USB adapter cable, USB cable, operating instructions, frequency band label, and CD-ROM.

Audio output connector: D-sub 15-pin. Reference output level: -40dBu, analogue; -36dBFS/-20dBFS, digital. Dynamic range: 106dB, A-weighted. THD: 0.03% or less. Operating voltage: 7V DC. Consumption: 500mA or less. Dimensions (W x H x D): 88 x 119 x 31mm, excluding antenna. Weight: 280g, including supplied antenna.

DWT-B01N Beltpack transmitter

The DWT-B01N bodypack transmitter has a Sony SMC9-4S 4-pin microphone connector for use with compatible mics including ECM77BC or ECM88BC lavalier mic, and ECM-322BC headworn microphone. The front facing side of the bodypack has an OLED screen with recessed navigation +/- buttons to the right and a ‘set’ button to the left. The OLED screen displays information including battery status, carrying frequency, channel, ID, and radio frequency strength (RF), along with other menu options. Two LEDs positioned around the front and upper edge indicate audio frequency (AF) active and peak, and power on status. Up to 5-hours operating time can be achieved via two alkaline AA type cells, although lithium or NiMH batteries can be used as an alternative.

Included accessories: Spare battery case, soft case, microphone cable (4-pin to 3-pin XLR), USB adapter cable, carrying case, scribble sheet, and CD-ROM.

When used with DWR-02DN, codec modes offer the following specifications

TX audio delay Analogue in to analogue out Total harmonic distortion
MODE1 1.5ms 3.4ms 0.03% or less
MODE2 1.0ms 1.5ms 0.03% or less
MODE3 2.1ms 4.0ms 0.3% or less

Wireless interface: WiDIF-HP. Oscillator type: Crystal-controlled PLL synthesizer. RF power: 1/10/50mW. Maximum input level: -22dBu, mic; +24dBu, line. Audio attenuation range: 0-48dB, in 3-dB steps, MIC input mode only. Frequency response: 20Hz to 22kHz. Dimensions (W x H x D): 63 x 17 x 73mm. Weight: 125g, including batteries.

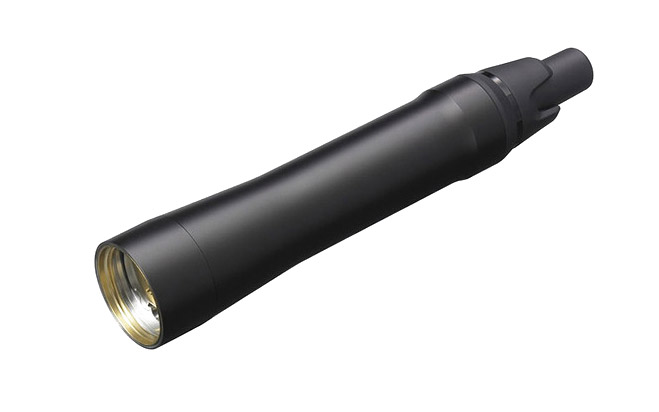

DWM-02N Handheld transmitter

This body only, handheld microphone transmitter is compatible with Sony 31.3mm/pitch 1.0mm threaded interchangeable capsules including the CU-C31 cardioid condenser capsule, the CU-F31 super cardioid dynamic capsule, and the CU-F32 wide cardioid dynamic capsule. The output power is user selectable with options of 1/10/50mW with the lowest offering better battery life of up to 5-hours, using two alkaline AA battery cells. The power switch, OLED display, navigation/selection buttons, and battery compartment is accessed by unscrewing the threaded grip of the microphone body. The battery can be recharged using the optional BC-DWX1 battery charger dock.

Included accessories: Identification ring set, microphone holder, USB adapter cable, carrying case, stand adaptor, PF1/2 to W3.8 type adaptor, and CD-ROM.

Wireless interface: WiDIF-HP. Oscillator type: Crystal-controlled PLL synthesizer. RF power: 1/10/50mW. Maximum input level: -16dBu, with 0dB attenuation. Audio attenuation range: 0-21dB, in 3-dB steps. Frequency response: 20Hz to 22kHz. Dimensions (diameter x L): 37.1 x 194mm. Weight: 235g, including batteries.

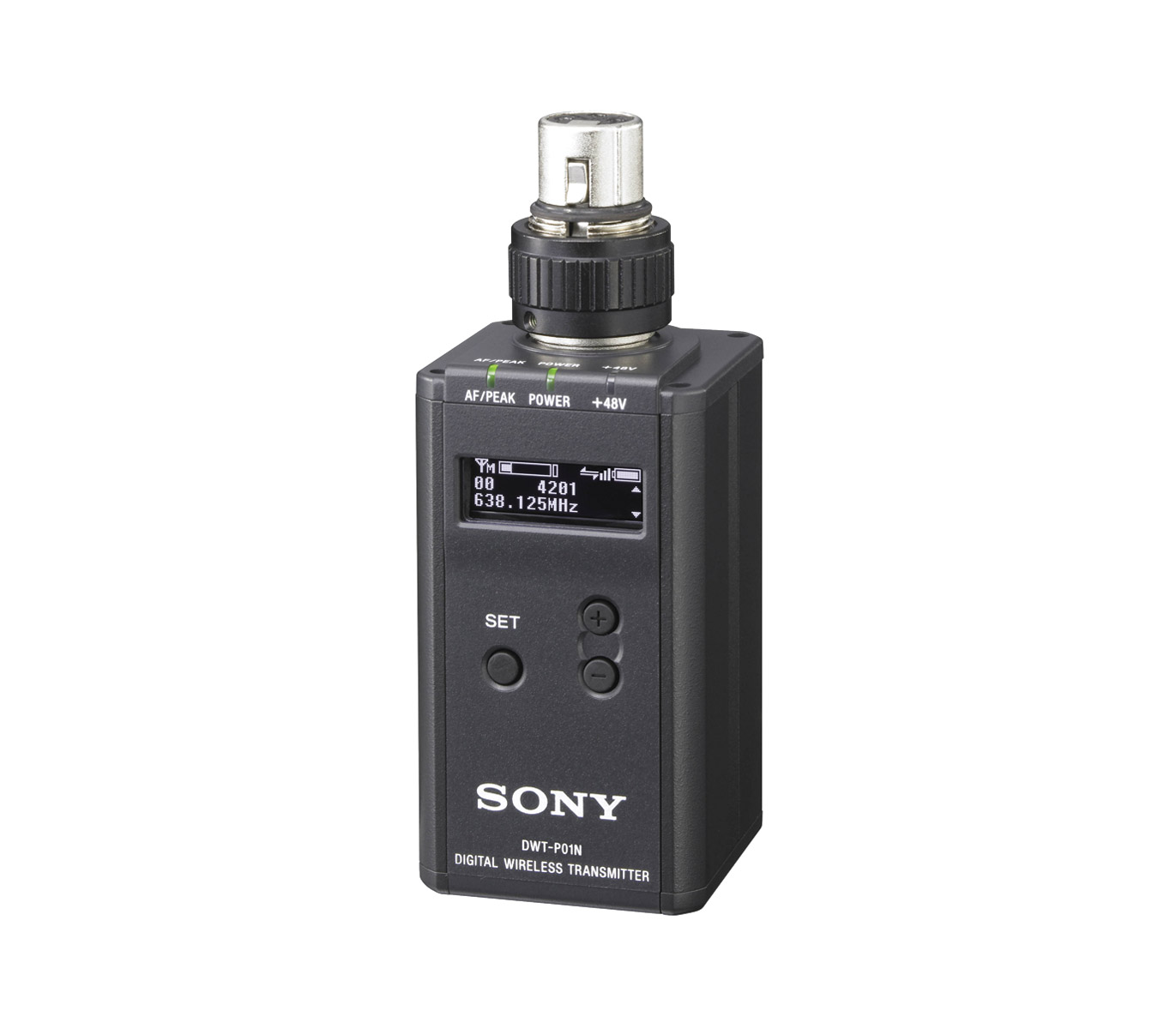

DWT-P01N Plug-on transmitter

This unit has the functionality of the DWT-B01N however it has a female 3-pin XLR for connecting standard vocal microphones such as the Sony F-112 interview mic. 48V phantom power is switchable for microphones with the powering requirement.
Included accessories: Soft case, spare battery case, USB adapter cable, and CD-ROM.

Oscillator type: Crystal-controlled PLL synthesizer. RF power: 1/10/50mW. Maximum input level: -22dBu, mic; +24dBu, line. Audio attenuation range: 0-48dB, in 3-dB steps, MIC input mode only. Dimensions (W x H x D): 44 x 78 x 44mm. Weight: 245g, including batteries.

  Bezeichnung Preis (€) Hinzufügen
Versand
SONY DWR-R03D RADIOMIC RECEIVER Fixed, 1U rackmount, 2-channel, Dante, 24-bit/96kHz, 470-714MHz   Artikelnummer: 74-6702
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
4.853,00 €
pro Stück
SONY DWT-B03R RADIOMIC TRANSMITTER Micro bodypack, locking 3-pin connector, 566-714MHz   Artikelnummer: 74-6706
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
2.380,50 €
pro Stück
SONY DWT-B03R RADIOMIC TRANSMITTER Micro bodypack, locking 3-pin connector, 470-614MHz   Artikelnummer: 74-6707
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
2.380,50 €
pro Stück
SONY DWR-R02DN RADIOMIC RECEIVER Fixed, 1U rackmount, 2-channel, 24-bit/96kHz, 470-710MHz   Artikelnummer: 74-6701
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
3.415,50 €
pro Stück
SONY DWR-S02DN RADIOMIC RECEIVER Portable, slot-in, 24-bit/48kHz, TV channel 21-29   Artikelnummer: 74-6703
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
2.898,00 €
pro Stück
SONY DWR-S02DN RADIOMIC RECEIVER Portable, slot-in, 24-bit/48kHz, TV channel 33-40   Artikelnummer: 74-6704
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
2.898,00 €
pro Stück
SONY DWR-S02DN RADIOMIC RECEIVER Portable, slot-in, 24-bit/48kHz, TV channel 42-50   Artikelnummer: 74-6705
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
2.898,00 €
pro Stück
SONY DWT-B01N RADIOMIC TRANSMITTER Beltpack, Hirose connector, TV channel 21-29   Artikelnummer: 74-6708
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.449,00 €
pro Stück
SONY DWT-B01N RADIOMIC TRANSMITTER Beltpack, Hirose connector, TV channel 33-40   Artikelnummer: 74-6709
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.449,00 €
pro Stück
SONY DWT-B01N RADIOMIC TRANSMITTER Beltpack, Hirose connector, TV channel 42-50   Artikelnummer: 74-6711
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.449,00 €
pro Stück
SONY DWM-02N RADIOMIC TRANSMITTER Handheld, body only, 24-bit/96kHz, TV channel 21-29   Artikelnummer: 74-6712
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.863,00 €
pro Stück
SONY DWM-02N RADIOMIC TRANSMITTER Handheld, body only, 24-bit/96kHz, TV channel 33-40   Artikelnummer: 74-6713
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.863,00 €
pro Stück
SONY DWM-02N RADIOMIC TRANSMITTER Handheld, body only, 24-bit/96kHz, TV channel 42-50   Artikelnummer: 74-6714
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.863,00 €
pro Stück
SONY DWT-P01N RADIOMIC TRANSMITTER Plug-on, 3-pin XLR, 48V phantom power, TV channel 21-29   Artikelnummer: 74-6715
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.771,00 €
pro Stück
SONY DWT-P01N RADIOMIC TRANSMITTER Plug-on, 3-pin XLR, 48V phantom power, TV channel 33-40   Artikelnummer: 74-6716
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.771,00 €
pro Stück
SONY DWT-P01N RADIOMIC TRANSMITTER Plug-on, 3-pin XLR, 48V phantom power, TV channel 42-50   Artikelnummer: 74-6717
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.771,00 €
pro Stück

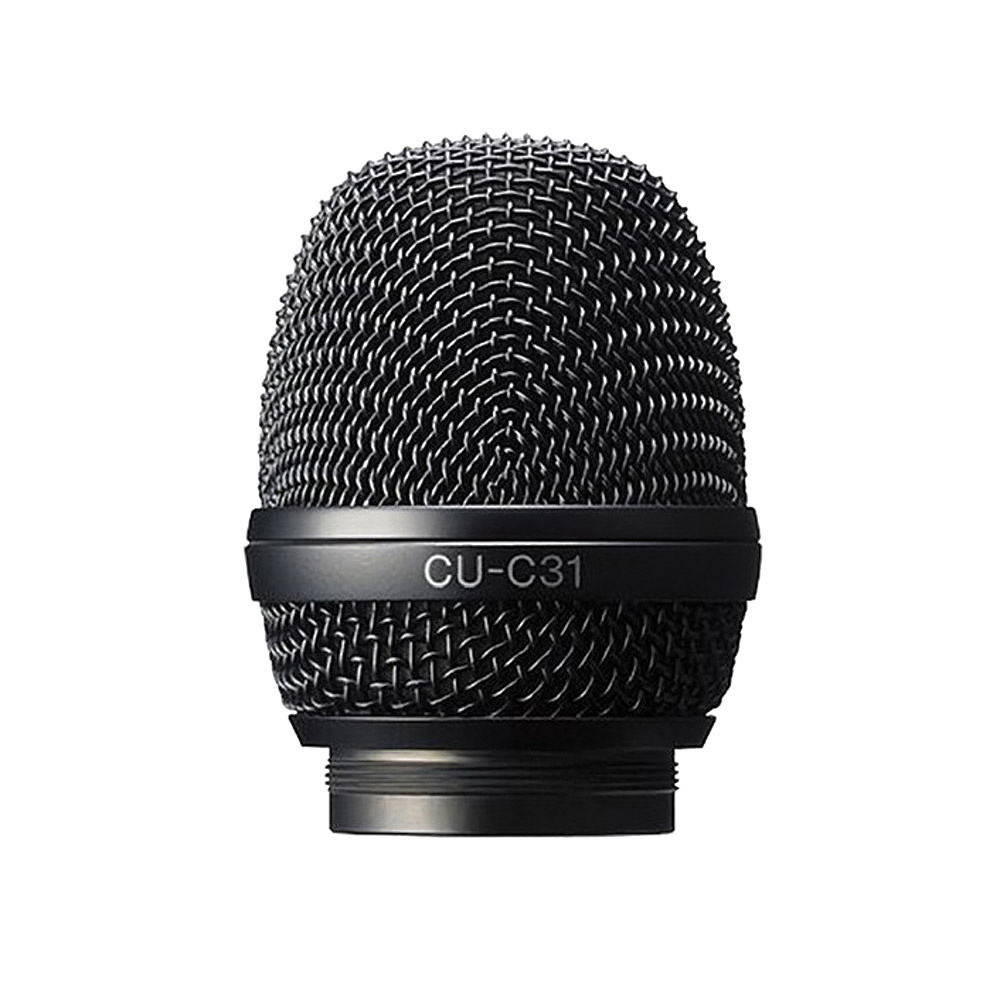

SONY CU-C31 MICROPHONE CAPSULE Condenser, cardioid   Artikelnummer: 74-6514
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1.033,85 €
pro Stück

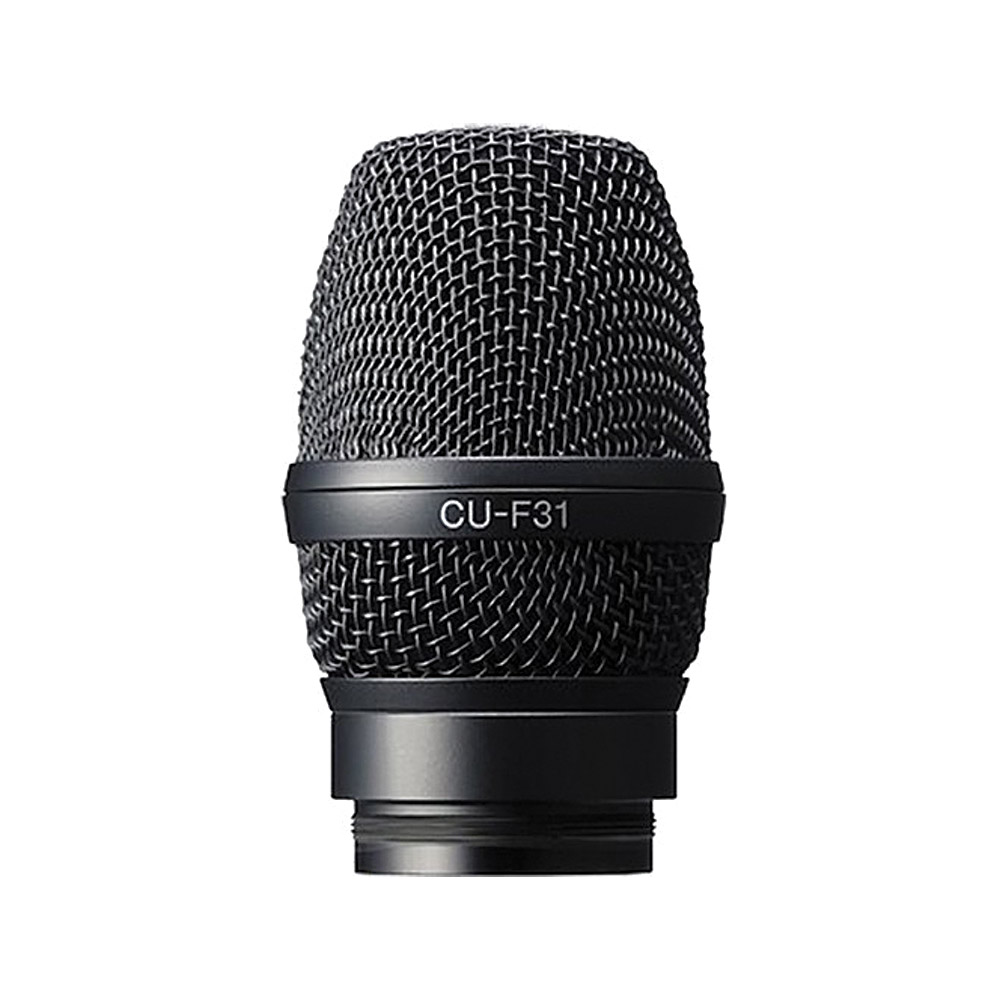

SONY CU-F31 MICROPHONE CAPSULE Dynamic, super cardioid   Artikelnummer: 74-6515
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
828,00 €
pro Stück

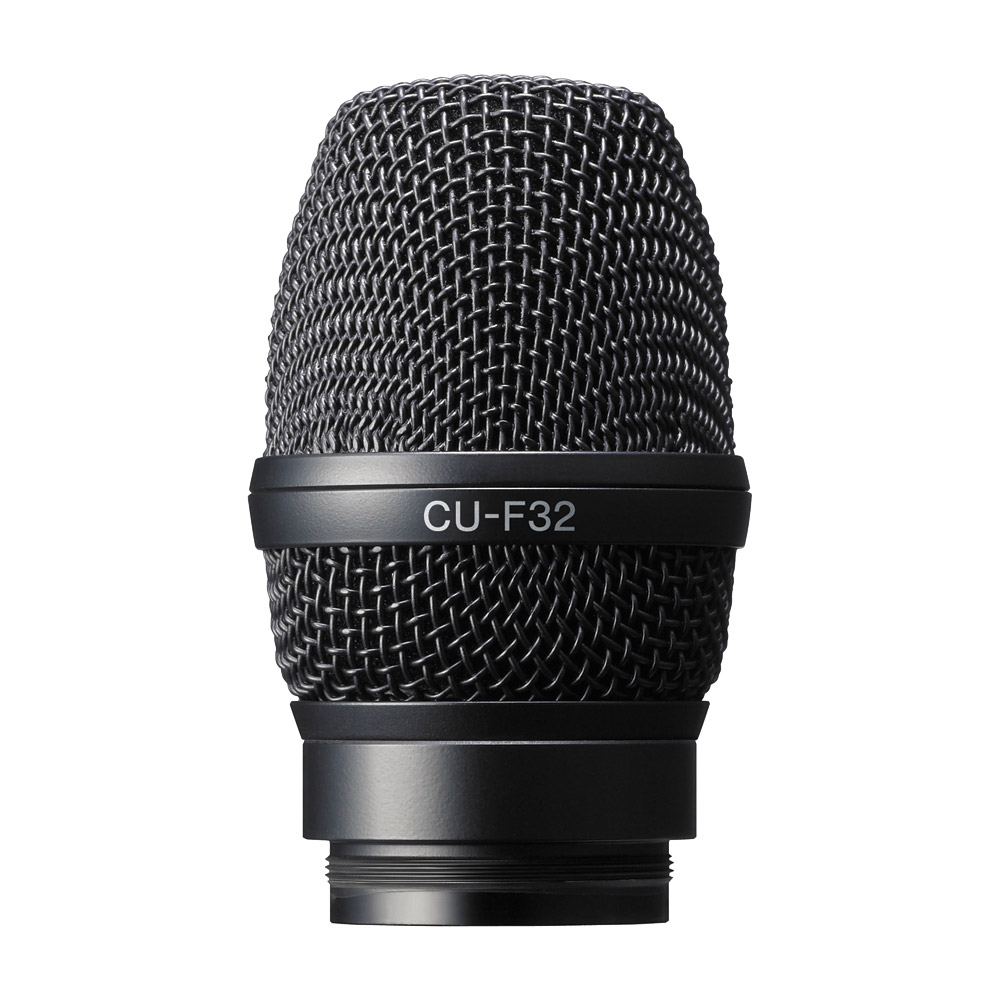

SONY CU-F32 MICROPHONE CAPSULE Dynamic, wide cardioid   Artikelnummer: 74-6516
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
409,29 €
pro Stück

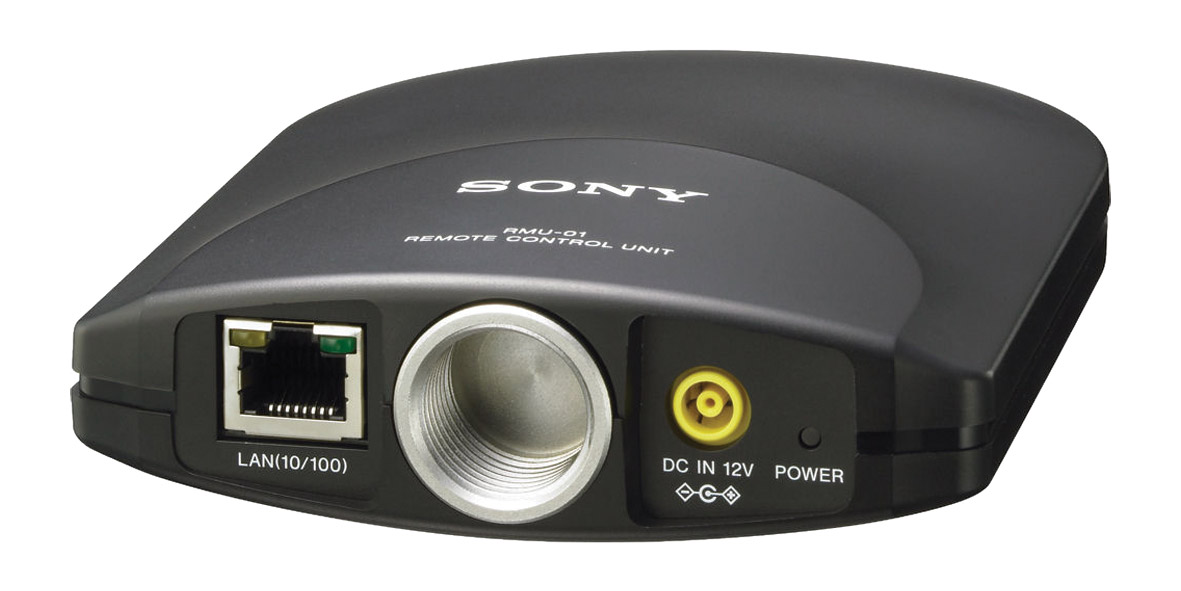

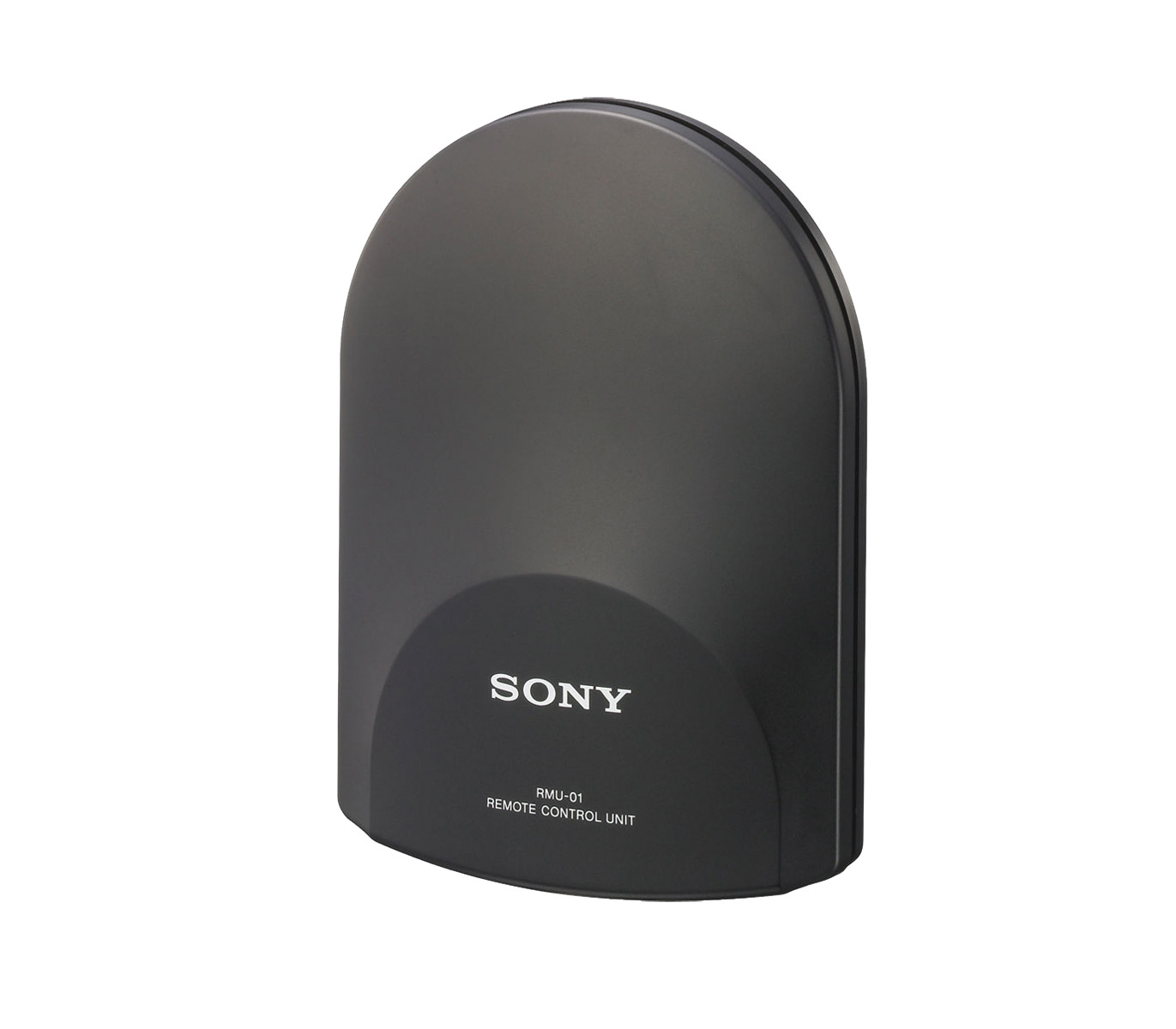

SONY RMU-01 REMOTE CONTROL UNIT For 2.4GHz control of DWX series wireless   Artikelnummer: 74-6725
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
997,05 €
pro Stück

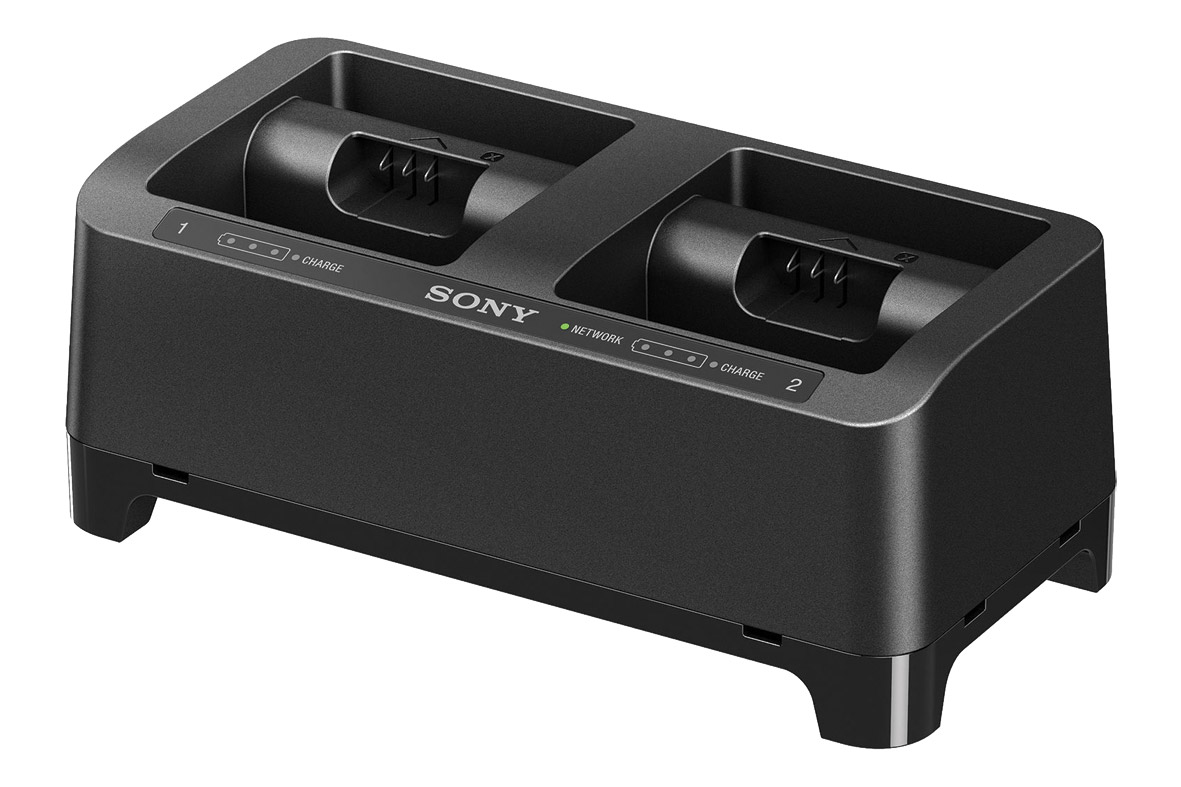

SONY BC-DWX1 BATTERY CHARGER DOCK For 2x DWT-B03R beltpack transmitters   Artikelnummer: 74-6726
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
309,24 €
pro Stück

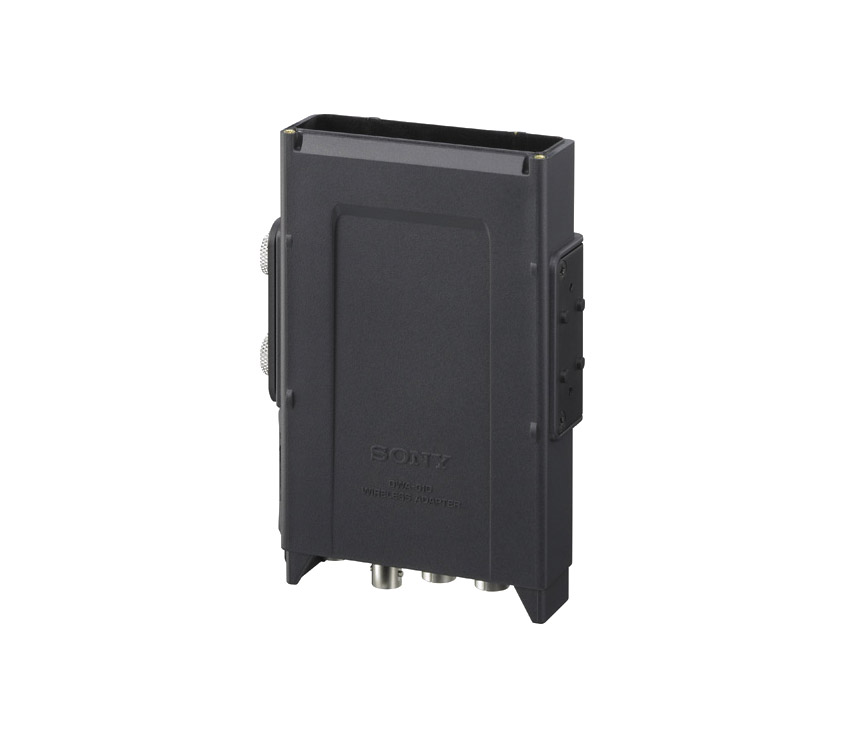

SONY DWA-01D RADIOMIC ADAPTER For DWR-S02DN slot-in receiver, AES/EBU, 4-pin power in, V-mount   Artikelnummer: 74-6727
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
968,30 €
pro Stück
SONY DWA-F01D RADIOMIC ADAPTER For DWR-S02DN slot-in receiver, AES/EBU, lithium/AC/4-pin power in   Artikelnummer: 74-6728
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
911,95 €
pro Stück
SONY LCS-F01D SOFT CASE For DWA-F01D radiomic adapter   Artikelnummer: 74-6729
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
247,25 €
pro Stück
