A selection of Manfrotto supporting arms designed to aid easier positioning of accessories including microphones, reflectors, action cameras, props, or photographic flash heads.
237 Flex Arm, 55cm
This 55cm flexible arm is able to support a payload of up to 0.3kg, and is terminated with 3/8-inch female thread at one end, and 16mm stud with 1/4-inch, type 18 male thread at the other.
Dimensions (LxD): 55 x 1.3cm. Payload: 0.3kg. Weight: 350g
237HD Heavy Duty Flex Arm, 55cm
Like 237, 237HD is a flexible arm designed to support accessories, however the arm is thicker in diameter and therefore is able to support heavier payloads of up to 0.5kg. Includes hex stud and 9.5mm thread.
Dimensions (LxD): 55 x 1.8cm. Payload: 0.5kg. Weight: 710g

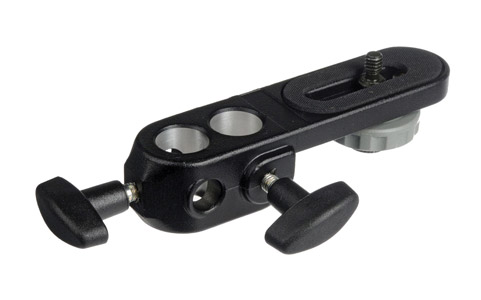

143BKT Bracket
A camera/umbrella bracket that is compatible with Manfrotto friction and Magic Arms.
143N Magic Arm, 53cm
This Manfrotto Magic Arm is an articulated boom arm that extends to 53cm, and able to support a payload of up to 3kg. A lever positioned at the join between first and second arm locks the centre arm connection and both end ball joints in place. Both ends of the Magic Arm are terminated with a ‘standard-size’ 16mm spigot which is compatible with the 035 Super Clamp; with one spigot a female 1/4-inch thread and the other a female 3/8-inch thread.
Colour: Black. Arm Length: 53cm. Payload: 3kg. Weight: 1.17kg
143R Magic Arm, with 035, 53cm
This kit includes 1x 143N Magic Arm and 1x 035 Super Clamp.
244N Variable Friction Arm, 53cm
Manfrotto 244N has the same features and functionality as 143N, however in place of the locking lever there is a large rotary locking knob. Like 143N, the maximum payload is 3kg.
Colour: Black: Arm Length: 53cm. Payload: 3kg. Weight: 1.09kg
244 Variable Friction Arm, 53cm, with 143BKT
As 244N however includes 143BKT camera/umbrella bracket.
244MINI Variable Friction Arm, 24cm
Manufactured from aluminium for stability and transportability, 244MINI is a miniature variable friction arm able to support payloads up to 3kg in weight. The total length of the arm is 24cm when straightened, and both ends feature ball joints with stud connectors. Two 1/4-inch and a single 3/8-inch attachments are included and are interchangeable. The attachment is fixed to the stud using a hex key. An ‘ergonomic handle’ allows the user to lock the arm and ball joints in place.
Colour: Black. Arm Length: 24cm. Payload: 3kg. Weight: 0.44kg
244MICRO Variable Friction Arm, 15cm
This variable friction arm has the same feature set and functionality as 244MINI, however the total length is 15cm. Two 1/4-inch and a single 3/8-inch attachments are included.
Colour: Black. Arm Length: 15cm. Payload: 3kg. Weight: 0.22kg
244MICROKIT Variable Friction Arm Kit, 15cm
This kit includes 1x 244MICRO variable friction arm, 1x 386B-1 Nano Clamp, and 1x 244ADPT38AR Anti-Rotation Adapter.
Colour: Black. Arm Length: 15cm. Payload: 3kg. Weight: 0.315kg
196B-2 Single Arm, 2-section
A two section articulated arm with a maximum length of 60.5cm and payload of 1kg at full extension. 143BKT bracket is included for mounting camera, umbrella, or compatible accessory.
Colour: Black. Arm Length: 60.5cm. Payload: 1Kg. Weight: 0.53kg
196B-3 Single Arm, 3-section
As 196B-2 but with three sections and maximum length of 85cm
Colour: Black. Arm Length: 85cm. Payload: 1Kg. Weight: 0.63kg
