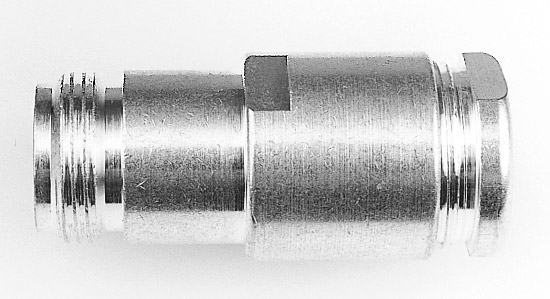

TELEGARTNER J01021H1076 N TYPE CONNECTOR Female cable, solder, group C

50 ohm connectors for RF applications, typically used for antenna feed connections. Threaded connector bodies for mating retention. Frequency range DC-11GHz. Rated 500 mating cycles. Contact resistance 1.5mΩ max., insulation resistance 5GΩ min. VSWR 1.05 nom. up to 4GHz. A cap and chain is also available to protect the thread and contacts on the female connector.

Suitable cables are RCH (BBC PSF1/4), URM67, RG213 and RG214.

Male and female cable types

Solder types, have a compression gland with a hex nut fixing.

Supplied to Canford by Telegärtner.
