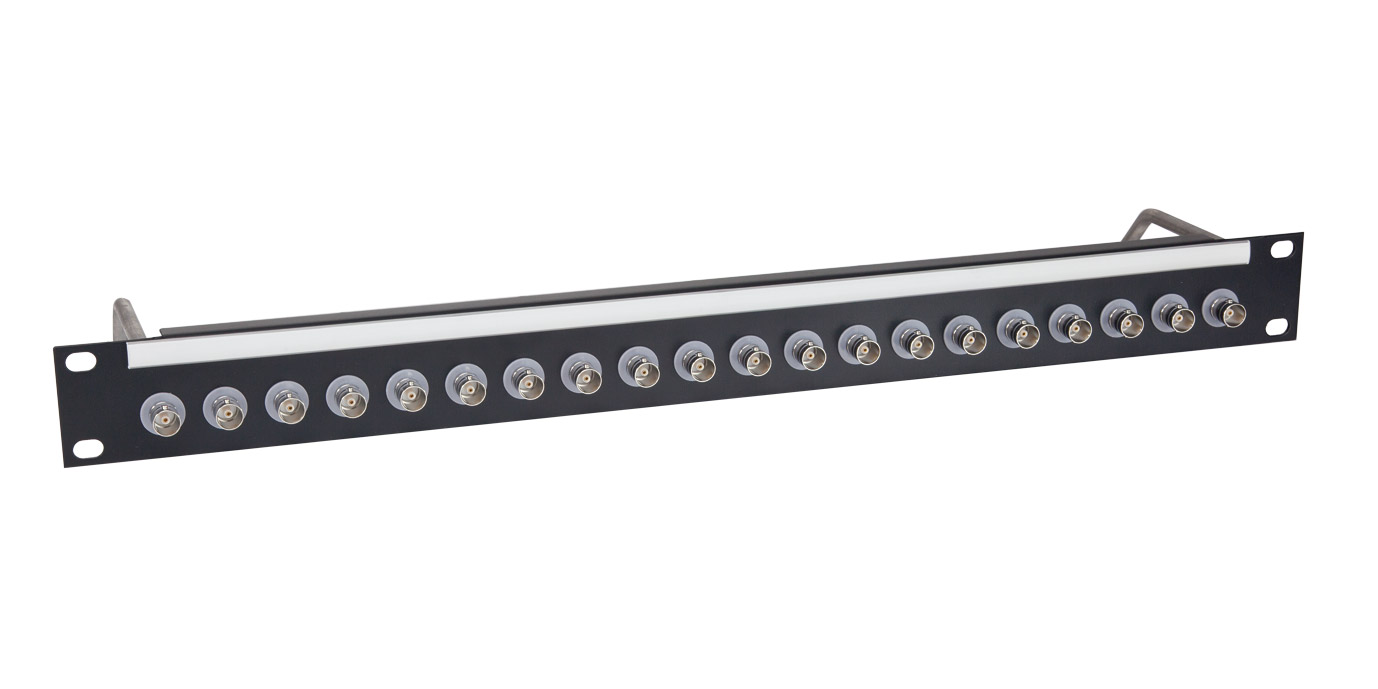

Available in 1U with 16, 20 or 24 connectors, depending on model, these economy 'Ultra High Definition' BNC termination panels are intended for 12G 4K UHD (2160P60), 3G and 1.5G high definition, standard definition and analogue video applications. The performance exceeds the requirements of SMPTE ST 2082-1 making them suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz.
Manufactured from 2mm steel with a single return, the panels are fully-populated with double-sided, 'Ultra High Definition', 12G, 75 ohm sockets, equally spaced across the panel. To the rear, a cranked lacing-bar is fitted over each row of connectors, giving easy access to the sockets. On the front, above each row of connectors, sits a designation-strip holder with snap-on cover, allowing paper inserts, with 7.5mm of printable height, to be inserted before or after any installation.
Available finished in Black.
Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website.
Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see CANFORD DESIGNATION STRIPS - Snap-on.
Recess rack-mounting brackets are available to recess panels within the rack, see CANFORD RACKBRACKET - Recess mounting brackets.
