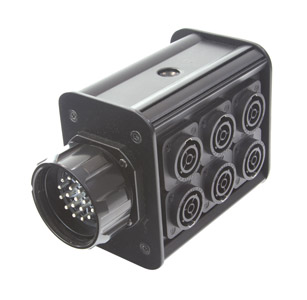

EMO E681 SOCAPEX TO POWERCON TRUE TRUSS BOX

Artikelnummer
42-1681
Hersteller
EMO
Typennummer
  • E681
EMO E681 SOCAPEX TO POWERCON TRUE TRUSS BOX
EMO E681 SOCAPEX TO POWERCON TRUE TRUSS BOXEMO E681 SOCAPEX TO POWERCON TRUE TRUSS BOX

Bestellangaben

/
352,26 €
pro Stück (zzgl. MwSt.)
auf Bestellung zusammengestellt, lieferbar in 4‑6 Wochen. Brauchen Sie es schneller? Rufen Sie uns an

EMO SOCAPEX BREAKOUT TRUSS BOXES

A range of Socapex break out boxes converting the 19-Pin Socapex type connector down to six individual circuits. Designed for use in stage, theatre or touring applications, where multiple channels of lighting and power circuits are required. These breakout boxes can be utilised free-standing or suspended from a truss rig via 2 x M10 threads for attaching clamps.

Available in four versions, with two output connector variants and with or without pass-through to a 19-pin female Socapex connector. All models are housed in a robust painted steel enclosure.

Code Input Output Pass-through
42-1680 19-Pin Socapex male 6 x 20A PowerCON No
42-1681 19-Pin Socapex male 6 x 16A PowerCON TRUE1 No
42-1682 19-Pin Socapex male 6 x 20A PowerCON 19-Pin Socapex female
42-1683 19-Pin Socapex male 6 x 16A PowerCON TRUE1 19-Pin Socapex female

Connector Specifications:

Input: SHOWLINE SOCAPEX CONNECTOR Panel, male, 19-pin, Solder, 23 Amp, IP67 (47-261)
Output: NEUTRIK NAC3MPXXB-WOT POWERCON Mains output panel connector, 20 Amp (42-0392)
Output: NEUTRIK NAC3FPX-TOP POWERCON TRUE1 Power output panel connector, 16 Amp (42-0424)
Pass-through: SHOWLINE SOCAPEX CONNECTOR Panel, female, 19-pin, Solder, 23 Amp, IP67 (47-262)
