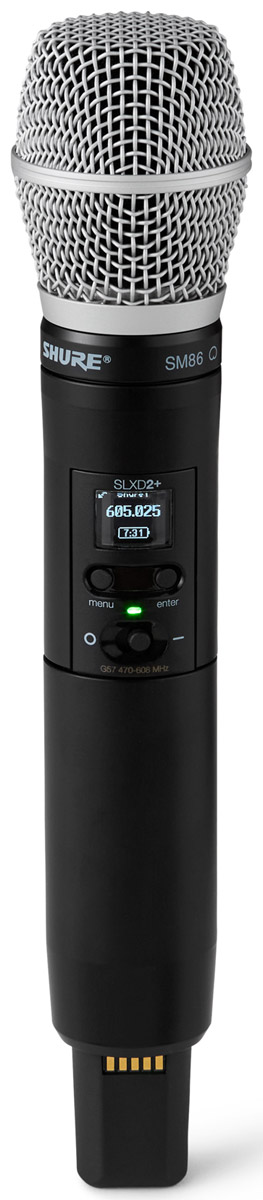

SHURE SLXD2/SM86 RADIOMIC TRANSMITTER Handheld, SM86 capsule, cardioid, 606-650MHz (K59)

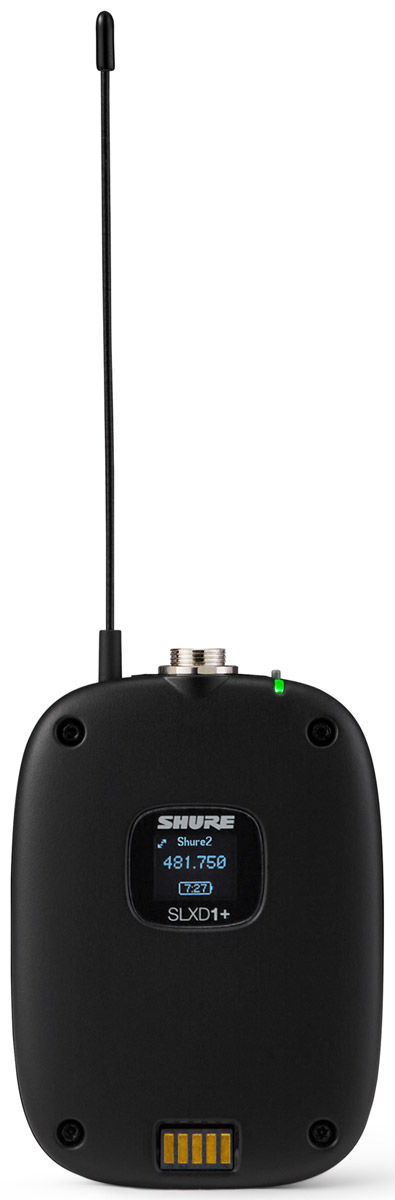

SLXD1+ Transmitter, Bodypack

Shure SLXD1+ has a wide-tuning range of up to 138MHz which allows up to 11 simultaneous systems in 6MHz TV bands, or up to 14 simultaneous systems in 8MHz TV bands. Having compatibility with ShowLink Ease, the user is able to adjust frequency, output power level, and lock/unlock remotely.

Manufactured from PC (Polycarbonate) and ABS (Acrylonitrile Butadiene Styrene) plastic, SLXD1+ belt pack transmitter has many of the features the handheld transmitter offers, however has a fixed whip antenna and 4-pin TA4F connector for use with optional WL185M, WL93, XM153, SM35, or WA305. SLXD1+ has charging contacts for docking and charging with optional SBC203 battery charger, and can be powered using either 2x AA battery cells or a single SB903 rechargeable lithium battery pack. When the SB903 lithium-ion battery is employed, the user gains access to battery charge status in hours and minutes, along with battery life and health status.

Connector: 4-pin TA4M connector, unbalanced. Maximum input level: 8.2dBV. Operating range: 100m without barrier. Display: OLED. Power source: 2x AA lithium/alkaline batteries. Battery life: 8h, alkaline. Dimensions (H x W x D): 98 x 68 x 25.5mm. Weight: 89g.

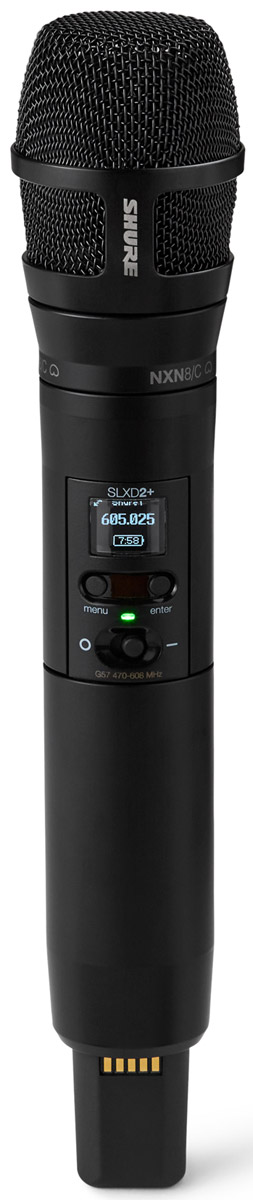

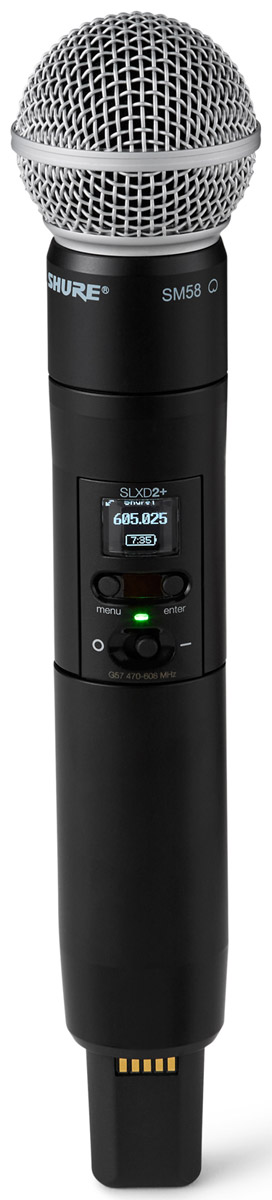

SLXD2+ Transmitter, Handheld

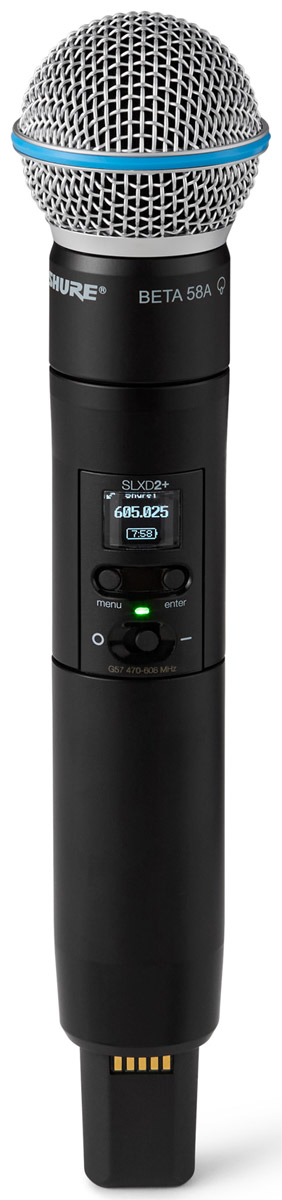

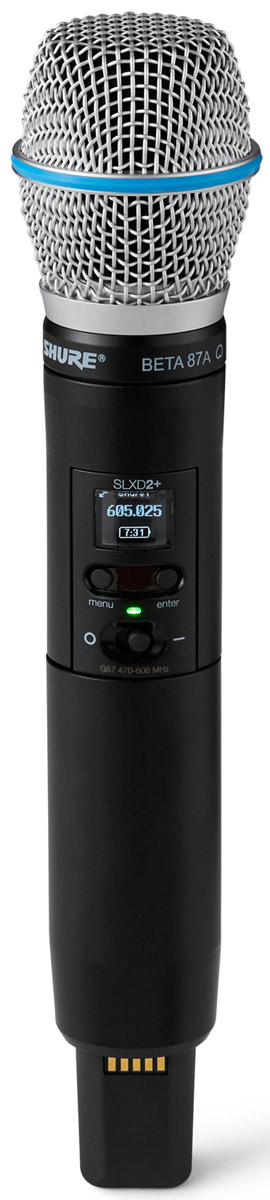

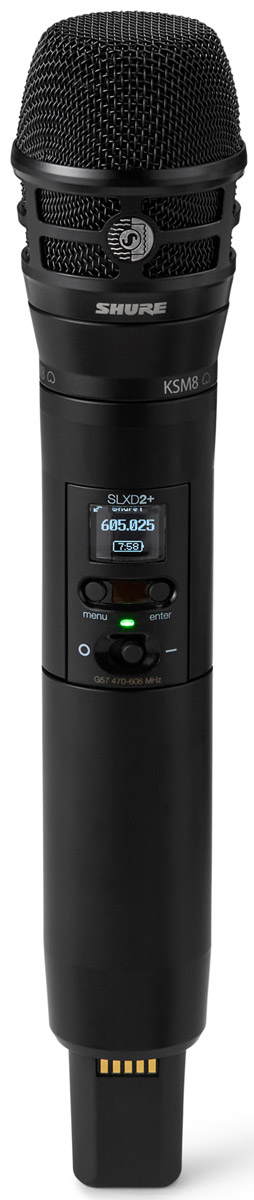

SLXD2+ handheld transmitter has the same functionality as SLXD1+ however it is a handheld wireless transmitter compatible with microphone capsules including SM58, BETA58a, KSM8, BETA87a amongst others. The handheld mic is manufactured from aluminium for durability.

This handheld transmitter is able to transmit a frequency range of 20Hz to 20kHz with flat response, however each mic capsule offers a different frequency response curve. Usage is up to eight hours continuous with 2x AA alkaline batteries, or a single SB903 lithium battery pack can be used to gain monitoring information including battery health, status, and remaining charge in hours and minutes. External charging contacts on the base of the microphone allow the recharging of the SB903 batteries when used with the compatible Shure SBC203 charging unit. Like the SLXD1+, the SLXD2+ offers OLED screen that shows important information including group/channel and frequency. Lockout functions are accessible by navigating the user menu.

Available versions

Operating range: 100m without barrier. Display: OLED. Power source: 2x AA alkaline batteries or single SB903 lithium battery pack. Dimensions (D x L): 37.1 x 176mm Weight: 144g.

Shure microphone clamps are supplied as standard with a 5/8 inch thread. 5/8 inch to 3/8 inch adapters are available separately (stock code 53-217).

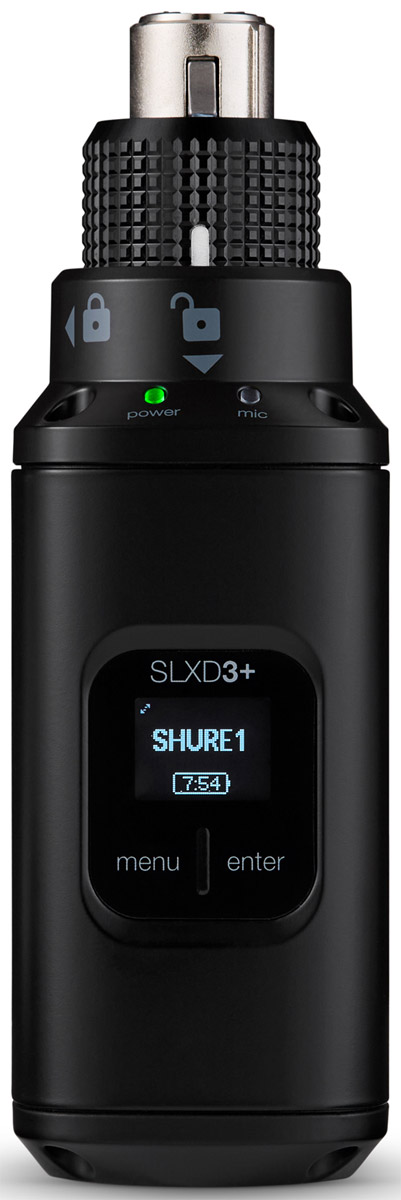

SLXD3+ Transmitter, Plug-on

Shure SLXD3+ plug-on wireless transmitter converts any XLR source to wireless, normally in conjunction with a dynamic and condenser microphone connected via the patented locking ring. SLXD3+ sends 24-bit digital audio from any XLR source to a SLXD4+ or SLXD5+ digital wireless receiver via a 'rock-solid' RF connection. IR Sync is employed to pair the transmitter quickly with the SLX-D+ wireless receiver. A bright OLED screen displays battery life in hours and minutes when used with the optional SB903 rechargeable Lithium-Ion battery cell.

SLX3+ can provide +12 to +48V phantom power for use with connected condenser microphone, whilst up to 8 hours use can be achieved using 2x AA batteries or a single, optional SB903 rechargeable battery cell. With a regional dependant tuning band of up to 138MHz, SLXD3+ can operate up to 11 compatible systems per 6MHz TV band; or 14 systems per 8MHz TV band. Like SLXD1+ and SLXD2+, SLXD3+ has AES-256 encryption.

Included accessories: Leather protective sleeve with integrated celt clip, zippered carrying pouch, 2x AA Alkaline battery cells.
Optional accessories: SB903 Lithium-Ion battery cell, SBC203 charging dock.

Frequency range: 20Hz - 20kHz. Power: 1mW/10mW/30mW switchable, region dependant. Phantom power: 7mA maximum, +48V; 15mA maximum; +12V. Maximum input level: 20.5dBV, -12dB Pad; 8.5dBV, 0dB; -3. dBV, +12dB. Dimensions (W x D x H): 41 x 41 x 126mm. Weight: 200g

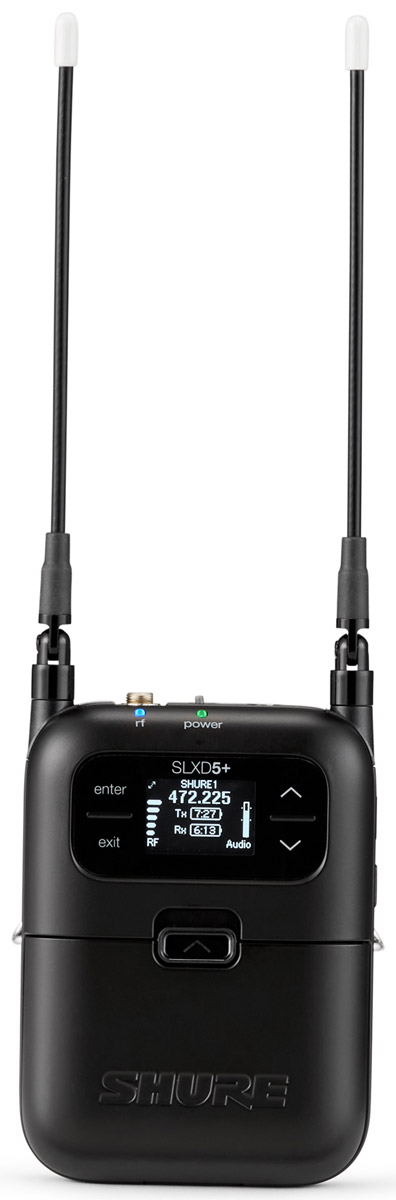

SLXD5+ Receiver, Portable

SLXD5+ is a 'rugged' metal constructed, single-channel portable wireless receiver that provides 24-bit digital audio clarity, AES-256 encryption, efficient long-range UHF transmission and easy-to-use setup features. SLXD5+ has been designed for use on top of a camera or in an audio bag. The user is able to scan and deploy frequencies to a compatible SLX-D+ wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A bright OLED screen displays battery life in hours and minutes when used with the optional SB903 rechargeable Lithium-Ion battery. With a regional dependant tuning band 138MHz, and 32 available channels per frequency band, SLXD5+ can operate up to 11 compatible systems per 6MHz TV band; or 14 systems per 8MHz band. Dual 3.5mm jack outputs including a headphone monitor out and switchable line/mic output allow the user to connect to camera, recorder, or mixing device.

Spurious rejection: Greater than 75dB, typical. RF impedance: 50ohms. Frequency range: 20Hz - 20kHz, +1/-3dB. Audio impedance: 450ohm, balanced mono line; 240ohm, balanced mono mic; 400ohm, dual mono line; 200ohm, dual mono mic. Dimensions (W x D x H): 68 x 25.3 x 107mm. Weight: 182g

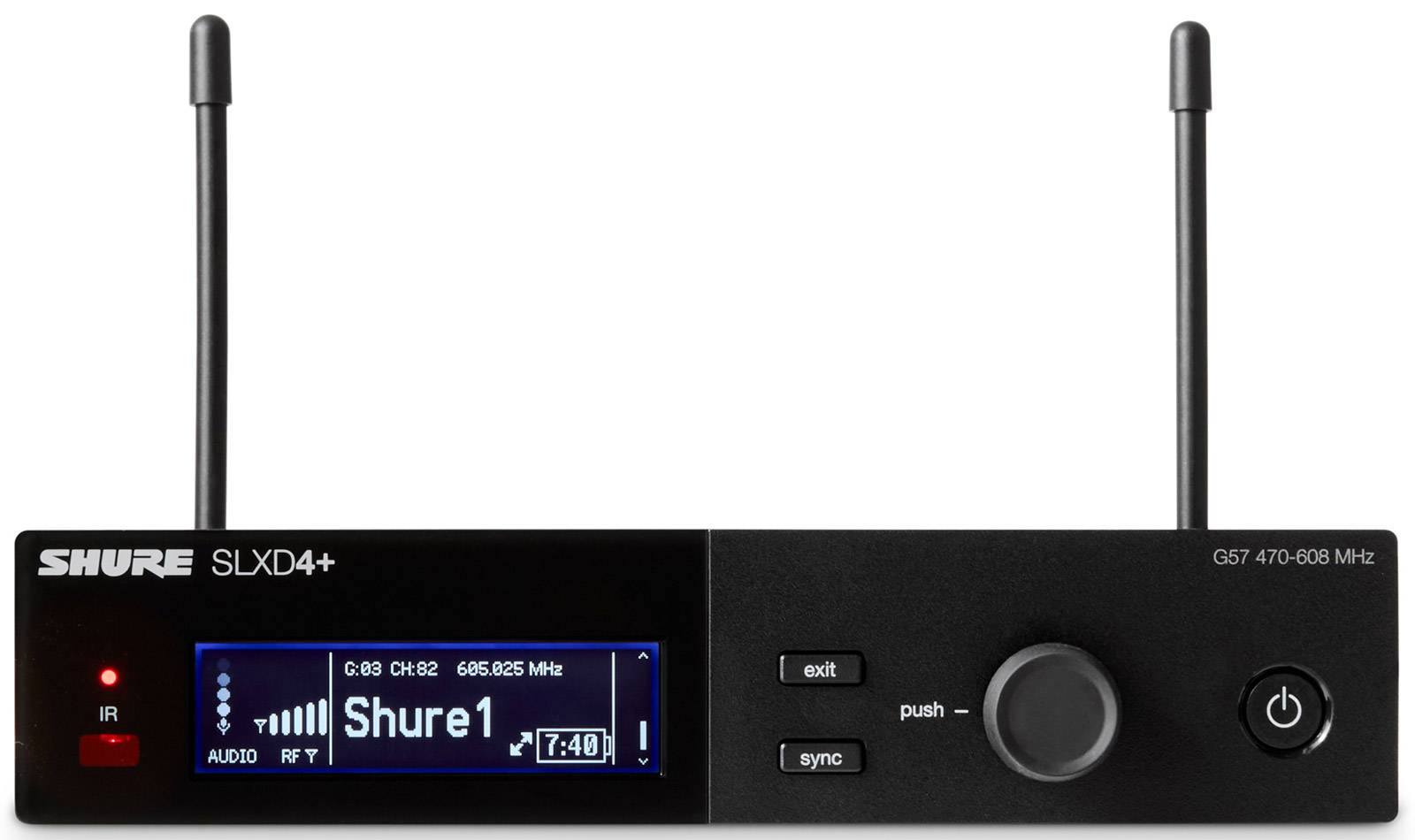

SLXD4+ Receiver, Single channel

One of four receivers in the SLX-D+ range, SLXD4+ is a desktop, single channel receiver that can be mounted in a 1U, 19-inch format by using the included mounting bracket kit. SLXD4D+ dual channel half-rack receiver unlocks hands-free oversight and management for seasoned volunteers and pro engineers alike, that delivers wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device. Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind

The front facing panel of the SLXD4 receiver has all status identifying tools including a flashing/solid LED for sync status, and visual display showing both receiver and linked transmitter settings along with menus for adjustment. Power button, control knob, sync and exit buttons are also located on the front facing panel, along with an infrared port for syncing with selected transmitter.

The rear facing panel of the receiver houses all audio and data connectivity including BNC connectors for antenna A and B, DC power supply input, Ethernet port with associated LED for status, and audio outputs on both balanced 3-pin XLR and balanced 6.35mm jack. Rack mounting fixing is provided to fit 19-inch racking.

Audio frequency response: 20-20kHz. Audio output: balanced 3-pin XLR, 150ohm mic, 400ohm balanced line, 200ohm unbalanced line; balanced 6.35mm jack, 1.3kohm balanced, 670ohm unbalanced. Networking: single port Ethernet 10/100Mbps. Network addressing: DHCP or manual IP address. Power source: 15V DC, 360mA, tip positive. Dimensions (H x W x D): 42 x 197 x 152mm. Weight: 900g, without antenna.

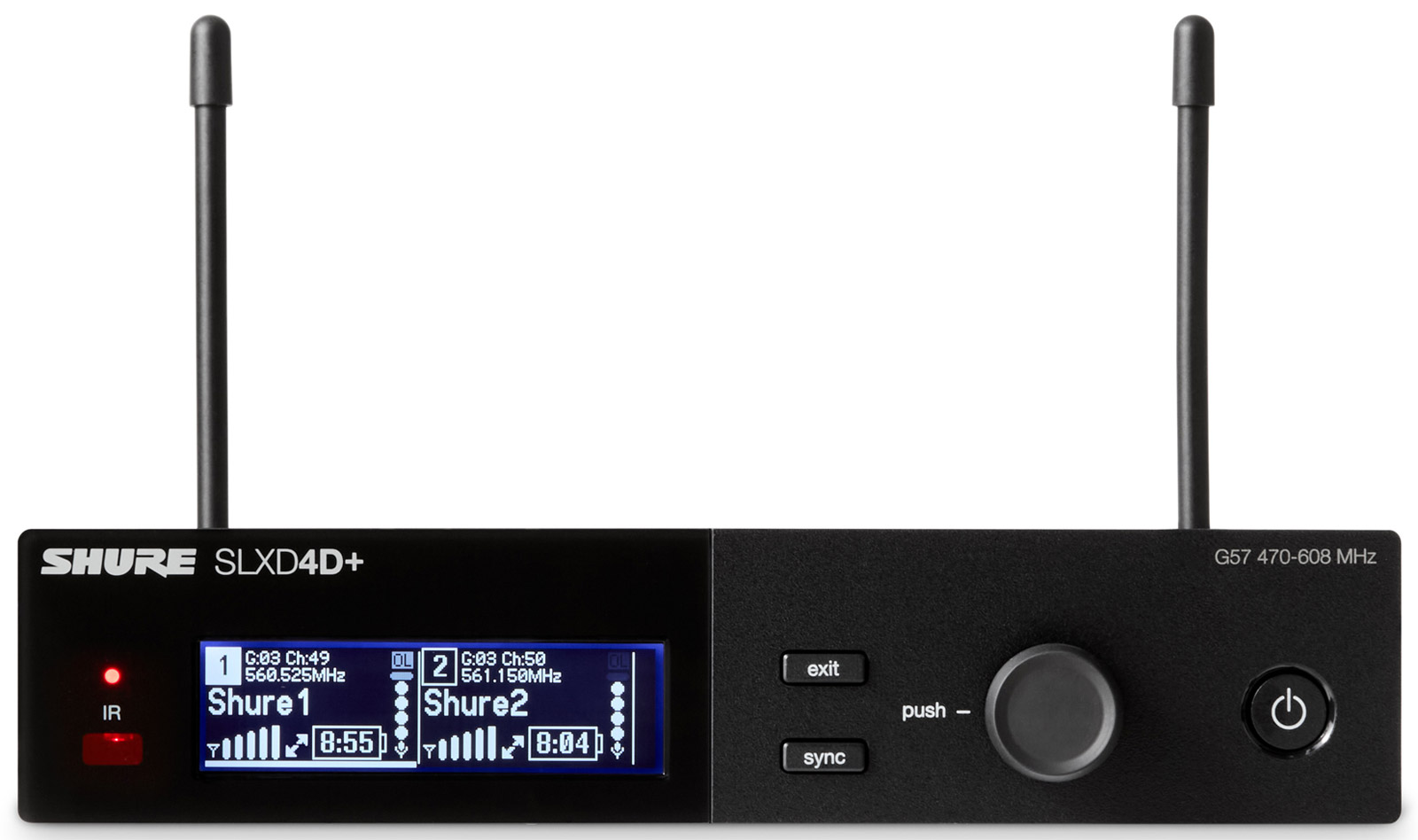

SLXD4D+ Receiver, Dual-channel

SLXD4D has all the functionality and specifications as the SLXD4 receiver, however it is doubled in terms of channels.

Dimensions (H x W x D): 42 x 197 x 152mm. Weight: 930g.

SLXD4Q+ Receiver, Quad-channel

SLXD4Q+ has the functionality of the SLXD4+ receiver, however it is quadrupled in terms of channel count. The receiver operates over 138MHz wideband range, or 44MHz when used with narrowband transmitters.

Dimensions (H x W x D): 42 x 393 x 152mm. Weight: 1750g.

SLXD4QDAN+ Receiver, Quad-channel, Dante

SLXD4QDAN+ has all the functionality and specifications as the SLXD4Q+ receiver, however it incorporates Dante primary and secondary audio connections for redundancy. The Dante receiver carries Dante digital audio and control signals for audio distribution, monitoring, and recording, along with enabling remote device control via Shure Wireless Workbench software.

Dimensions (H x W x D): 42 x 393 x 152mm. Weight: 1750g.
