MuxLab data extenders over Cat5e/6 cable are intended for AV system integration, along with security, industrial control, digital signage, and scientific data acquisition whereby distances of up to 100m are between source and destination.
500530 4-port USB 3.2, 100m reach
500530 is a plug and play kit that enables USB 3.2 connectivity at a distance up to 100m. It has been designed for use in applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards. The data is transmitted over standard Cat6a UTP at data rates up to 5Gbps. The transmitter features one USB 3.2 (generation 1) type B input, one FSYSNC GPIO input, and one RS-232 pass-through. The receiver features four USB 3.2 (generation 1) type A outputs, one FSYSNC GPIO output, and one RS-232 pass-through. 500530 also supports 24V Bi-directional PoC (power over coaxial).
Dimensions (WxDxH): 85 x 100 x 25.5mm, transmitter/receiver. Weight: 253g, transmitter; 260g, receiver.

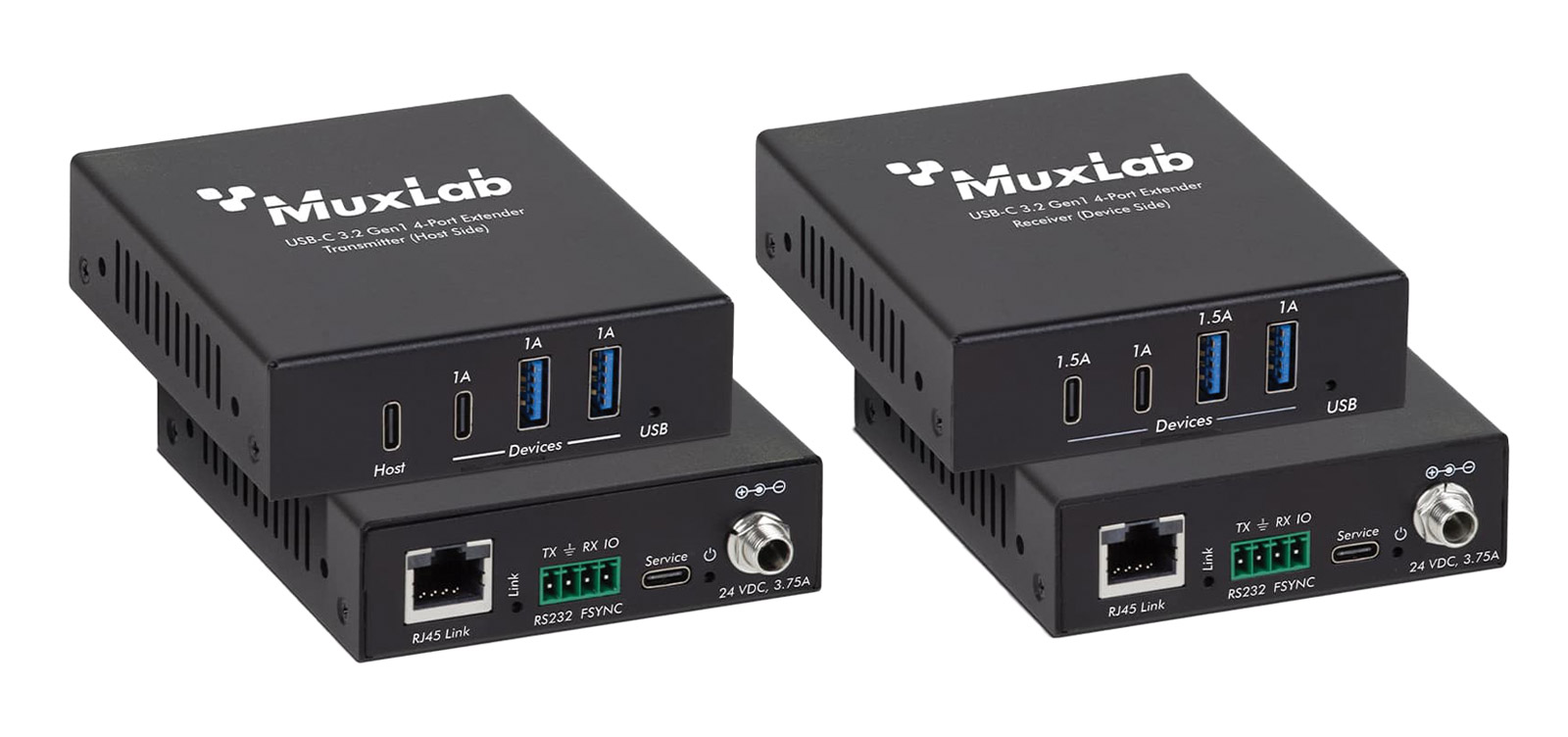

500534 4-port USB-C, 100m reach
Designed for conference rooms, classrooms, digital signage and boardroom environments, 500534 enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps whilst extending USB up to 100m over standard Cat6a UTP. The transmitter features a USB-C host input, alongside one USB-C and two USB-A device inputs. Also featured are a single FSYNC GPIO input and a single RS-232 pass-through. The receiver features four USB ports including two USB-C and two USB-A outputs. FSYNC GPIO output and one RS-232 pass-through are also positioned on the rear facing panel of the receiving device. 500534 also supports 24V Bi-directional PoC.
Dimensions (WxDxH): 85 x 100 x 25.5mm, transmitter/receiver. Weight: 265g, transmitter; 275g, receiver.
500535 4-port USB-C extender kit, with wall plate
500535 is a USB-C 3.2 Gen1, 4-port extender kit that features a wall plate panel. It allows connectivity at data rates up to 5Gbps and extends USB up to 100m over standard Cat6a UTP. The wall plate transmitter, which is of decora style for US back box, features a single USB-C single, a single USB-B input, two USB-A local ports, one FSYNC GPIO input, and a single RS-232 pass-through. The receiver features four USB outputs including a single USB-C connection and three USB-A connections. A FSYNC GPIO output and RS-232 pass-through are also included on the rear pacing panel. The device supports 24V Bi-directional PoC.
Note: Back box (wall box) is not included in the kit. One is required in the installation of the wall plate.
Dimensions (WxDxH): 45 x 42 x 103.5mm, transmitter; 140 x 75 x 23mm, receiver. Weight: 115g, transmitter; 318g, receiver.
