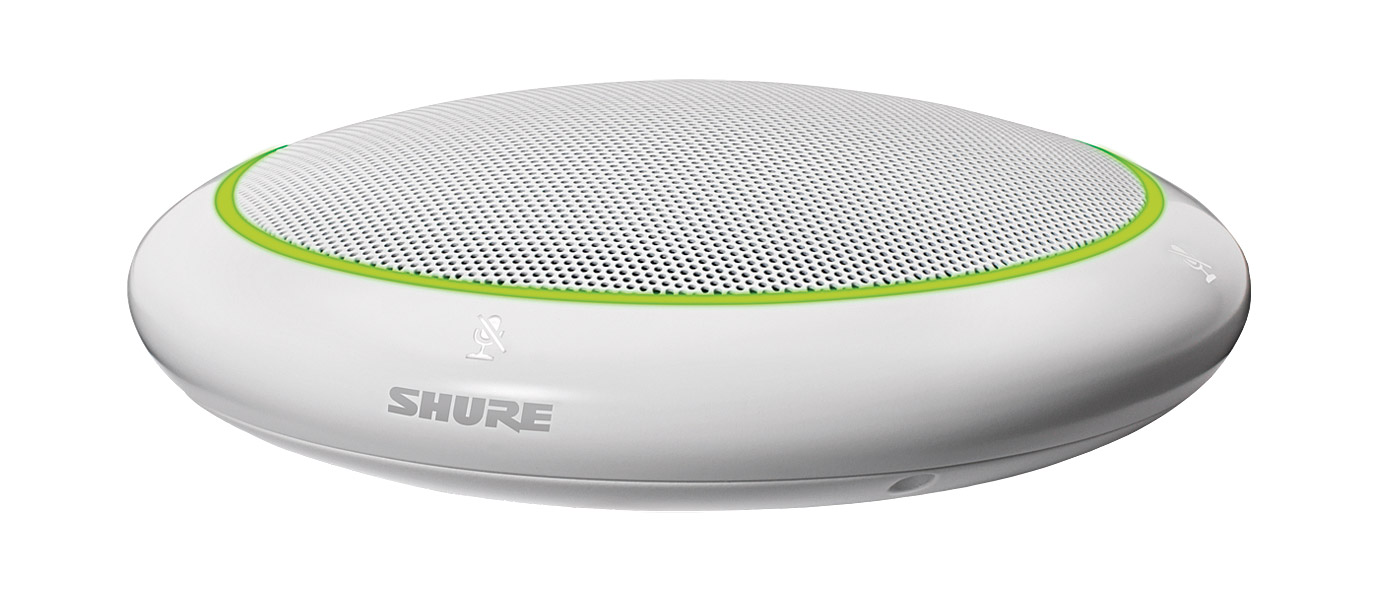

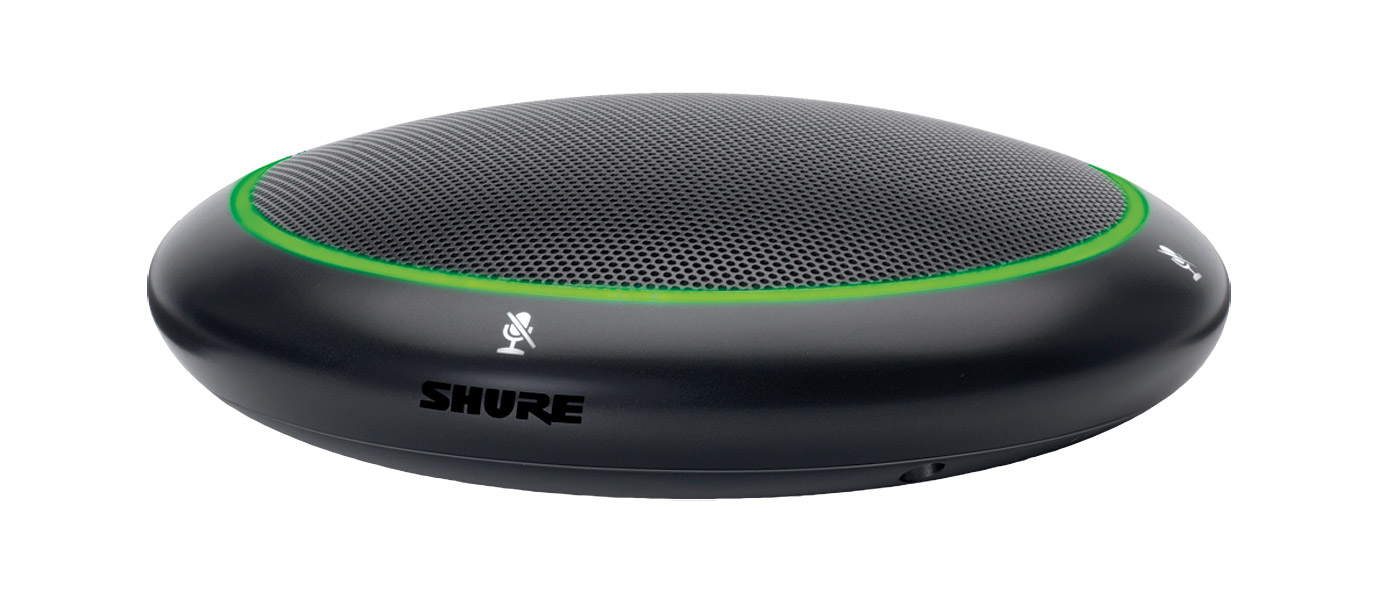

MXA320 - Table array
MXA320 follows on from MXA310 in the range of table array microphones. It provides high quality audio capture and flexible configuration for AV conferencing environments including boardrooms, huddle rooms and multi-purpose spaces. MXA320 is certified for use with Microsoft Teams and Zoom, and compatible with other popular collaboration tools. It allows Remote device management, real-time device monitoring of device status and firmware updates with ShureCloud. A programmable LED light ring with configurable colours and brightness control signifies current status.
Including features such as steerable coverage technology, along with onboard IntelliMix DSP, streamlined deployment with designer system configuration software, and intuitive remote management via ShureCloud, MXA320 offers a compact, low-profile design that can be employed in most meeting spaces with ease. Available in white, black, and aluminium finish.
Can be mounted directly to the table, or with the optional A310-FM flush mount adaptor, both giving discreet underside cable entry.
Included accessories: 1x cable exit plug, 1x mounting tube wing nut, 1x rubber isolation ring, 4x nylon cable ties.
Frequency response: 100Hz to 20kHz, -3dB. Connector type: RJ45. Power requirements: PoE Class 0. Dimensions (HxWxD): 36 x 134 x 13.mm. Weight: 362g

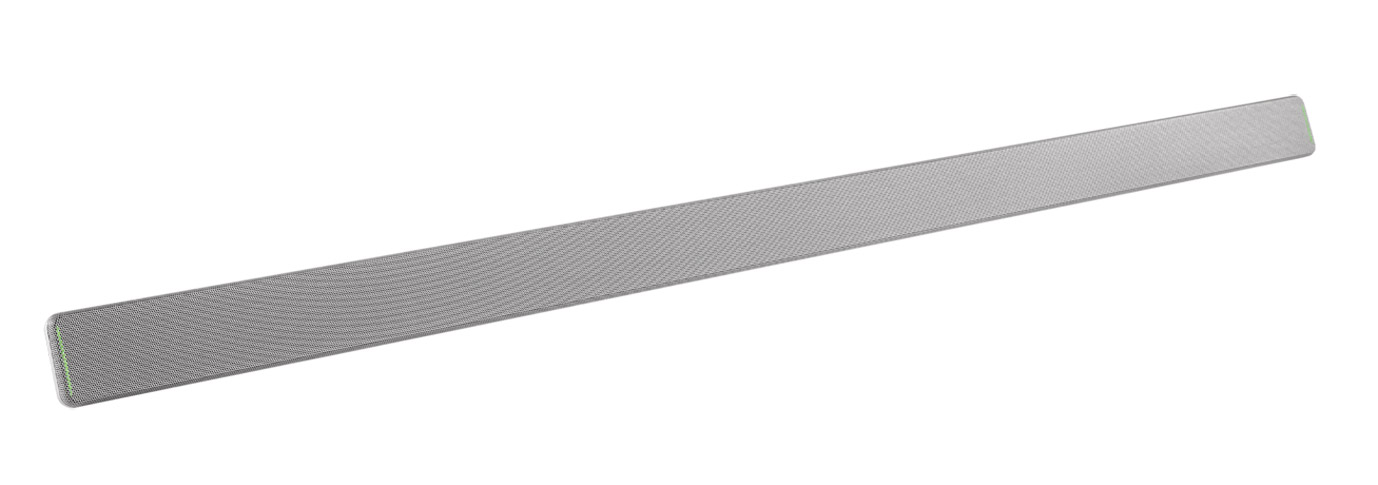

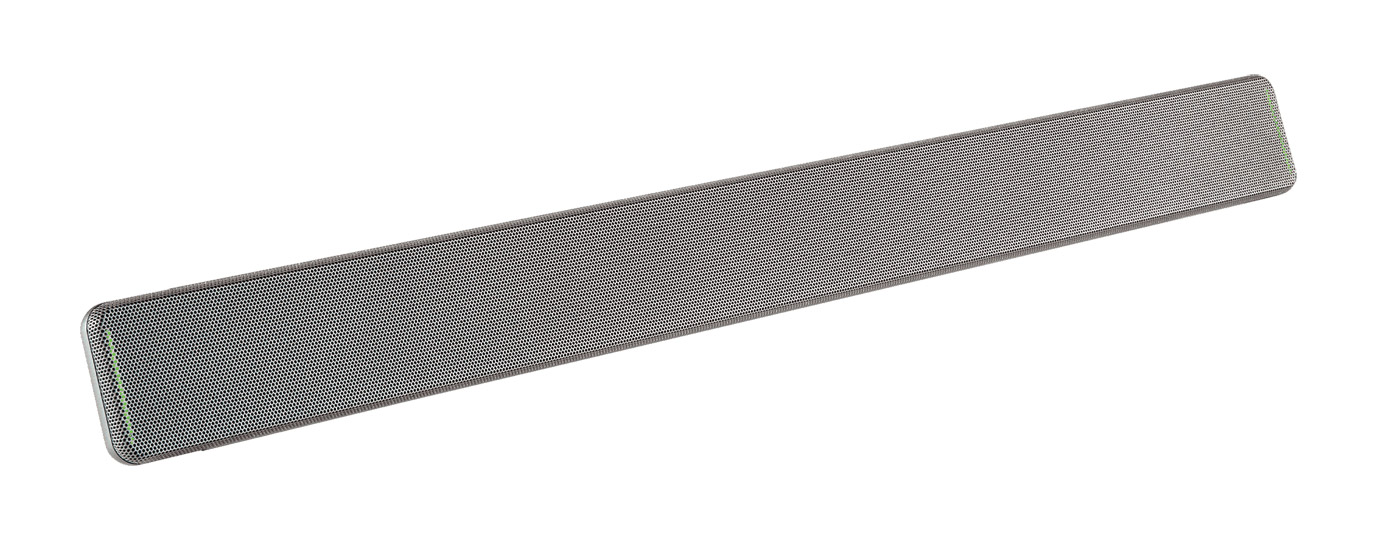

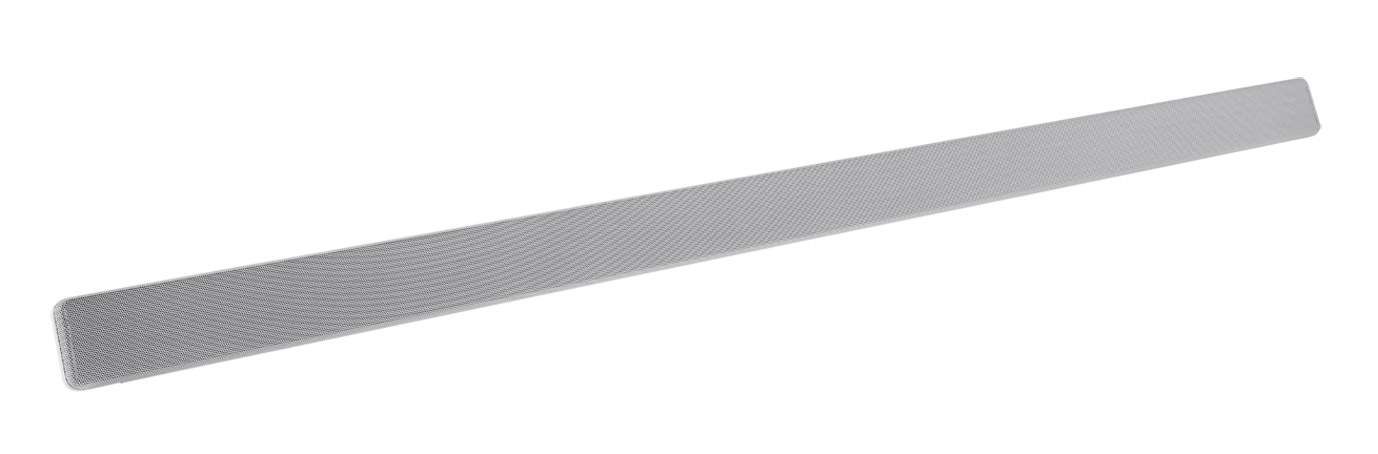

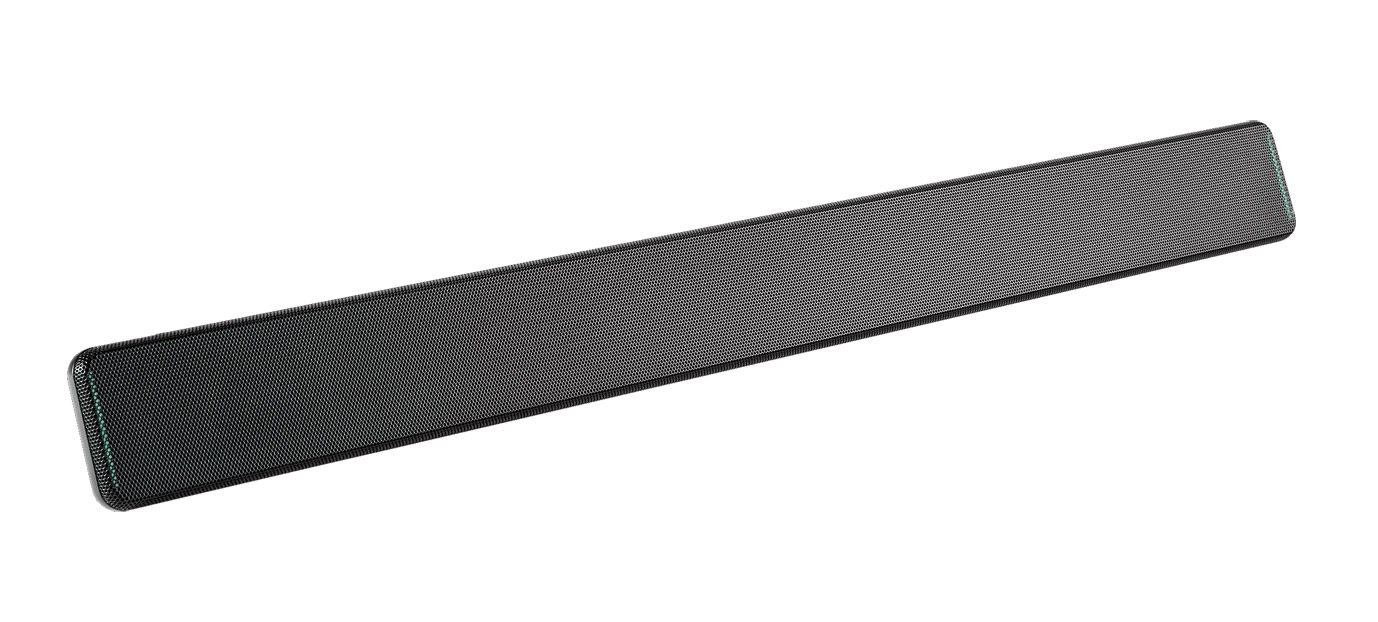

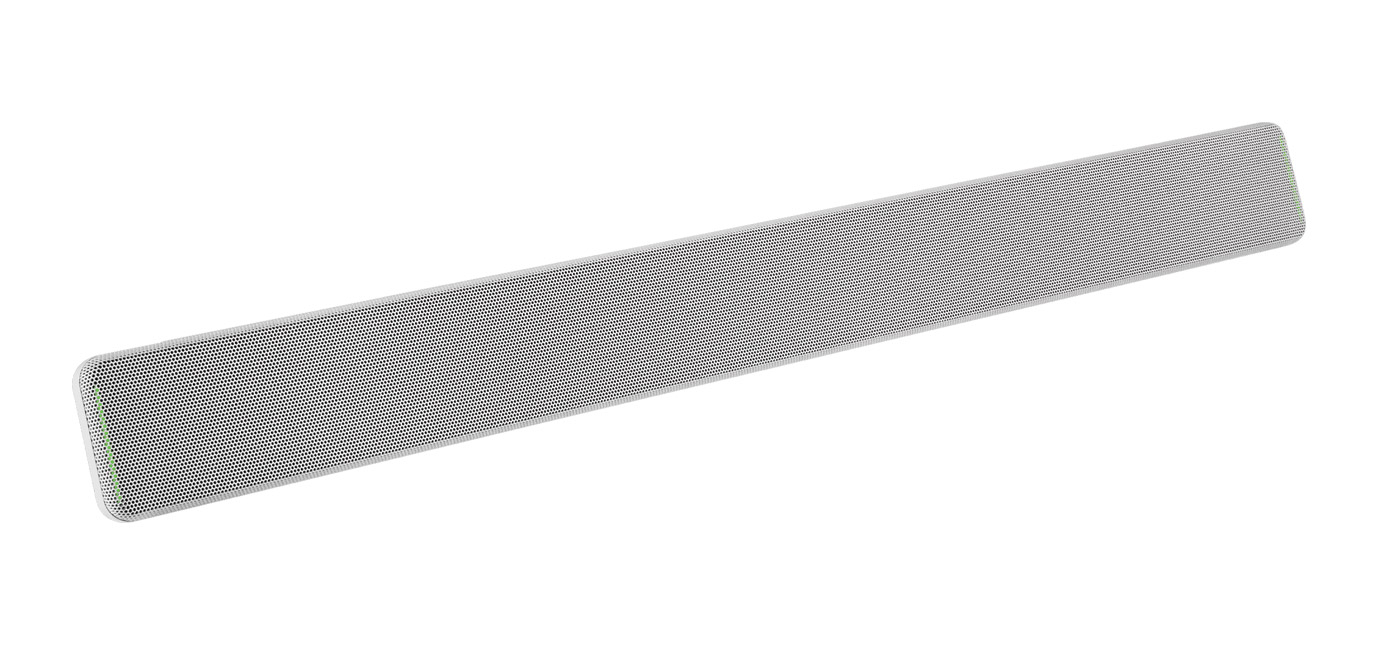

MXA710 - Linear array, ceiling/wall/desktop
Shure MXA710 is a series of linear array microphones that includes 60cm (2ft) and 120cm (4ft) hardware and is available in white, black, or silver (aluminium) finishes and can be mounted to ceiling, wall, table top or stand.
Like the MXA310, MXA710 is a steerable microphone that allows the engineer to setup and fine-tune for participants whether static or moving. It has built in signal processing including automatic mixing, acoustic echo cancellation, noise reduction, automatic gain control, compression, delay, and 4-band graphic equaliser. Lobe widths can be set to 30-degrees, narrow; 40-degrees, medium; 70-degrees, wide. Settings can be managed remotely via Shure’s Designer software.
Accessories include A710-FM flush mount (60/120cm) for horizontal or vertical fixing; A710-MSA microphone stand adapter, A710-TB suspension kit for mounting from ceiling, and A710-DS desk stand mount for table top application. A710-HOUSING is available for those wanting aesthetically pleasing designs whereby a ‘dummy’ A710-HOUSING can be used without any electrical or other connections.
Power consumption: 10W maximum, PoE. Maximum SPL: 101.4dB, 60cm; 101.9dB, 120cm. Frequency response: 100Hz – 20kHz. Dimensions (HxWxD): 22.09 x 60 x 636mm, 60cm; 22.09 x 60 x 1247.76mm, 120mm. Weight: 0.91kg, 60cm; 1.67kg, 120cm. Note: all specifications are measured with ‘narrow’ lobe unless otherwise mentioned.
MXA920 - Ceiling array
Shure MXA920 builds on the success of the MXA910 series ceiling array microphones and includes both round and square format microphones. The main difference between MXA920 and MXA910 is where MXA910 utilised 'Steerable CoverageTM' technology to allow up to eight pickup lobes, MXA920 provides 'Automatic CoverageTM' technology which enables the user to pickup sounds from only within a defined area, and without the need to aim separate lobes. Essentially if you turn off the Automatic CoverageTM feature on the MXA920-S, you have an MXA910 - therefore interchangeable. MXA920 includes all other features of the MXA910 microphone array.
MXA920 is factory pre-set with a 9 x 9m coverage and therefore provides an out-of-the-box solution.
Available in both round or square design, in black, aluminium, or white finish; MXA920 has a range of mounting hardware for in-ceiling, on-ceiling, pole, or wire rope mounting options.
Power consumption: 10.1W maximum, PoE. Plenum rating: UL2043, MXA920-S; MXA920-R unrated. Sensitivity: -1.74dBFS/Pa, at 1kHz. Maximum SPL: 95.74 dBSPL, relative to 0dBFS overload. Signal to noise ratio: 75.76 dB A-weighted, reference 94dBSPL at 1kHz. Latency: 15.9ms, direct outputs; 26.6ms, automix output. Dynamic range: 77.5dB. Frequency response: 125 - 20,000Hz. Dimensions (HxW): 54.69 x 593.8mm, MXA920-S; 61.3 x 635.4mm, MXA920-R. Weight: 5.4kg, MXA920-S; 5.8kg, MXA920-R.
