CANFORD LN-125W HEATER BODY Aluminium, 35mm DIN rail mounting, 220V, 125W capacity

Artikelnummer
15-1943
Hersteller
Canford
Typennummer
  • LN-125W
GTIN
5056704701335
CANFORD LN-125W HEATER BODY Aluminium, 35mm DIN rail mounting, 220V, 125W capacity
CANFORD LN-125W HEATER BODY Aluminium, 35mm DIN rail mounting, 220V, 125W capacity

CANFORD RACK HEATERS

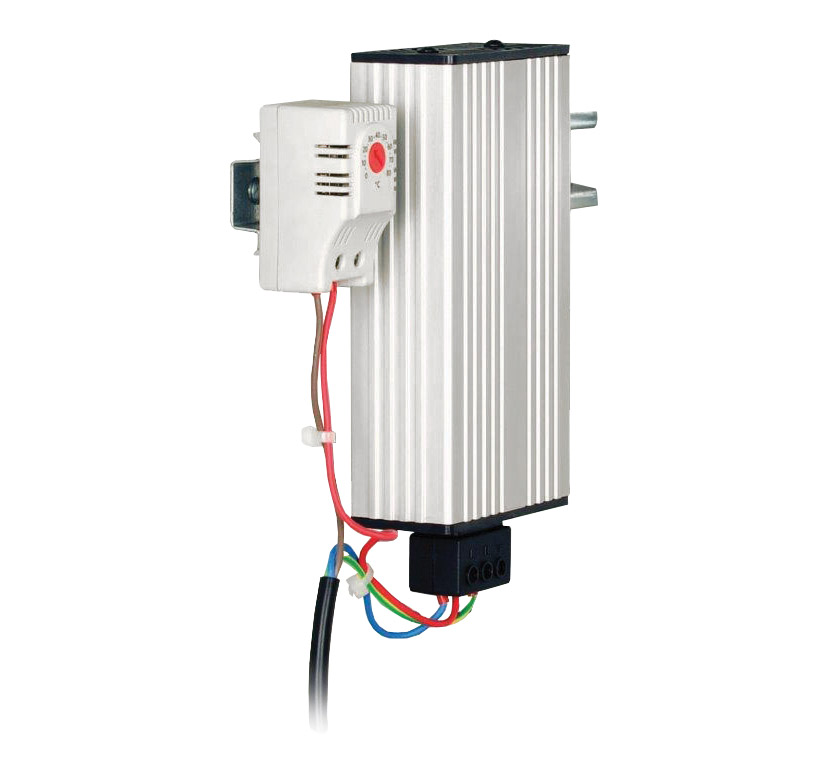

Aluminium-body heaters with PTC heating element, available with 75W, 100W or 125W power output. The supplied thermostat may be set between 0-60 degrees C.

Both the heater and thermostat can be easily mounted on the supplied 35mm DIN rail.

Power is connected via screw terminals, accepting 1.5-2.5mm² cable. The heater and thermostat are pre-wired with an unterminated, 1.8 metre cable. Power source: 110/240V AC, 50/60Hz.

Typically used for warming the air inside a cabinet to protect electronic components from condensation and corrosion.

Stock code Wattage Body Temperature Dimensions
15-1941 75W 125 Degrees Celsius 160mm x 80mm x 50mm
15-1942 100W 125 Degrees Celsius 160mm x 80mm x 50mm
15-1943 125W 125 Degrees Celsius 260mm x 80mm x 50mm
