CANFORD DFT - DIGITAL AUDIO FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE

CANFORD DFT CABLE 1 pair, Turquoise
CANFORD DFT CABLE 1 pair, Turquoise

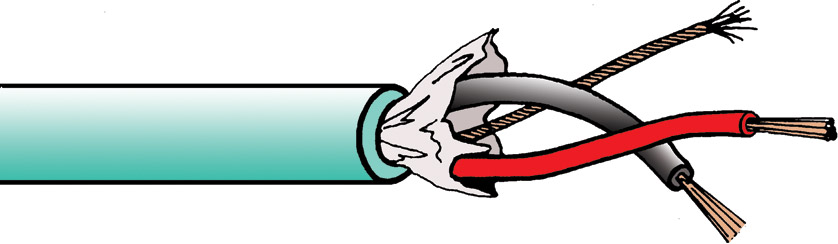

FST has long been one of Canford’s best selling products – the perfect installation cable, with jacket + foil single stripping. DFT is the true 110 ohm version of FST, similar in most respects, but with differing insulation materials and lay-up to achieve the required characteristic impedance. As with FST, the foil is glued to the outer PVC jacket, so comes away cleanly during stripping.

Technical Specification:

Conductor: 7/0.2mm (0.22mm²) tinned copper wire
Insulation: Foamed polypropylene, OD 1.6mm, red, black
Screen: Bondable aluminium/polyester tape, with 7/0.2mm tinned copper drain wire
Jacket: PVC OD 4.4mm ±0.2mm
Impedance: 110 ±10 ohms
Capacitance: 39pF/m
Max. conductor resistance: 85 ohms/km
Weight: 2.0kg/100m
Reel length: 500m
Cut lengths: Available in any multiple of 1 metre
Bezeichnung Preis €
Hinzufügen
CANFORD DFT CABLE 1 pair, Turquoise Turquoise Artikelnummer: 31-966
2435 lieferbar Mehr benötigt?
4 kurze Kabellängen verfügbar
1+ 1,19 €
100+ 0,75 €
500+ 0,70 €
1.000+ 0,58 €
pro Meter
