This active series of Cloud CS-S loudspeakers with Dante connectivity have been designed for background music and announcements in for restaurant, retail, airport, church and hotel environments. They are suited to environments whereby a central amplifier is not in place, or if an unlimited number of active loudspeakers are required to be daisy-chained.
These models are self-powered using an internal two-channel Class D amplifier with integral DSP and low quiescent power consumption.
Passive versions of CS-S8AD, CS-S10AD, and CS-12AD loudspeakers are available, see CLOUD LOUDSPEAKERS - Surface Mount, Passive, and active versions without Dante input are also available, see CLOUD LOUDSPEAKERS - Surface Mount, Active.
CS-S8AD 8-inch driver, 200W, 116dB, Dante

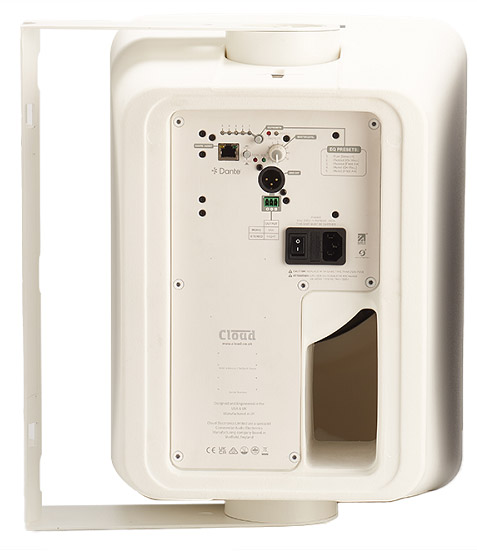

Available in white or black finish, Cloud CS-S8AD is an active loudspeaker with Dante connectivity and AES67 compatibility, that offers 200watts of continuous output power and houses an 8-inch low-frequency driver, crossover, and 1-inch high frequency compression driver. The mains-powered, two-channel amplifier has integral DSP to perform both crossover and EQ functions. The Class-D amplifier has protection against over-temperature and output DC, HF, or overcurrent. LEDs positioned on the rear facing panel signify power, signal, peak, protect, and EQ status.
A standard RJ45 connector allows integration with a Dante network, and presents on the network as a two-channel receiver. The provided analogue link output is line level and balanced, and available on both 3-pin XLR and Euroblock connectors. Default EQ provides a frequency response suitable for free-field applications, whilst four more EQ curves are available to suit on-wall mounting and/or various types of programme material. Stereo or mono mode can be selected with the push of a button. In mono mode, the two channels are mixed and sent to the link output as well as the internal amplifier. In stereo mode, only the left channel is fed to the amplifier; the right channel is routed to the link output (at line level) for connection to another loudspeaker.
Optional accessories: CS-810BKTW (white) and CS-810BKTB (black) mounting bracket.
Frequency response: 75Hz - 20kHz, -3dB; 60Hz - 20kHz, -10dB. Crossover frequency: 1.9kHz. Sensitivity: 92dB, 1W/1m. Power: 200W, continuous; 300W, peak. Maximum SPL: 116dB. Average coverage angle: 100 degrees, 2-10kHz. Dimensions (HxWxD): 429.1 x 273.3 x 265mm. Weight: 8.79kg.
CS-S10AD 10-inch driver, 250W, 118.5dB, Dante
Like CS-S8AD however CS-S10AD has a 10-inch low frequency driver, widened low frequency response, and more powerful Class-D amplifier. Available in white or black finish.
Optional accessories: CS-810BKTW (white) and CS-810BKTB (black) mounting bracket.
Frequency response: 65Hz - 20kHz, -3dB; 55Hz - 20kHz, -10dB. Crossover frequency: 1.6kHz. Sensitivity: 93dB, 1W/1m. Power: 250W, continuous; 375W, peak. Maximum SPL: 117dB. Average coverage angle: 95 degrees, 2-10kHz. Dimensions (HxWxD): 429 x 318 x 280mm. Weight: 10.94kg.
CS-S12AD 12-inch driver, 300W, 122dB, Dante
Like CS-S10AD however CS-S12AD has a 12-inch low frequency driver, a further widened low frequency response, and more powerful Class-D amplifier. Available in white or black finish.
Optional accessories: . CS-12BKTW (white) and . CS-12BKTB (black) mounting bracket.
Frequency response: 55Hz - 20kHz, -3dB; 50Hz - 20kHz, -10dB. Crossover frequency: 1.4kHz. Sensitivity: 96dB, 1W/1m. Power: 300W, continuous; 450W, peak. Maximum SPL: 122dB. Average coverage angle: 90 degrees, 2-10kHz. Dimensions (HxWxD): 599 x 369 x 330mm. Weight: 16.09kg.
