CABLE MANAGEMENT - Universal

Brush-strip cable access panels, horizontal cable-management panels and lacing bars for use in 19-inch racks.

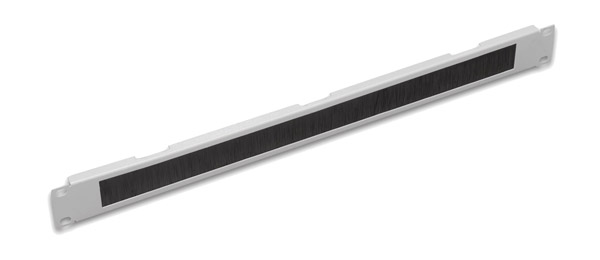

Brush Strips

These are full-width, 19-inch, 1U rack-mounting panels with a ‘letter box’ style slot for cables. The slots are masked with ‘brush’ strips which allow cables to pass through while presenting a tidy appearance and avoiding the cables dropping back into the rack. The steel panels are folded back at the top and bottom to increase rigidity. Fixings provided. Finish: Grey, RAL 7035, or black, RAL 9005, powder coat.

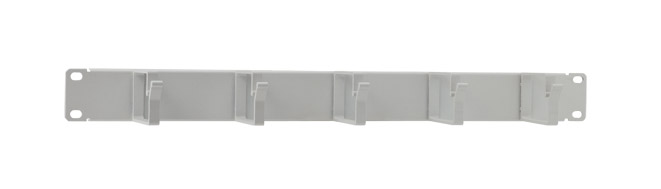

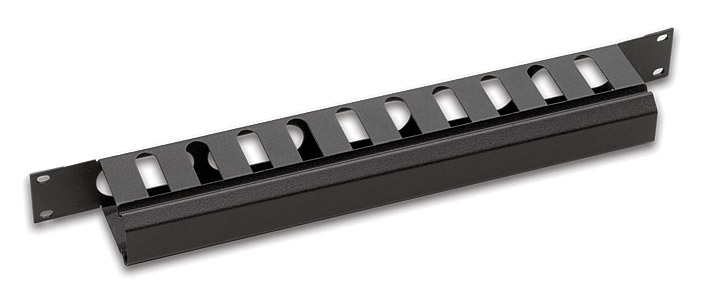

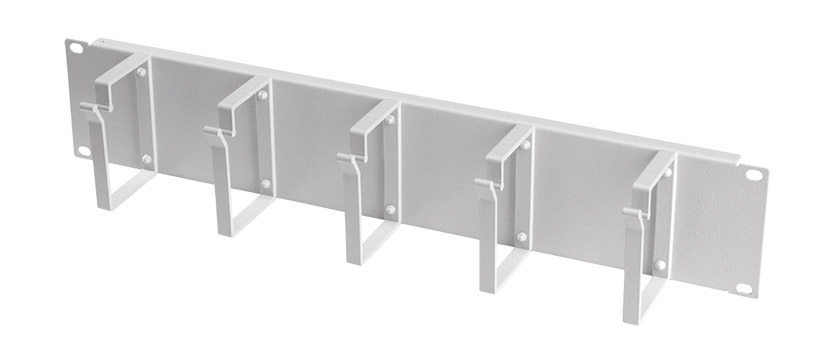

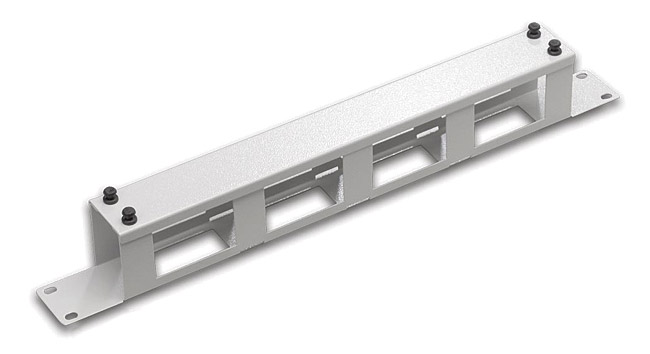

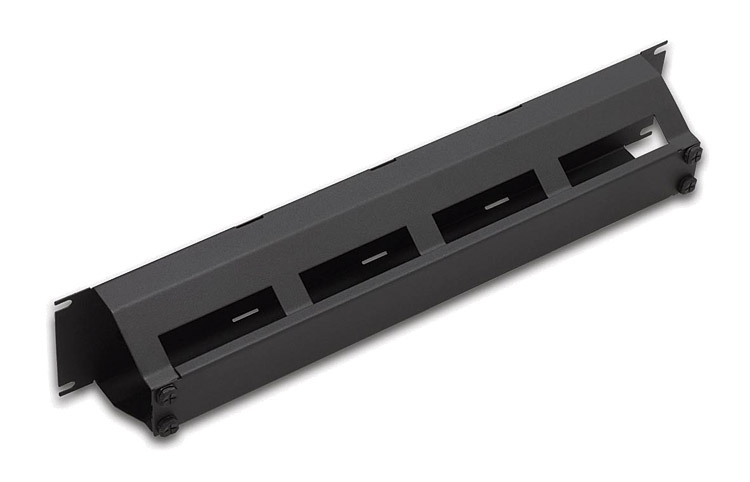

Rack Cable Management Panels

A selection of horizontal-mounting cable management panels, available with a variety of horizontal 'loop' or vertical 'channel' configurations. They can be fitted to the front, rear or intermediate 19-inch rack-mounting profiles of a rack or cabinet. The 'loop' types have an opening for ease of running cables; the 'channel' types have cover plates for an aesthetic finish. Finish: Grey, RAL 7035, or black, RAL 9005, powder coat.

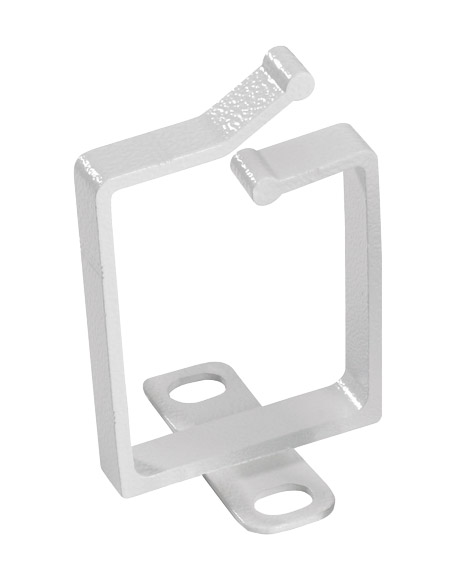

Rack Cable Management Loop

These steel, single, 1U cable-management loops mount to any standard mounting-profile, fixing to the top and bottom punched holes, providing versatile cable-management and strain relief. Loop size is 60 x 44mm. Fixings included. Finish: Grey, RAL 7035 or black, RAL 9005, powder coat.

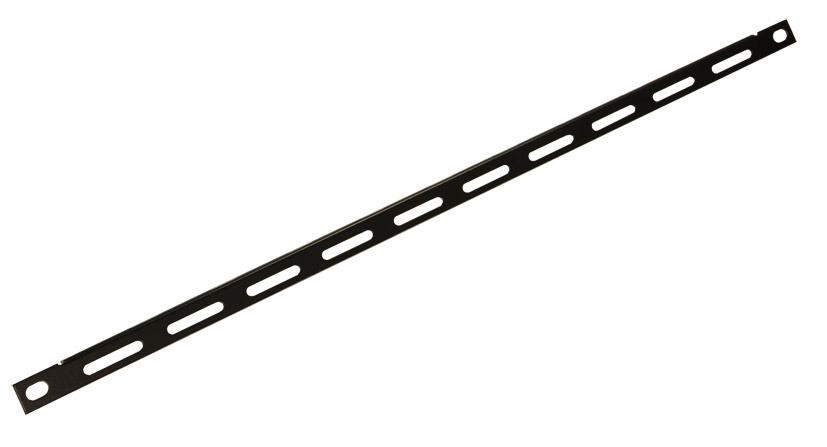

Rack Cable Lacing Bar

Occupying only half a rack unit of height, this is a 19-inch rack mounting steel bar which can be mounted on the front, rear or intermediate rack-mounting profiles of a rack and used to support cables. Finish: Black, RAL 9005, powder coat.
