FUSES AND FUSEHOLDERS

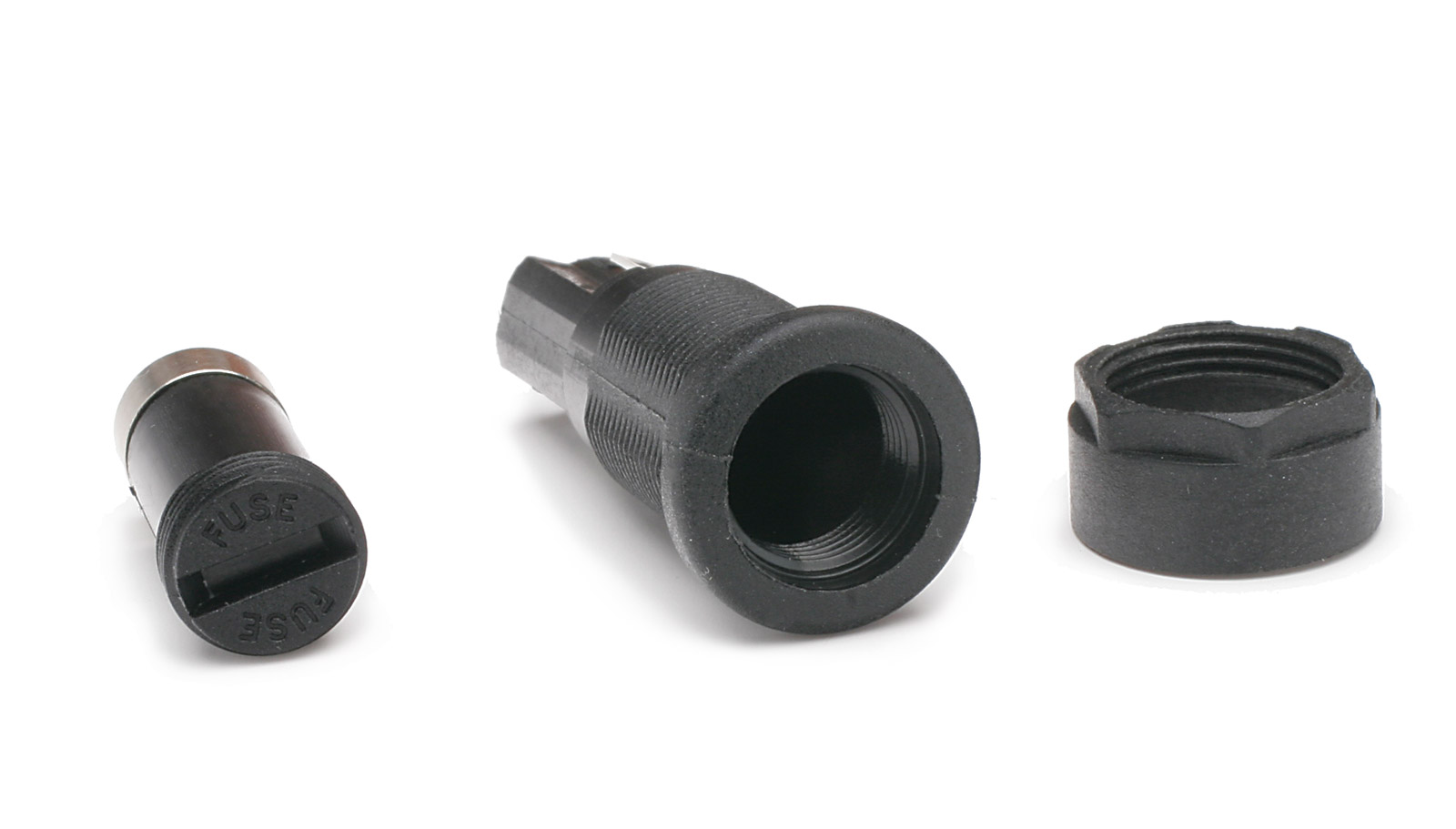

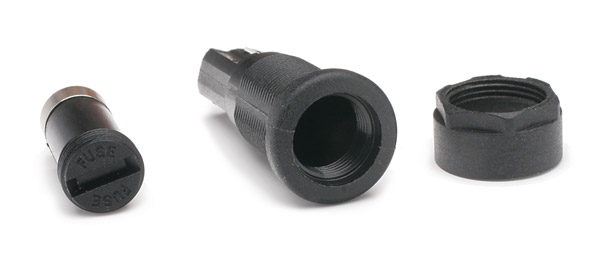

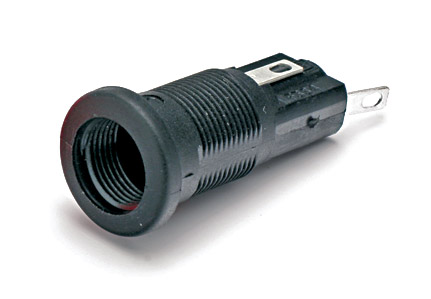

Fuseholder

Low-profile panel mounting (12.8mm hole) with ‘pip’ keyway, touch-safe (to BS3042, IE257) screwdriver release 20mm fuse carrier. Hex nut fixing, max panel thickness 6.4mm. Depth behind panel 38mm. Terminals accept 2.8mm push-on receptacles, or can be directly soldered. Rated 10A, 250V AC. Moulded insulating covers also available.

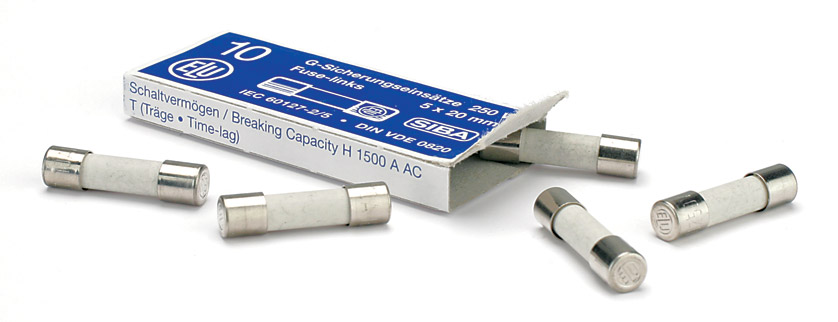

20mm HBC ceramic fuses

20 × 5mm ceramic fuses, delay types, rated for up to 250V AC, and have breaking capacity of 1500 amps. They comply with BS4265 and IEC127. Pack of 10.

1 inch (25.4mm) HBC ceramic fuses

25.4 × 6.3mm ceramic fuses, for use in UK domestic 13 amp plugs. Rated 240V AC, comply with BS1362. ASTA certified. Pack of 10.

Usage note:

For mains input fuses, the use of HBC types is preferred.

Ordering note:

Fuse holders and covers are priced and sold singly. Fuses are priced and sold in packs of 10, eg. 1 ×42-282 orders 1 pack of 10 fuses 20mm delay 250mA.
