CANARE L-CUHWS UHDTV DIGITAL VIDEO CABLES

2 Produkte

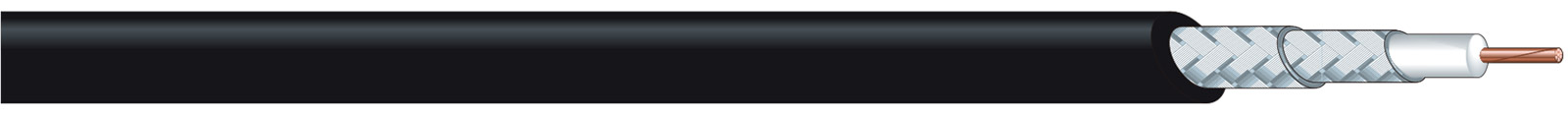

CANARE L-3.3CUHWS CABLE Black (reel of 200m)
CANARE L-3.3CUHWS CABLE Black (reel of 200m)CANARE L-5.5CUHWS CABLE Black (reel of 200m)

A series of 75-ohm 12G-SDI flexible and low-loss structure cables. Suitable for UHDTV applications such as, mobile broadcast vans and outdoor filming. Highly foamed polyethylene insulation minimizes high-frequency signal loss while maintaining maximum cable flexibility. To protect against electromagnetic and radio frequency interference, the cables are fitted with a high-density double braided shield. Semi-matt non-reflective durable PVC jacket.

Technical Specification:
L-3.3CUHWS L-5.5CUHWS
Cable size group: Not in Canford scheme Not in Canford scheme
Centre wire: 0.78mm 1.3mm
Dielectric Highly foamed Polyethylene, 3.3mm Highly foamed Polyethylene, 5.56mm
Screen 1: Tinned annealed copper braid (1), Tinned annealed copper braid (1)
Screen 2: Double-braided tinned copper shield (2) Double-braided tinned copper shield (2)
Jacket: Highly flexible PVC, 5.8mm PVC, 8.1mm
Nominal impedance: 75 ohms 75 ohms
Capacitance (nom.): 57pF/m 54 pF/m
Velocity ratio (nom.): 0.82 0.82
Weight/100m: 4.8kg 8.7kg
Reel length: 200m 200m
Cut lengths: Not Available Not Available

Notes: (1) 92% coverage. (2) 90% coverage

Attenuation:
(dB/100m +/- 0.1dB) 10MHz 135MHz 270MHz 750MHz 1.3GHz 3GHz 6GHz
L-3.3CUHWS 3.3 12.5 17.9 30.8 41.4 66.1 98.7
L-5.5CUHWS 1.7 6.7 9.6 16.7 22.7 36.7 56.0
Bezeichnung Preis €
 Hinzufügen
CANARE L-3.3CUHWS CABLE Black (reel of 200m) Black Artikelnummer: 36-943
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 4‑6 Wochen. Brauchen Sie es schneller? Rufen Sie uns an
1+ 613,32 €
5+ 588,24 €
pro Spule
CANARE L-5.5CUHWS CABLE Black (reel of 200m) Black Artikelnummer: 36-945
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 4‑6 Wochen. Brauchen Sie es schneller? Rufen Sie uns an
1+ 1.120,62 €
5+ 1.075,02 €
pro Spule
