SHURE CONFERENCING SYSTEMS - MicroFlex Series

MXN5W-C - Ceiling speaker

Shure Microflex MXN5W-C is a networked loudspeaker with 5.25-inch woofer that has been designed to provide high-quality speech reproduction for AV conferencing applications - in particular in drop ceiling configurations due to the loudspeakers low-profile and PoE-enabled design. MXN5W-C features digital signal processing including delay, limiting, signal generator, and 4-band parametric equalizer.

Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. MXN5W-C Integrates seamlessly with Shure’s ecosystem of networked hardware and software for a complete audio solution. When combined with Microflex Advance Array microphones and IntelliMix DSP, the full Shure networked systems ecosystem is able to deliver 'premium' audio performance with Shure audio encryption and Dante domain manager compatibility.

Also available MXN5W-C+TB-V, a bundle including loudspeaker and tile bridge.

Included accessories: RPMXN5-C cover plate, RPMXN5-G magnetic grille with removable Shure logo.
Optional accessories: A-MXN5-TB tile bridge, A-MXN5-NCB new construction bracket.

Maximum output: 92dB, PoE; 98dB, PoE Plus. Coverage angle: 180 degrees, PoE; 107 degrees, PoE Plus. Connector type: RJ45. Plenum rating: UL 2043, suitable for air handling spaces. Operating temperature range: −6.7 to +40 degrees Celsius. Frequency response: 120Hz - 20kHz, -3dB. Latency: 1.5ms, not including Dante latency. Power consumption: 12W maximum, 11W typical, PoE; 24W maximum, 23W typical, PoE Plus. Power requirements: PoE class 0 or PoE Plus class 4. Dimensions (HxWxD): 304.8 x 304.8 x 101.6mm. Weight: 2.95kg.

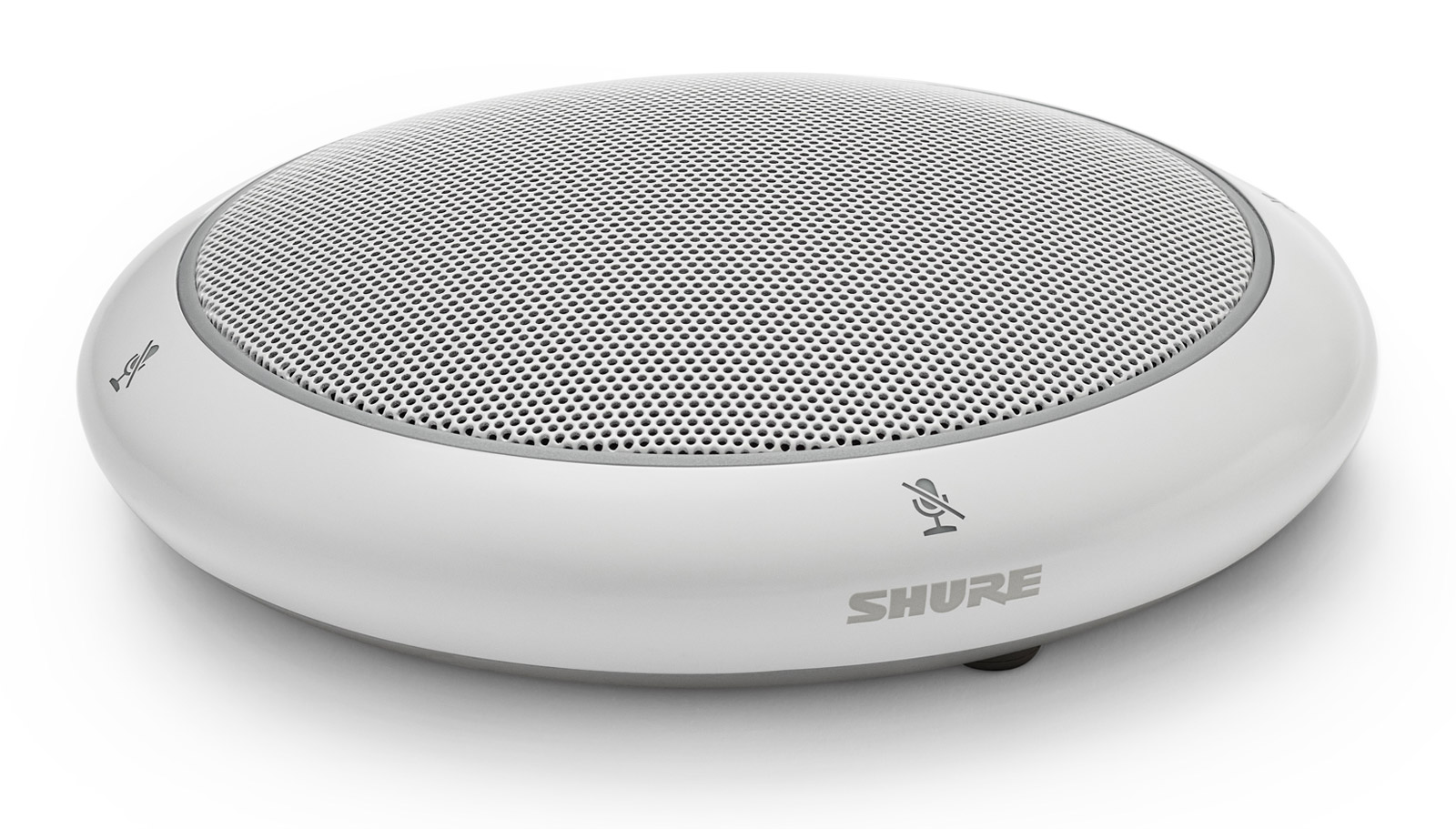

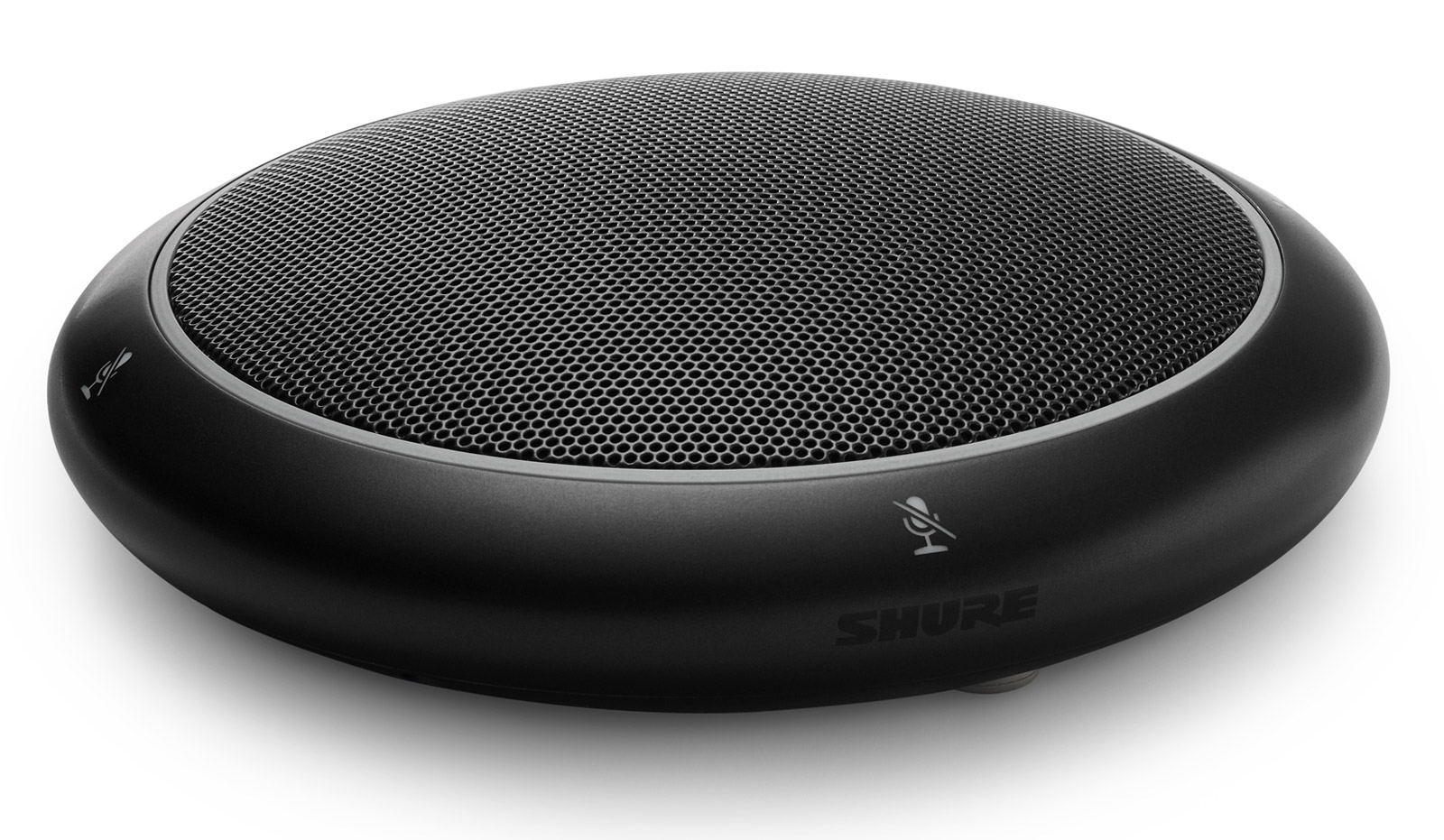

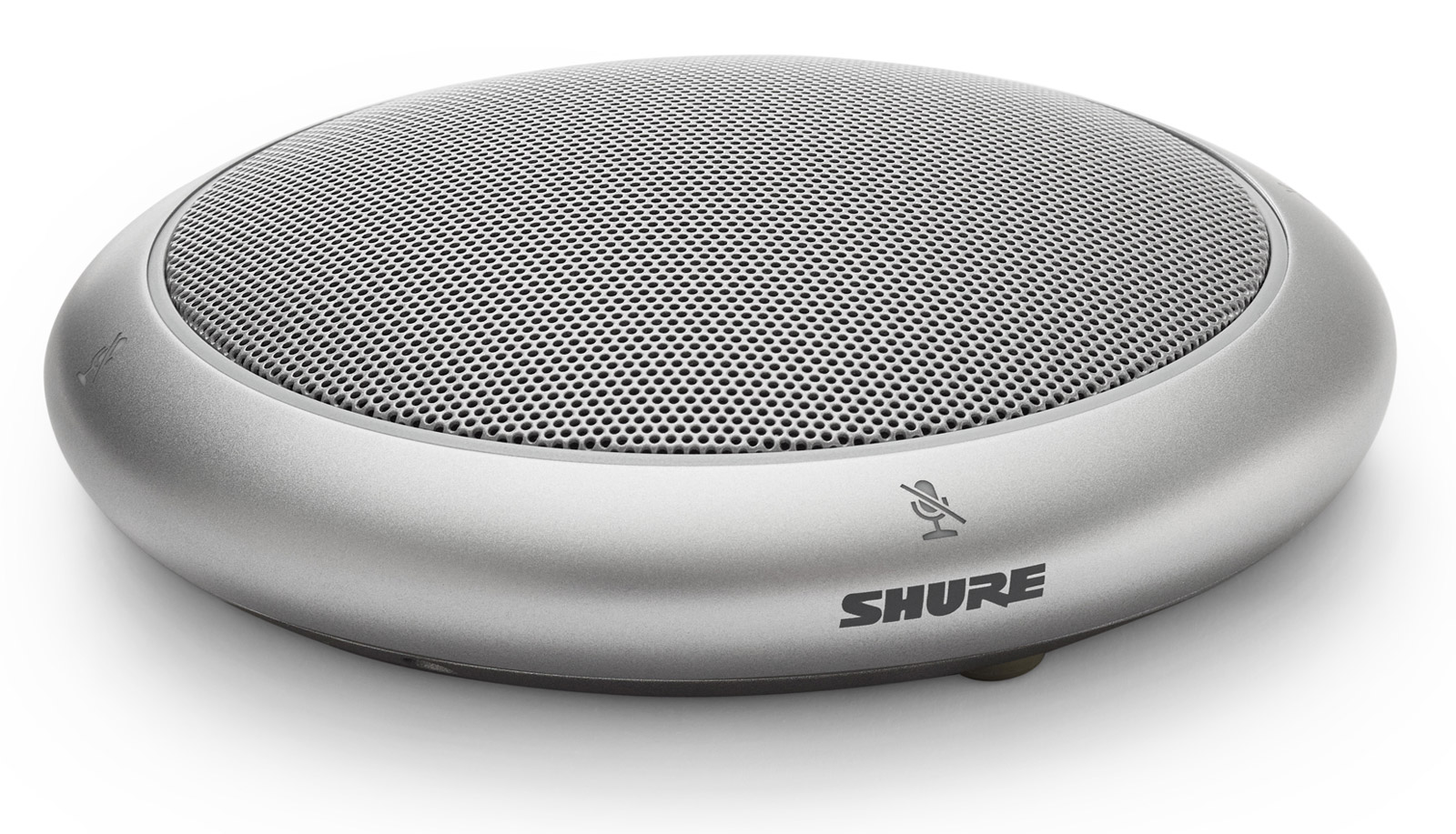

MXA320 - Table array

MXA320 follows on from MXA310 in the range of table array microphones. It provides high quality audio capture and flexible configuration for AV conferencing environments including boardrooms, huddle rooms and multi-purpose spaces. MXA320 is certified for use with Microsoft Teams and Zoom, and compatible with other popular collaboration tools. It allows Remote device management, real-time device monitoring of device status and firmware updates with ShureCloud. A programmable LED light ring with configurable colours and brightness control signifies current status.

Including features such as steerable coverage technology, along with onboard IntelliMix DSP, streamlined deployment with designer system configuration software, and intuitive remote management via ShureCloud, MXA320 offers a compact, low-profile design that can be employed in most meeting spaces with ease. Available in white, black, and aluminium finish.

Can be mounted directly to the table, or with the optional A310-FM flush mount adaptor, both giving discreet underside cable entry.

Included accessories: 1x cable exit plug, 1x mounting tube wing nut, 1x rubber isolation ring, 4x nylon cable ties.

Frequency response: 100Hz to 20kHz, -3dB. Connector type: RJ45. Power requirements: PoE Class 0. Dimensions (HxWxD): 36 x 134 x 13.mm. Weight: 362g

MXA710 - Linear array, ceiling/wall/desktop

Shure MXA710 is a series of linear array microphones that includes 60cm (2ft) and 120cm (4ft) hardware and is available in white, black, or silver (aluminium) finishes and can be mounted to ceiling, wall, table top or stand.

Like the MXA310, MXA710 is a steerable microphone that allows the engineer to setup and fine-tune for participants whether static or moving. It has built in signal processing including automatic mixing, acoustic echo cancellation, noise reduction, automatic gain control, compression, delay, and 4-band graphic equaliser. Lobe widths can be set to 30-degrees, narrow; 40-degrees, medium; 70-degrees, wide. Settings can be managed remotely via Shure’s Designer software.

Accessories include A710-FM flush mount (60/120cm) for horizontal or vertical fixing; A710-MSA microphone stand adapter, A710-TB suspension kit for mounting from ceiling, and A710-DS desk stand mount for table top application. A710-HOUSING is available for those wanting aesthetically pleasing designs whereby a ‘dummy’ A710-HOUSING can be used without any electrical or other connections.

Power consumption: 10W maximum, PoE. Maximum SPL: 101.4dB, 60cm; 101.9dB, 120cm. Frequency response: 100Hz – 20kHz. Dimensions (HxWxD): 22.09 x 60 x 636mm, 60cm; 22.09 x 60 x 1247.76mm, 120mm. Weight: 0.91kg, 60cm; 1.67kg, 120cm. Note: all specifications are measured with ‘narrow’ lobe unless otherwise mentioned.

MXA920 - Ceiling array

Shure MXA920 builds on the success of the MXA910 series ceiling array microphones and includes both round and square format microphones. The main difference between MXA920 and MXA910 is where MXA910 utilised 'Steerable CoverageTM' technology to allow up to eight pickup lobes, MXA920 provides 'Automatic CoverageTM' technology which enables the user to pickup sounds from only within a defined area, and without the need to aim separate lobes. Essentially if you turn off the Automatic CoverageTM feature on the MXA920-S, you have an MXA910 - therefore interchangeable. MXA920 includes all other features of the MXA910 microphone array.

MXA920 is factory pre-set with a 9 x 9m coverage and therefore provides an out-of-the-box solution.

Available in both round or square design, in black, aluminium, or white finish; MXA920 has a range of mounting hardware for in-ceiling, on-ceiling, pole, or wire rope mounting options.

Power consumption: 10.1W maximum, PoE. Plenum rating: UL2043, MXA920-S; MXA920-R unrated. Sensitivity: -1.74dBFS/Pa, at 1kHz. Maximum SPL: 95.74 dBSPL, relative to 0dBFS overload. Signal to noise ratio: 75.76 dB A-weighted, reference 94dBSPL at 1kHz. Latency: 15.9ms, direct outputs; 26.6ms, automix output. Dynamic range: 77.5dB. Frequency response: 125 - 20,000Hz. Dimensions (HxW): 54.69 x 593.8mm, MXA920-S; 61.3 x 635.4mm, MXA920-R. Weight: 5.4kg, MXA920-S; 5.8kg, MXA920-R.

ANI22 - 2x mic/line in to Dante, 2x Dante to mic/line

This is an audio network interface that allows the user to convert up to two line or microphone signals to Dante, or two Dante audio channels to mic/line level outputs. Often used when an engineer requires control from a Dante browser based remote. An inbuilt parametric equaliser (PEQ) aids the engineer with speech intelligibility, noise reduction, and frequency response of connected audio channels.

Available in two configurations with either 3-pin XLR I/O (ANI22-XLR), or Phoenix style I/O (ANI22-BLOCK). Each has two inputs and two outputs located on the rear facing panel, along with a Dante connection on RJ45 for PoE and network audio transfer and control. The front facing panel has LEDs that illuminate to indicate signal/clip status of inputs 1 and 2, and outputs 1 and 2. There are also LEDs to indicate power, network, network audio, and encryption status.

Power consumption: 11W, maximum, PoE. Dimensions (HxWxD): 40 x 140 x 128mm. Weight: 672g.

Included accessories: Hardware kit and mounting bracket.

Optional accessories: CRT1 mounting kit enables the under-table or 19-inch rackmount fixing of up to three ANI interfaces. VCC3 cable kit can be used to interconnect audio from or to compatible equipment with 3.5mm jack connectivity.

ANI4IN - 4x mic/line in, Dante out

Similar to the ANI22 however ANI4IN has four analogue mic/line input channels and Dante only output. Each input channel is by way of 3-pin XLR input on the ANI4IN-XLR version, or Phoenix style input on the ANI4IN-BLOCK.

Included accessories: Hardware kit and mounting bracket.

Optional accessories: CRT1 mounting kit enables the under-table or 19-inch rackmount fixing of up to three ANI interfaces.

Power consumption: 10W, maximum, PoE. Dimensions (HxWxD): 40 x 140 x 128mm. Weight: 672g.

ANI4OUT - Dante in, 4x mic/line out

ANI4OUT is available with 3-pin XLR outputs (ANI4OUT-XLR), or Phoenix style outputs (ANI4OUT-BLOCK). This interface is the opposite of the ANI4IN in the way that it allows the input of four Dante audio inputs and four analogue mic/line level outputs on 3-pin XLR.

Specifications and accessories as per ANI4IN.

ANIUSB-MATRIX - 4x Dante in, 2x Dante out, 1x audio I/O, USB I/O

Designed to complement the ANI22, ANI4IN, and ANI4OUT, ANIUSB-MATRIX allows the user to connect four MicroFlex Advance microphone channels via Dante, along with a single analogue audio input and single USB audio source. The audio inputs can then be routed to outputs including Dante output, USB output, or audio output; with the addition of a deployable 4-band EQ on the analogue and USB outputs. Analogue I/O is via 3-pin Phoenix style connector.

Included accessories: Hardware kit and mounting bracket.

Optional accessories: CRT1 mounting kit enables the under-table or 19-inch rackmount fixing of up to three ANI interfaces. VCC3 cable kit can be used to interconnect audio from or to compatible equipment with 3.5mm jack connectivity.

Power consumption: 6.5W, maximum, PoE. Dimensions (HxWxD): 40 x 140 x 128mm. Weight: 668g.

INTELLIMIX P300

P300 is an audio conferencing processor that allows the user to enhance the processing power and quality of a MicroFlex microphone system. IntelliMix P300 allows the user to connect multiple inputs including two microphones, a smart phone, or a computer via USB and link via a single Dante connection on RJ45 connector to facilitate setup and quality of a video or audio conferencing system. Integrated DSP includes echo cancellation, noise reduction, automatic mixing, and automatic gain control. Outputs can be connected to a local amplifier and speaker system if required.

The front facing panel has LEDs that illuminate to signify input signal/clip status for channels one and two, and output channels one and two status, along with power, network, network audio, encryption, and USB status. The rear facing panel houses all I/O including 3.5mm jack input for connection to a mobile device, two mic/line inputs on 3-pin Phoenix style connectors, two outputs on Phoenix connectors, USB, and RJ45 connection for Dante, audio over Dante, and PoE.

Included accessories: Hardware kit and mounting bracket.

Optional accessories: CRT1 mounting kit enables the under-table or 19-inch rackmount fixing of up to three ANI interfaces. VCC3 cable kit can be used to interconnect audio from or to compatible equipment with 3.5mm jack connectivity.

Power consumption: 17.5W, maximum, PoE. Dimensions (HxWxD): 40 x 210 x 226mm. Weight: 1710g.
