GENELEC LOUDSPEAKERS - Mounts and Stands

8000-403 Floor Stand

A floor stand with 250mm diameter cast iron base and anti-vibration ring. The stand is adjustable in height from 870-1565mm and is compatible with Genelec monitors between models 8010 and 8330. Genelec don't advise using this stand with the 8331 loudspeaker. Note: The stand is also available as 53-260 with the only difference being the branding. Weight: 5.4kg.

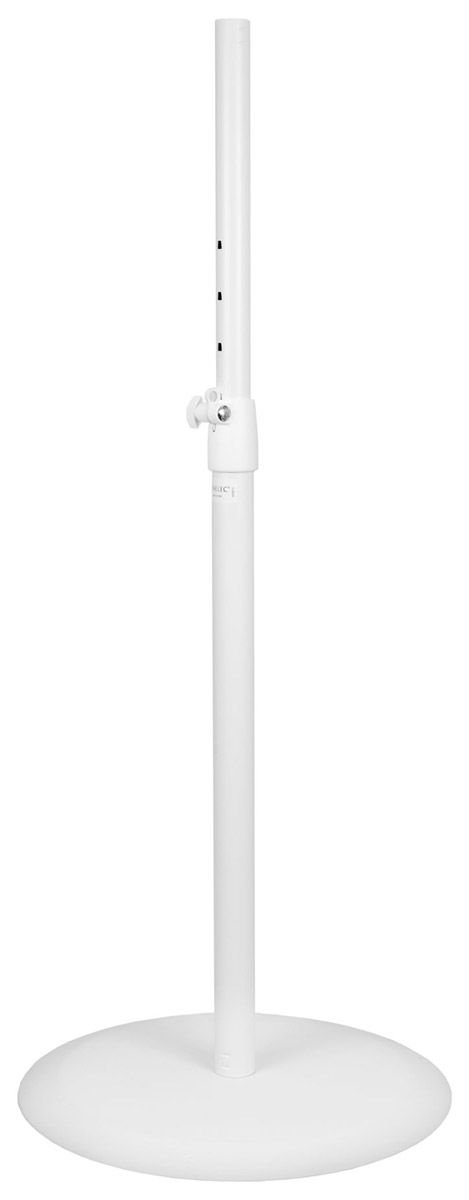

8000-409B / 8000-409BW Floor Stand

Available in black or white finish, 8000-409 floor stand with 450mm diameter cast iron base and anti-vibration ring. The stand is adjustable in height from 950-1430mm, has a load capacity of 35kg, and is compatible with Genelec monitors between models 8010 and 8351. Weight: 10.6kg.

8000-400 / 8000-400W Floor Stand

A steel manufactured floor stand with a 420x420mm cast base and 'oversized' rod. Available in black or white finish. The height can be adjusted from 1100-1700mm height, and is compatible with 8040, 8050, 8340, 8350, 8341, 8351, and 4040. Genelec 8000-438 is required for horizontal monitor mounting. Weight: 19kg.

8000-406 Table Stand

A short, 170mm tall table stand in black. A 17mm (diameter) cast iron base has an anti-vibration rubber ring to prevent unwanted bass transfer. Genelec suggest the stand is used in conjunction with compatible adapter plate for preferred loudspeaker. This stand is not suitable for use with 8331 loudspeaker. Weight: 2.62kg.

8000-425B Table Stand

An adjustable table stand with height adjustment of 301-527mm, and designed to be used with loudspeaker compatible Iso-Pod mount. The stand features a 104mm diameter base plate that requires fixing to a desktop or table surface. Screws and fixing nuts are included, and are compatible with surfaces of 40mm thickness. Weight: 0.73kg.

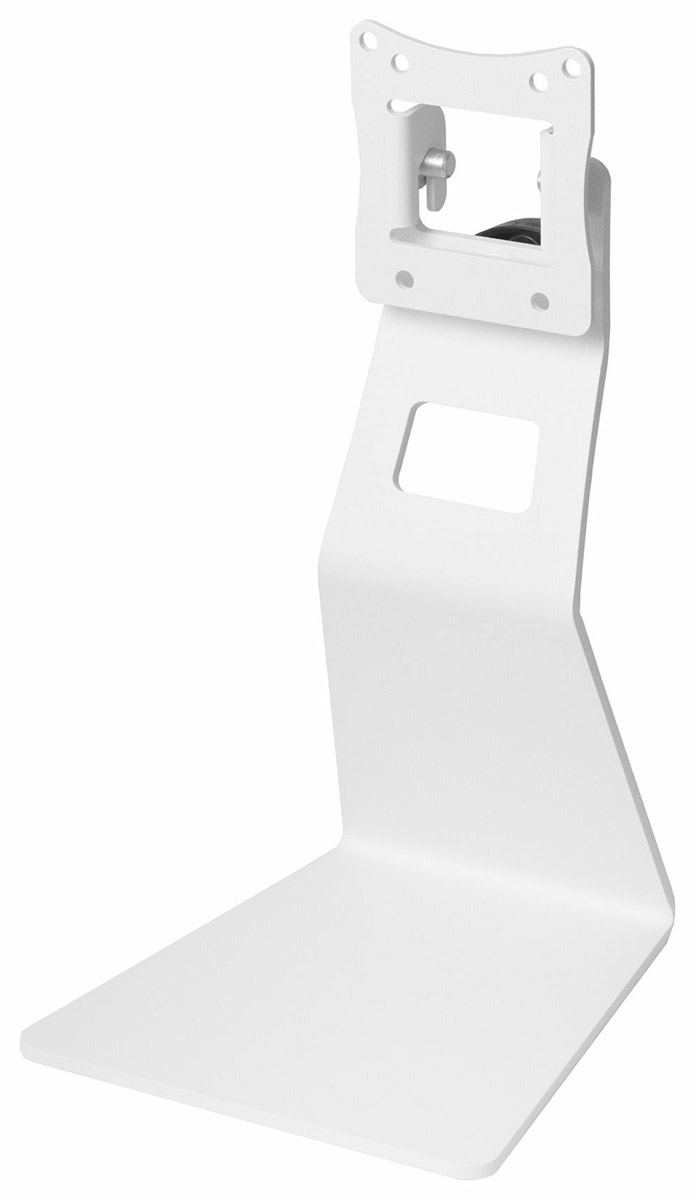

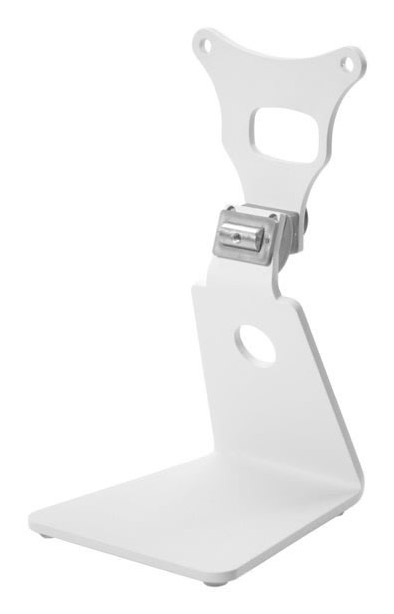

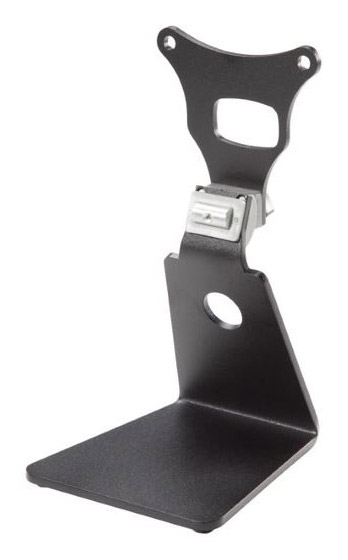

8010-320B / 8010-330W Table Stand

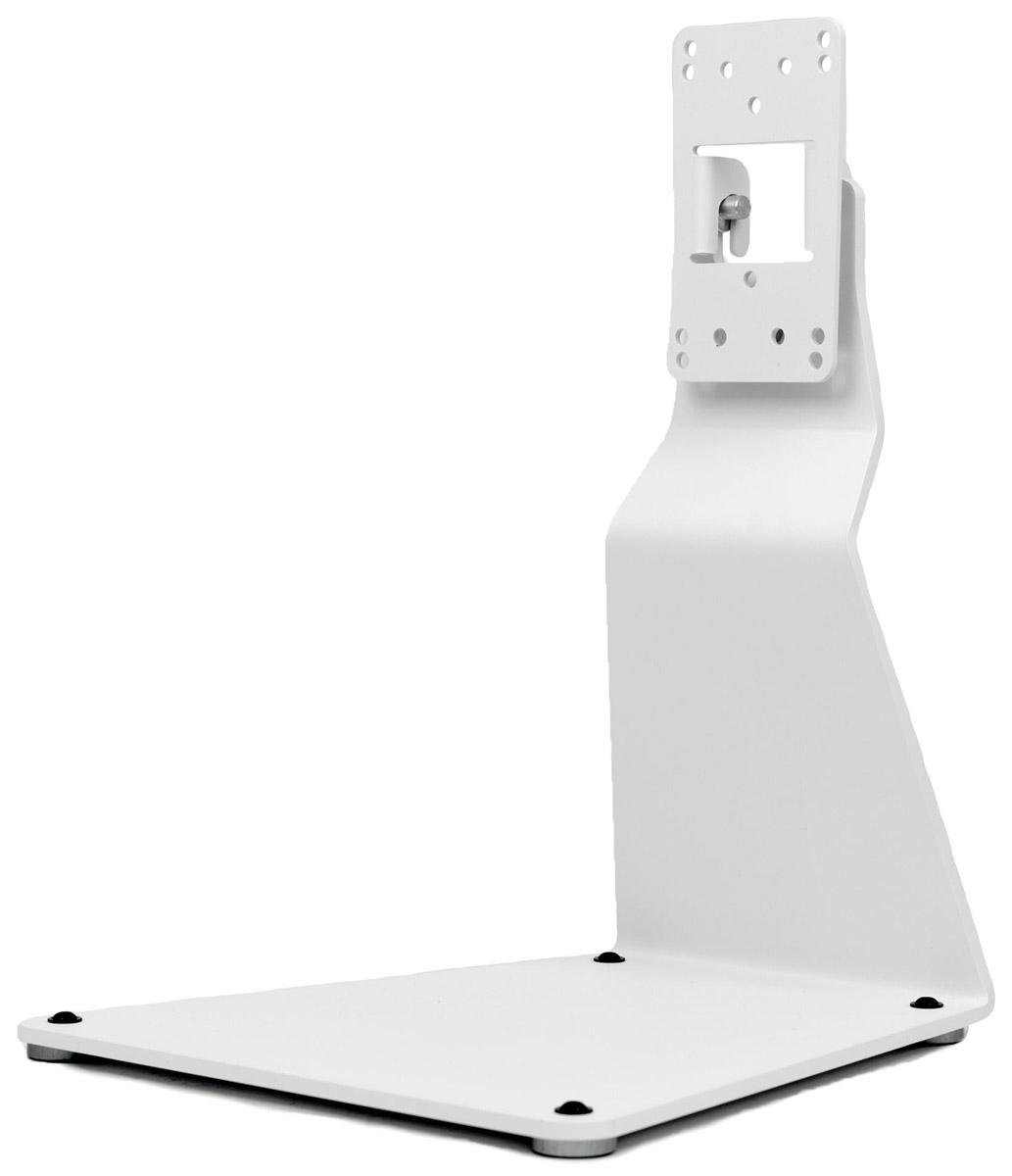

An L-shape table stand for vertical positioning of 8010/4010/4410 loudspeakers. The stand has been designed to improve acoustical performance by raising the loudspeaker above the table level, resulting in less reflections from the table surface and enabling the loudspeaker to be directed correctly at the listening position. The stand has a 0-20 degree upward tilt angle adjustment. Dimensions (WxHxD): 110 x 211 x 124mm.

8020-320B / 8020-330W Table Stand

As 8010-320B however compatible with 8020 and 4020 loudspeaker. Dimensions (WxH): 136 x 246mm.

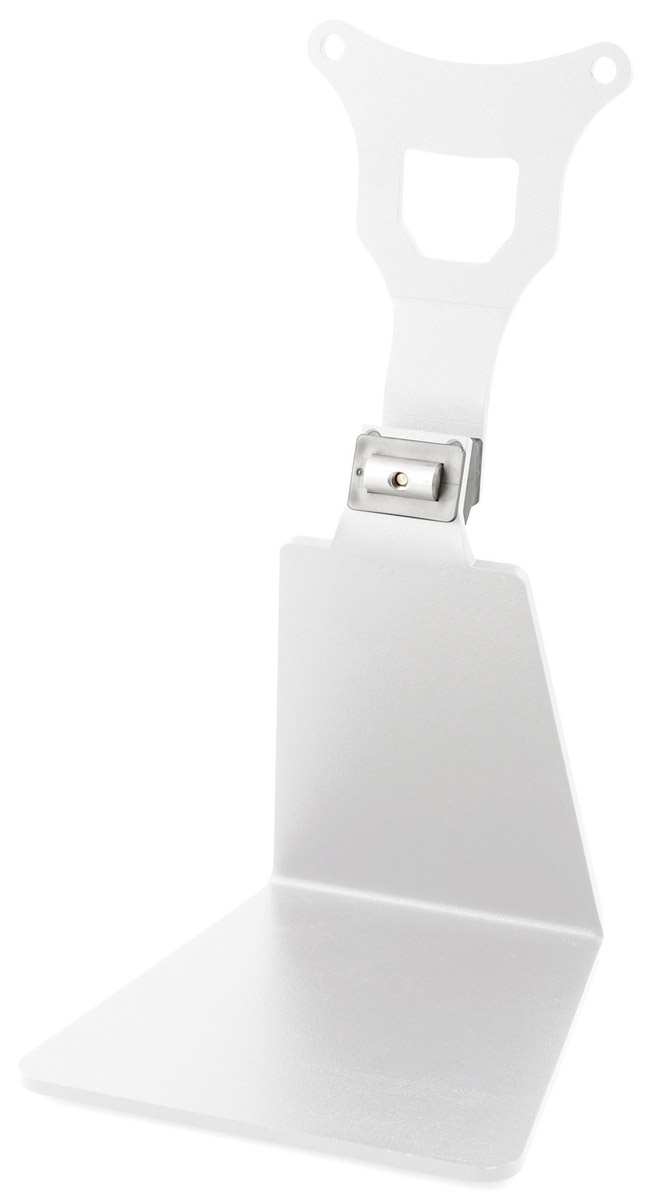

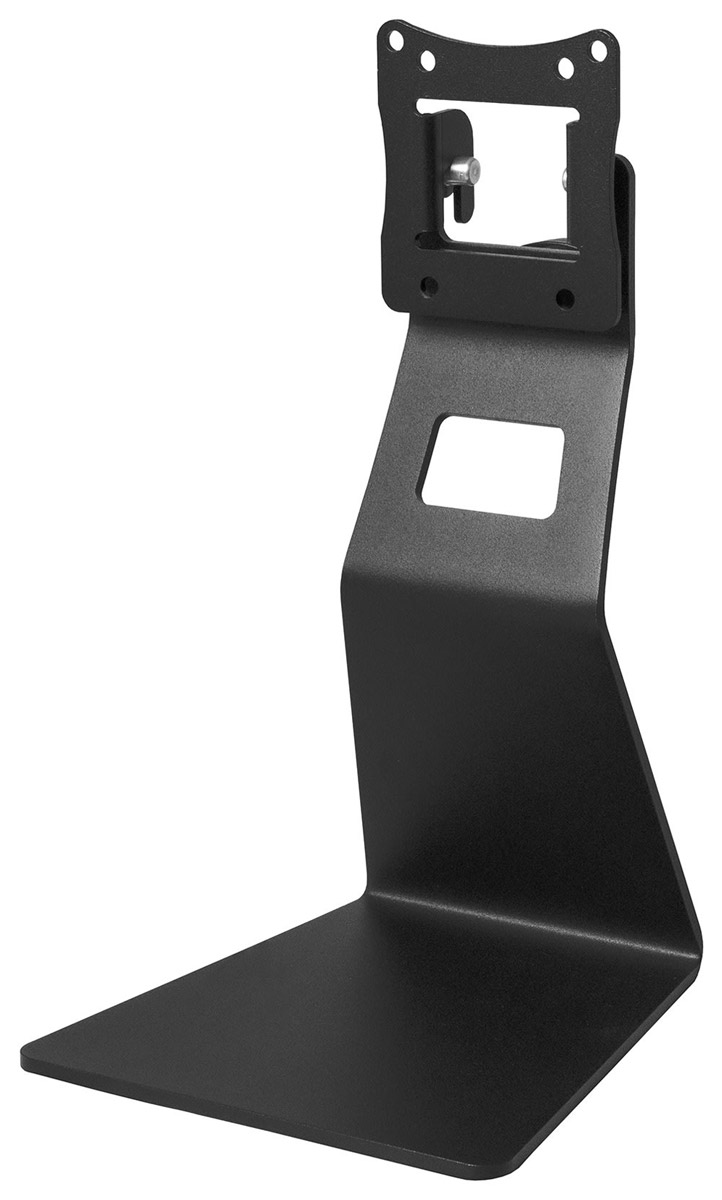

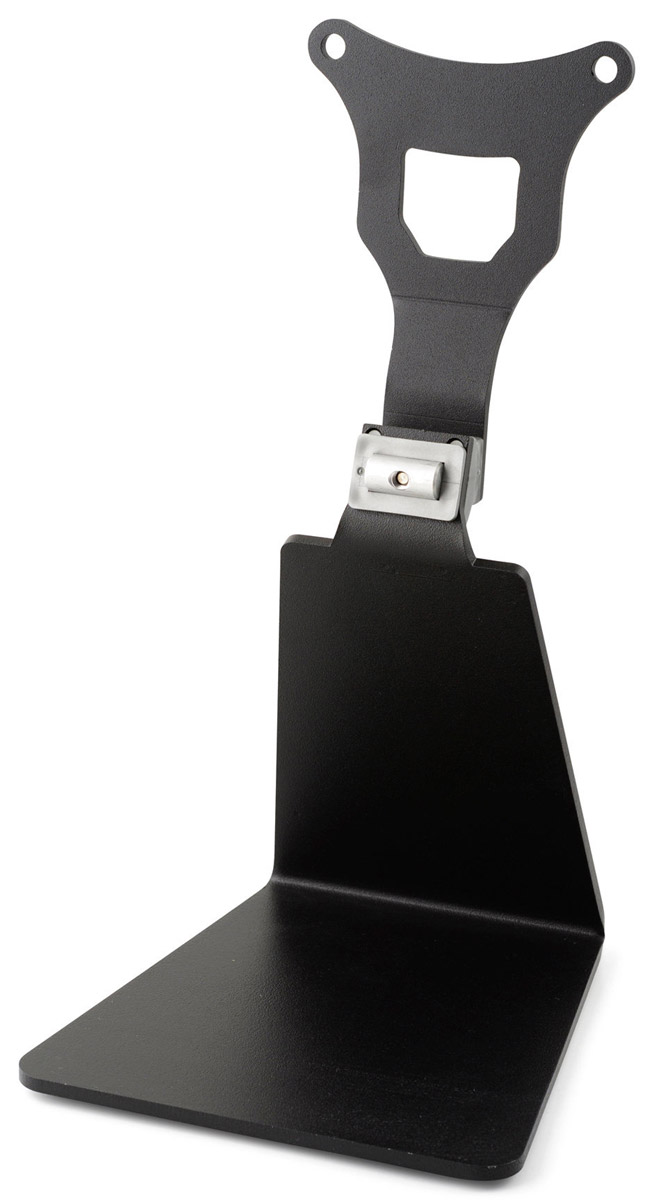

8000-333B / 8000-333W Table Stand

As 8010-320B however compatible with 8030, 8330, 8331, 4030, and 4430 loudspeaker. Dimensions (WxHxD): 180 x 335 x 190mm.

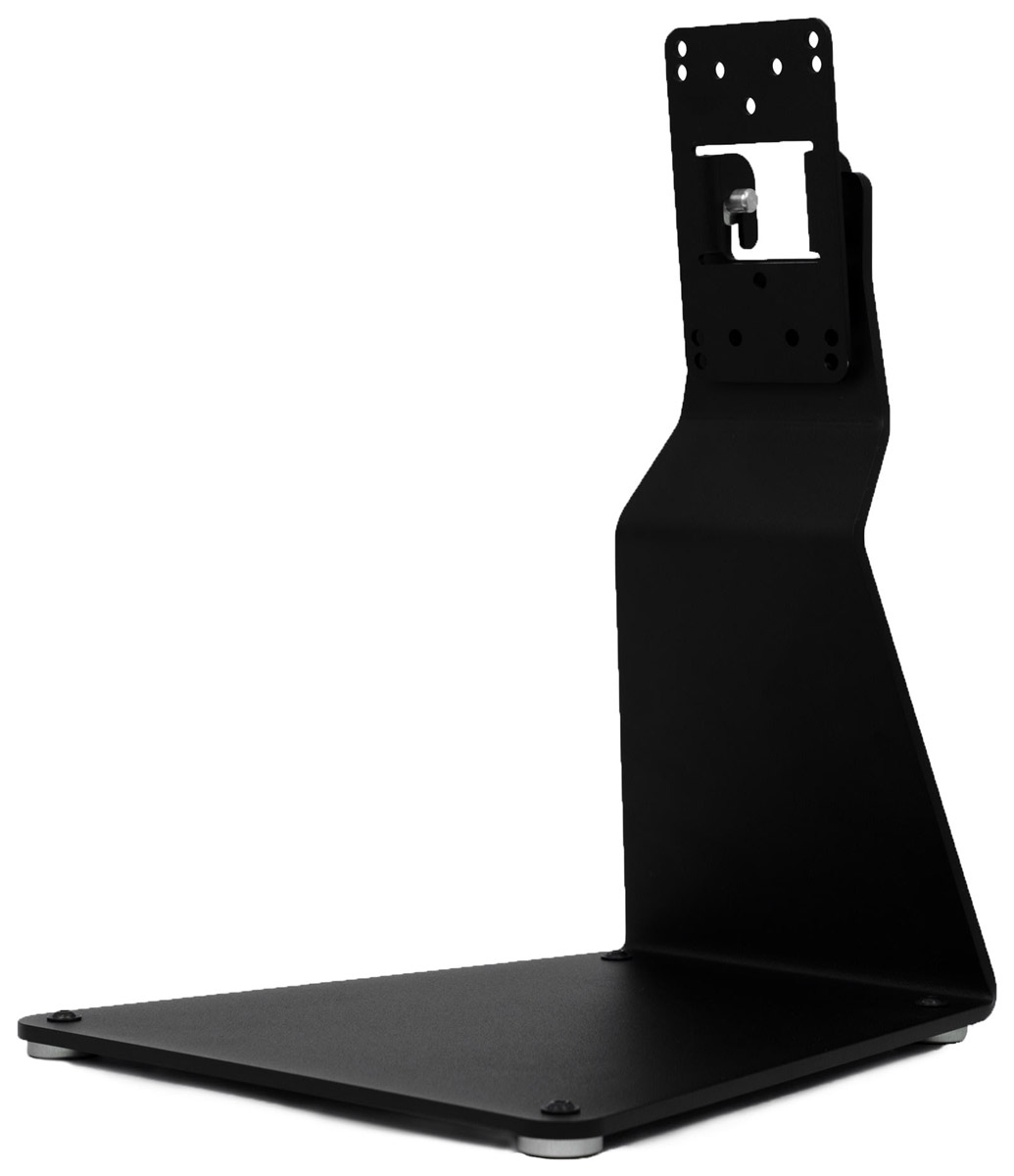

8000-325 / 8000-335W Table Stand

As 8010-320B however compatible with 8040, 8340, 8341, 8050, 8350, and 8351 loudspeaker with horizontal or vertical mounting position. Dimensions (WxHxD): 300 x 403 x 300mm.

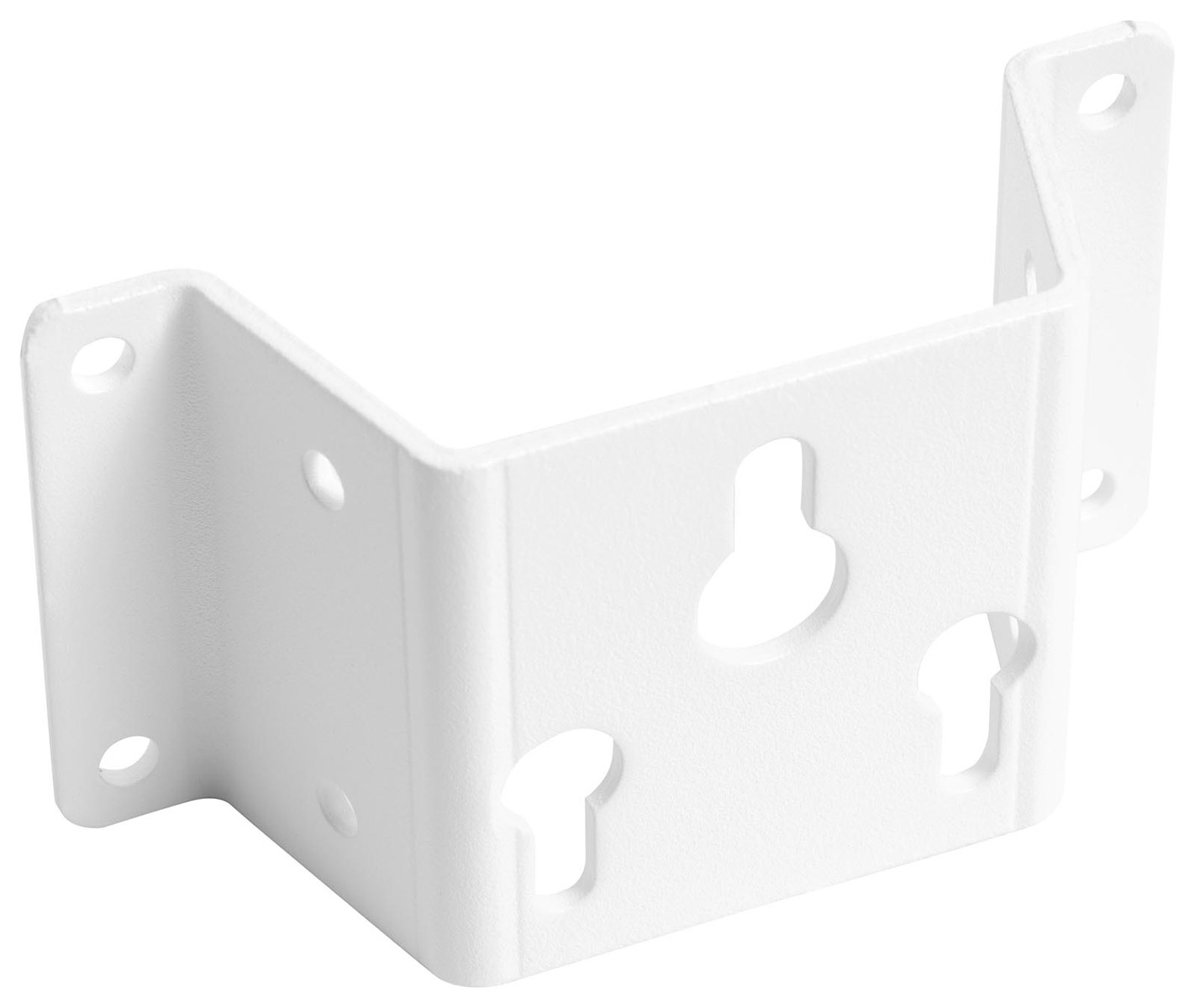

4000-410

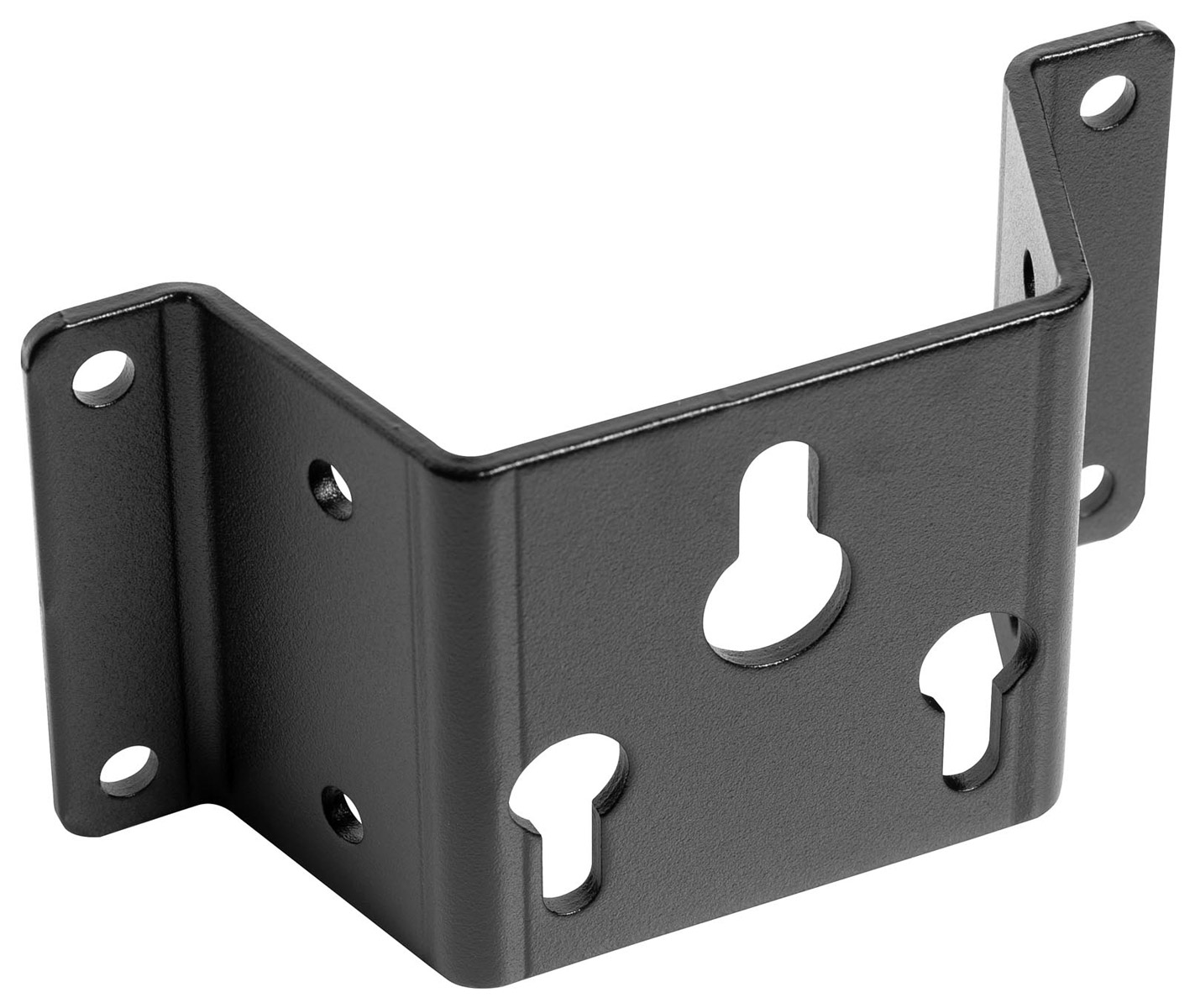

A fixed, 'simple' wall mount bracket for 8020, 8030 and 8130 loudspeaker. Available in black or white finish and complete with bolts and washers for fixing to loudspeaker.

4000-414

Like 4000-410, however compatible with 8040, 8340, 8341, G Four, and 4040 loudspeaker. Available in black or white finish. Dimensions (WxHxD): 122.9 x 65.8 x 40mm.

8010-410

A fixed 30-degree tilt designed for the Genelec 4010 loudspeaker. Available in black or white finish and complete with bolts and washers for fixing to loudspeaker.

8000-402

A pan/tilt wall mounting bracket in black or white finish. Tilt is adjustable though 30-degrees, and lockable in position. The compatible K&M 24463 wall bracket cover allows the installer to hide the fixing and make more pleasant on the eye. Dimensions (HxW): 160 x 90mm. Weight: 1.04kg

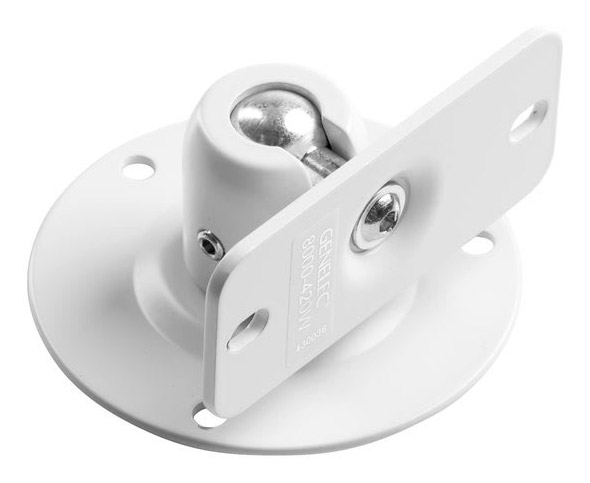

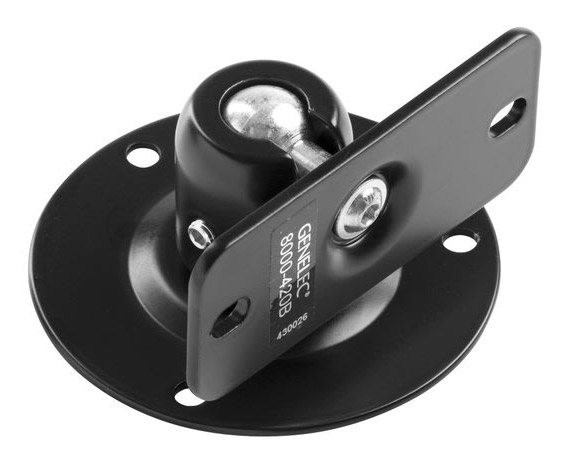

8000-420

This mount enables 360-degree rotation and a maximum of 90-degree tilt, depending on the loudspeaker model and mounting. Compatible with 8010, G One, 4010, 4410, 8020, 8320, G Two, 4020, and 4420. Available in black and white powder coat finishes. Dimensions (WxHxD): 90 x 89 x 62mm.

8000-422

A pan/tilt wall mounting bracket designed for 8020, 4020, 8320, 8030, 4030, or 8330 loudspeaker. Once fixed, the loudspeaker is able to pan from 70 to 115-degrees, and tilt up from 30 to 60-degrees, or down from 20 to 30-degrees. Available in white or black finish. Dimensions (HxW): 115 x 95mm. Weight: 0.39kg

8000-202

A ceiling mounting bracket for select Genelec Loudspeaker models. The mount enables the user to rotate the connected loudspeaker through 360-degrees of rotation and 90-degrees of tilt. Available in black or white finish. Dimensions (WxH): 95 x 158.5mm. Weight: 0.63kg

8000-436

A short, fixed 250mm length ceiling mount for 8000 series and G series Genelec loudspeaker. The bracket offers 0 to 90-degree tilt and +/-45-degree pan. Weight: 1.97kg

8000-442

A short, length adjustable ceiling mount for Genelec 8000 series loudspeakers. 8000-454 T-adapter plate is also required when mounting 8320 or 8330 loudspeaker. The mount is manufactured from 50mm tubing that allows cable through, and is adjustable in length in three preset positions - 400mm, 500mm, and 600mm. The bracket that fixes to the loudspeaker enables the user to tilt through 90-degrees. Available in black or white finish. Weight: 2.74kg

8000-444

A long, length adjustable ceiling mount for Genelec 8000 series loudspeakers. 8000-454 T-adapter plate is also required when mounting 8320 or 8330 loudspeaker. The mount is manufactured from 50mm tubing that allows cable through, and is adjustable in length in six preset positions - 700mm, 800mm, 900mm, 1000mm, 1100mm, and 1200mm. The bracket that fixes to the loudspeaker enables the user to tilt through 90-degrees. Available in black or white finish. Weight: 5.3kg

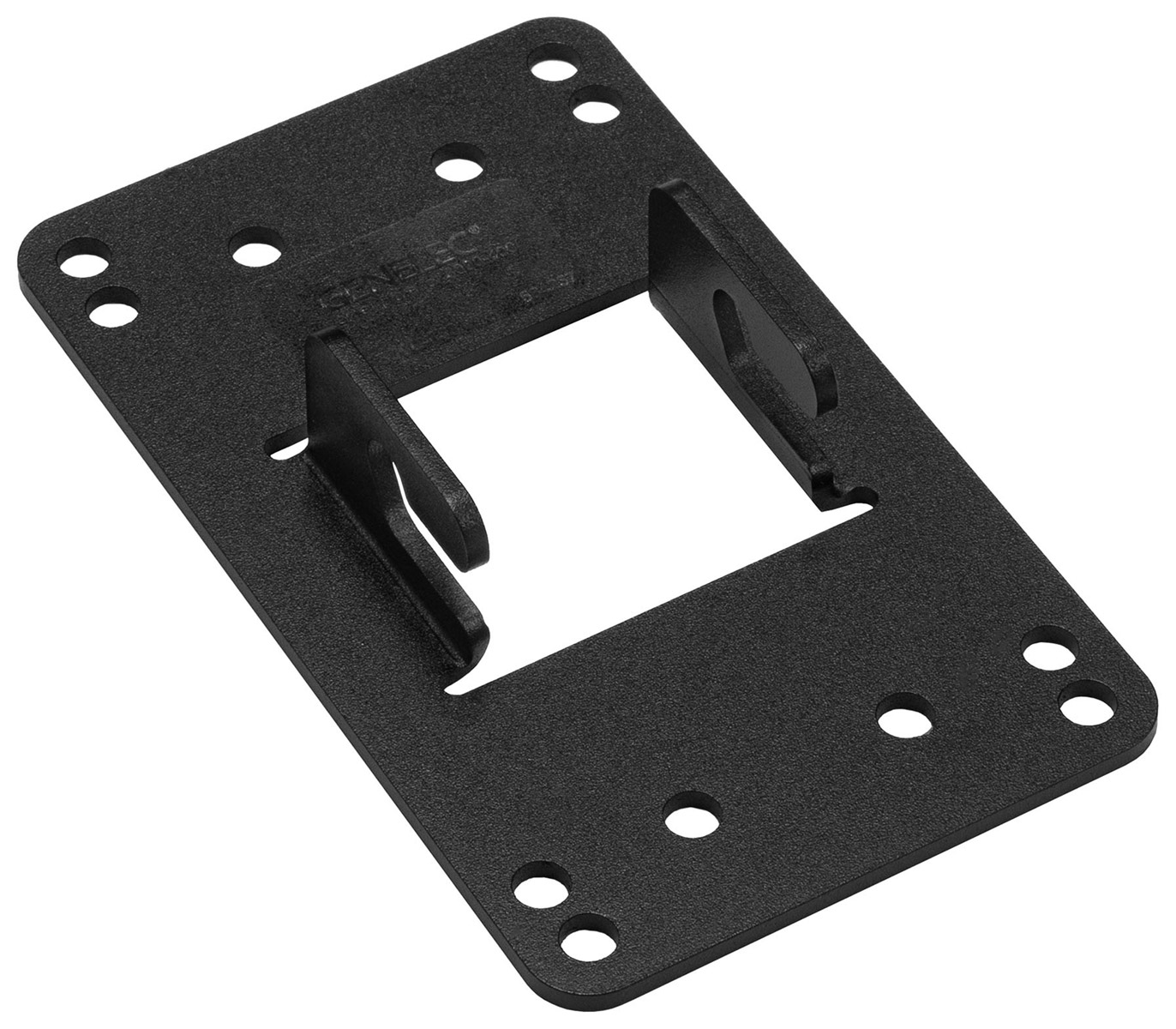

8000-437B

A VESA adapter that suitable for Genelec studio monitors including 8000 series, 8300 series, 8430, 4000 series, and G series. Compatible with VESA 75 and VESA 100 fixings. Maximum load capacity: 15kg.

8000-416B Truss Mount, fixed

A short truss mount clamp that allows the user to mount an 8000 series or 4000 series Genelec monitor to 50mm (diameter) tubing. 8000-416B has a maximum load capacity of 10kg. Weight: 1.02kg

8000-446B Truss Mount, adjustable

A length adjustable trussing mount for Genelec 8000 series loudspeakers. The mount is adjustable in length in three preset positions - 355mm, 430mm, and 505mm. The bracket that fixes to the loudspeaker enables the user to tilt through 90-degrees and +/-45-degree pan. Weight: 2.28kg

8341-450B

A flush, wall-mounting kit that is compatible with Genelec 8040, 8340, 8341, 4040, and G Four loudspeaker. The mount can be used in either vertical or horizontal orientation. Dimensions (WxHxD): 310 x 460 x 250mm.

8351-450B

A flush, wall-mounting kit that is compatible with Genelec 8050, 8350, 8351, and G Five loudspeaker. The mount can be used in either vertical or horizontal orientation. Dimensions (WxHxD): 360 x 575 x 286mm.

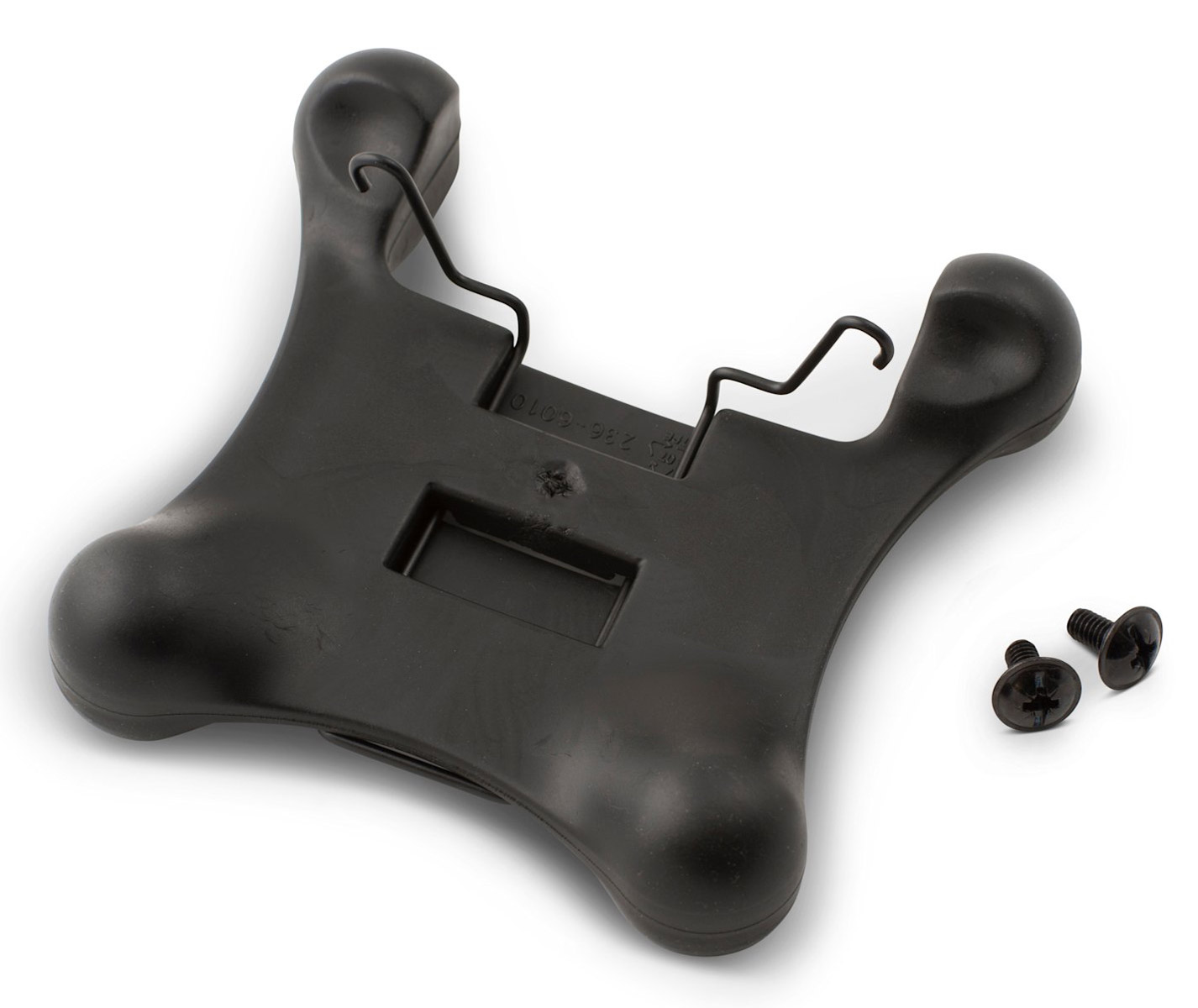

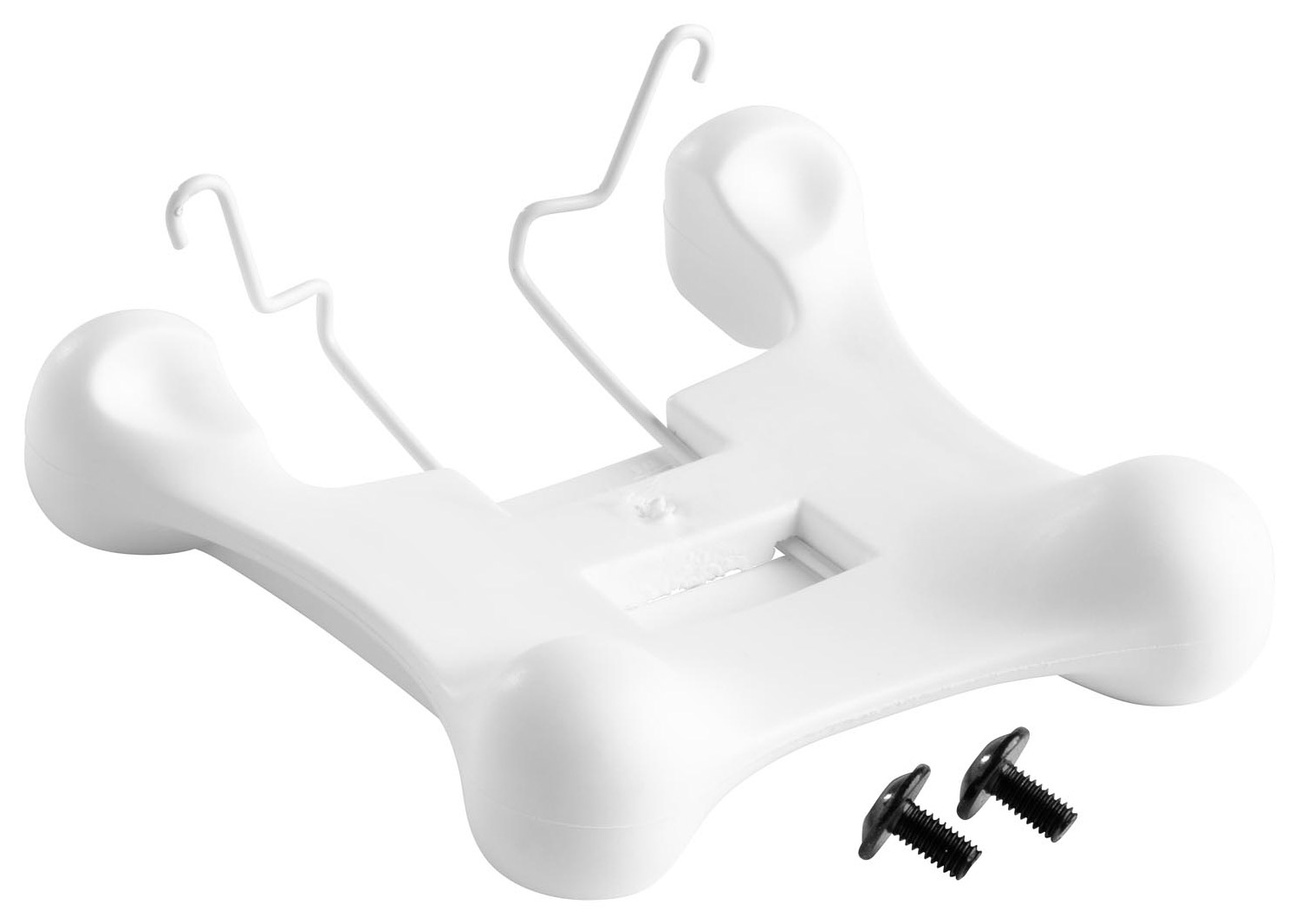

8010-408 / 8010-438

An adapter stand plate to be used with loudspeaker stand terminating in 3/8-inch thread. The compatible Iso-Pod fits over the four pins of the stand plate. Compatible with 8010 directly, and 4010 or 4410 when using a compatible Iso-Pod. Available in black or white finish. Weight: 0.2kg

8020-408 / 8020-438

As 8010-408, however compatible with 8020 or 8320 directly, or 4020 or 4420 when a compatible Iso-Pod is employed. Weight: 0.45kg

8030-408 / 8030-438

As 8010-408, however compatible with 8030, 8330, or 8331 directly, or 4030 or 4430 when a compatible Iso-Pod is employed. Weight: 0.5kg

8040-408 / 8040-438

As 8010-408, however compatible with 8040, 8340, or 8341 directly, or 4040 when a compatible Iso-Pod is employed. Weight: 0.74kg

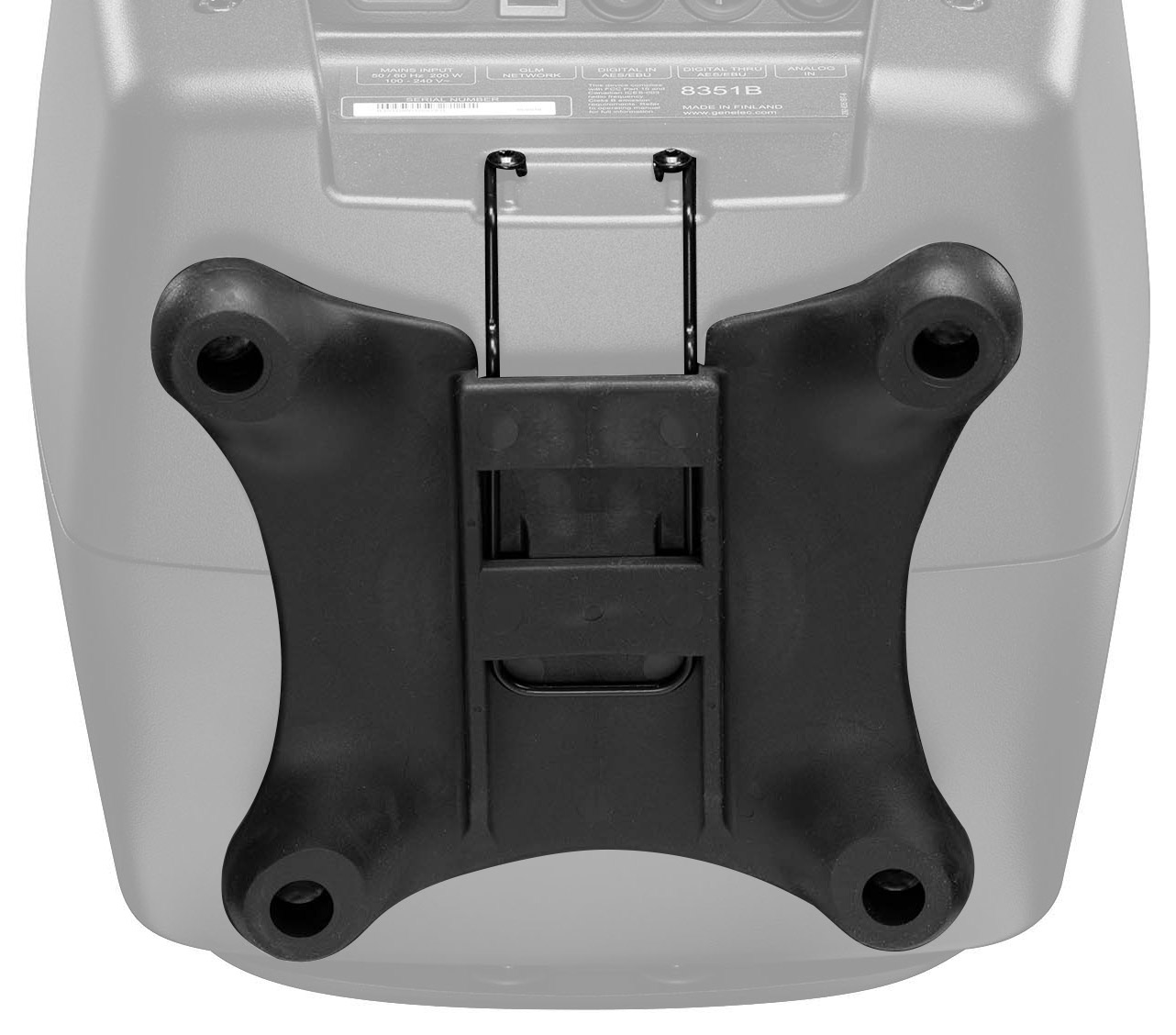

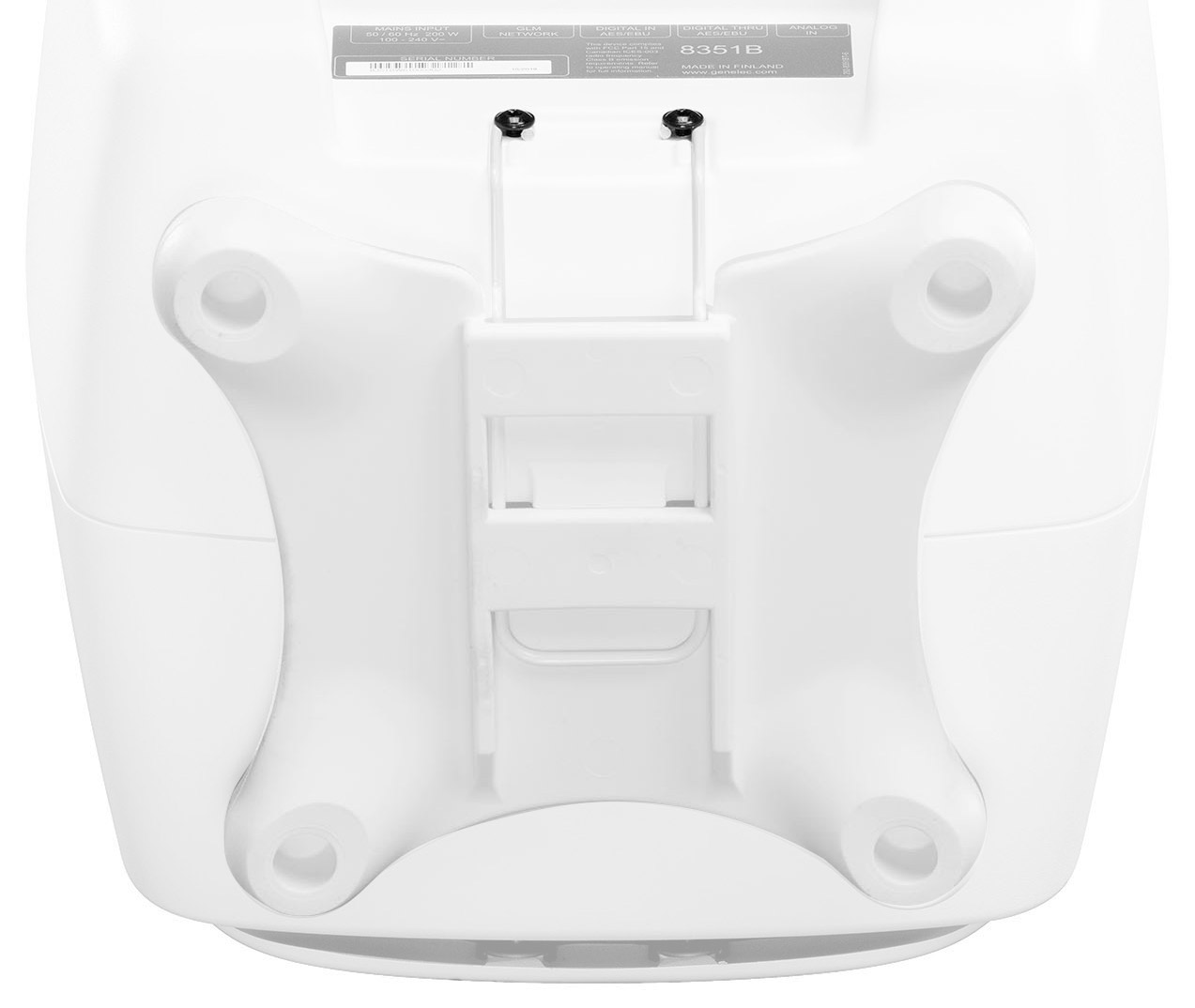

8051-408 / 8051-438W

As 8010-408, however compatible with 8050, 8350, or 8351 directly. Weight: 1.11kg

8260-450B

As 8010-408, however compatible with 8361 directly.

8000-438

An adapter designed to be used in conjunction with 8000-400 stand to allow horizontal mounting of Genelec 8351.

8000-454B

A T-Mounting bracket designed for Genelec 8320, 8330, or 8331. Finish: Black Weight: 0.19kg
