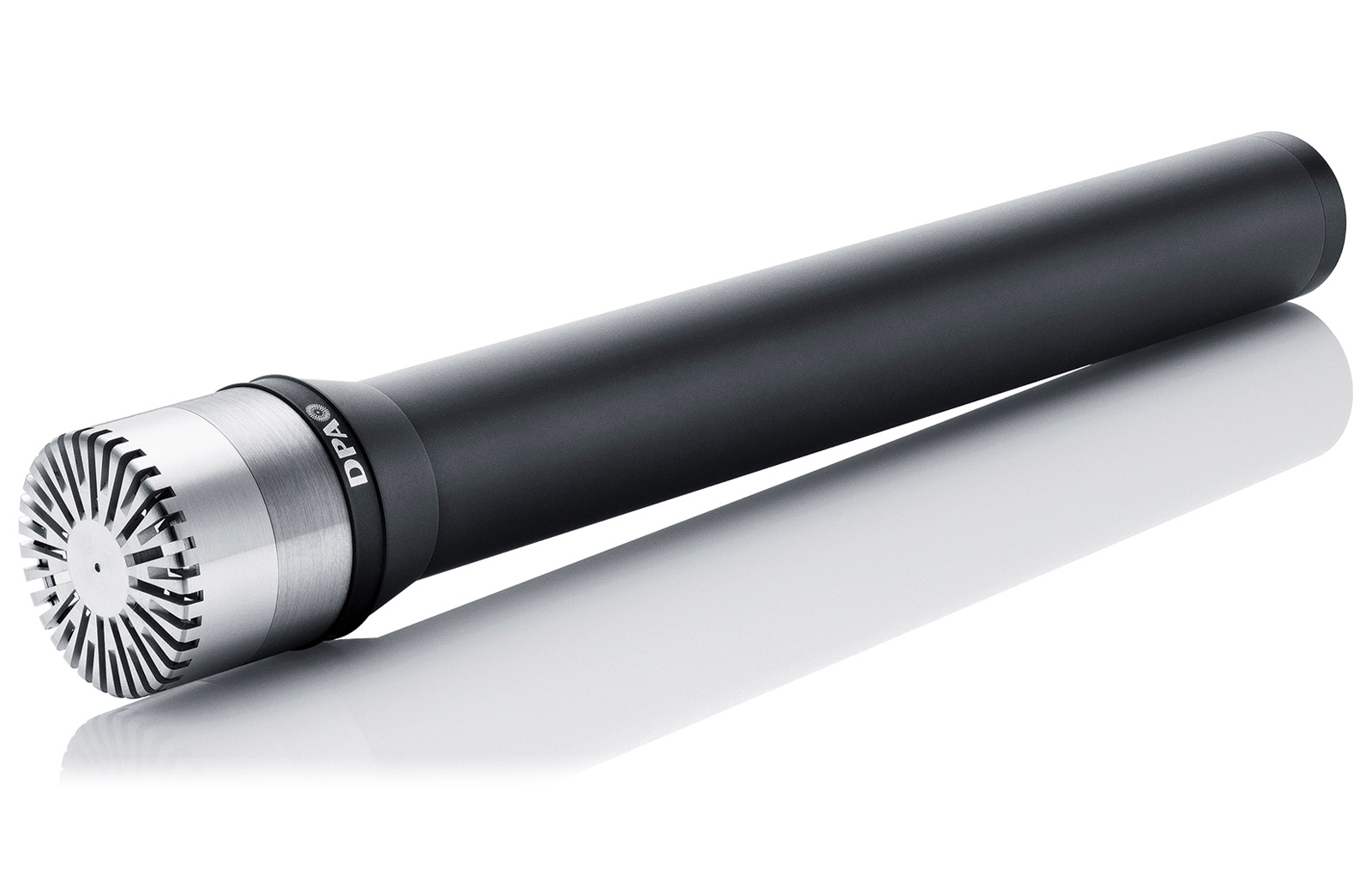

4041-SP - Omnidirectional
DAP 4041-SP is a large diaphragm condenser microphone capsule with an omnidirectional pickup pattern. The diaphragm of the capsule, and housing are both made from stainless steel, resulting in immunity against ambient temperature variations. A quartz insulator houses the back plate for maximum electrical stability, whilst the mic can be used with 48V solid state phantom power.
A frequency response from 10Hz to 20kHz and a soft boost of 4-6 dB around 8 kHz affords the engineer a smooth, clear response when recording vocals. A low self-noise of 8dB(A), combined with a handling capability of up to 134dB SPL gives headroom for the most demanding of acoustic audio collection before clipping occurs.
The MMC4041 Large Diaphragm Microphone Capsule can be unscrewed from the MMP4000-SP preamplifier, which allows you to exchange the preamp.
| Directional pattern |
Omnidirectional |
| Principle of operation |
Pressure |
| Cartridge type |
Condenser with stainless steel diaphragm |
| Frequency response |
20Hz - 20kHz |
| Effective frequency range +/-2 dB |
20Hz - 20kHz with 4 - 6dB soft boost at 8kHz |
| Sensitivity, nominal, +/-2 dB at 250Hz |
70mV/Pa; -23dB re. 1V/Pa |
| Equivalent noise level, A-weighted |
Max. 8dB(A) re. 20 µPa |
| Equivalent noise level, ITU-R BS.468-4 |
Max. 20dB |
| Distortion, THD less than 1% |
123dB SPL RMS; 126dB SPL peak |
| Dynamic range |
Typ. 118dB |
| Max. SPL, THD 10% |
134dB SPL peak |
| Rated output impedance |
Less than 200ohms |
| Cable drive capability |
100m |
| Current consumption |
2.2 mA |
| Connector |
3-pin XLR-M |
| Temperature range |
-40 to 45-degrees Celsius |
| Relative humidity |
Up to 90% |
| Weight |
190g |
| Capsule diameter |
24mm |
| Microphone length |
170mm |
