CANARE WECo 12G-SDI VIDEO JACKFIELDS, MICRO

75ohm, 12G-SDI, staggered video patchbays and associated patchcords, modules, dust-caps and adapters from Canare.

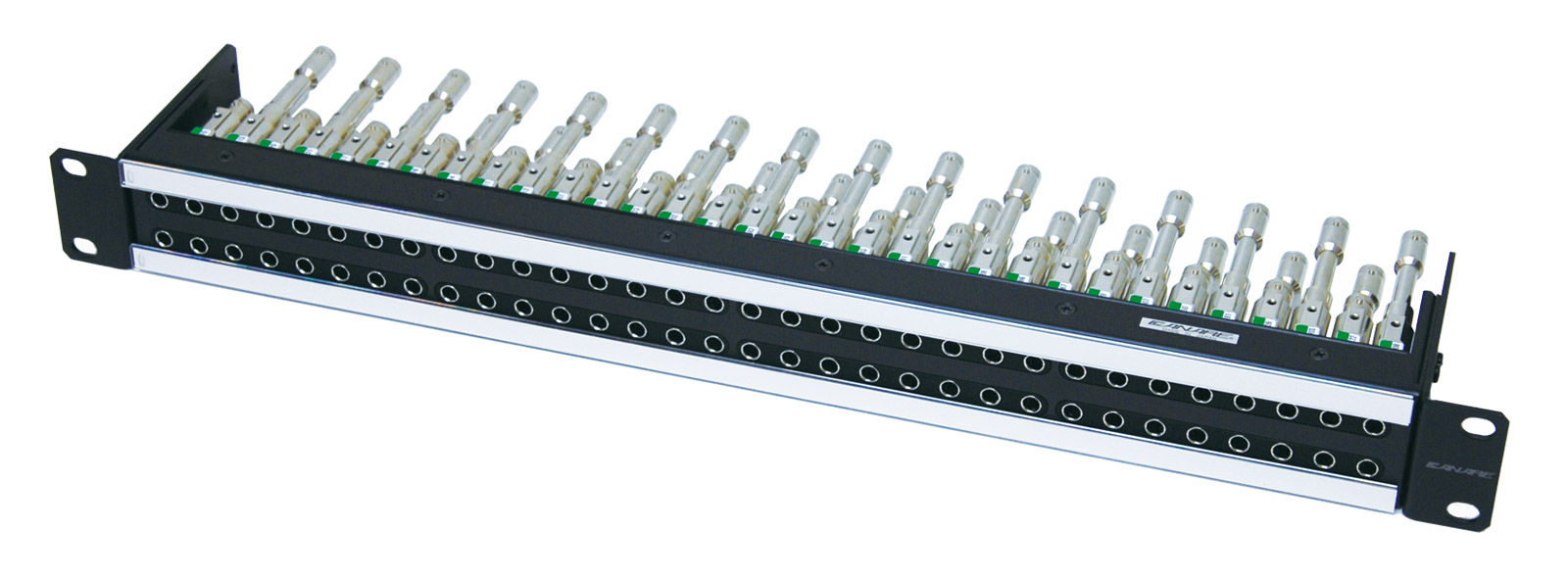

Compact design fits 32 channels into 1RU making them suited to solutions where space is a premium. The high performance staggered BNC rear jacks with vertical stud position provides improved visibility of the position mark on the BNC plug body. All versions meet or exceed SMPTE ST 2082-1 standards with low return loss.

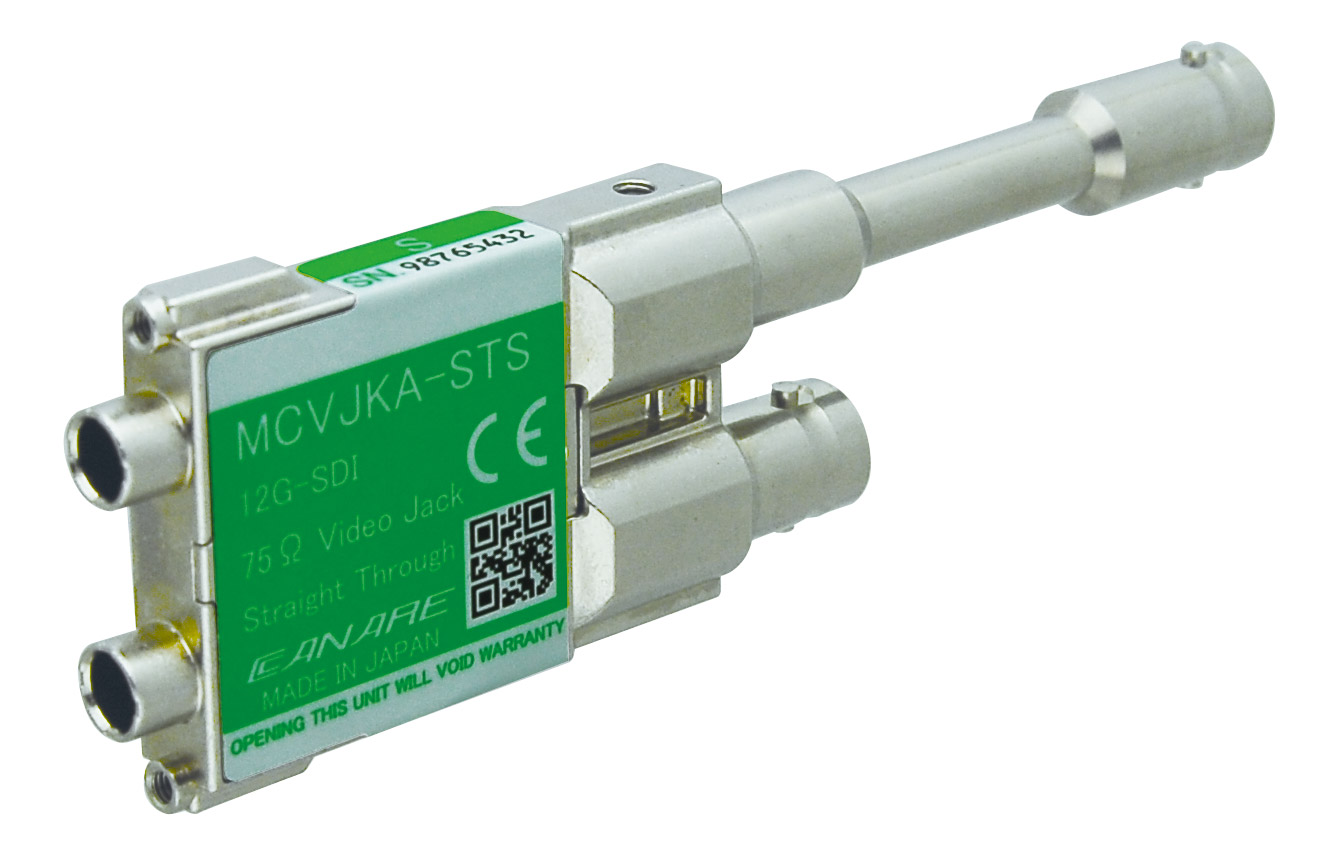

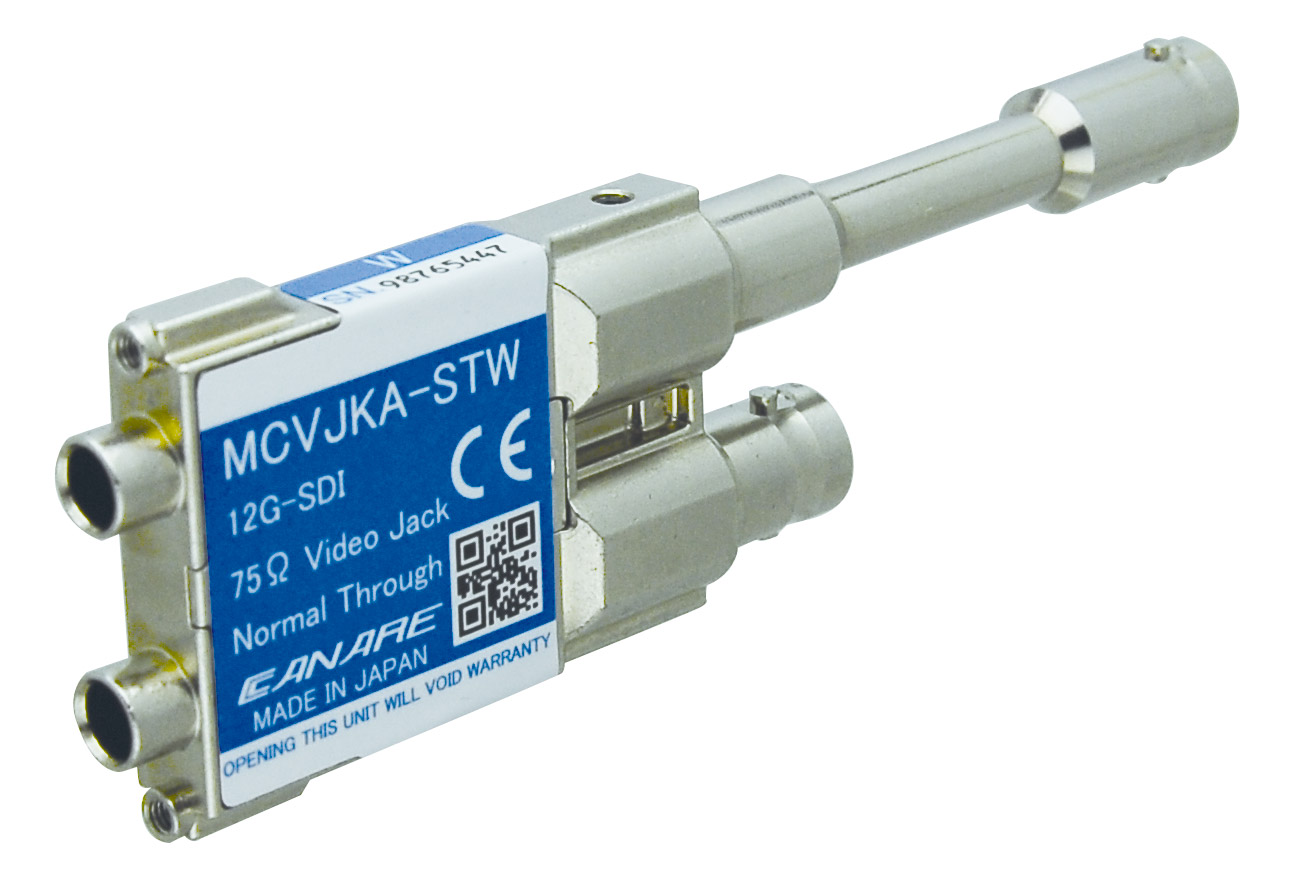

Two versions are available: 32MCKA-ST 'Normal through' and 32MCKA-STS 'Straight through'. Additional modules are available separately: MCVJKA-STW 'Normal through' and MCVJKA-STS 'Straight through', allowing users to switch out or mix and match combinations as required.

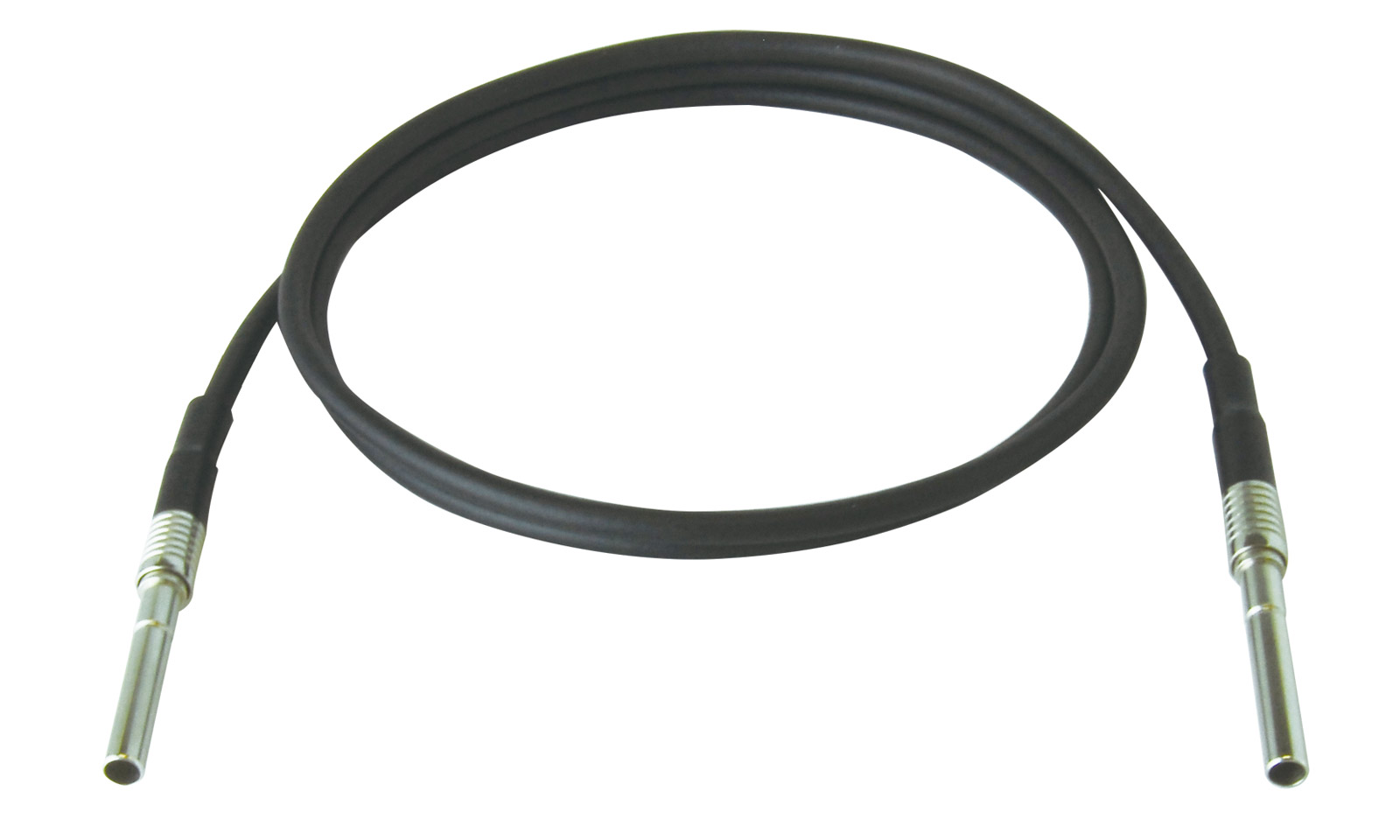

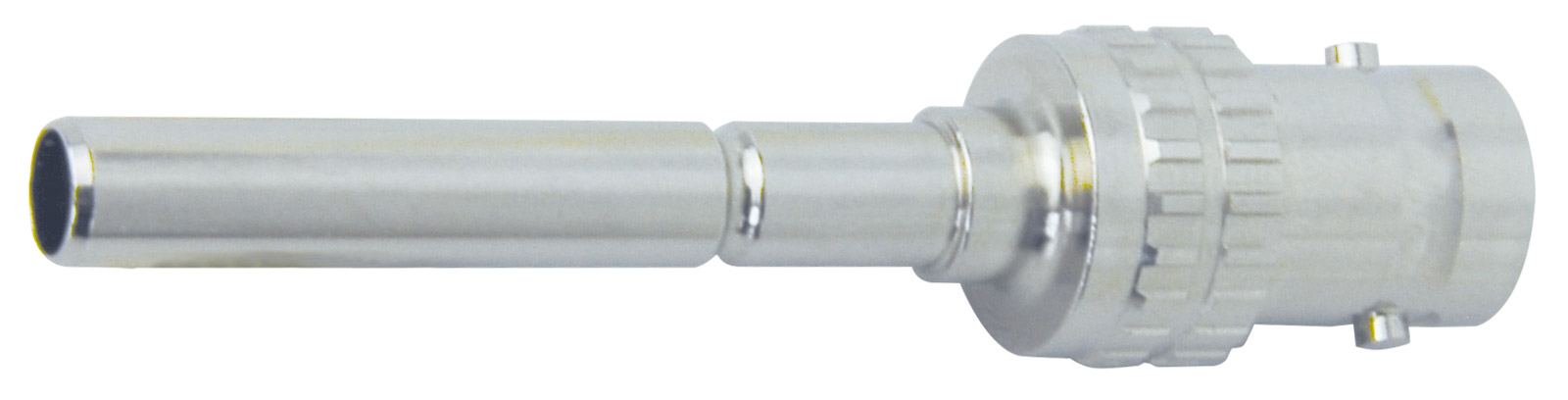

Suitable patchcords are available in 3 lengths, 300mm, 500mm and 1m, all are black as standard with black strain reliefs. Additionally, Patchcord plug to BNC adapters BCJ-MCVP are available, enabling cables terminated with BNC plugs to be directly patched into the jackfield.

User note: Micro Jackfields must be used with the associated patchcords, modules and adapters. Other versions although visually similar are unsuitable and will not be compatible.
