A range of panels supplied with screened RJ45 CAT6A IDC sockets, enabling system patching and easy connection of portable or external equipment. These ‘Tool-less’ sockets have IDC termination with butterfly-style levers to close the housing and make the termination. A printable designation-strip with snap on cover and a lacing bar are fitted as standard.

Manufactured from a lightweight, but extremely rigid, broadcast style, aluminium extrusion. The individual connectors are mounted in a sub chassis and are presented flush with the face of the front panel. Panels are fitted with a cranked lacing-bar giving easy access to the rear sockets. The connectors are arranged in equal groups either side of a central divide and a designation-strip holder with snap-on cover is fitted on the front panel to permit the supplied paper strips to be inserted before or after installation; 7.5mm of printable height is available.

Templates for printing designation strip labels, available as a DWG file for AutoCAD and compatible applications, can be downloaded from the appropriate product page on the Canford website. Spare 432mm designation-strip paper (not suitable for printers) and covers are available, see Designation strips - snap on.

Available finished in Dawn Grey (BS4800-10A03) or Black.

Optional accessories: see Canford Rackbracket - Recess mounting brackets.

Technical Note:

The Cat6 system utilises all four pairs of copper wires and supports Gigabit (1000Mb/s) Ethernet over distances up to 100m.

CAT5 100BASE-T [100Mbps]: (90m solid core installed + 10m stranded flexible patch cable) in any
CAT5E 1000BASE-T [1Gbps]: (90m solid core installed + 10m stranded flexible patch cable) in any alien crosstalk environment
CAT6 10/100/1000BASE-T: 100m (90m solid core installed + 10m stranded flexible patch cable) in any alien crosstalk environment
CAT6 10GBASE-T: 55m (45m + 10m) in favourable alien crosstalk environment, 37m (27m + 10m) in hostile alien crosstalk environments, i.e. where data cables are bundled together.
CAT6A 10GBASE-T: 100m (90m + 10m) in any alien crosstalk environment.
  Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand

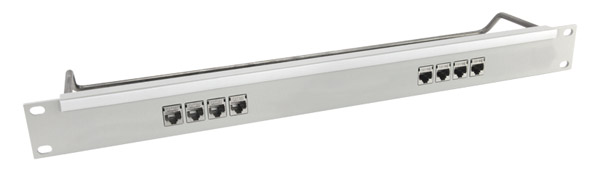

CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x8 IDC, Screened, grey Grey Artikelnummer: 45-3591
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 70,82 €
5+ 67,99 €

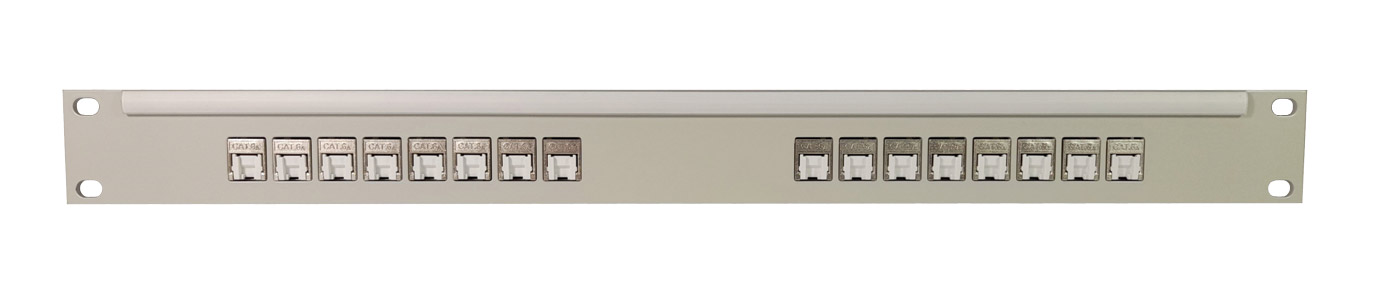

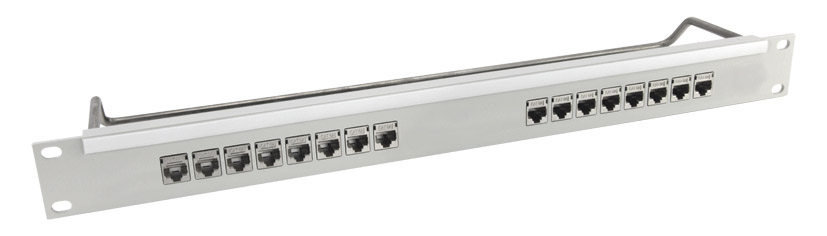

CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x16 IDC, Screened, grey Grey Artikelnummer: 45-3592
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 102,83 €
5+ 98,71 €

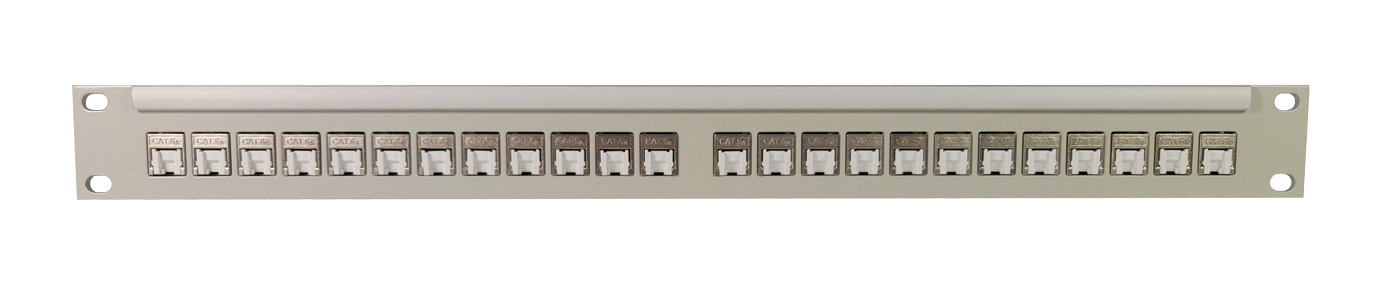

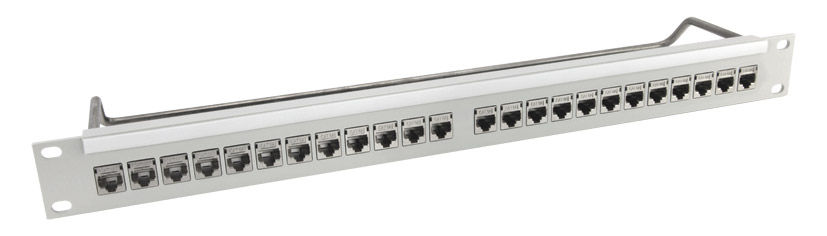

CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x24 IDC, Screened, grey Grey Artikelnummer: 45-3593
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 134,64 €
5+ 129,21 €

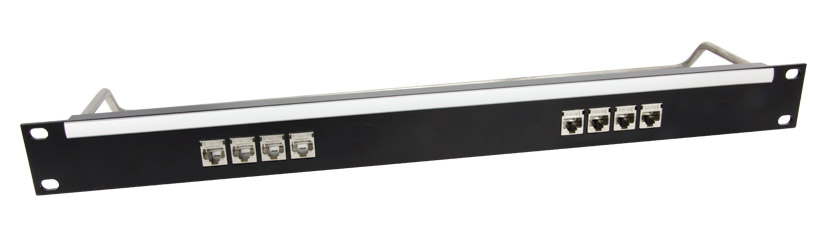

CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x8 IDC, Screened, black Black Artikelnummer: 45-3594
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 70,82 €
5+ 67,99 €

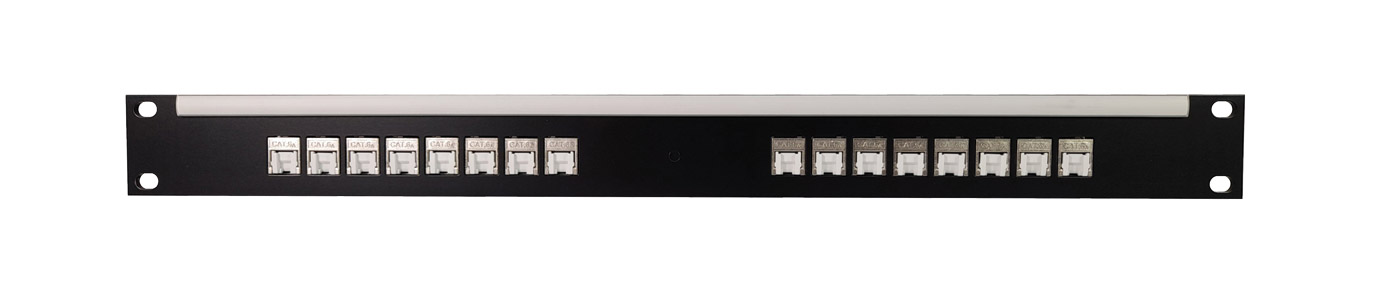

CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x16 IDC, Screened, black Black Artikelnummer: 45-3595
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 102,83 €
5+ 98,71 €
CANFORD CAT6A RJ45 PRO PATCH PANEL 1U 1x24 IDC, Screened, black Black Artikelnummer: 45-3596
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
1+ 134,64 €
5+ 129,21 €
