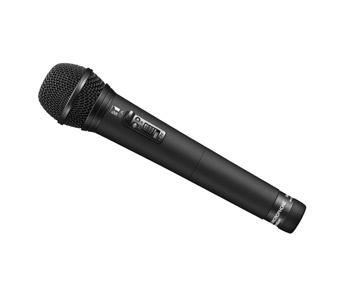

TOA WM-5265 G01 RADIOMIC TRANSMITTER Handheld, dynamic, rechargeable, 606-622MHz

WT-5805 Receiver

This half-rack width UHF wireless receiver utilises Phase Locked Loop (PLL) synthesis oscillators to enable up to 64 selectable frequency channels. A space diversity (also known as spatial diversity) system to improve the quality and reliability of the wireless link between transmitter and receiver.

The front panel features a two-line LCD display to show channel name, frequency, and both RF and AF strength, along with menu options. To the right of the front panel is a large output volume rotary control along with menu selection buttons and power on/off switch. LEDs show AF peak at 3dB below the clipping point, battery alarm lamp – which illuminates when the corresponding transmitter’s battery is low; and yellow A-B RF reception indicators.

The rear panel offers channel A/B 75ohm BNC antenna inputs, DC power supply input with cable hanger, unbalanced 6.3mm jack output, balanced 3-pin XLR output with line/mic level switch, and 10kOhm unbalanced 6.3mm jack input for connection to a second receiver’s AF output.

Power consumption: 200mA, 12V DC. Mixing output: -60dB, mic, 600ohm balanced 3-pin XLR; -20dB, line, 600ohm unbalanced 6.3mm jack. Mixing input: -20dB, 10kOhm, unbalanced 6.3mm jack. Antenna input: 75ohm BNC. Receiving sensitivity: 90dB. Squelch: 16-40 dBuV. Dimensions (WxHxD): 210 x 44 x 205.1mm. Weight: 700g.

WT-5800 Receiver

WT-5800 offers many of the same features as the WT-5805 with the added benefit of true diversity operation and antenna outputs for connection to compatible distribution units.

Power consumption: 250mA, 12V DC. Mixing output: -60dB, mic, 600ohm balanced 3-pin XLR; -20dB, line, 600ohm unbalanced 6.3mm jack. Mixing input: -20dB, 10kOhm, unbalanced 6.3mm jack. Antenna input: 75ohm BNC. Antenna output: 75ohm BNC. Receiving sensitivity: 90dB. Squelch: 16-40 dBuV. Dimensions (WxHxD): 210 x 44 x 205.1mm. Weight: 700g.

WH-4000A Headworn aerobic microphone

This headworn electret condenser microphone has been designed for aerobic use where the microphone is subject to more movement. The headband is manufactured from black Ethylene-vinyl acetate (EVA), and is attached to across the back of the silicon rubber frame. The gooseneck to which the unidirectional microphone capsule is positioned at the end of is manufactured from iron, which is chrome plated before covered in black shrink tubing. The fixed 1.3m cable is terminated with 3.5mm mono jack plug. Optional WH-4000S windscreens can be purchased as replacements to the included single windscreen.

Sensitivity: -66dB, +/-3dB. Maximum input level: 120dB SPL. Weight: 50g

WH-4000H Headworn microphone

WH-4000H has the same electronic principles as the WH-4000A, however this microphone doesn’t include the EVA headband required to eliminate excess movement. Optional WH-4000S windscreens can be purchased as replacements to the included single windscreen.

Sensitivity: -66dB, +/-3dB. Maximum input level: 120dB SPL. Weight: 50g

YP-M5300 Lavalier microphone

This unidirectional, condenser lavalier microphone has a black finish and features a 1.3m cable terminating with 3.5mm mono jack plug. Includes clip for attaching to clothing.

Sensitivity: -66dB, +/-3dB. Frequency response: 100Hz -12kHz. Maximum input level: 120dB SPL. Weight: 20g

YP-M5310 Lavalier microphone

This omnidirectional, condenser lavalier microphone has a dark black finish and features a 1.3m cable terminating with 3.5mm mono jack plug. Includes clip for attaching to clothing.

Sensitivity: -64dB, +/-3dB. Frequency response: 100Hz -15kHz. Maximum input level: 110dB SPL. Weight: 20g
