FOSTEX 6301NX POWERED LOUDSPEAKER 20W, D-Class amplifier, transformer balanced, XLR input

Artikelnummer
76-3052
Hersteller
Fostex
Typennummer
  • FX-6301N/X
  • 6301NX
FOSTEX 6301NX POWERED LOUDSPEAKER 20W, D-Class amplifier, transformer balanced, XLR input
FOSTEX 6301NX POWERED LOUDSPEAKER 20W, D-Class amplifier, transformer balanced, XLR inputFOSTEX 6301NX POWERED LOUDSPEAKER 20W, D-Class amplifier, transformer balanced, XLR inputFOSTEX 6301NX POWERED LOUDSPEAKER 20W, D-Class amplifier, transformer balanced, XLR input

FOSTEX POWERED LOUDSPEAKERS - 6301N series

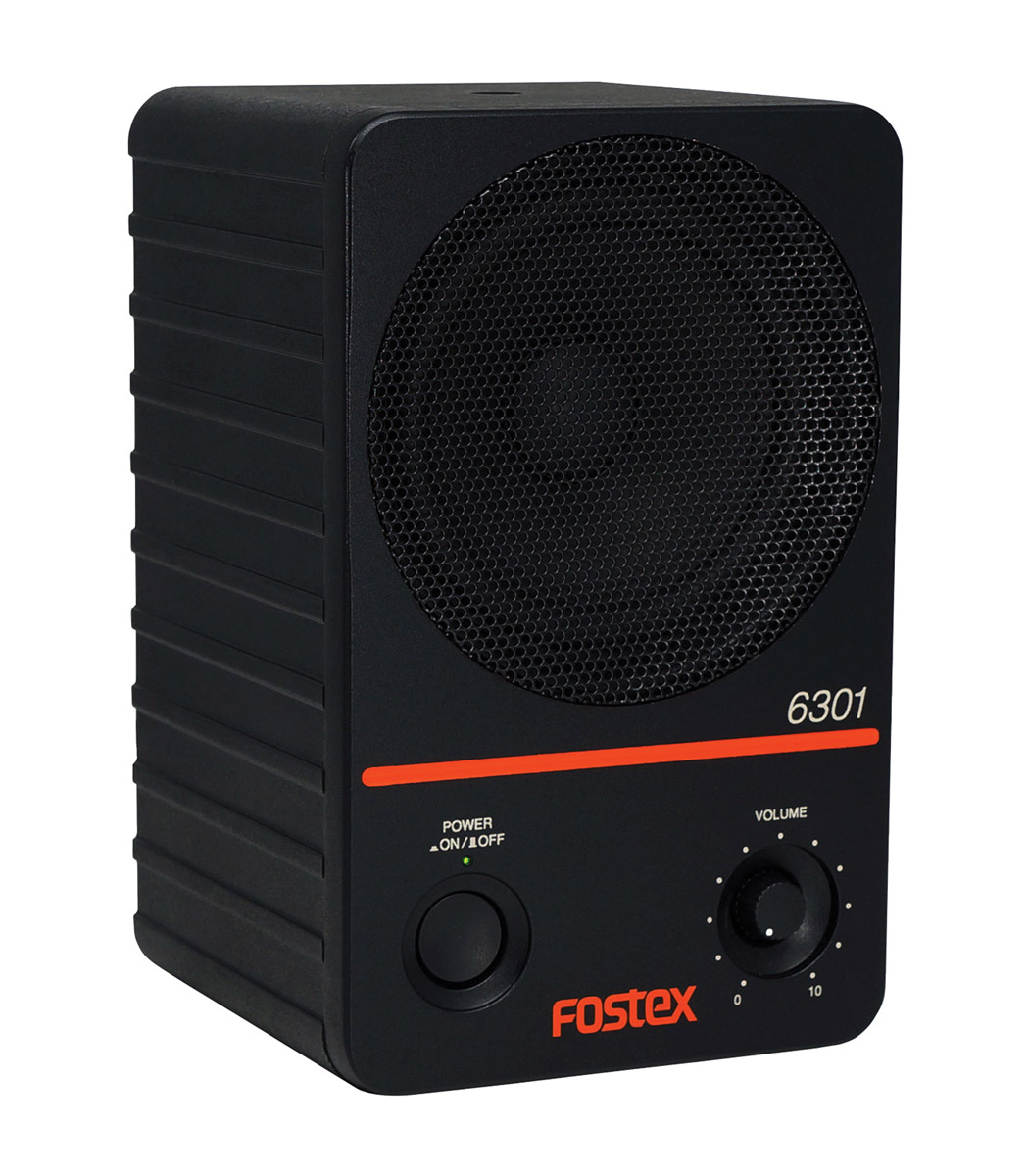

These compact loudspeakers, with built-in 20 watt class D amplifier, are suitable for talkback, line listening, cue programme, office monitoring, and even small PA applications.

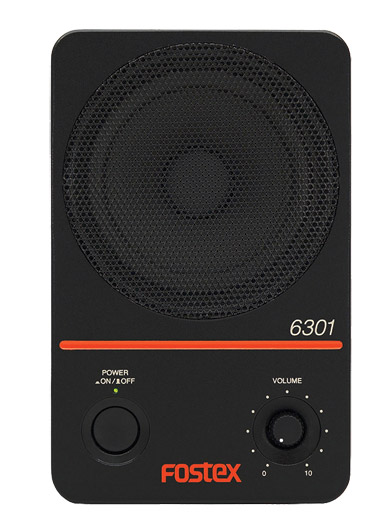

The robust, aluminium, sealed die-cast case is finished in black and has power on/off and volume control on front panel; an an auto-standby feature adds energy efficiency. All models have an IEC 60320 C14 type, AC mains power inlet and are equipped with a switching power circuit. All models accept an analogue, nominally line-level input via an unbalanced 6.35mm mono jack. In addition to the 6.35mm input, the 6301NE provides an electronically balanced XLR input; 6301NX provides a transformer balanced XLR input; 6301ND provides IEC 60958 AES/EBU digital input and through output using XLR connectors; and 6301DT provides Dante audio input via RJ45 connector and using Audinate's Ultimo chipset. 6301DT allows the monitoring of either Dante or analogue input, or a mix or both.

The optional EB-6301 mounting bracket enables horizontal or vertical wall mounting.

Audio inputs:
6301NB: Unbalanced, analogue, 6.35mm mono jack.
6301ND: AES/EBU digital with through out, XLR3 and unbalanced analogue 6.35mm mono jack.
6301NE: Electrically-balanced analogue, XLR3 and unbalanced analogue 6.35mm mono jack.

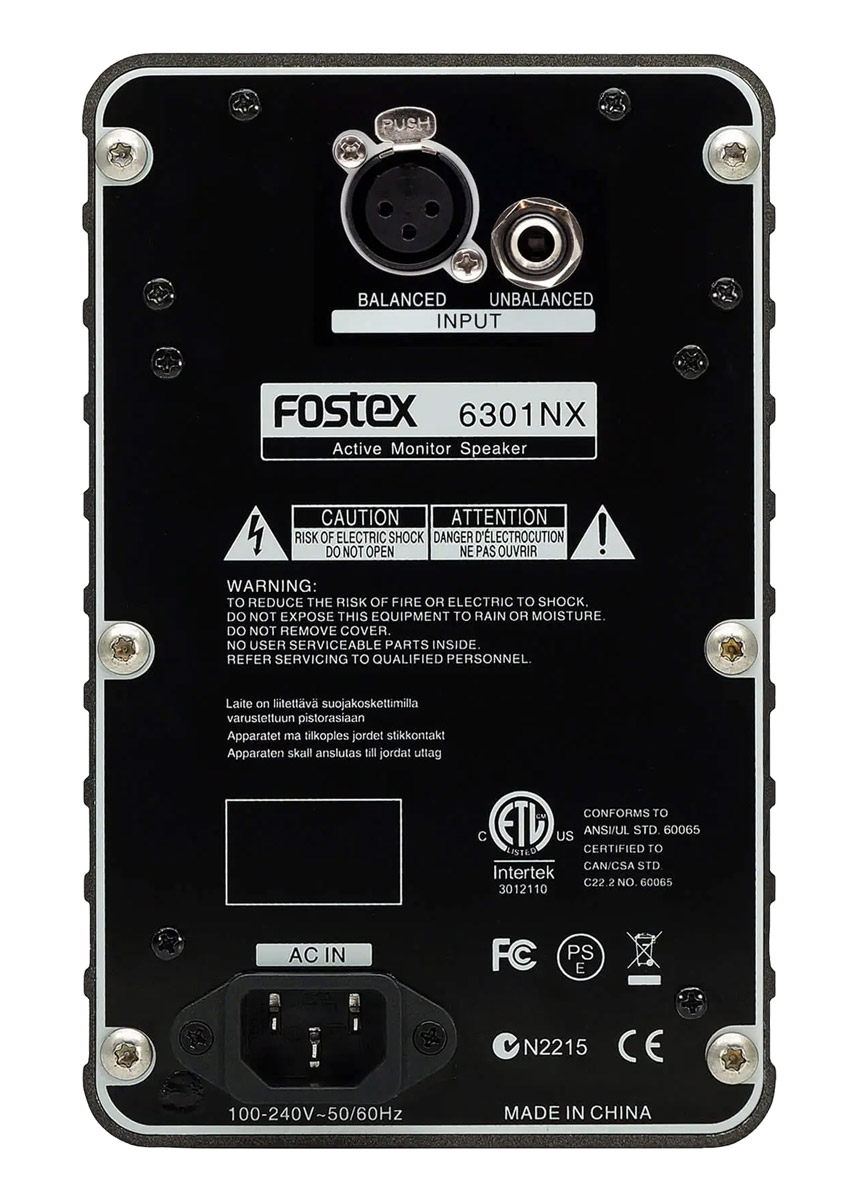

6301NX: Transformer-balanced analogue, XLR3 and unbalanced analogue 6.35mm mono jack.
6301DT: Dante digital audio input via RJ45, and unbalanced analogue 6.35mm mono jack.

Input impedance: 10k ohms, analogue; 110 ohms, AES/EBU digital, 6301ND. Response: 70Hz to 15kHz. Power: 20W. Output level: 85dB SPL/W at 1 metre, 98dB SPL maximum. Power source: 100V to 240V AC, 50/60Hz, 10W. Dimensions: 120 x 189 x 120mm (w x h x d). Weight: 2.2kg.

Included accessories: Manual, 2 metre IEC cable for AC power.
Optional accessories: EB-6301 wall-mounting U-bracket.

Priced and sold singly.

  Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand
FOSTEX 6301NB POWERED LOUDSPEAKER 20W, D-Class amplifier, unbalanced, 6.35mm jack input Artikelnummer: 76-3051
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
219,38 €
FOSTEX 6301NX POWERED LOUDSPEAKER 20W, D-Class amplifier, transformer balanced, XLR input Artikelnummer: 76-3052
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
258,34 €
FOSTEX 6301NE POWERED LOUDSPEAKER 20W, D-Class amplifier, electronically balanced, XLR input Artikelnummer: 76-3053
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
243,71 €
FOSTEX 6301ND POWERED LOUDSPEAKER 20W, D-Class amplifier, AES/EBU, digital, XLR input Artikelnummer: 76-3054
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
316,84 €
FOSTEX 6301DT POWERED LOUDSPEAKER 20W, D-Class amplifier, Dante and analogue inputs Artikelnummer: 76-3055
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
341,17 €
MICROPHONE STAND ADAPTER For Fostex 6301, Canford Diecast speakers, items with M5 female thread Artikelnummer: 76-309
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
15,83 €
FOSTEX SPARE LOUDSPEAKER For 6301B, 6301X, 6301D Artikelnummer: 76-316
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
70,01 €
FOSTEX EB6301 WALL BRACKET For Fostex 6301 powered loudspeakers Artikelnummer: 76-327
Bitte einloggen um den Lagerstand und die Verfügbarkeit abzufragen
34,13 €
