SHURE P6HW PERSONAL MONITOR BELTPACK Wired

Artikelnummer

74-5888

Hersteller

Shure

Typennummer

MwSt. / Versand

Dieser Artikel wurde eingestellt. Bitte wenden Sie sich an unser technisches Unterstützungsteam für Informationen über Alternativen.

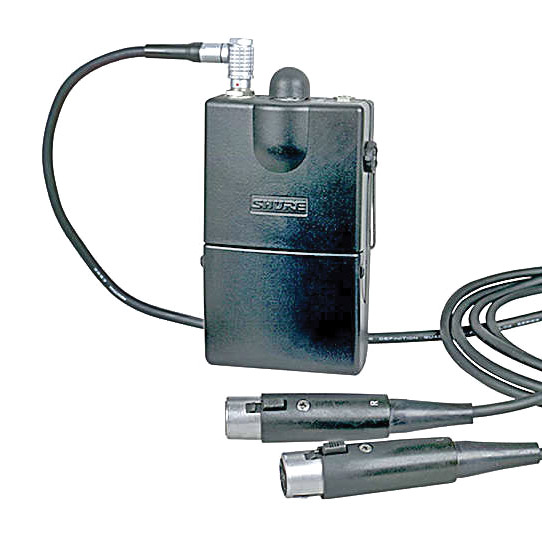

P6HW Wired Personal Monitor Bodypack

PSM 600 Wired Personal Monitor Bodypack with detachable dual input XLR cable.

	Key Features
	Detachable input cable Rugged metal chassis
	Operating Controls
	Operating mode (Stereo, Mono, MixMode) Volume knob Balance knob Defeatable limiter High-frequency boost -15 dB pad
	LED Indicators
	Power Peak input level Low battery

Frequency Response: 26 Hz to 90 kHz (-3 dB)
Total Harmonic Distortion*: 0.18% for RL = 18; 0.08% for RL = 63
Channel Separation*: 40 dB (minimum)
Signal-to-Noise Ratio*: 85 dB (minimum)
Output Level*: +4.5 dBu (maximum level, 1% THD, RL = 18 )
Minimum Load Impedance*: 16 ohms
Battery Life (with E3 earphones): 10 to 12 hours (depending on volume)
Maximum Input Level: +22 dBu, input pad ON; +7 dBu, input pad OFF
Input Impedance: 44 kilohms, input pad ON; 77 kilohms input pad OFF
Connectors: Output: 3.5 mm, stereo (Tip = L+, Ring = R+, Sleeve = ground); Input: 5-pin (pin 1 indicated by red dot), phantom power protected.
Dimensions: 111 mm (4.371 in.) x 64.5 mm (2.54 in.) x 31.9 mm (1.256 in.)
Net Weight: 209.8 g (7.4 oz)

*Referenced to 1 kHz
