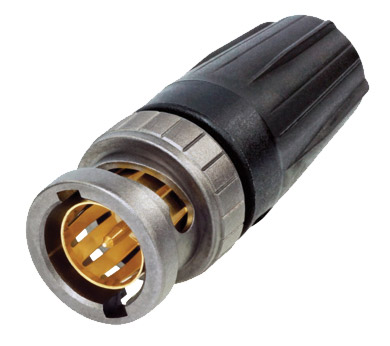

NEUTRIK NBNC75BUU11X BNC 12G UHD Male cable, rear twist, Canford SDV-L-X-LFH

Artikelnummer
48-6376
Hersteller
Neutrik
Typennummer
  • NBNC75BUU11X
NEUTRIK NBNC75BUU11X BNC 12G UHD Male cable, rear twist, Canford SDV-L-X-LFH

NEUTRIK BNC CONNECTORS - Male, cable - Crimp - 12G UHD - Rear Twist

This range of high quality BNC connectors offers excellent mechanical and electrical performance and simple assembly. Precision machined components give true 75 ohm impedance and excellent return-loss, up to 12GHz, making them suitable for 12Gb/s 4K UHD, 3Gb/s HD-SDI 1080p, SD-SDI and analogue video. A compact variation on the traditional BNC twist-lock connector, mating / un-mating is achieved by twisting the whole connector, rather than just an awkward knurled front coupling nut as on conventional styles.

The integral cable strain relief boot gives an extended area of grip making these ideal for recessed connection panels or high-density termination panels , where restricted access to the ‘head’ of a conventional connector might be an issue. An integral black cable boot is standard with each connector (unless ordered in dissassembled packs - see ordering note at foot of group description) and provides strain relief. Additional coloured boots, for easy cable identification, may be ordered separately and substituted at the time of assembly. BST-BNC boots are for use with NBNC type connectors. A rubber cap with cable attachment loop is also available.

The centre pin, outer screen (braid) and outer jacket are crimped using a Neutrik crimp tool and die-set, see NEUTRIK CRIMP TOOLS - Co-axial connectors.

The correct size connector and corresponding crimp dies must be used for each cable.

Sizes for popular cables are listed and stocked, versions for other cables are available to special order, please contact Technical Support.

Required accessories: Neutrik crimp tool and die-set.
Optional accessories: Colour coded cable strain relief boots.

Connector Canford Canare Draka Belden Other Hex Hex Pin
cables cables cables cables cables crimp crimp crimp
die die die
code size mm size mm
NBNC75B-DD6X 1855A, 4855R, DIE-R-BNCX-PDG 4.53 1.07
4855ANH
NBNC75B-FG7X SDV, SDV-X, SDV-UHD L-2.5CHWS 0.6/2.8AF, 1855ENH Image 360 DIE-R-BNCX-PDG 5 1.07
Ultra HD PRO50
NBNC75B-JP9X 1505F DIE-R-BNCX-PDG 6.47 1.07
NBNC75B-LP9X SDV-I-X-LFH L-4CFB 0.8/3.7AF 1505A, 4505R Image 720 DIE-R-BNCX-PDG 6.47 1.07
NBNC75B-TU11X L-4.5CHWS 1694A, 4694R, DIE-R-BNCX-PU 7.36 1.07
4694ANH
NBNC75B-UU11X SDV-L, SDV-L-X-LFH, 1.0/4.8AF Image 1000 DIE-R-BNCX-PU 7.36 1.07
SDV-F, SDV-F-R, SDV-XF
NBNC75B-XU13X SDV-L-UHD-LFH UltraHD100 DIE-R-BNC-PU 7.36 1.6
NBNC75B-ZV14X 4794R DIE-R-BNC-PY 8.23 1.6
Ordering note:

Some types are also available disassembled, in bulk packs of 100. Note that cable boots are NOT included, and should be ordered separately as required.

  Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand
NEUTRIK NBNC75BDD6X BNC 12G UHD Male cable, rear twist, Belden 1855A 4855R Artikelnummer: 48-6371
362 lieferbar Mehr benötigt?
1+ 4,25 €
10+ 3,86 €
50+ 3,65 €
100+ 3,22 €
NEUTRIK NBNC75BFG7X BNC 12G UHD Male cable, rear twist, group X Artikelnummer: 48-6372
336 lieferbar Mehr benötigt?
1+ 4,52 €
10+ 4,12 €
50+ 3,89 €
100+ 3,43 €
NEUTRIK NBNC75BJP9X BNC 12G UHD Male cable, rear twist, Belden 1505F Artikelnummer: 48-6373
15 lieferbar Mehr benötigt?
1+ 4,43 €
10+ 4,04 €
50+ 3,82 €
100+ 3,36 €
NEUTRIK NBNC75BLP9X BNC 12G UHD Male cable, rear twist, Canford SDV-I-X-LFH, Belden 1505A, 4505R Artikelnummer: 48-6374
7 lieferbar Mehr benötigt?
1+ 4,66 €
10+ 4,25 €
50+ 4,01 €
100+ 3,55 €
NEUTRIK NBNC75BTU11X BNC 12G UHD Male cable, rear twist, Belden 1694A Artikelnummer: 48-6375
280 lieferbar Mehr benötigt?
1+ 4,52 €
10+ 4,12 €
50+ 3,89 €
100+ 3,43 €
NEUTRIK NBNC75BUU11X BNC 12G UHD Male cable, rear twist, Canford SDV-L-X-LFH Artikelnummer: 48-6376
Zur Zeit nicht auf Lager, erwartet am: 21.10.2022.
1+ 3,97 €
10+ 3,61 €
50+ 3,41 €
100+ 3,02 €
NEUTRIK NBNC75BXU13X BNC 12G UHD Male cable, rear twist, Canford SDV-L-UHD-LFH, Draka UHD100 Artikelnummer: 48-6378
500 lieferbar Mehr benötigt?
1+ 4,55 €
10+ 4,14 €
50+ 3,91 €
100+ 3,46 €
NEUTRIK NBNC75BZV14X BNC 12G UHD Male cable, rear twist, Belden 4794R Artikelnummer: 48-6377
53 lieferbar Mehr benötigt?
1+ 4,69 €
10+ 4,27 €
50+ 4,03 €
100+ 3,56 €
NEUTRIK BST-BNC-0 BNC REAR TWIST CABLE BOOT Black Black Artikelnummer: 48-650
1036 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-1 BNC REAR TWIST CABLE BOOT Brown Brown Artikelnummer: 48-651
245 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-2 BNC REAR TWIST CABLE BOOT Red Red Artikelnummer: 48-652
249 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-3 BNC REAR TWIST CABLE BOOT Orange Orange Artikelnummer: 48-653
362 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-4 BNC REAR TWIST CABLE BOOT Yellow Yellow Artikelnummer: 48-654
342 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-5 BNC REAR TWIST CABLE BOOT Green Green Artikelnummer: 48-655
280 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-6 BNC REAR TWIST CABLE BOOT Blue Blue Artikelnummer: 48-656
410 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-7 BNC REAR TWIST CABLE BOOT Violet Violet Artikelnummer: 48-657
824 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-8 BNC REAR TWIST CABLE BOOT Grey Grey Artikelnummer: 48-658
160 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-9 BNC REAR TWIST CABLE BOOT White White Artikelnummer: 48-659
960 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK BST-BNC-CY BNC REAR TWIST CABLE BOOT Turquoise Turquoise Artikelnummer: 48-6338
136 lieferbar Mehr benötigt?
1+ 0,42 €
10+ 0,38 €
50+ 0,36 €
100+ 0,31 €
NEUTRIK RBR-CAP-CABLE-BNC Rubber cap for BNC cable connectors Artikelnummer: 48-6339
29 lieferbar Mehr benötigt?
1+ 1,46 €
10+ 1,33 €
50+ 1,25 €
100+ 1,11 €
