ALLEN & HEATH IP series is a range of networkable, PoE compatible remote controllers that have been designed for compatibility with dLive, Avantis, and AHM series consoles. Wall mount versions listed are to fit UK/EU size fittings.

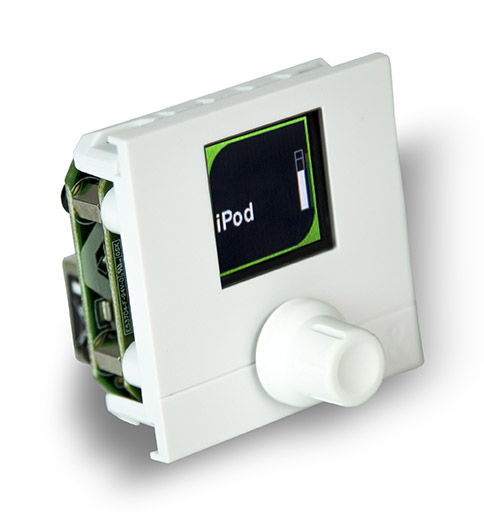

IP1 - Wallplate controller, rotary
Available in black or white finish, IP1 wallplate controller allows non-technical or remote user a convenient single push and turn rotary encoder to adjust level, recall preset, or change music source selection. A colour LCD screen gives the user a clear indication of the parameter they are controlling. IP1 interfaces with AHM, Avantis or dLive mixing system via standard TCP/IP network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure. The controller is PoE and has a maximum power consumption of 2.5W.

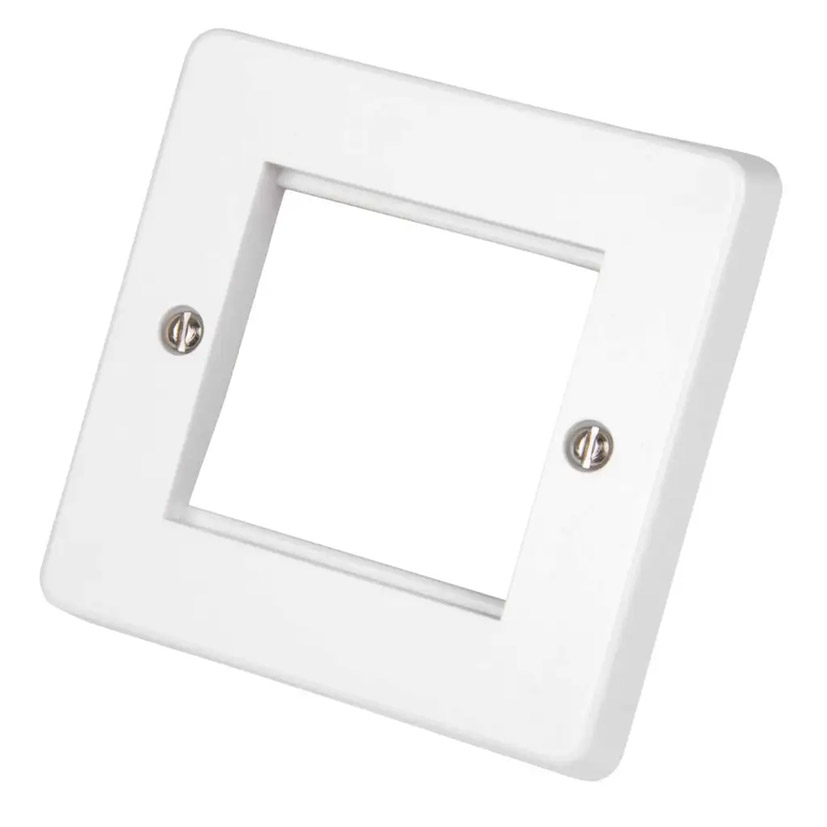

Required accessory: IP1 Faceplate or compatible single-gang, two-module network socket.
Dimensions (WxDxH): 50 x 32 x 50mm. Weight: 70g

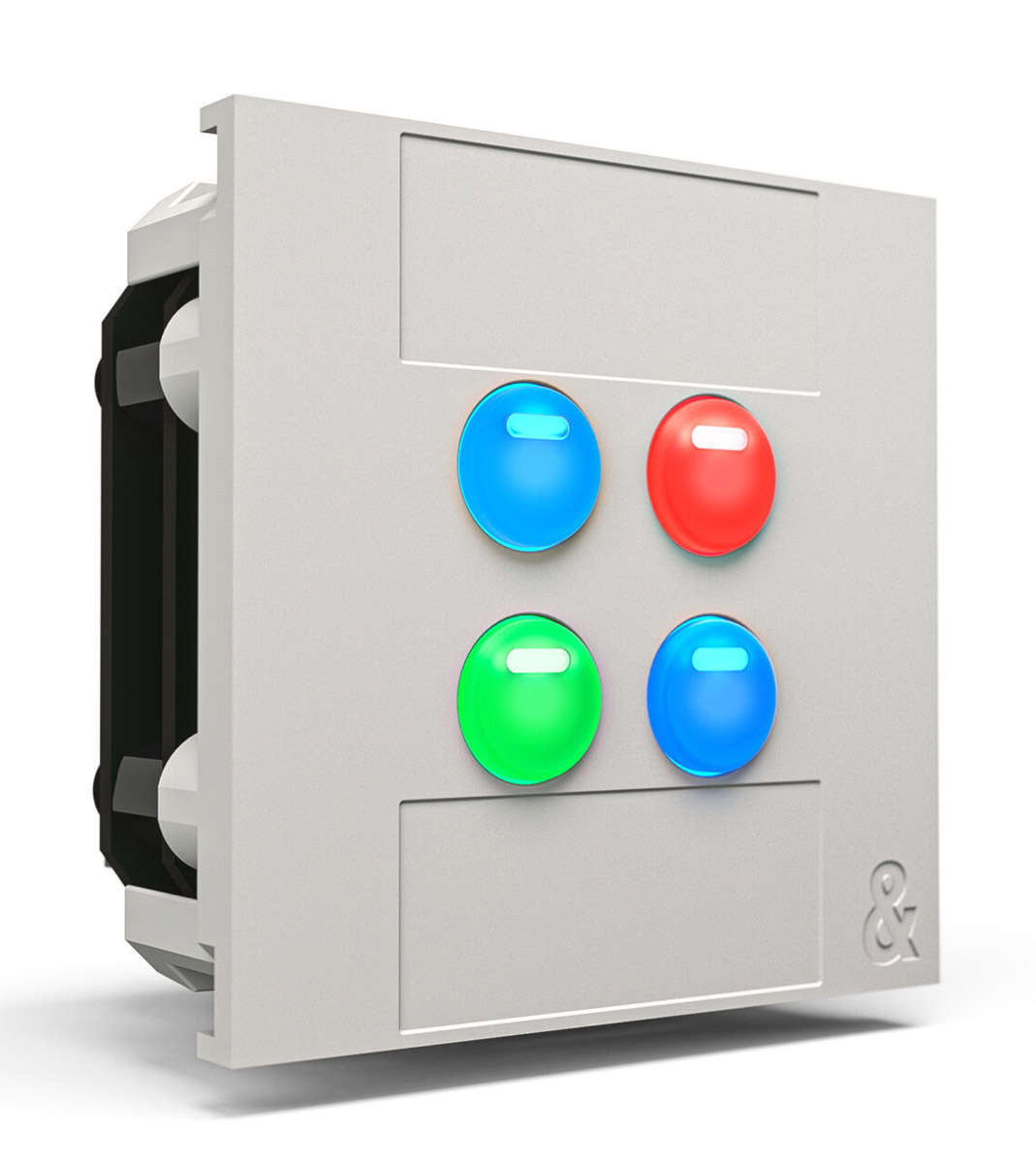

IP4 - Wallplate controller, button
IP4 is a simple programmable wallplate that gives non-technical users convenient and easy control of level adjustment, preset recall, or music source selection via 4 illuminated buttons. IP4 interfaces with AHM, Avantis or dLive mixing system via standard TCP/IP network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure. The controller is PoE and has a maximum power consumption of 2.5W.
Required accessory: IP1 Faceplate or compatible single-gang, two-module network socket.
Dimensions (WxDxH): 50 x 33 x 50mm. Weight: 70g

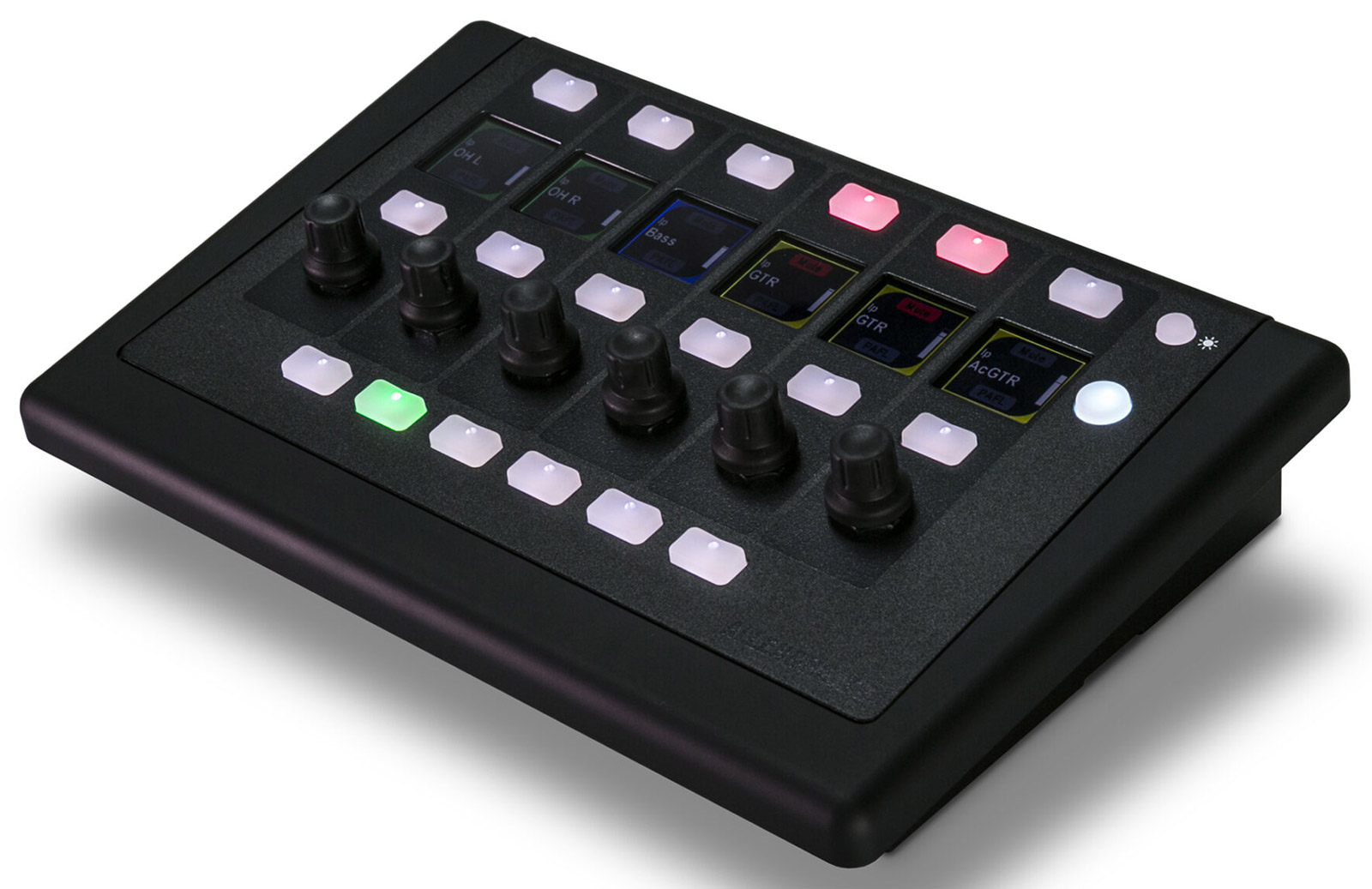

IP6 - Desktop remote controller, rotary encoders/softkeys
IP6 is a remote controller with 6x rotary controls that has been designed for install and live sound applications. The desktop controller has 6x assignable rotary/push controllers that can be configured individually or as part of a 'rotary strip'. In addition it has 19x assignable softkeys for further control. IP6 can be configured to control the send levels, pans and assignments of multiple channels to a specific mix on a dLive or Avantis console to give a musician contorl of their wireless IEM mix. The remote interfaces with an AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure. Can be powered over Ethernet (PoE) or via included 12V DC power supply.
Included accessories: 12v PSU
Optional accessories: IP6-ME-MOUNT mounting frame, AB8999 microphone stand bracket, headphone holder.
Dimensions (WxDxH): 227 x 150 x 55mm. Weight: 1.5kg

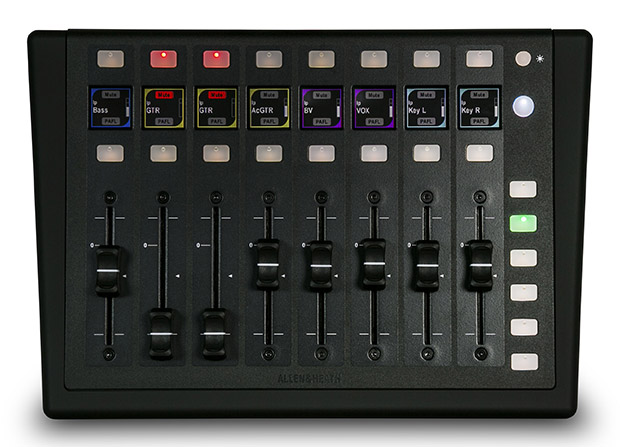

IP8 - Desktop remote controller, faders/softkeys
IP8 is a remote controller with 8x motorised faders designed for install and live sound applications. The motorised faders have associated LCD displays and can be configures to control levels, sends, and pans, whilst an additional 23x assignable softkeys all an extended level of control. Often used as an extended surface, IP8 allows the sound engineer to make use of all fader strips on a dLive Surface or Avantis mixer to control Input channels, and set up a ‘sidecar’ IP8 to control master levels. The controller interfaces with an AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure. Can be powered over Ethernet (PoE) or via included 12V DC power supply.
Included accessories: 12v PSU
Optional accessories: IP8-MOUNT mounting bracket.
Dimensions (WxDxH): 291 x 205 x 61mm. Weight: 2.5kg.
