K&M 24463 COVER For loudspeaker wallmount bracket, black

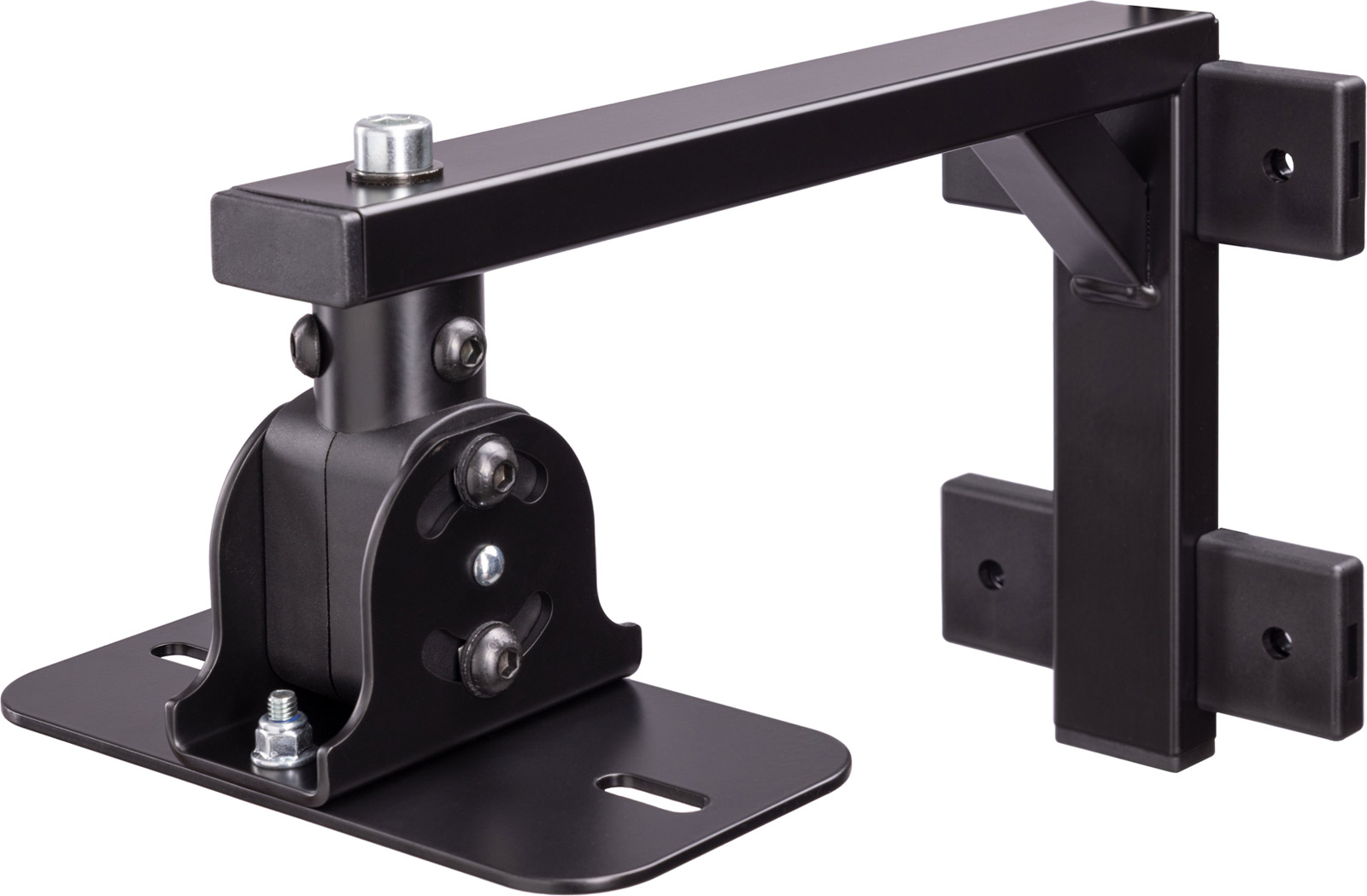

19430 - 28kg load capacity

A short arm type wall bracket designed for compatibility with a number of Yamaha loudspeakers. The bracket allows an adjustable inclination angle from -45 to 45 degrees and 360 degree swivel. The bearing plate measures 180x90mm and the mount has a wall clearance of 271mm. Weight: 2.3kg.

Compatible Yamaha loudspeakers

Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10

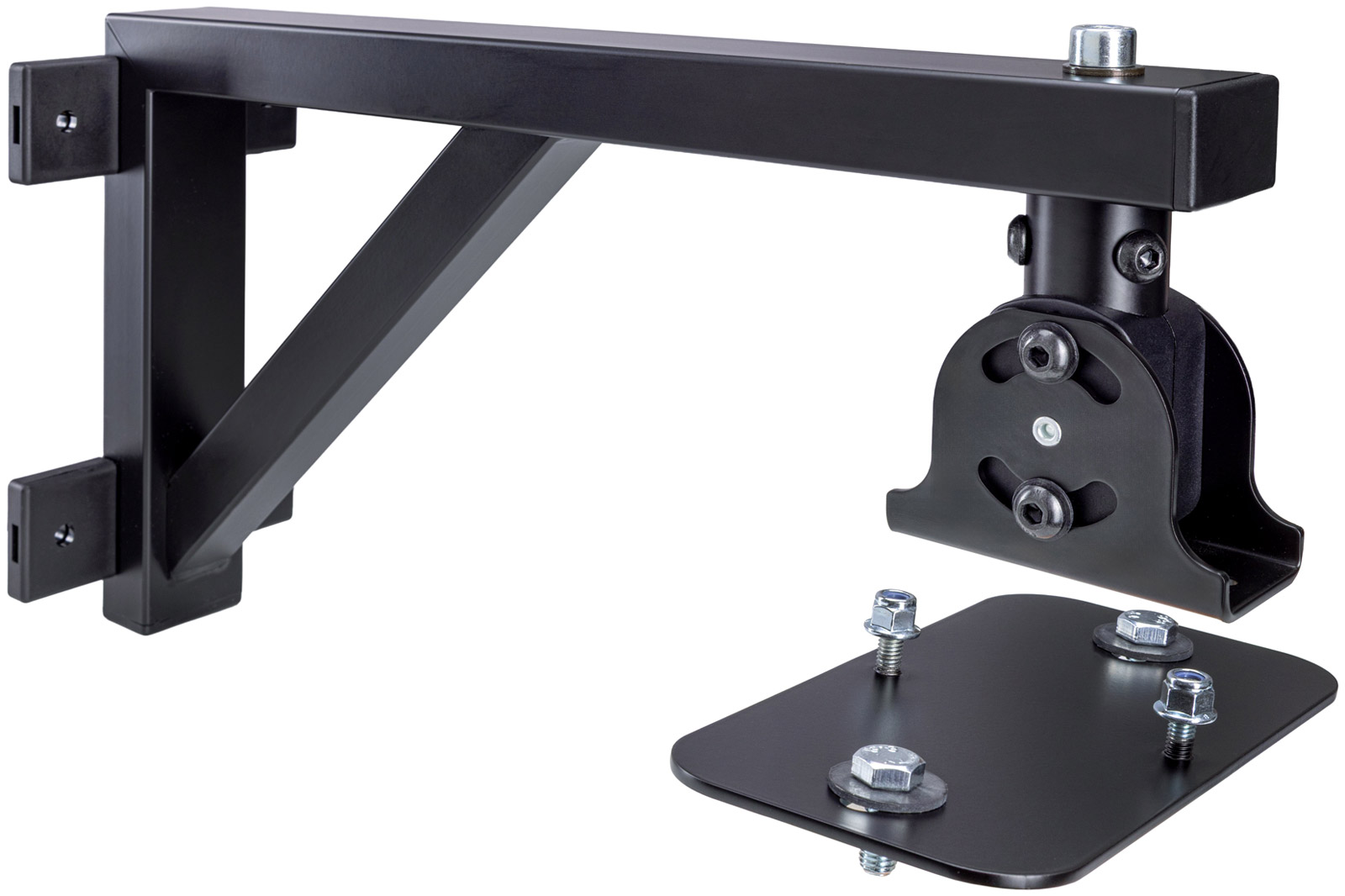

19450 - 28kg load capacity

A long arm type wall bracket designed for compatibility with a number of Yamaha loudspeakers. The bracket allows an adjustable inclination angle from -45 to 45 degrees and 360 degree swivel. The bearing plate measures 180x90mm and the mount has a wall clearance of 400mm. Weight: 3.35kg.

Compatible Yamaha loudspeakers

Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10

24110 - 50kg load capacity

Wall bracket with 35-37mm expanding spigot for effective clamping of loudspeaker. Gradual tilt adjustment 0 - 22 degrees via 11 settings, spigot centre is 420mm from wall. Maximum load capacity: 50kg. Weight: 6.1kg.

24120 - 50kg load capacity

Wall bracket with a 580 x 140mm wall-mount plate. 35-37mm expanding spigot for effective clamping of loudspeaker, spigot centre is 420mm from wall. 180 degree swivel with gradual tilt adjustment 0 - 22 degrees via 11 settings. Maximum load capacity: 50kg. Weight: 6.1kg.

24140 - 35kg load capacity

Wall bracket, with interchangeable 35mm spigot to suit flanges. Spigot distance from wall is adjustable to four positions, 315mm, 285mm, 255mm, or 225mm. Maximum load capacity: 35kg. Weight: 2.6kg.

24161 - 15kg load capacity

Compact wall bracket for loudspeakers up to 15kg. Mounting plate to wall clearance: 65mm. Vertical and horizontal mounting holes 70-76.2mm spacing. Tilt adjustment of 0 - 45 degrees with a swivel adjustment of 110 degrees. Maximum load capacity: 15kg. Weight: 0.711kg.

24166 - 15kg load capacity

A 'solid and stable', steel manufactured wall mount with adjustable boom for monitors and speakers up to 15kg. The boom can be swivelled on both sides up to 54degress, along with tilting continuously up to -17degrees. The width is 170mm and has a clamping depth range of 150-220 mm. Self-adhesive rubber pads protect the surface of the box and prevent vibration noise. Weight: 2.05kg

24167 - 15kg load capacity

Like 24166 however the speaker clamp is 200mm wide and has an adjustable depth range of 210-340mm. Weight: 2.36kg

24169 - 25kg load capacity

A steel constructed, 'robust' wall mount for holding speakers with flange socket up to 25kg. The swivel range is adjustable up to 120degrees and the tilt can be fixed in three steps of 0/-12.5/-25degrees. A patented expanding mandrel ensures a 'wobble- and vibration-free fit' of the speaker. Wall clearance: to mounting plate: 359mm. Wall plate: 220 x 120mm. Wall-to-bolt clearance: 314mm. Weight: 2kg

24180 - 10kg load capacity

Adjustable wall bracket for smaller loudspeakers. Wall clearance to mounting plate: 105mm. Tilt adjustment of 0 - 15 degrees, swivel adjustment of 180 degrees. Maximum load capacity:10kg. Weight: 0.72kg.

24471 - 15kg load capacity

Multi-purpose, wall-mounting speaker bracket. Easy mounting of speaker via a hook-in and screw-lock mechanism. Wall clearance of 110mm. Swivel adjustment of 90 degrees with a tilt angle of 0-30 degrees. Maximum load capacity: 15kg. Weight: 0.87kg. Available in both black and white finishes. Offers considerable speaker mounting possibilities when used in conjunction with the AP1 - AP6 adapter panels available as accessories.

24481 - 25kg load capacity

Similar in design to the 24471 bracket but suited to mount larger speakers up to 25kg. Wall clearance of 110mm. Swivel adjustment of 90 degrees with a tilt angle of 0-30 degrees. Maximum load capacity: 25kg. Weight: 1.34kg. Available in both black and white finishes. Offers considerable speaker mounting possibilities when used in conjunction with the AP1 - AP6 adapter panels available as accessories.

19420 - 25kg load capacity

A steel manufactured ceiling mount with a bearing plate measuring 180x90mm, designed for compatibility with a range of Yamaha loudspeakers. 19420 has a ceiling clearance distance of 180mm and allows the position and angle of the speakers to be easily adjusted, with adjustable angle of inclination from 0-75 degrees and swivel of 90 degrees. The mount can be easily mounted by utilising the hooking the loudspeaker in and screw locking. Weight: 2.2kg.

Compatible Yamaha loudspeakers

Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10

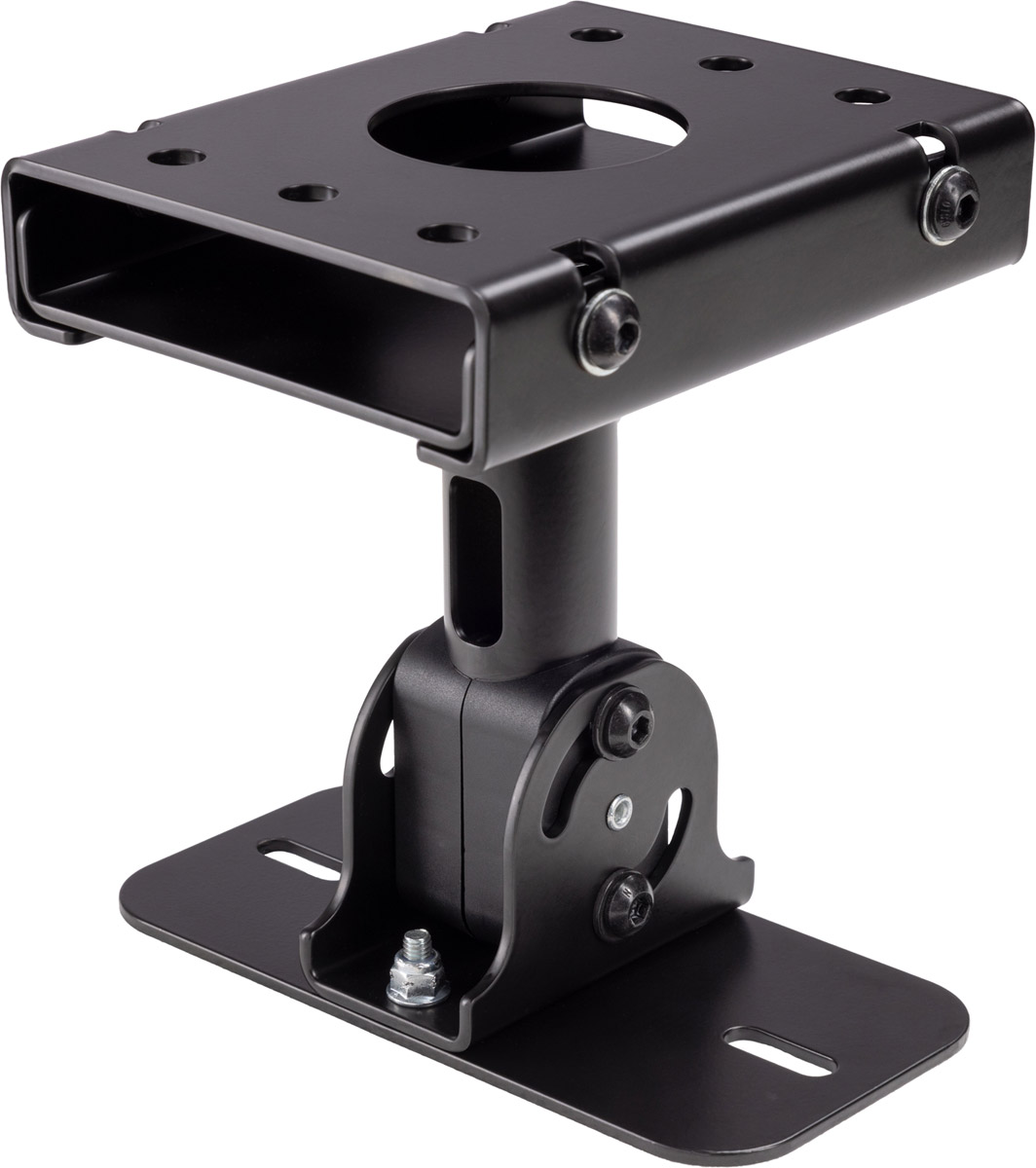

24496 - 25kg load capacity

The rectangular 160x118mm ceiling mount is a combination of mounting bracket and cover plate, the cover plate being fixed to the bracket by four M8x12 hex screws. A 20x12mm aperture on the side of the cover plate and a 62mm aperture on the mounting bracket allows both sub-surface or side exit of any cabling. Ceiling clearance of 250mm is provided by a one-piece steel stem fixed to the cover plate, internal cable management is provided via a 35x13mm aperture to the side of the stem. Fixed to the bottom of the stem is a 90x47mm bearing plate which is adjustable with 90 degrees of swivel 0-45 degrees of tilt. Loudspeakers with a vertical mounting hole spacing of 70 - 76.2mm can be mounted directly to the bearing plate. Further mounting options are provided by the K&M AP1 - AP6 series of adapter panel accessories. Maximum load capacity: 25kg. Weight: 1.79kg. Available in black or white finish.

19440 - 6kg load capacity

194440 loudspeaker mount can be installed on a wall or ceiling. Compatible with a range of Yamaha speakers below, the bracket allows 360 degrees swivel and -45 to 45 degree inclination to allows the speakers to be easily adjusted. Wall clearance is 180mm. Weight: 1.1kg.

Compatible Yamaha loudspeakers

Direct fit: HS5I, VXS5, MSP3A, MS101-4

24185 - 10kg load capacity

Wall or ceiling-mounting bracket with universal ball joint, suitable for small loudspeakers up to 10kg. Available with either 3/8 inch male thread or 95 x 80mm bearing plate. Wall clearance of 160mm. Tilt adjustment of 0 to 90 degrees with a swivel adjustment of 360 degrees. Maximum load capacity: 10kg. Weight: 0.65kg.

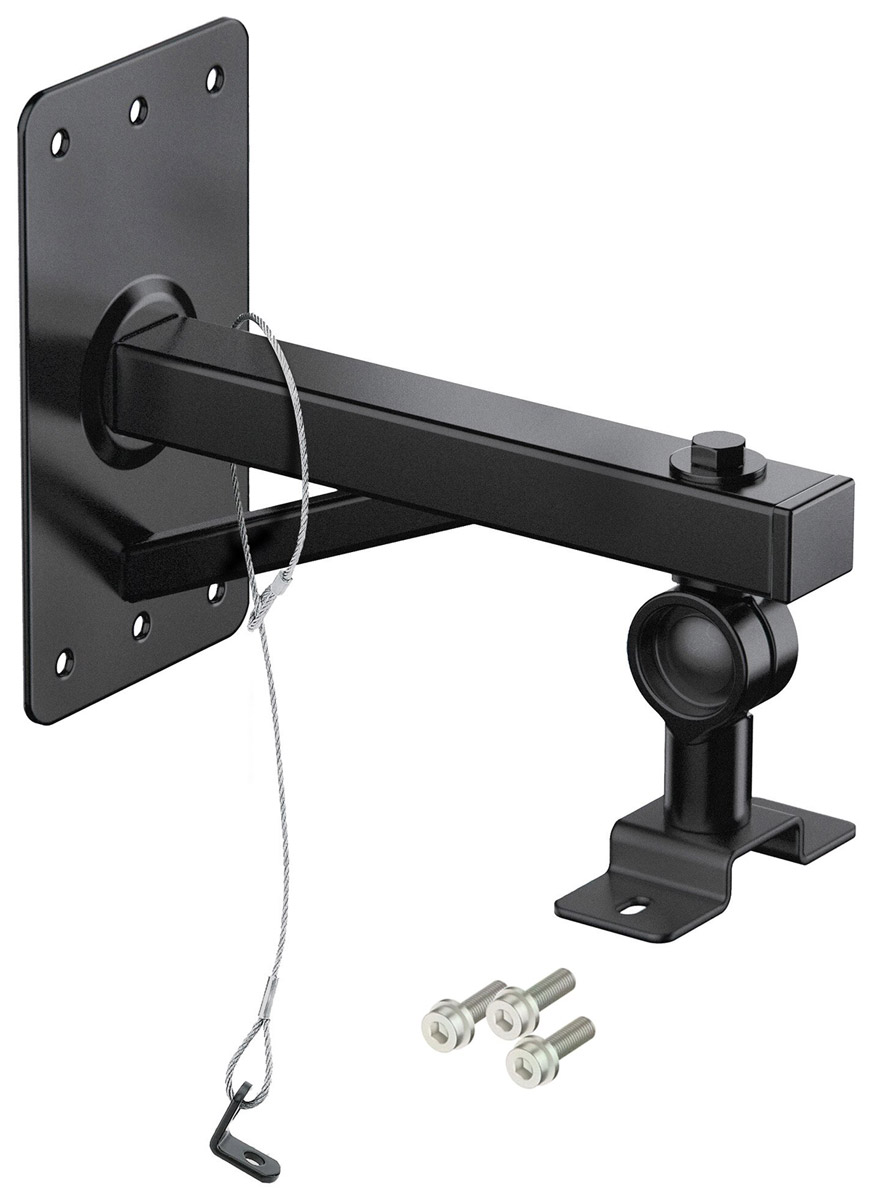

24195 - 15kg load capacity

Wall or ceiling-mounting bracket, suited to speakers up to 15kg. Sturdy one-piece arm gives 271mm clearance from wall or ceiling. Full 360 degree swivel with tilt angle of 0 to 90 degrees. Speakers are secured with 127 x 60mm bearing plate. Load capacity: 15kg. Weight: 1.08kg. Speakers can also be secured via the steel safety-wire supplied.
