CONTACTA SPEECH TRANSFER SYSTEMS

Contacta Speech Transfer Systems (STS) facilitate hands-free communication through security screens in banks, cash offices, bureaux de change and ticket offices, offering both loudspeaking and induction loop facilities. The STS system could also be used to communicate across offices and other work areas. A range of boxed kits is offered, which contains all necessary components, for easy installation.

Deployable Systems

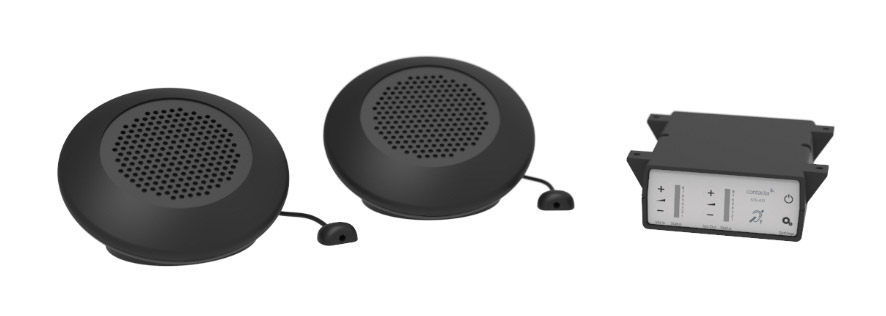

STS-K070 – Dual speaker pod system

Intended for use where fixed safety screen or partition hinders normal conversation. The speaker pod is designed to be mounted or placed on a desktop, with the ‘mouse’ microphone close by to ensure maximum speech pickup.

Included components: 1x STS-A31H speech transfer amplifier, 2x STS-M70-1 mouse microphone, 2x STS-S70 speaker pod, 1x PS-55-01 power supply.
Optional accessories: IL-AE99 hearing loop aerial, IL-AE97-00 Supaloop aerial.


STS-K071 – Safety screen speaker and microphone pod system

Intended for use where fixed safety screen or partition hinders normal conversation. The speaker pod is designed to be mounted or placed on a desktop, with the ‘mouse’ microphone close by to ensure maximum speech pickup. A gooseneck microphone is attached to the speaker pod for the staff side of the partition.

Included components: 1x STS-A31H speech transfer amplifier, 1x STS-M70-1 mouse microphone, 1x STS-SU2 staff loudspeaker pod, 1x STS-S70 speaker pod, 1x PS-55-01 power supply.
Optional accessories: IL-AE99 hearing loop aerial, IL-AE97-00 Supaloop aerial

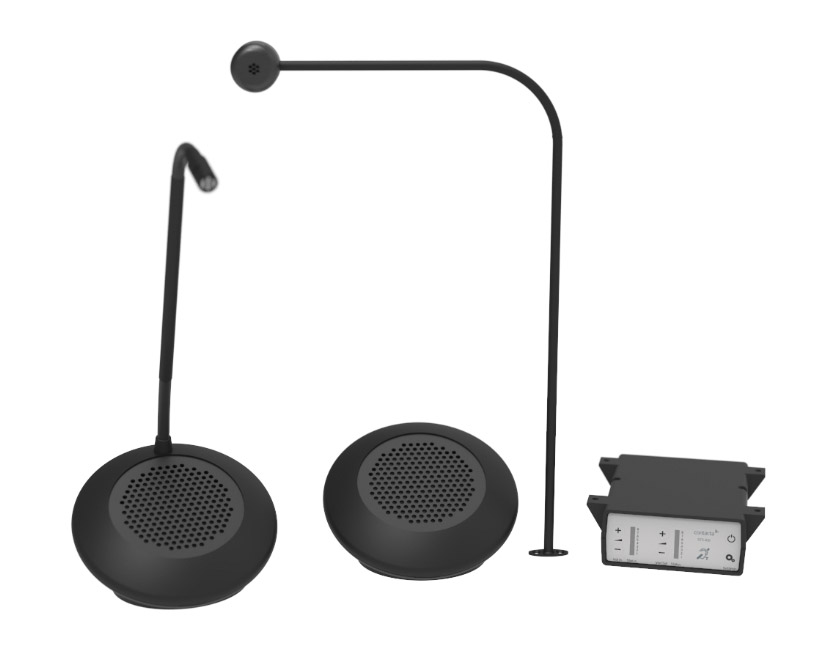

STS-K072 – Safety screen mounted microphone and speaker pod system

Intended for use where fixed safety screen or partition hinders normal conversation. The speaker pod is designed to be mounted or placed on a desktop, with a screen mounted microphone for audio pickup. A gooseneck microphone is attached to the speaker pod for the staff side of the partition.

Included components: 1x STS-A31H speech transfer amplifier, 1x STS-M14-BENT-B screen-mounted microphone with bent stem, 1x STS-SU2 staff loudspeaker pod, 1x STS-S70 speaker pod, 1x PS-55-01 power supply.
Optional accessories: IL-AE99 hearing loop aerial, IL-AE97-00 Supaloop aerial

Bridge-bar Systems

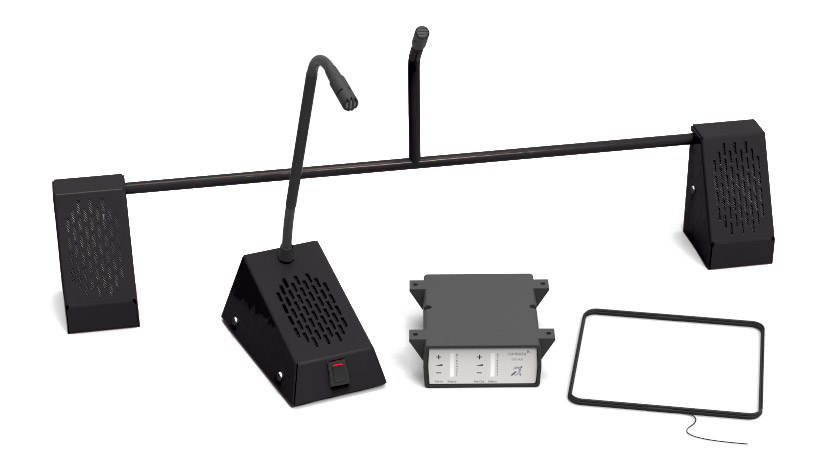

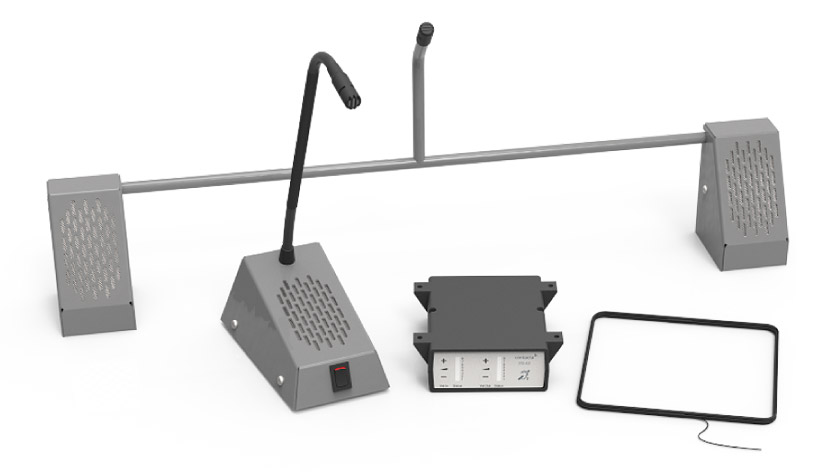

STS-K001L - Bridge-bar mounting kit with induction loop

Intended to sit on a counter, this has a microphone in the centre and speakers to either side. The all-in-one design makes it a 'robust system that is effortless to install'. Supplied boxed, complete with instructions, IL-AE99 induction loop aerial, PS-55-01-UK power supply unit and all components including induction loop aerial fixing kit, signage and mounting bracket.

Included components: STS-SU1-G/STS-SU1-B staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-B80 bridge-mounting customer microphone and loudspeakers.

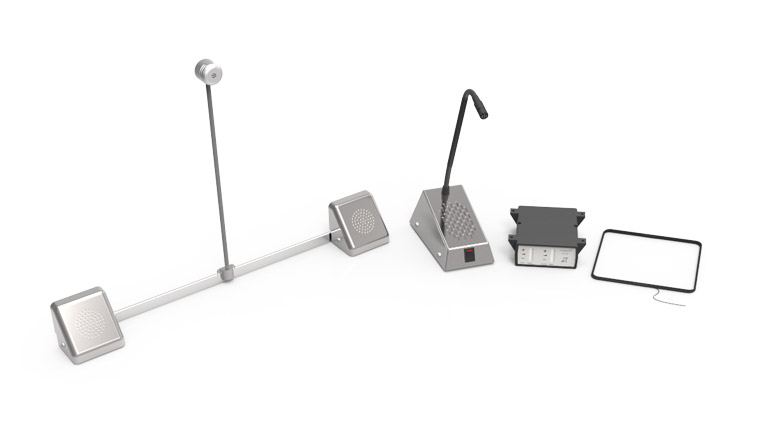

STS-K060 - Slimline bridge bar kit with hearing loop

STS-K060 has the same feature set as STS-K001L however is includes STS-B90 slimline bridge bar unit as opposed to STS-B80 bridge bar. The amplifier and hearing loop aerial are the same. Available in stainless steel only.

Included components: STS-SU1-SS staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-B90-SS bridge-mounting customer microphone and loudspeakers.

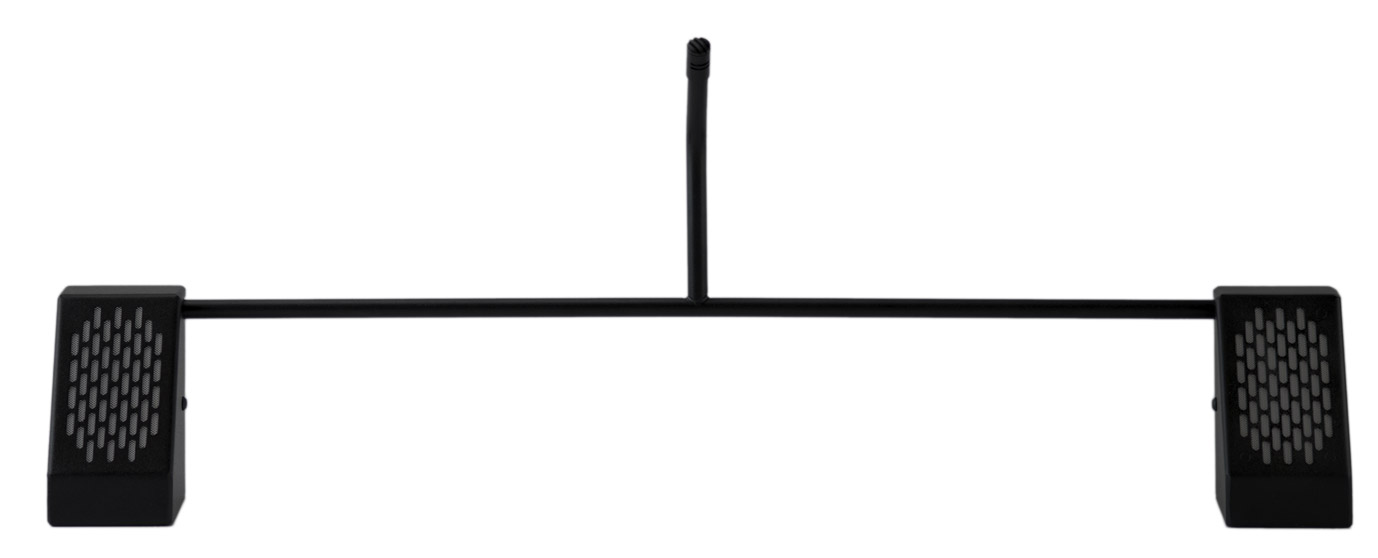

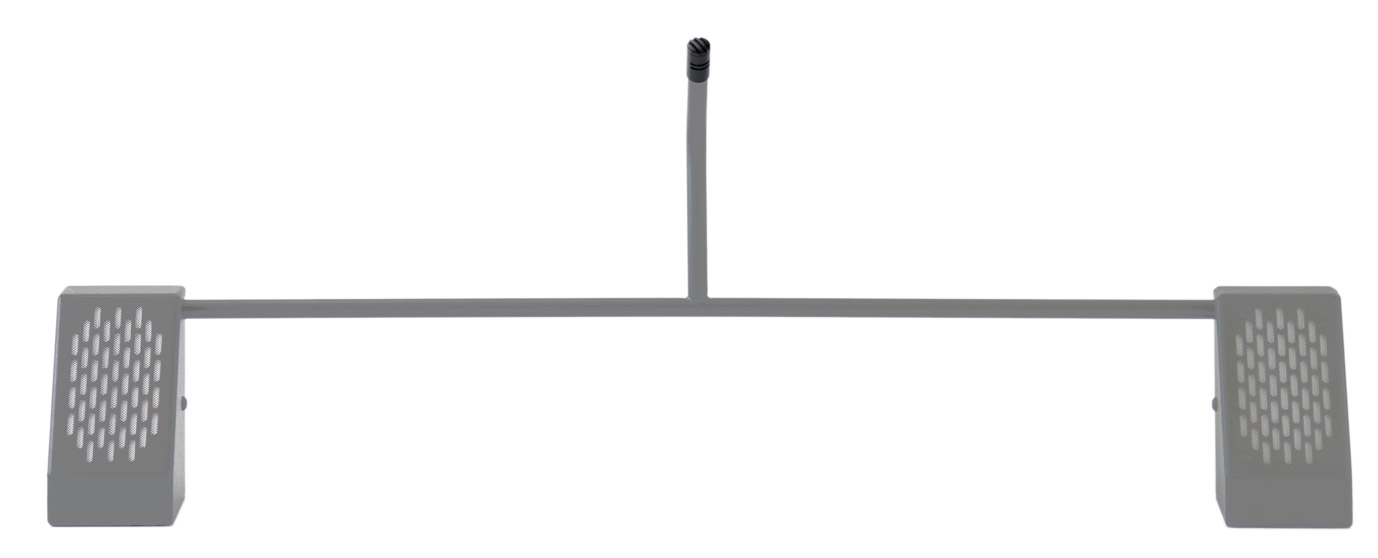

STS-B80-B and STS-B80-G - Bridge bar microphone and speaker

These items consists of cardioid microphone and 5W speaker on a bridge-bar style unit. Designed for the customer side, STS-B80 is popular in banks, post offices, kiosk, airports, and information centres.

Dimensions (HxWxD): 245 x 620 x 75mm. Weight: 1.44kg

Surface Mount Systems

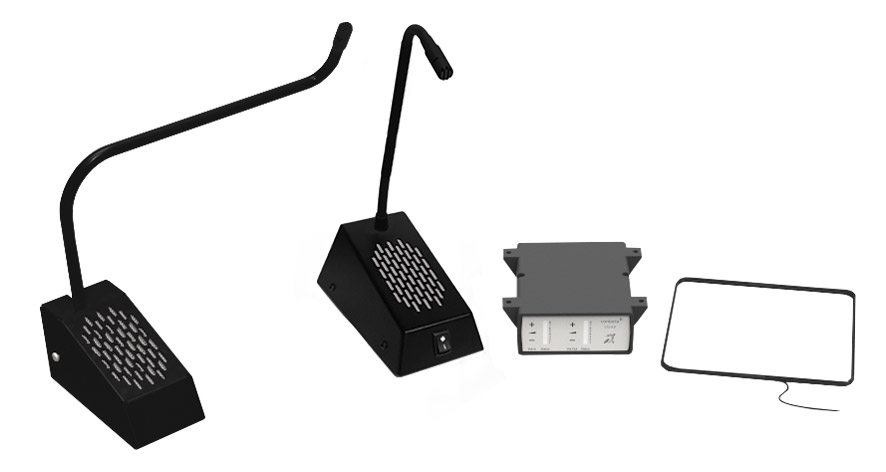

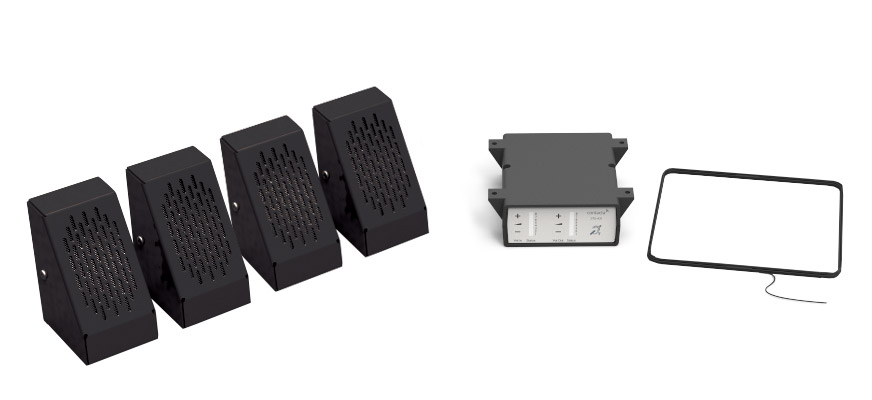

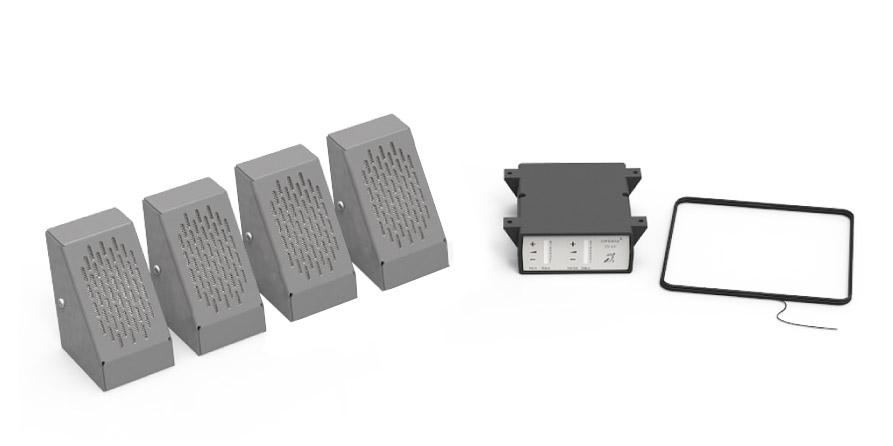

STS-K002L - Surface mounting kit with induction loop

This contains discrete, free-standing, movable speaker and omni-directional microphone modules for the customer side and a free-standing combined speaker and directional microphone module for the staff side. Supplied boxed, complete with instructions, IL-AE99 induction loop aerial, PS-55-01-UK power supply unit and all components including induction loop aerial fixing kit, signage and mounting bracket.

Included components: STS-SU1-G/STS-SU1-B staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-M54 surface mounted customer microphone module, STS-S60 surface mounted customer loudspeaker module.

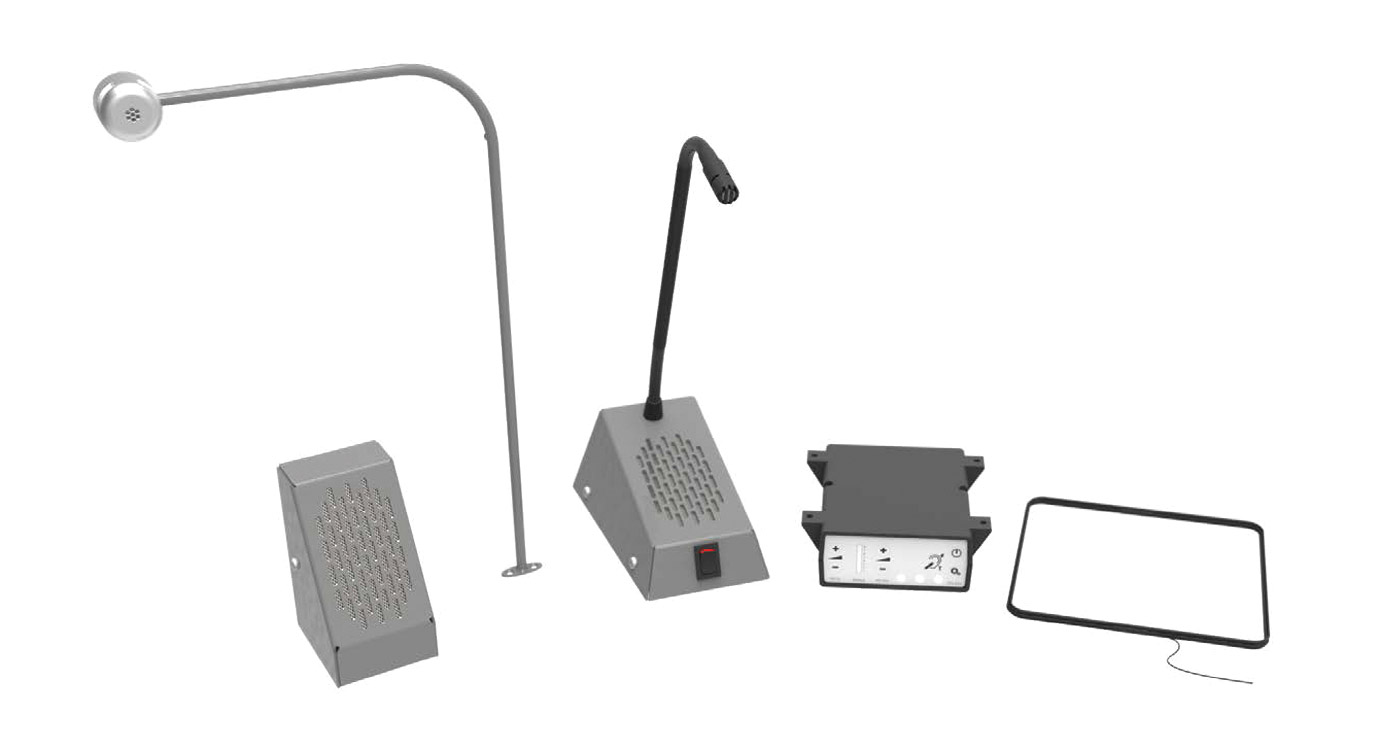

STS-K058 - Surface mounting kit with screen-mounted microphone

This system consists of STS-A31 amplifier, STS-SU1-G freestanding staff loudspeaker, STS-S60 freestanding customer loudspeaker, IL-AE99 loop aerial, and STS-M14-BENT screenmount microphone with bent stem. The system is designed to aid communication whereby glass is positioned between staff member and customer. The included hearing loop aerial provides assistance for hearing aid wearers.

Dimensions (HxWxD): 300 x 310 x 160mm. Weight: 2.8kg.

Flush Mount Systems

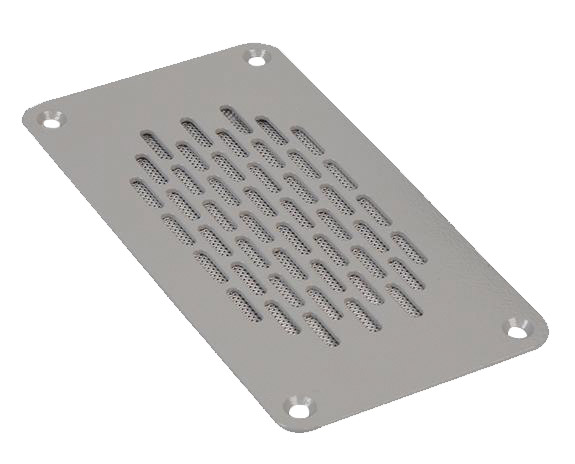

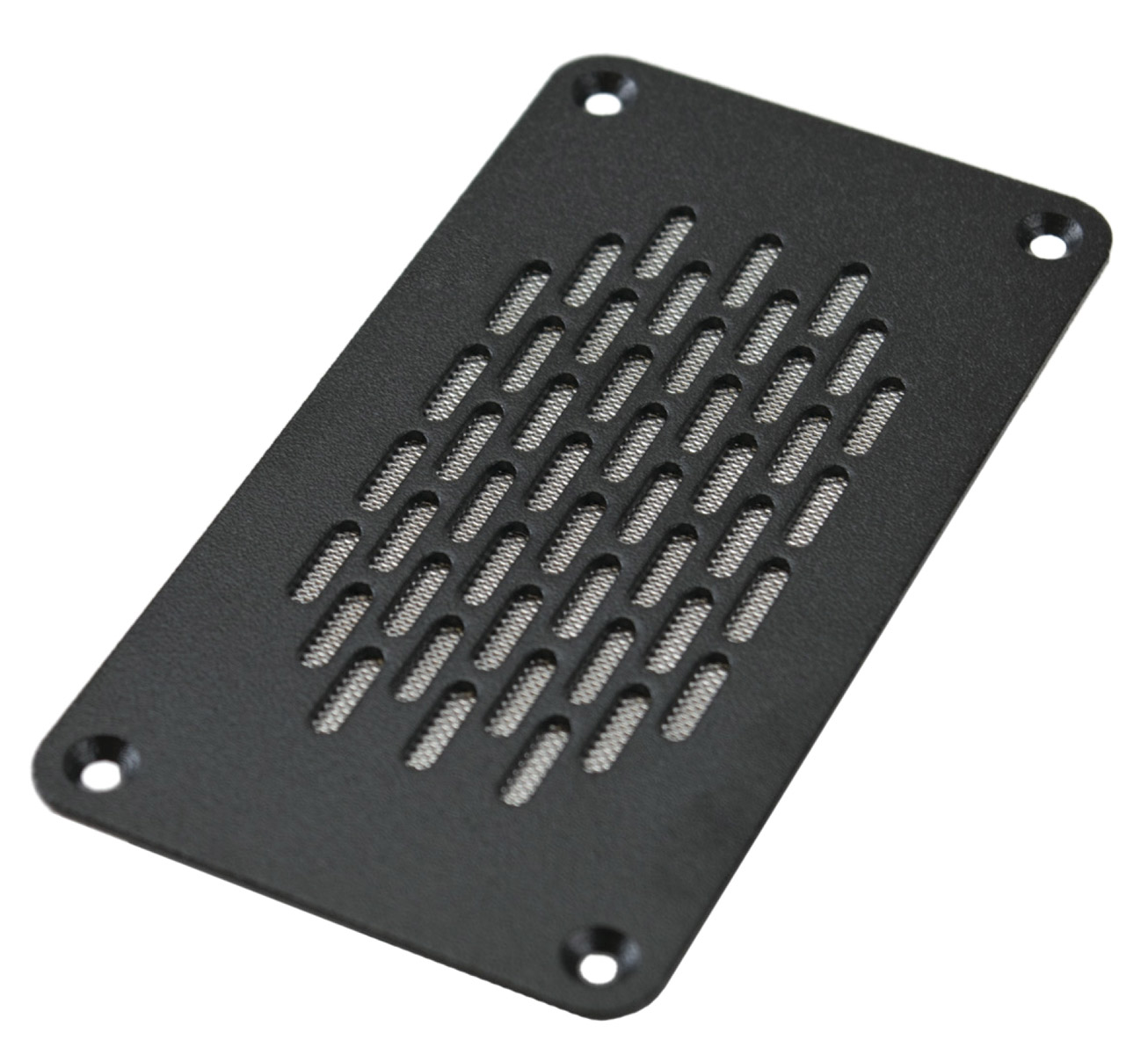

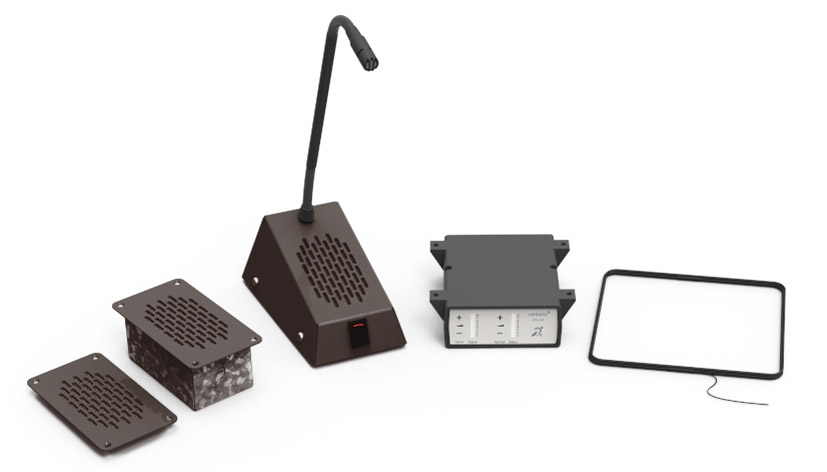

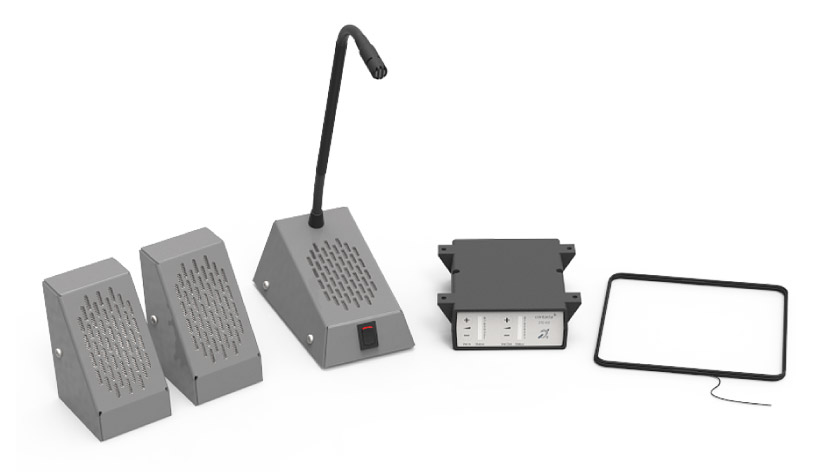

STS-K003L - Flush mounting kit with induction loop

This has two speaker and microphone units which are set into the counter, mounting flush, on the customer side and a free-standing combined speaker and directional microphone module for the staff side. Supplied boxed, complete with instructions, IL-AE99 induction loop aerial, PS-55-01-UK power supply unit and all components including induction loop aerial fixing kit, signage and mounting bracket.

Included components: STS-SU1-G/STS-SU1-B staff unit with integral loudspeaker and gooseneck microphone, STS-A31H two-way audio amplifier and mounting plate, STS-M56 flush mounted customer microphone module, STS-S61 flush mounted customer loudspeaker module.

Overhead Speaker Systems

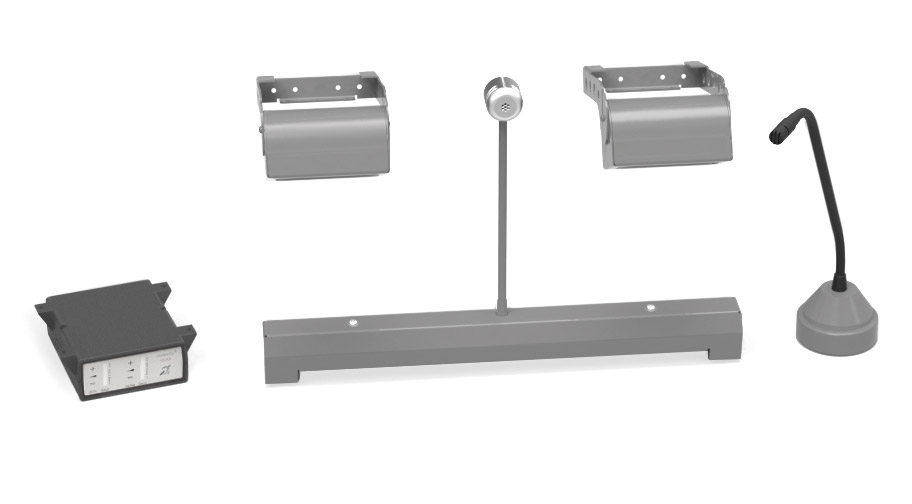

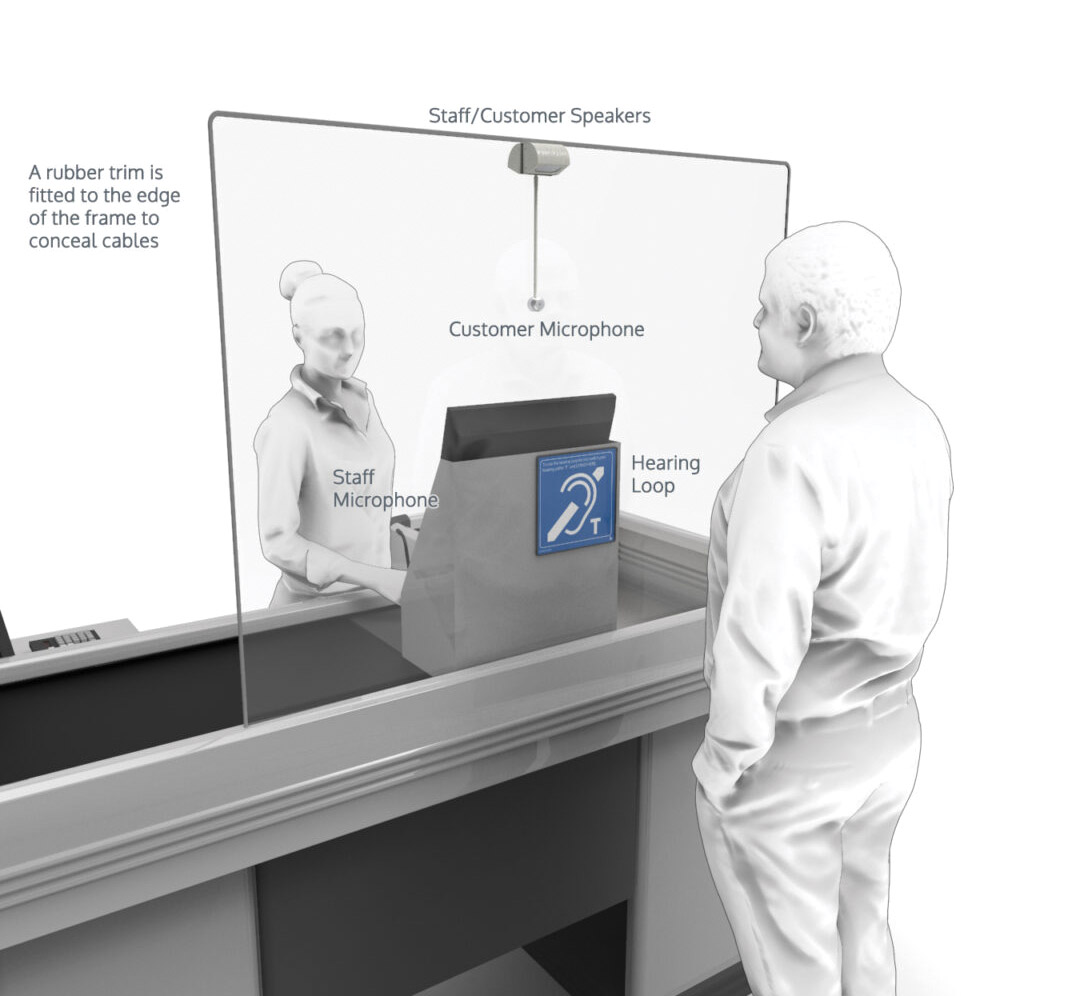

STS-K015-01 - Dual overhead speaker kit with hearing loop

Designed for installation where a customer facing counter isn’t available but security screen is installed. The included STS-B100-G recessed bridge bar features a glass mountable microphone for the customer, with separate flexible gooseneck microphone for the staff member. Two grey STS-S22 speakers are included and designed to be installed above the glass screen facing down to customer. STS-A31H speech transfer amplifier and IL-AE99 is included to enable hearing devices to pick up audio.

Included components: 2x STS-S22-G overhead speakers, STS-A31H two-way audio amplifier and mounting plate, STS-B100-G recessed bridge bar with microphone, STAFFMIC-01-NWB flexible gooseneck microphone, PS-55 power supply, IL-AE99 counter hearing loop aerial.

Dimensions (WxDxH): 400 x 34 x 330mm, bridge bar; 100 x 160 x 70mm, overhead speaker. Weight: 4.08kg, boxed kit.

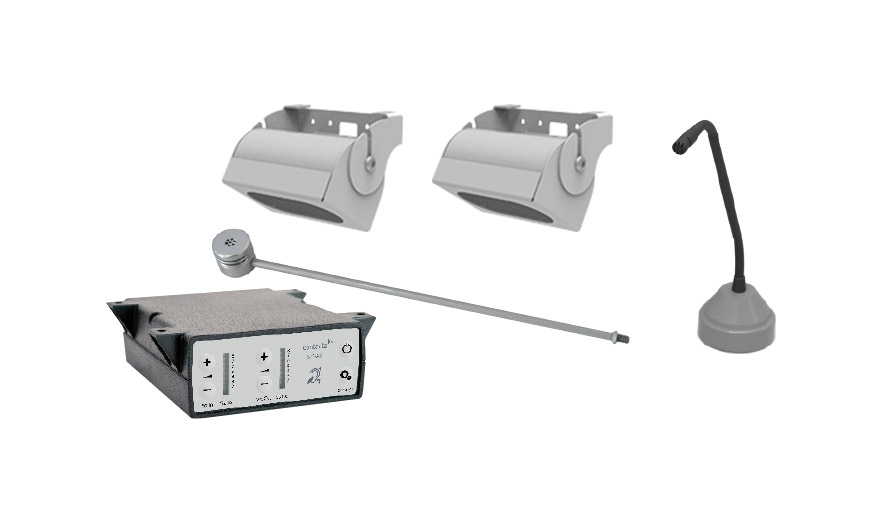

STS-K062 - Anti-vandal microphone with dual overhead speakers

Very similar to STS-K015-01, STS-K062 is also designed for installation where no customer facing counter is present. This kit includes a single anti-vandal microphone that can be mounted to a security screen. Like STS-K015-01, this kit includes a single gooseneck microphone with flexible neck to pick up the speech of the staff member. The hearing loop aerial is integrated into the supplied hearing loop sign.

Included components: 2x STS-S23-G overhead speakers, STS-A31H two-way audio amplifier and mounting plate, STS-M14-300 anti-vandal microphone, STAFFMIC-01-NWB flexible gooseneck microphone, PS-55 power supply, IL-AE97-00 hearing loop sign with integrated aerial.

Dimensions (WxDxH): 102 x 90 x 83mm, overhead speaker; 30 x 300 (diameter x stem), anti-vandal microphone. Weight: 4.08kg, boxed kit.


STS-K064 - Anti-vandal microphone with single overhead speaker

Similar in design to STS-K062, STS-K064 includes a single overhead speaker, anti-vandal screen-mountable microphone, and speech transfer amplifier. The differences, other than the single speaker, is the staff loudspeaker and gooseneck microphone combination, and the under-counter loop aerial.

Included components: STS-S23-G overhead speaker, STS-A31H two-way audio amplifier and mounting plate, STS-M14-300 anti-vandal microphone, STS-Su1 staff loudspeaker with gooseneck microphone, PS-55 power supply, IL-AE99 hearing loop aerial, IL-SN01 fixed loop signage.

Components and Accessories

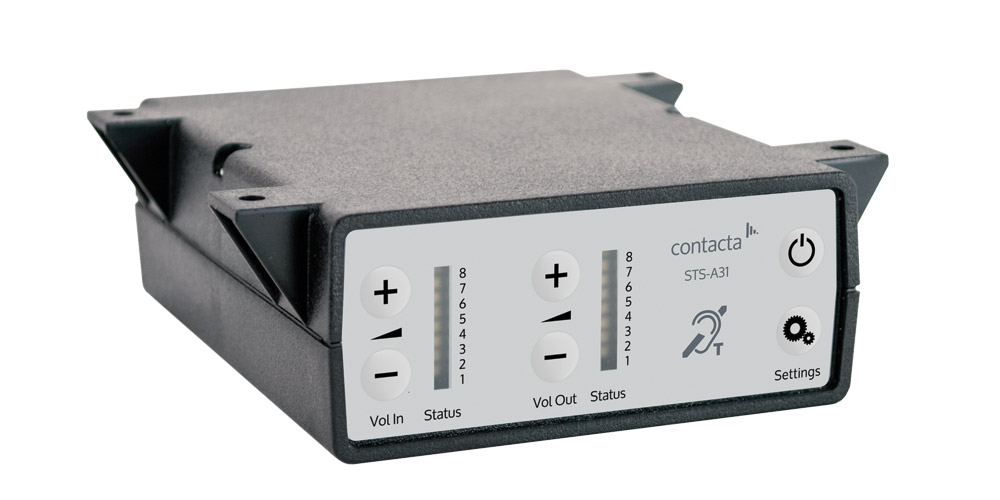

STS-A31H - Amplifier

Built in an ABS plastic case, with lugs to be screwed to the underside of the counter, the STS-A31H amplifier provides two channels of full open duplex communication, with a loop drive compliance bounded by 4V RMS and 3V RMS. The gain on each channel can be adjusted independently with volume controls. All connections are via two pin plugs. Microphone cable is screened, loudspeaker and induction loop are twin wires.

Dimensions (HxWxD): 116 x 115 x 40mm. Weight: 100g. Power supply: PS-55-01-UK, 12-14VDC.

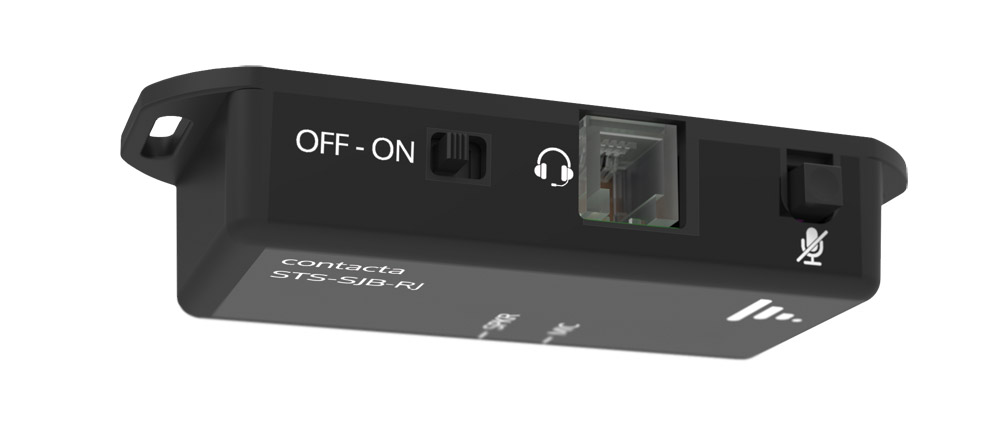

STS-SJB-RJ - Breakout box

This breakout box has been designed to enable the use of headsets in place of the staff microphone/loudspeaker. This gives for a quieter environment in places such as ticket booths, service points or where multiple vendors are nearby. A push button allows for muting. STS-SJB-RJ has a single RJ11 connection for both headphone and microphone. Connection to STS-A31H amplifier is via 2-pin removable terminal-block connector ('Euroblock').

Dimensions (HxWxD): 20 x 117.6 x 39mm. Weight: 100g.

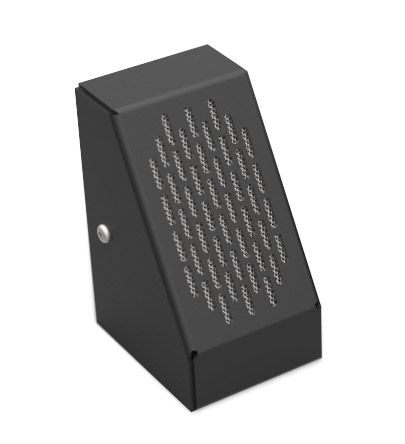

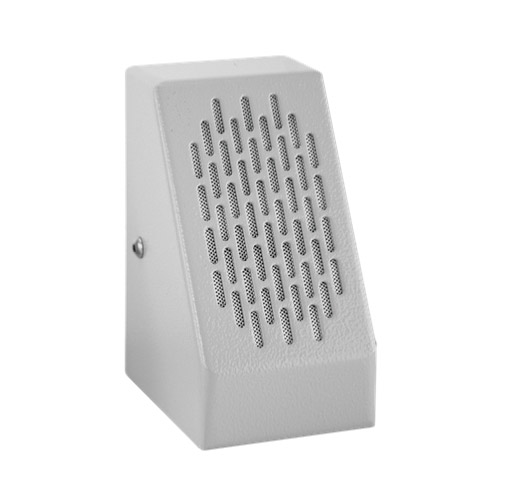

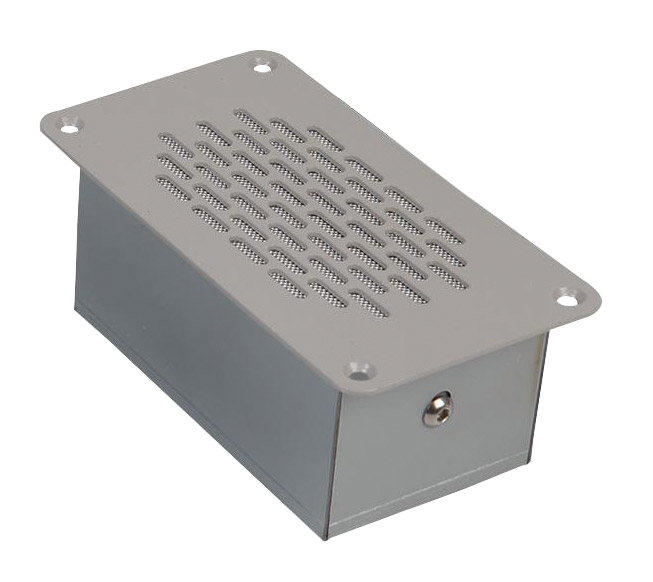

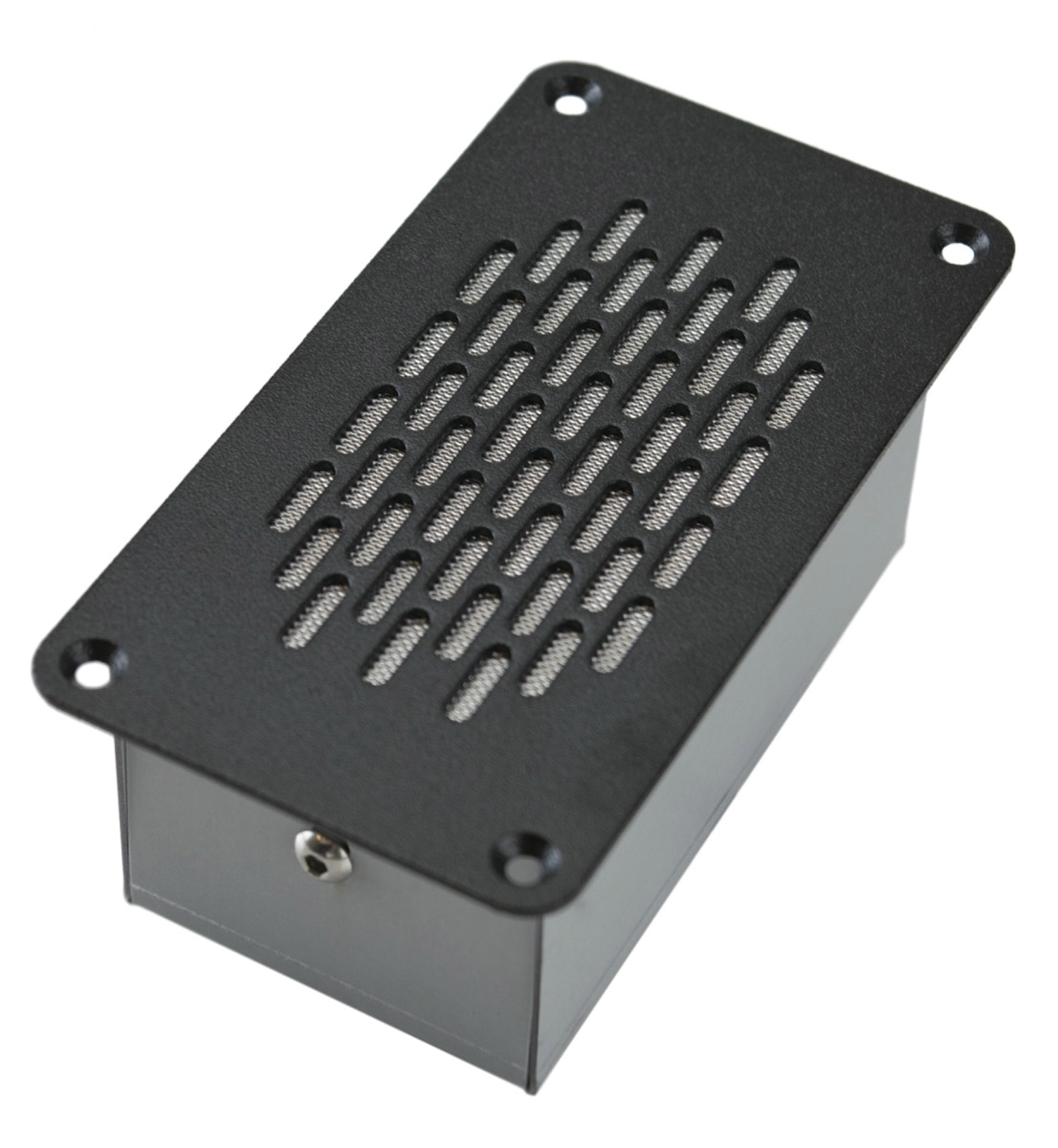

STS-S60 – Loudspeaker

Available in black or grey versions, STS-S60 is a 5watt surface mount loudspeaker designed for Contacta speech transfer systems. Normally found in banks, post offices, ticket kiosks, and information centres, this loudspeaker is a useful addition to any speech transfer system where a screen is involved. The loudspeaker is rated at 5W RMS with an SPL output of 1W at 1m 85dB, and a frequency response of 150Hz to 10.3kHz.

Dimensions (HxWxD): 75 x 60 x 110mm. Weight: 550g.

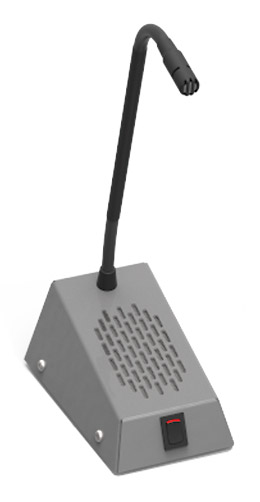

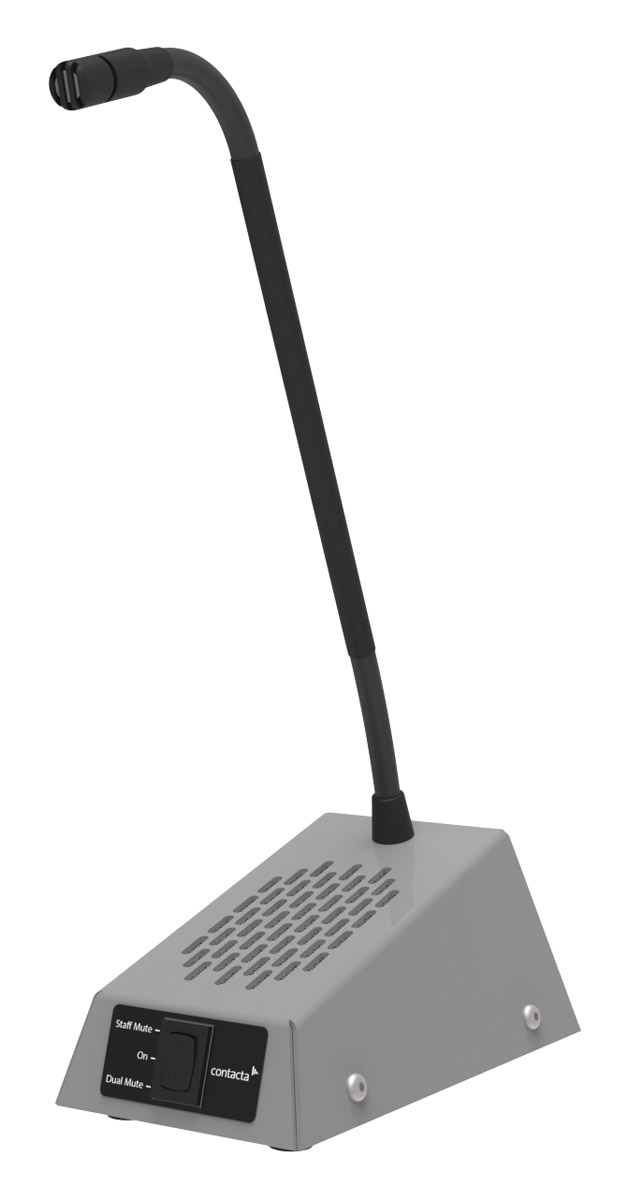

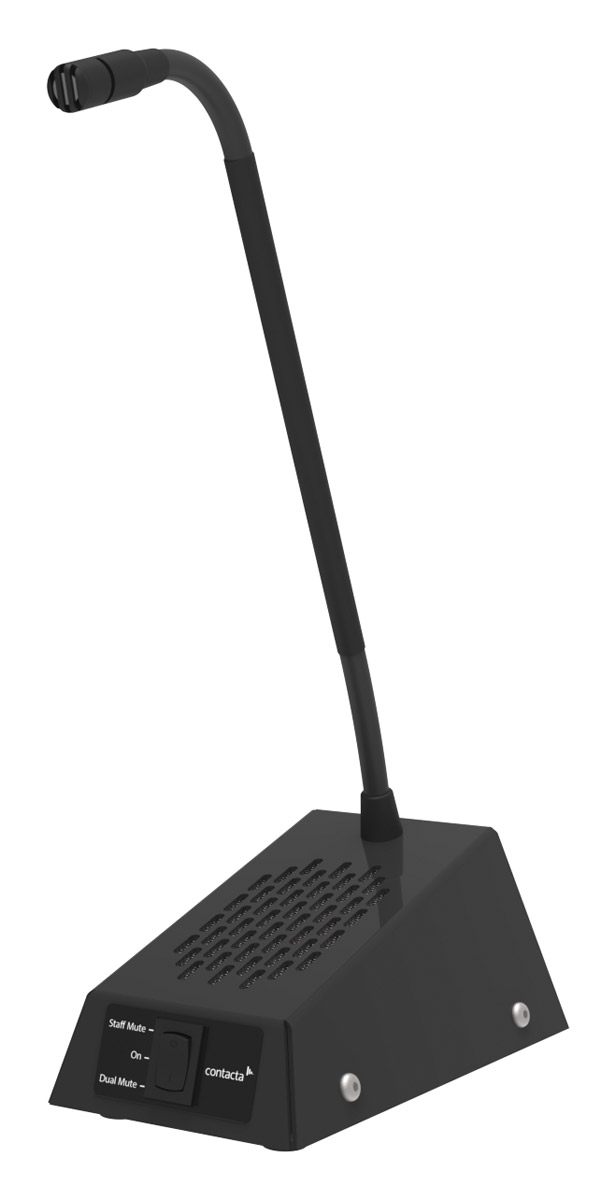

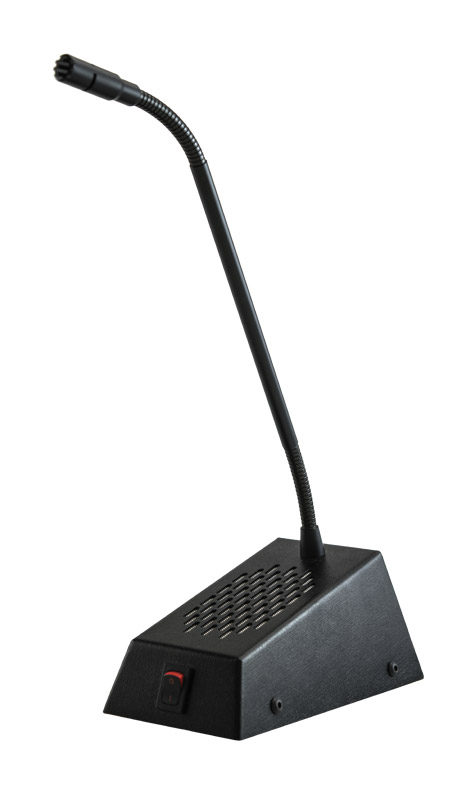

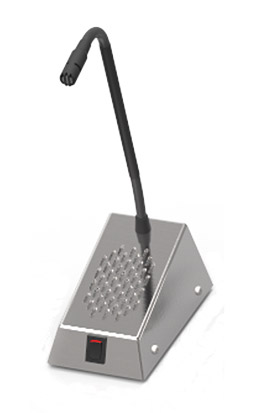

STS-SU1 - Combined microphone and loudspeaker

This free-standing unit is available in grey, black or stainless steel. It is for use on the staff side of the security screen and offers a mute switch for convenience. The cardioid microphone capsule with a frequency response of 150Hz – 10.5kHz and a sensitivity of 49.5dB (at 1kHz), is positioned at the upper end of a semi-rigid stem with adjustable neck. The loudspeaker is rated at 5W RMS with an SPL output of 1W at 1m 85dB.

Dimensions (HxWxD): 370 x 95 x 150mm. Weight: 820g.

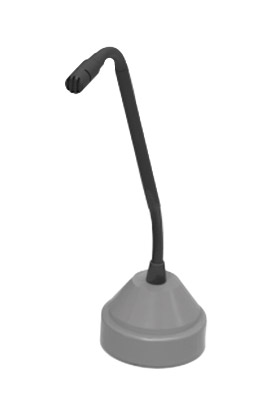

STAFFMIC-01-NWB - Free standing microphone

This manufactured in mild steel for durability. A 300mm flexible gooseneck is attached to a round base with a diameter of 70mm to give a total height of 340mm and weight of 950g. The microphone has a cardioid pick-up pattern, a frequency response of 150Hz - 10.5kHz and a sensitivity of 49.5dB at 1kHz.

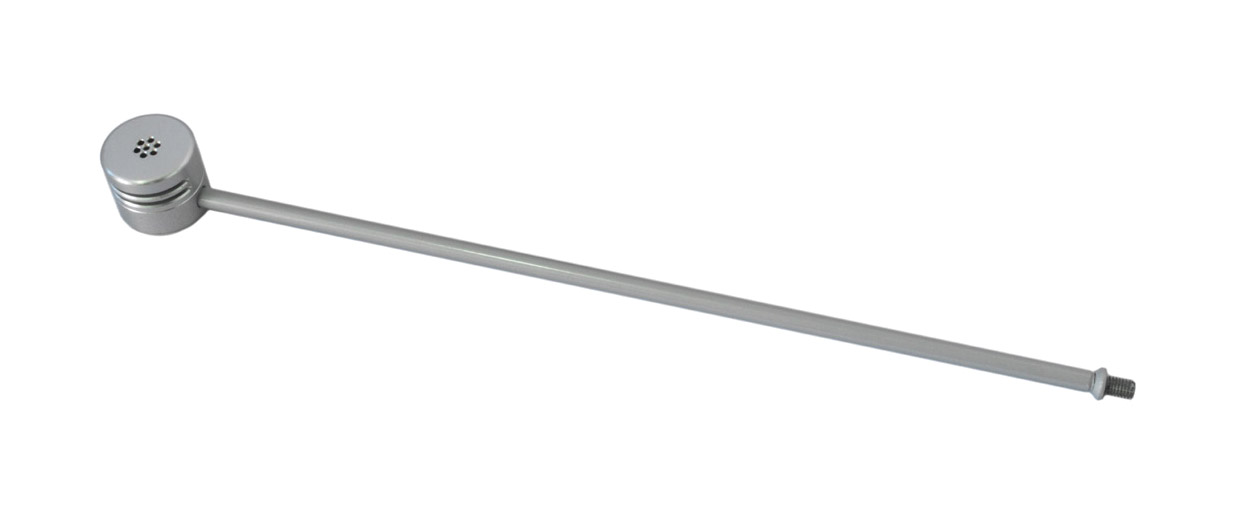

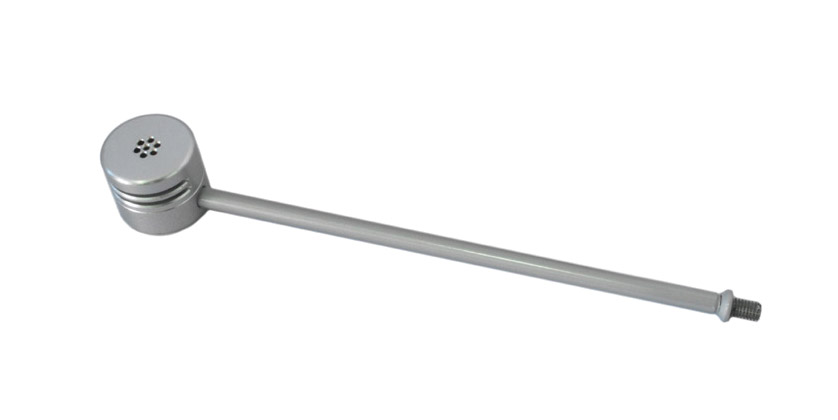

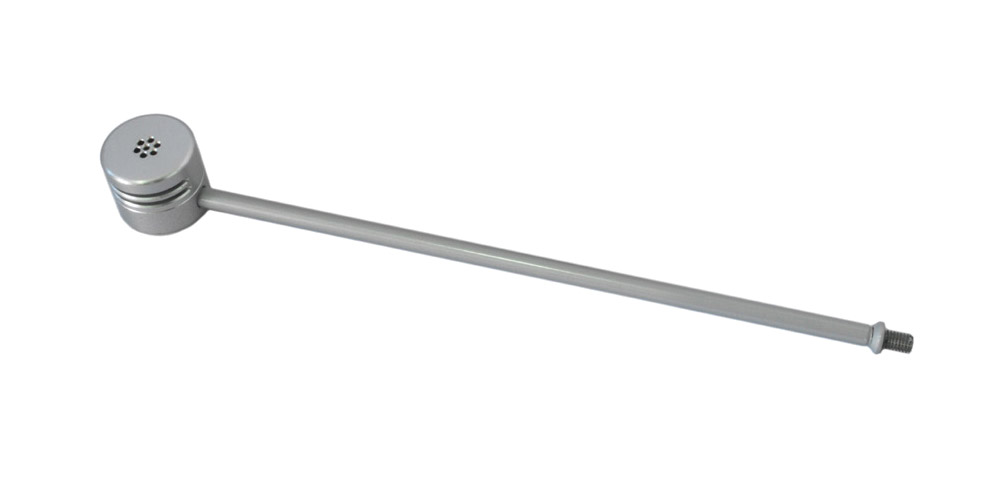

STS-M14-120, STS-M14-200, STS-M14-300 - Anti-vandal microphone

Available in three lengths - 120mm, 200mm, or 300mm; STS-M14 is a straight stemmed unidirectional microphone designed for use with compatible Contacta speech transfer system. The microphones has a frequency response of 100Hz to 5kHz, with a distortion level of less than 1percent. Construction material is aluminium with silver anodised finish.

Dimensions (Diam x L); 30 x 120/200/300mm. Weight: 0.4/0.45/0.5kg.

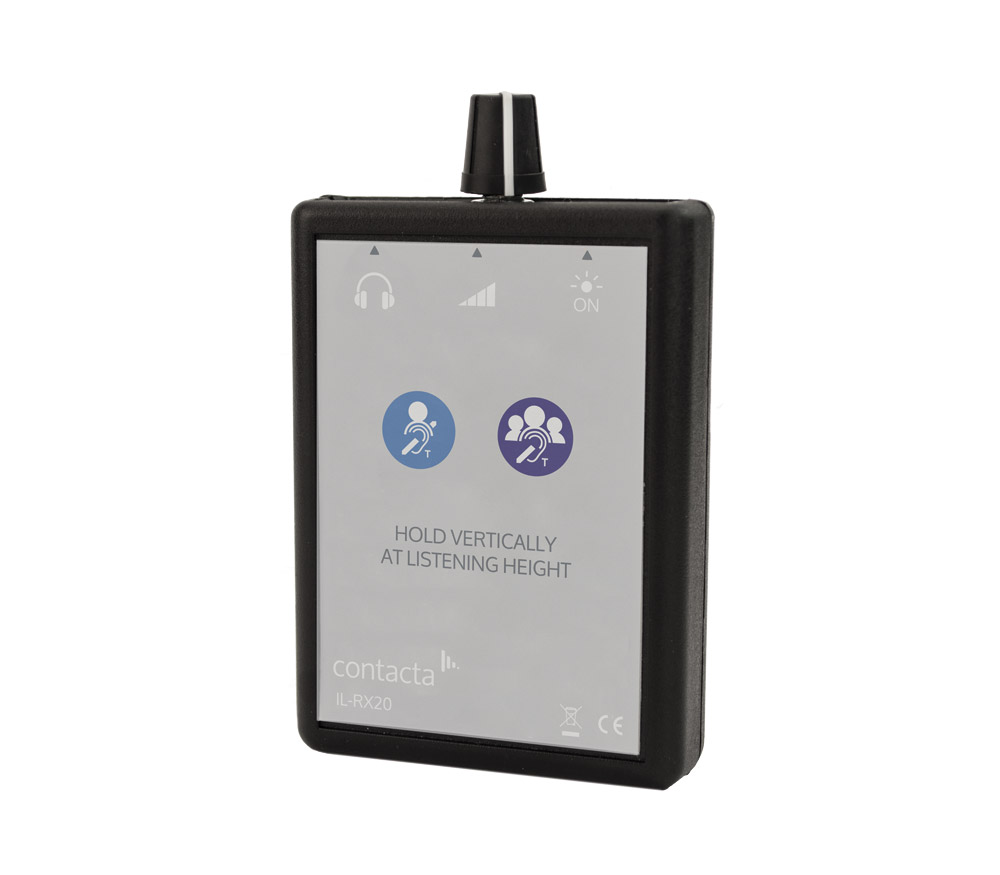

IL-RX20 - Loop Listener

The IL-RX20 Loop Listener is a compact listening device designed for use and interaction with hearing loop systems whereby an engineer can listen to the hearing loop system as though they were wearing a compatible hearing aid switched to the 'T' position. The two included alkaline AAA batteries will give more than 100 hours life; a rotary volume control doubles as on/off switch. An LED illuminates to signify power on. The included headphones are connected via 3.5mm jack socket located on the top of the IL-RX20.

Dimensions (HxWxD): 240 x 165 x 40mm. Weight: 550g, with headphones.

Note: Contacta products are only available for sale to customers in the UK and Ireland.

  Bezeichnung Preis €
zzgl. MwSt.
Hinzufügen
Versand
CONTACTA STS-K070 SPEECH TRANSFER SYSTEM Open duplex amp, for safety screen, discreet microphone Artikelnummer: 26-351
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
348,08 €
CONTACTA STS-K071 SPEECH TRANSFER SYSTEM Open duplex amp, for safety screen, pod microphone Artikelnummer: 26-352
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
390,68 €
CONTACTA STS-K072 SPEECH TRANSFER SYSTEM Open duplex amp, for safety screen, screen mounted mic Artikelnummer: 26-353
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
494,80 €
CONTACTA STS-K001L-G SPEECH TRANSFER SYSTEM Bridge bar kit, with hearing loop, grey Grey Artikelnummer: 26-358
Dieses Produkt wird speziell für Ihre Bestellung eingekauft. Bei Stornierung können Gebühren entstehen, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
604,52 €
CONTACTA STS-K001L-B SPEECH TRANSFER SYSTEM Bridge bar kit, with hearing loop, black Black Artikelnummer: 26-368
Dieses Produkt wird speziell für Ihre Bestellung eingekauft. Bei Stornierung können Gebühren entstehen, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
604,52 €
CONTACTA STS-B80-B SPEECH TRANSFER SYSTEM Bridge bar microphone and speakers, black Black Artikelnummer: 26-370
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
336,18 €
CONTACTA STS-B80-G SPEECH TRANSFER SYSTEM Bridge bar microphone and speakers, grey Grey Artikelnummer: 26-371
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
336,18 €
CONTACTA STS-K060 SPEECH TRANSFER SYSTEM Slimline bridge bar, with hearing loop, stainless steel Stainless Steel Artikelnummer: 26-369
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
867,51 €
CONTACTA STS-K002L-G SPEECH TRANSFER SYSTEM Surface mount kit, with hearing loop, grey Grey Artikelnummer: 26-356
2 lieferbar Mehr benötigt?
500,75 €
CONTACTA STS-K002L-B SPEECH TRANSFER SYSTEM Surface mount kit, with hearing loop, black Black Artikelnummer: 26-366
11 lieferbar Mehr benötigt?
500,75 €
CONTACTA STS-K058 SPEECH TRANSFER SYSTEM Bent screen-mounted mic, freestanding speakers, grey Grey Artikelnummer: 26-360
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
604,52 €
CONTACTA STS-K003L-G SPEECH TRANSFER SYSTEM Flush mount kit, with hearing loop, grey Grey Artikelnummer: 26-357
Dieses Produkt wird speziell für Ihre Bestellung eingekauft. Bei Stornierung können Gebühren entstehen, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
500,75 €
CONTACTA STS-K003L-B SPEECH TRANSFER SYSTEM Flush mount kit, with hearing loop, black Black Artikelnummer: 26-3811
Dieses Produkt wird speziell für Ihre Bestellung eingekauft. Bei Stornierung können Gebühren entstehen, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
500,75 €
CONTACTA STS-K015-01 SPEECH TRANSFER SYSTEM Dual overhead speakers, with hearing loop, grey Grey Artikelnummer: 26-359
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
841,33 €
CONTACTA STS-K062 SPEECH TRANSFER SYSTEM Anti-vandal microphone, 2x overhead speakers Artikelnummer: 26-361
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
604,52 €
CONTACTA STS-K064 SPEECH TRANSFER SYSTEM Anti-vandal microphone, 1x overhead speaker Artikelnummer: 26-362
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
515,63 €
CONTACTA STS-A31H SPEECH TRANSFER AMPLIFIER Full open duplex Artikelnummer: 26-3812
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
166,60 €
CONTACTA STS-SJB-RJ BREAKOUT BOX Push button mute, RJ11 connection Artikelnummer: 26-3814
4 lieferbar Mehr benötigt?
104,13 €

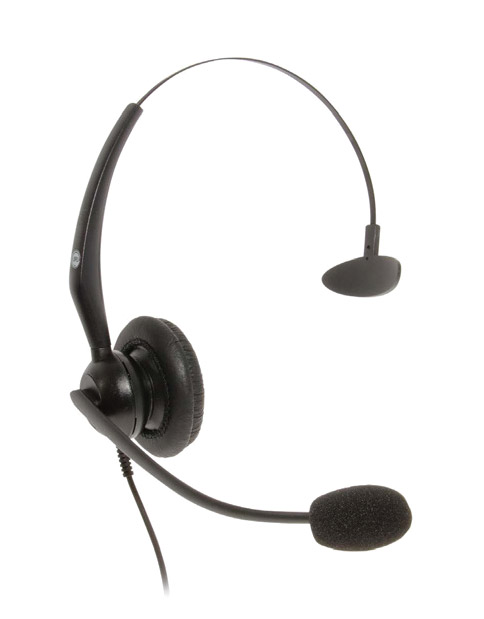

CONTACTA RJ11 1 HEADSET Single ear, electret microphone, RJ11 connector Artikelnummer: 26-311
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
52,56 €
CONTACTA RJ11 2 HEADSET Dual ear, electret microphone, RJ11 connector Artikelnummer: 26-312
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
58,51 €
CONTACTA STS-S60 INTERCOM LOUDSPEAKER Surface mount, 5W, grey Grey Artikelnummer: 26-373
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
107,10 €
CONTACTA STS-S60 INTERCOM LOUDSPEAKER Surface mount, 5W, black Black Artikelnummer: 26-374
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
107,10 €
CONTACTA STS-M14-120 MICROPHONE Anti-vandal, unidirectional, 120mm stem, grey Grey Artikelnummer: 26-363
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
104,13 €
CONTACTA STS-M14-200 MICROPHONE Anti-vandal, unidirectional, 200mm stem, grey Grey Artikelnummer: 26-364
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
104,13 €
CONTACTA STS-M14-300 MICROPHONE Anti-vandal, unidirectional, 300mm stem, grey Grey Artikelnummer: 26-365
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
107,10 €
CONTACTA STS-SU1-G MICROPHONE With loudspeaker, semi-rigid stem, free-standing, grey Grey Artikelnummer: 26-3815
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
198,25 €
CONTACTA STS-SU1-B MICROPHONE With loudspeaker, semi-rigid stem, free-standing, black Black Artikelnummer: 26-3816
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
198,25 €
CONTACTA STS-SU1-SS MICROPHONE With loudspeaker, semi-rigid stem, free-standing, stainless steel Stainless Steel Artikelnummer: 26-3817
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
224,08 €
CONTACTA STAFFMIC-01-NWB MICROPHONE Cardioid, 300mm gooseneck, flexible, free-standing Artikelnummer: 26-3818
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 3‑5 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
130,90 €
CONTACTA IL-RX20 LOOP LISTENER Hearing loop listener, rotary volume control, includes headphones Artikelnummer: 26-3819
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 2‑3 Arbeitstage. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
64,46 €
CONTACTA IL-AE99 LOOP AERIAL Copper wire, spare Artikelnummer: 26-372
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
18,84 €
CONTACTA PS-55-01-UK POWER SUPPLY 14V, 2.14A, black Black Artikelnummer: 26-378
Dieses Produkt wird speziell für Ihre Bestellung eingekauft, lieferbar in 1‑2 Wochen. Brauchen Sie diesen Artikel schneller? Rufen Sie uns an
27,76 €
